Antec HCG High Current Gamer 850M PSU - ATX 12V
  • 80 PLUS Bronze Certified, 120mm Fan, Modular Cables, SLI Ready & AMD Crossfire Certified, 8x SATA, 2x PCI-E 8-pin, 2x PCI-E 6-pin

IMG 1 of 1
No Longer Available
Part Number:
406781
(?) Brand:
Antec Web Site
Manuf No:
0-761345-10780-8
0761345107808
Shipping Weight:
8 KG (Includes product packaging)
Estimate Shipping
Date Added:
6/4/2016
Details Files Images & Video
All stock codes associated to this product
0761345107808, 0-761345-10780-8, ANTPSUHCG850M, ANT-PSU-HCG850M

Antec HCG 850M  Gaming PSU 80+ Bronze Modular ATX 12V v2.2, EPS 12V, 120mm Fan, Modular Cables, SLI Ready 8x SATA, 2x PCI-E 8-pin, 2x PCI-E 6-pin



Overview

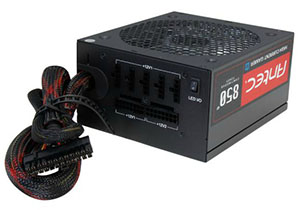

The front is offered with a variety of power connectors

Antecs HCG M power supplies are the perfect combination of power and efficiency. The HCG M features special heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb efficiency thanks to 80 PLUS Bronze certification and Active PFC. HCG Ms innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins. Highest-quality connectors, Japanese-brand capacitors, and a quiet 135mm double ball bearing LED fan complete the package. CircuitShield makes the HCG-850M safe and reliable in any environment with its nine industrial-grade protections. If loads of power, High Current engineering and extreme efficiency are what youre after, the HCG M is the PSU for you.

icon for 80plus bronzeicon for SLIicon for quiet computingicon for Intel Haswellicon for aq5



Features

  • 850W Continuous Power - Guaranteed 850W of Continuous Power from Antec
  • 80 PLUS Bronze Certified - Up to 88% efficient, to reduce your electricity bill
  • AQ5 - Antec Quality 5-year warranty and lifetime global 24/7 support
  • 16-Pin Socket - Industry-leading 16-pin sockets double the modular connectivity by supporting two different 8-pin cables per socket and allow for future connector changes
  • 135mm LED DBB Silence - Whisper-quiet high-quality double ball bearing LED fan with long lifetime
  • Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
  • High Current Rails - Two +12V rails with high load capabilities ensure maximum CPU & GPU compatibility
  • 98.8% +12V - Output for maximum CPU & GPU support
  • Multi PCI-E - Four PCI-E connectors for multiple GPU support
  • NVIDIA SLI-Ready & AMD Crossfire Certified - Tested & certified by NVIDIA for SLI & AMD for Crossfire systems
  • CircuitShield - Full suite of industrial grade protections:


  • Over Current Protection (OCP)


  • Over Voltage Protection (OVP)


  • Under Voltage Protection (UVP)


  • Short Circuit Protection (SCP),


  • Over Power Protection (OPP)


  • Over Temperature Protection (OTP) & Surge & Inrush Protection (SIP)
  • Japanese Heavy-Duty Caps - High-performance Japanese capacitors ensure tightest DC stability and regulation
  • Stealth Wires - All wires darkened for minimal visibility in chassis

OUTPUT

+3.3V

+5V

+12V1

+12V2

-12V

+5Vsb

25A

25A

40A

40A

0.5A

3A

150W

840W

6W

15W

Combined Output: 850W

INPUT

Input Voltage

100VAC ~ 240VAC ~ 10% (Active PFC)

Input Frequency Range

50Hz - 60Hz, 12A - 6A

Specifications

Brand

:

Antec

Series

:

HCG M

Type

:

ATX12V

Maximum Power

:

850W

Fans

:

135 mm LED DBB Silence - Whisper-quiet high-quality LED double ball bearing fan with long lifetime

PFC

:

Active

Main Connector

:

20+4Pin

+12V Rails

:

2

PCI-Express Connector

:

4 x 6+2-Pin

SATA Power Connector

:

9

SLI

:

SLI Ready

Haswell Support

:

Yes

Crossfire

:

CrossFire Certified

Modular

:

Modular

Efficiency

:

Up to 88%

Energy-Efficient

:

80 PLUS BRONZE Certified

Over Voltage Protection

:

Yes

Input Voltage

:

100 - 240 V

Input Frequency Range

:

50/60 Hz

Output

:

+3.3V@25A, +5V@25A, +12V1@40A, +12V2@40A, [email protected], +5Vsb@3A

Approvals

:

UL, cUL, CE, TUV, CB, FCC, CCC, C-Tick, BSMI, Gost-R

Dimensions

:

3.4" x 5.9" x 6.7"

Weight

:

4.7 lbs.



Protection

Over Voltage Protection

:

Yes

Short Circuit Protection

:

Yes

Under Voltage Protection

:

Yes

Over Current Protection

:

Yes

Over Power Protection

:

Yes

Over Temperature Protection

:

Yes

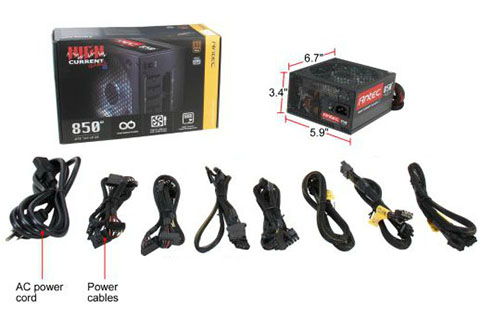

What's in the Box

what's in the box



No additional files, specification sheets, guides or documentation found for product.

Warranty: 5 years RTB

Full manufacturers warranty details are available at the manufacturers (Antec) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
