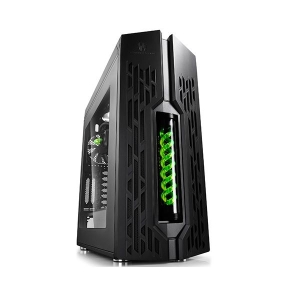

Deepcool Black Genome Liquid Cooled Mid Tower Case - NO PSU, Black - Green Coolant
  • 3.5"x 2, 2.5"x 4, 360mm Internal Radiator, 120mm x1 Fan, HD Audio x1, USB3.0 x 2, ATX

IMG 1 of 1
No Longer Available
Part Number:
407992
(?) Brand:
Deepcool
Manuf No:
DP-ATXLCS-GEN-BKGN
DPATXLCSGENBKGN
Shipping Weight:
35 KG (Includes product packaging)
Estimate Shipping
Date Added:
20/5/2016
Details Files Images & Video
All stock codes associated to this product
DPATXLCSGENBKGN, DP-ATXLCS-GEN-BKGN

Overview

PC enthusiasts have been reporting for years that it is quite difficult for many consumers to build an extreme liquid cooled PC system by themselves. Enter the Deepcool Genome! More than just your typical PC chassis, Genome is a game changing hardware component, consisting of a mid tower case and an extreme performance liquid cooling system. The preinstalled cooling system consists of a 360mm radiator, three PWM fans, reservoir and forward facing helix offering users not only great cooling performance but also an aesthetically pleasing, highly original design.

Features

  • Extreme liquid cooling solution, including an ATX PC case and integrated liquid cooling system
  • 360mm radiator, 3 patented 2-layer blade PWM fans, reservior and helix are pre-installed
  • Innovative structure with separated functional areas provides extended support
  • Cable management support for better cooling and tidy arrangement of cables
  • LED lights (white) on liquid cooling fans, water pump and front glass tube
  • Extra space reserved for water cooling system
  • Unique shape of top panel for better cooling effect
  • Extra slots for vertical GPU installation(PCI-E extension cable is not included)
  • Bigger cutout for easier CPU cooler installation
  • USB3.0*2
  • With rubber buffer and dust filter for PSU
  • Side window for better view

Highlights

  • ATX PC chassis with an integrated multi-socket Captain 360 AIO liquid cooler.
  • Preinstalled 360mm radiator, PWM LED fans, reservoir & helix.
  • Controllable lighting effects around the reservoir.
  • Separated functional areas.

Chassis Details

  • Market orientation: Enthusiast.
  • Case type: Mid tower.
  • Case dimensions (LxWxH): 506mm x 210mm x 505mm.
  • Material: Steel & plastic.
  • 5.25" drive bays: 0.
  • 3.5" drive bays: 2.
  • 2.5" drive bays: 4.
  • Compatible motherboard sizes: Standard & Micro ATX + Mini ITX.
  • Rear expansion slots: 7.
  • Case cable management or ducting system: Yes.
  • Preinstalled liquid cooling internal radiator: 360mm.
  • Included front panel cooling fans: 0.
  • Included rear panel cooling fans: 1x 120mm.
  • Total available case fan mounting positions: 6.
  • Included AC97 I/O ports: 0.
  • Included HD Audio I/O ports: 1.
  • Included USB2 I/O ports: 0.
  • Included USB3 I/O ports: 2.
  • Included e-SATA I/O ports: 0.
  • Included IEEE1394 FireWire I/O ports: 0.
  • Included I/O port location: Front top.

Specifications

Motherboards

(MAX:305275MM)ATX-L/ATX/MICRO ATX/MINI-ITX

Materials

SGCC+PLASTIC (ABS)(Panel thickness: 0.8mm)

Product Dimension (LxWxH)

506210505 MM

Net Weight

9.77 kg

Gross Weight

12.09 kg

3.5" Drive Bays

2

2.5" Drive Bays

4

I/O Panel

2USB3.0/Audio(HD)1/Mic1

Expansion Slots

7  (plus 2 extra slots for vertical VGA card installation)

Cooling Fans

Pre-installed: Rear: 1120mm fan;  Optional:

Front: 2120mm; Top: 3120mm/2140mm

Power Supply Type

ATX PS2

VGA Compatibility

330mm

Carton Dimension

575285600 mm

Color of LED Lights

White

Radiator Dimensions

395X120X32mm

Fan Dimensions

120X120X25mm(3PCS)

Fan Speed

500200-180010%RPM (4Pin)

Fan Air Flow

229.56CFMMAX

Fan Noise Level

17.6~31.3dB(A)

Fan Bearing Type

Hydro Bearing

Fan Rated Voltage

12VDC

Fan Rated Current

0.1810%A(MAX)

Fan Power Consumption

2.16W

Pump Connector

3Pin

Pump Operating Voltage

6~13.8VDC

Pump Rated Voltage

12VDC

 Pump Speed

220010%RPM

 Pump Load Current

0.1615%A

 Pump Power Consumption

1.92W

 Net Weigt

209310g (liquid cooling system only)
