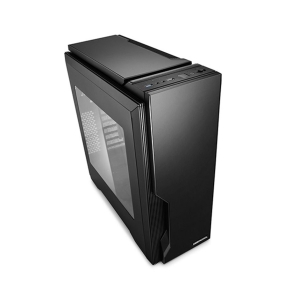

Deepcool Dukase V2 Mid Tower Case - NO PSU, Black
  • 5.25"x 2, 3.5" x3, 2.5" x3, 120mm x1 Fan, HD Audio x1, USB2.0 x1, USB3.0 x1, ATX & Micro ATX, Mini ITX

IMG 1 of 1
No Longer Available
Part Number:
407999
(?) Brand:
Deepcool
Manuf No:
DP-ATX-DUKBK2BF
DPATXDUKBK2BF
Shipping Weight:
25 KG (Includes product packaging)
Estimate Shipping
Date Added:
20/5/2016
Details Files Images & Video
All stock codes associated to this product
DPATXDUKBK2BF, DP-ATX-DUKBK2BF

Overview

The new mainstream ATX chassis DUKASE V2 features special suspension style design and ODD free metal front panel not only unifies the whole appearance to create a simple, characteristic aesthetic but ensures superior ventilation. Meanwhile, the exquisite structure & optimized design make it be an excellent choice for PC enthusiasts who want a PC chassis with both high performance and aesthetics.

Characteristics

  • Special suspension style design of top panel, easy for cleaning and excellent for cooling.
  • Fan speed controller on the top can adjust 3 fans at the same time.
  • High-quality electrostatic powder coating offers a superior touch sensation.

Optimized

  • Amazing side window reveals the interior and ensures a perfect visible effect.
  • Wider space and logical holes design offer a better cable management.

Practical

  • The ODD free metal front panel not only keeps a nice appearance but ensures the whole build to get a better ventilation performance.

Detailed

  • Exquisite structure & optimized design

Highlights

  • Independent mounting positions for 2.5" SSD
  • Preset one 2.5" spare mounting holes
  • Newly designed metal material 3.5 inch HDD bracket Support standard ATX PSU
  • Movable 5.25"bracket offers ample room for DIY
  • Special designed LED strip mounting slots for lighting up your rig
  • Bigger cutout for easier CPU cooler installation
  • Suspension style top panel.
  • Metal front panel.
  • LED strip mounting slots.
  • Fan speed switch.

Chassis Details

  • Market orientation: System builder & budget gaming.
  • Case type: Mid tower.
  • External colour: Black.
  • Internal powder coating colour: Black.
  • Case dimensions (LxWxH): 483mm x 202mm x 504mm.
  • Material: Steel & plastic.
  • 5.25" drive bays (external): 2.
  • 3.5" drive bays (external): 0.
  • 3.5" drive bays (internal): 3.
  • 2.5" drive bays (internal): 3.
  • Compatible motherboard sizes: Standard & Micro ATX, Mini ITX.
  • Rear expansion slots: 7.
  • Case cable management or ducting system: Yes.
  • Included front panel cooling fans: 0.
  • Included rear panel cooling fans: 1x 120mm.
  • Included top panel cooling fans: 0.
  • Included side panel cooling fans: 0.
  • Included AC97 I/O ports: 0.
  • Included HD Audio I/O ports: 1.
  • Included USB2 I/O ports: 1.
  • Included USB3 I/O ports: 1.
  • Included e-SATA I/O ports: 0.
  • Included IEEE1394 FireWire I/O ports: 0.
  • Included I/O port location: Top front.

Specifications

Materials

SPCC+PLASTIC (ABS)(Panel thickness: 0.7mm)

Product Dimension

L482.7W202H504mm

Weight

Net.:  7.03kg  Gross: 8.27kg

5.25" Drive Bays

2

3.5" Drive Bays

1  External (for floppy drive or 3.5" card-reader)

3.5"/2.5"Drive Bays

2

2.5" Drive Bays

3

I/O Panel

1USB3.0/1USB2.0/Audio(HD)1/Mic1

Expansion Slots

 7  (slot covers fixed by screws for easy removing and reuse)

Cooling Fans

Pre-installed: Rear: 1120mm fan;  Optional:

Front: 2120mm or 1140mm

Top: 2120/140mm

Power Supply Type

ATX PS2(Length less than 170mm)

CPU Cooler Compatibility

160mm height

Liquid Cooler: 120/240/140/280mm at top, 120mm at rear

VGA Compatibility

390mm

Motherboards

ATX/MICRO ATX/MINI-ITX

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year

Full manufacturers warranty details are available at the manufacturers web site.
