Description

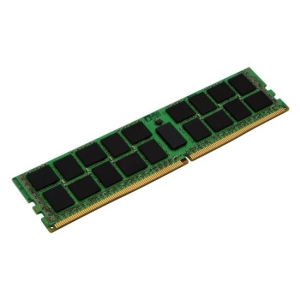

ValueRAM's KVR24R17D8/16 is a 2G x 72-bit (16GB) DDR4-2400 CL17 SDRAM
(Synchronous DRAM) registered w/ parity, 2Rx8, ECC, memory module, based on
eighteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard
latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold
contact fingers. The electrical and mechanical specifications are as follows:
Features
- Power Supply: VDD=1.2V (1.14V to 1.26V
- VDDQ = 1.2V (1.14V to 1.26V)
- VPP - 2.5V (2.375V to 2.75V)
- VDDSPD=2.25V to 2.75V
- Functionality and operations comply with the DDR4 SDRAM datasheet
- 16 internal banks
- Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the
banks in the same or different bank group accesses are available
- Data transfer rates: PC4-2400, PC4-2133, PC4-1866, PC4-1600
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Supports ECC error correction and detection
- On-Die Termination (ODT)
- Temperature sensor with integrated SPD
- This product is in compliance with the RoHS directive.
- Per DRAM Addressability is supported
- Internal Vref DQ level generation is available
- Write CRC is supported at all speed grades
- CA parity (Command/Address Parity) mode is supported
Specifications
CL(IDD) |
: |
17
cycles |
Row Cycle Time
(tRCmin) |
: |
46.16ns(min.) |
Refresh to
Active/Refresh Command Time (tRFCmin) |
: |
350ns(min.) |
Row Active Time
(tRASmin) |
: |
32.00ns(min.) |
Maximum Operating
Power |
: |
TBD
W* |
UL
Rating |
: |
94 V -
0 |
Operating
Temperature |
: |
0o C to +85o
C |
Storage
Temperature |
: |
-55o C to +100o
C |
*Power
will vary depending on the SDRAM
used. |
