Overview

The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).

In addition, the CS1764A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.

As a KVM switch, it allows users to access four computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.

Compatible Accessories

KVM Cables

  • 2L-7D02U - Length: 1.8m
  • 2L-7D03U - Length: 3m
  • 2L-7D05U - Length: 5m

DVI Cables

  • 2L-7D02I - Length: 1.8m

Compatible Products

KVM Extenders

  • CE604

Package Contents

  • 1x CS1764A USB 2.0 DVI KVMP™ Switch
  • 4x Custom KVM Cable Sets (DVI-D)
  • 1x Power Adapter
  • 1x User Instructions

Patent No.

CN ZL 02824593.8 , CN ZL 200810098847.2 , CN ZL 200810130443.7 , EP 1451696 , JP 4558319 , JP 4651633 , JP 5232209 , TW 203183 , TW I220489 , TW I403920 , TW I434198 , US 8589141 , US 6464197 , US 6564275 , US 6957287 , US 7340556 , US 7472217 , US 8140734 , US 8176226

Features

  • One USB console controls four DVI computers and two additional USB 2.0 devices
  • 2-port USB 2.0 hub built in
  • Fully compliant with the USB 2.0 specification
  • Computer selection via front panel pushbuttons and hotkeys
  • Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
  • Multiplatform support - Windows, Linux, Mac and Sun
  • Superior video quality - 1920 x 1200, 60Hz; DDC2B
  • Independent switching of KVM, USB, and Audio focus
  • DVI digital and analog monitor support - fully compliant with the DVI specifications
  • HDCP compliant
  • Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Sun /Mac keyboard support and emulation*
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable via USB

    * 1. PC keyboard combinations emulate Sun/Mac keyboards
    2. Sun/Mac keyboards only work with their own computers

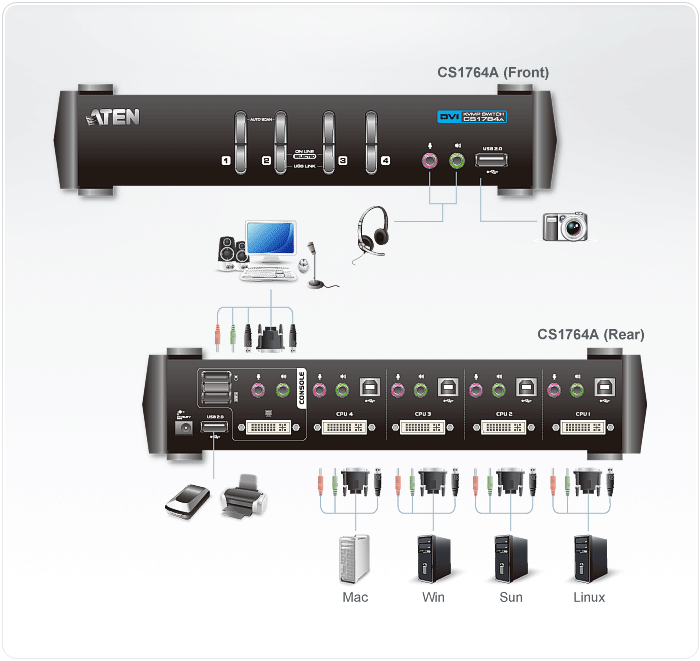

Diagram

CS1764A Diagram

Specifications

Computer Connections

4

Port Selection

Hotkey, Pushbutton, Mouse

Connectors

Console Ports

2 x USB Type A Female (White; front panel)

1 x DVI-I Female (White)

2 x Mini Stereo Jack Female (Green; 1 x front panel; 1 x rear panel)

2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel)

KVM Ports

4 x USB Type B Female (White)

4 x DVI-I Female (White)

4 x Mini Stereo Jack Female (Green)

4 x Mini Stereo Jack Female (Pink)

Power

1 x DC Jack

USB Hub

USB Hub

Switches

Selected

4 x Pushbutton

LEDs

USB Link

4 (Green)

On Line /Selected

4 (Orange)

Emulation

Keyboard / Mouse

USB

Video

1920 x [email protected] 60Hz; DDC2B

Scan Interval

199 Seconds (Default: 5 sec.)

Power Consumption

DC5.3V, 10.7W

Environmental

Operating Temperature

0 - 50C

Storage Temperature

-20 - 60C

Humidity

0-80% RH, Non-condensing

Physical Properties

Housing

Metal

Weight

0.94 kg ( 2.07 lb )

Dimensions (L x W x H)

27.00 x 8.80 x 5.55 cm

(10.63 x 3.46 x 2.19 in.)

* The specification and pictures are subject to change without notice.

* All trademarks and logos are the properties of their respective holders.
