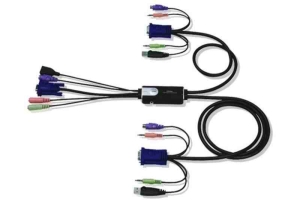

ATEN CS52A 2-Port PS/2 USB VGA/Audio Cable KVM Switch with Remote Port Selector
  • Up to 2048 x 1536 Resoltion

IMG 1 of 1
No Longer Available
Part Number:
409069
(?) Brand:
ATEN
Manuf No:
CS52A-AT
CS52AAT
Shipping Weight:
0.3 KG (Includes product packaging)
Estimate Shipping
Date Added:
4/7/2016
Details Files Images & Video
All stock codes associated to this product
CS52AAT, CS52A-AT, ATCS52A

Overview

Flexible Combinations : PS/2 Keyboard+USB Mouse

Package Contents

  • 1x 2-Port Hybridâ„¢ KVM Switch with Audio
  • 1x Remote Selection Switch (1.8m)
  • 1x User Instructions

Patent No.

US D445764 , US D459308 , US 7035112 , US 7283375 , US 7542299

Features

  • One console (monitor, PS/2 keyboard, and USB mouse) controls two computers
  • Remote port selection switch for convenient switch placement
  • Supports multi-function mice
  • USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
  • Compact design, built in all-in-one cables (console 0.15m; computers 0.6m, 1.2m)
  • Audio (microphone and speaker) enabled -full bass response provides a rich experience for 2.1 surround sound systems
  • Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
  • Superior video quality- up to 2048 x 1536; DDC2B
  • Auto Scan function to monitor computer operation
  • Non-powered
  • OS Compatibility includes Windows 2000/XP/Vista, Linux and FreeBSD.

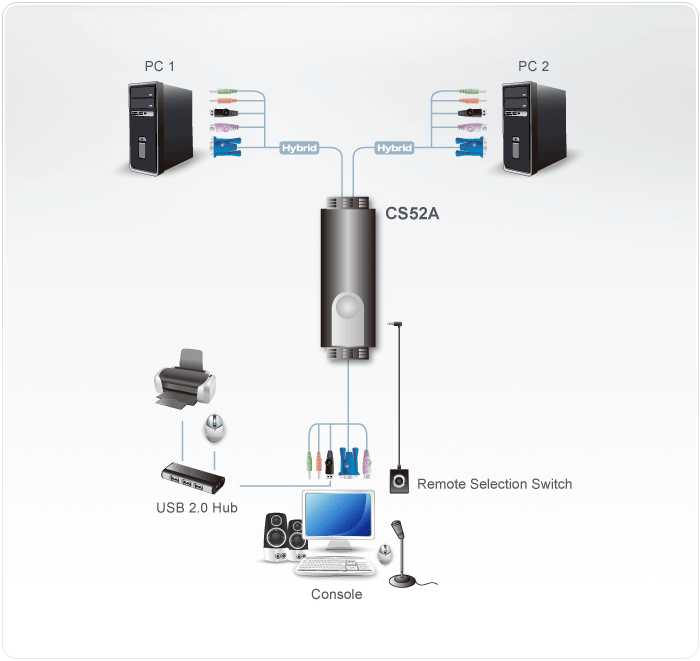

Diagram

CS52A Diagram

Specifications

Computer Connections

2

Port Selection

Hotkey, Remote Port Selector

Connectors

Console Ports

1 x 6-pin Mini-DIN Female (Purple)

1 x HDB-15 Female (Blue)

1 x USB Type A Female (Black)

1 x Mini Stereo Jack Female (Green)

1 x Mini Stereo Jack Female (Pink)

KVM Ports

2 x 6-pin Mini-DIN Male (Purple)

2 x HDB-15 Male (Blue)

2 x USB Type A Male (Black)

2 x Mini Stereo Plug Male (Green)

2 x Mini Stereo Plug Male (Pink)

Remote Port Selector

1 x Mini Stereo Jack

LEDs

Selected

2 (Green)

Cable Length

Console

0.15m

Computer

0.6m, 1.2m

Emulation

Keyboard / Mouse

PS/2

Video

2048 x 1536; DDC2B

Scan Interval

3, 5, 10, 20 Seconds

Environmental

Operating Temperature

0-50C

Storage Temperature

-20-60C

Humidity

0-80% RH, Non-condensing

Physical Properties

Housing

Plastic

Weight

0.40 kg ( 0.88 lb )

Dimensions (L x W x H)

8.45 x 3.40 x 2.21 cm

(3.33 x 1.34 x 0.87 in.)

* The specification and pictures are subject to change without notice.

* All trademarks and logos are the properties of their respective holders.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.
