All stock codes associated to this product
UEH4002ATU, UEH4002-AT-U, ATUEH4002, USAUEH4002, USA-UEH-4002, II37214, 4710423778047, 4719264645938
Overview
The UEH4002 incorporates patented ExtremeUSB ® technology that enables users
to extend beyond the standard 5 m cable limit for USB peripheral devices. Up to
14 USB devices can be connected to the Remote unit up to 100 meters from the
computer.
UEH4002 provides a durable, high quality connection that harnesses the full
capability of the USB 2.0 standard, to ensure the reliable data communication.
With UEH4002, the USB extension is no longer the bottleneck.
Package Contents
Features
-
Extends the USB transmission
distance of up to 100 m
-
Supports all USB 2.0 devices up to
480 Mbps
-
ExtremeUSB - supports transparent
USB 2.0 signals and true plug-and-play (no software or drivers
required)
-
Fully compliant with USB
Electrical and Timing
-
LED indicators display port
focus
-
Works with all major operating
systems: Windows, OS X, and Linux

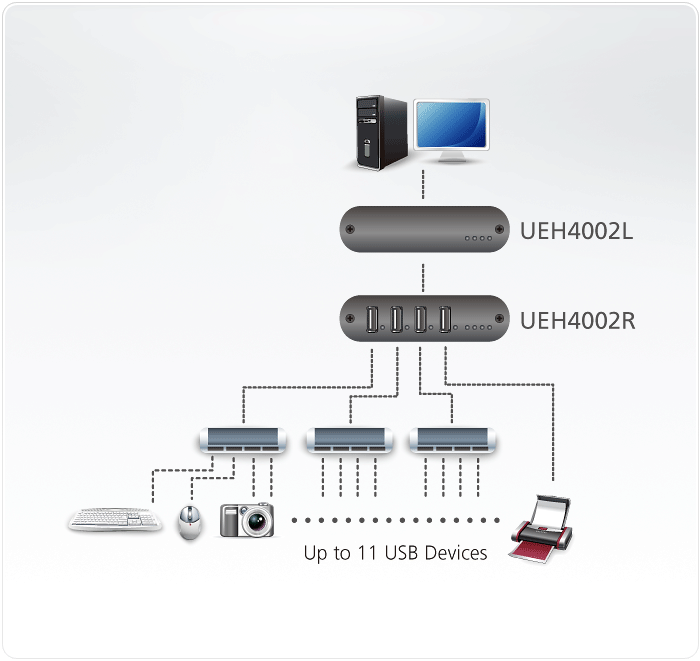

Diagram
Specifications
|
Function |
UEH4002L |
UEH4002R |
|
Connectors |
|
USB
Port |
1 x USB Type B Female
(White) |
1 x RJ-45
Female |
|
Downstream |
1 x RJ-45
Female |
4 x USB Type A Female
(White) |
|
Power |
1 x DC
Jack |
1 x DC
Jack |
|
USB
Specification |
2.0 / 1.1 High / Full /
Low Speed |
2.0 / 1.1 High / Full /
Low Speed |
|
USB Devices
Supported |
N/A |
4 USB
Devices |
|
Maximum USB Devices
Supported |
N/A |
Direct: 4
devices |
|
Cascaded: 3 hubs, 11
devices |
|
Power
Consumption |
DC 5V,
2.5W |
DC 5V,
2.5W |
|
Environmental |
|
Operating
Temperature |
050C |
050C |
|
Storage
Temperature |
-2070C |
-2070C |
|
Humidity |
080% RH,
Non-condensing |
080% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
Metal |
|
Weight |
0.36 kg ( 0.79 lb
) |
0.36 kg ( 0.79 lb
) |
|
Dimensions (L x W x
H) |
10.00 x 7.60 x 2.60
cm |
10.00 x 7.60 x 2.60
cm |
|
(3.94 x 2.99 x 1.02
in.) |
(3.94 x 2.99 x 1.02
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
|
* All trademarks and
logos are the properties of their respective holders. |
|
|
