All stock codes associated to this product
SSTRL05BRW, SST-RL05BR-W
Overview
The Redline series RL05 was created with the goal of exceeding user
experience and expectation for affordable PC chassis by offering punchy styling
and features reserved often for more expensive models. RL05 includes two 140mm
LED fans as intakes to inject large amount of air flow through filter for
SilverStones signature positive pressure setup that not only provides great
cooling but also minimal dust buildup. PSU and drive bay areas have covers to
clearly section off individual components inside for separate cooling zones
while also letting users hide cables for pristine look on the interior. Lastly,
a USB 3.0 Type-C port is located in the front I/O cluster to provide convenient
connection to this reversible plug-in technology. For enthusiasts looking to
build a PC with top-notch features and styling on a budget, the RL05 is an
outstanding choice.
Specifications
|
Model
No. |
SST-RL05BR-W(black with
red trim + window) |
|
-- |
|
-- |
|
-- |
|
Material |
Plastic panel, steel
body |
|
Motherboard |
ATX (up to 12" x
10.2") , Micro-ATX |
|
Multimedia |
-- |
|
Drive
Bay |
External |
5.25" x
1 |
|
-- |
|
Internal |
2.5" or 3.5" HDD x 2,
2.5" x 2 |
|
Cooling
System |
Front |
120/140mm fan slot x 2
(includes 140mm LED fan x 2), 80mm slot x 1 |
|
Rear |
120mm fan slot x
1 |
|
Side |
-- |
|
Top |
120/140mm fan slot x
2* |
|
Bottom |
-- |
|
Internal |
-- |
|
Expansion
Slot |
7 |
|
Front I/O
Port |
USB 3.0 Type-A x 2,
Type-C** x 1 |
|
Audio x
1 |
|
MIC x
1 |
|
Power
Supply |
Standard PS2(ATX) |
|
Operating system
support |
-- |
|
Expansion
Card |
Support graphics card
up to 14.7", width restriction - 6.4" |
|
Limitation of CPU
cooler |
165mm |
|
Limitation of
PSU |
220mm |
|
Net
Weight |
5.9kg |
|
Dimension |
210mm (W) x 465mm (H) x
450mm (D), 44.9 Liters |
|
Extra |
-- |
|
Support VESA
Mount |
-- |
Remark
* Support one 120mm, 140mm, or 280mm
radiator only.
** SuperSpeed USB (USB 3.1 Gen 1) requires
total cable length to be 1 meter (1000mm) or shorter. So we recommend using
external USB Type-C cable with length of 400mm or less due to RL05s internal USB
Type-C cable already taking up 600mm of the total length
requirement.

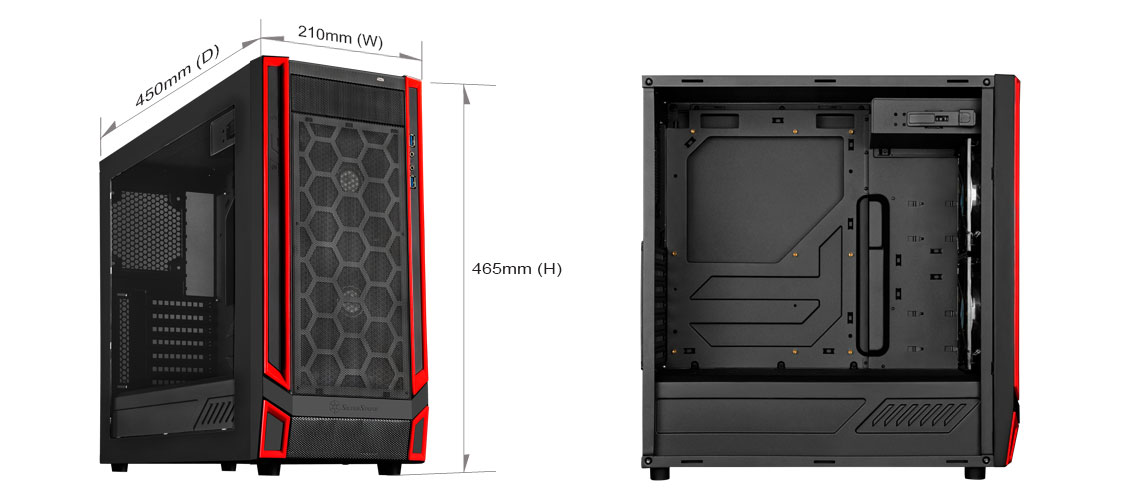

Product
Dimension
