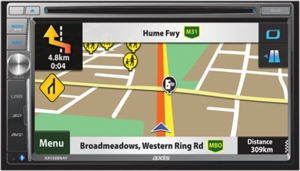

AXIS AX1508NA 6.8" Bluetooth Touchscreen DVD Receiver with Navigation - Black
  • 4x45W, AM/FM, 2xAV Input (Front 3.5mm&Rear RCA), 4 Channel+Sub Preamp, USB/SD-MMC/AUX-In (Front 3.5mm), MP3/WMA

IMG 1 of 1
No Longer Available
Part Number:
410310
(?) Brand:
AXIS
Manuf No:
AX1508NAV
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Date Added:
10/8/2016
Details Files Finance Images & Video
All stock codes associated to this product
AX1508NAV, 9321886012514

Descriptions

  • - Bluetooth
  • - 4 x 45W
  • - Divx
  • - Inputs: 2 x AV Input (Front 3.5mm & Rear RCA)
  • - Outputs: 4 Channel + Sub Preamp
  • - Steering Wheel Control (Programmable)
  • - Australian & New Zealand Mapping
  • - Includes HF Mic, Remote Control
  • - AM/FM
  • - USB/SD-MMC/AUX-In (Front 3.5mm)
  • - MP3/WMA
  • - EQ Presets

Specifications

General

  • - 6.8 WVGA Digital TFT LCD (800 X 480 Pixels)
  • - Cortex A9 Processor
  • - WinCE 6.0 Operating System
  • - Touchscreen Control
  • - Dynamic Graphic User Interface
  • - ISO 2-DIN Mounting
  • - ISO Wiring Harness
  • - RCA Line Output - Front/Rear/Sub
  • - Video Line Out
  • - AV Line In: Rear (RCA)
  • - Reverse Camera Input (Rear)
  • - Steering Wheel Control (Programmable)
  • - 10.5 - 14.4V DC Voltage
  • - Dimensions: 178W x 101.5H x 177.3D mm
  • - Speaker Impedance 4-8 Ohm
  • - Max Power 4 Ch x 45 Watts

Multimedia

  • - USB Input - Front Panel for: XVID/MPEG-1/MPEG-2/MP3/FLAC/APE/JPEG Playback
  • - SDHC / MMC Card Port
  • - AV AUX-IN - Front Panel (3.5mm)
  • - AV Line In: Rear (RCA)
  • - Supports DIVX

Tuner

  • - PLL Synthesized AM/FM Stereo
  • - Xtreme Long Range Tuner
  • - Interference Absorption Circuit
  • - FM 87.5-108 MHz; AM 522-1710 KHz
  • - 30 Station Presets - 18FM/12AM Memory
  • - Station Seek / Scan / Auto Store
  • - Local / Distant Control
  • - Digital Clock - 12/24 Hour Mode

DVD/CD Player

  • - Supports DVD/VCD/CD/MP3/DIVX/JPEG
  • - Supports DVDR/DVDRW/CD-R/RW
  • - Electronic Shock Protection
  • - Zoom/Slow/Multi-Angle/
  • Last Position Memory
  • - Goto/Repeat/Random Play/Track Up-Down
  • - Select Folder/Track/File Search

Audio Control

  • - Rotary Volume Encoder
  • - 8 EQ Presets
  • - 3 Band / 12 Frequency EQ
  • - Loud / Mute

Navigation

  • - R5; PRIMO; WinCE
  • - TTS Engine
  • - Map + POI (AUS + NZ)
  • - 30 Day Map Upgrade

Bluetooth

  • - Bluetooth in Phone Mode
  • - External Microphone
  • - Phone Contacts / History
  • - Dial Pick-Up/Call Transfer
  • - Pair up to 5 devices
  • - A2DP Audio Streaming

Included

  • - External Handsfree Microphone
  • - External GPS Antenna
  • - Remote Control
  • - Mini USB to USB Adaptor
  • - Touchscreen Stylus
  • - Installation Hardware
  • - ISO Wiring Harness

No additional files, specification sheets, guides or documentation found for product.
