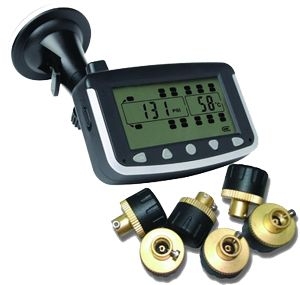

EK215H6 | AXIS External Cap TPMS Tyre Pressure Monitoring System - 6 Sensors, Heavy Vehicle

Specifications

Monitor

• - Reliable & easy to install
• - Large LCD screen
• - Can detect up to 22 Sensors
• - 8~30V DC Power
• - Built in rechargable lithium battery
• - Auto backlight
• - Configurable high/low pressure warnings
• - Configurable high temperature warnings
• - Visible and audible alerts
• - Selectable pressure units
• - Long range between sensors and monitor
• - Per axle measurements can be configured on tractor
• - On-glass holder
• - Operating Temperature: -20C - 80C
• - Charger Input Voltage: DC 8 - 30V
• - Transmission Frequency: 433.92MHz
• - Size: 116(L) x 68(W) x 25(H)mm
• - Weight: 138g

Sensors

• - Reliable cap type
• - Easy to install
• - Water resistant
• - Replaceable sensor batteries (approx 2 year battery life)
• - Fast leakage alert
• - Individually coded sensors
• - Anti-theft design
• - Pressure range: 0 to 188 PSI
• - Operating Temperature: -40C - 80C
• - Pressure Accuracy: 1.5 psi
• - Temperature Accuracy: 3C
• - Transmission Power < 10dBm
• - Transmission Frequency: 433.92MHz
• - Size: 24mm (diameter), 19.5mm (height)
• - Weight: 30g

Optional Repeater (RP02)

For trailer-exchange applications

• - Maintains signal stability
• - Records sensor ID, trailer ID and
• tyre pressure & temperature limits
• - Supports truck & trailer exchange
• - Transferable trailer sensor data between monitor
• - Visible and audible alerts
• - Fixed alerts for high temp (90)

For signal booster application

• - Enhance the signal from sensors and ensure that the stablility of receiving signal from sensors
• - Operating Temperature: -20C - 80C
• - Working Voltage: 12-24V
• - Transmission Power < 18dBm
• - Transmission Frequency: 433.92MHz
• - Size: 91(L) x 38(W) x 15(H)mm
• - Weight: 42g

Optional

• - Add up to 22 Sensors (H188)
• - Transceiver for Trailer (RP02)
