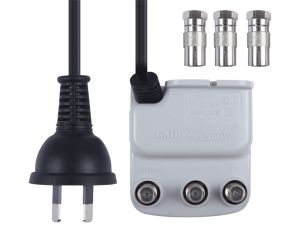

Kingray SA162F Indoor UHF / VHF Splitter Amplifier

IMG 1 of 1
No Longer Available
Part Number:
410366
(?) Brand:
Kingray Web Site
Manuf No:
LT3288
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
11/8/2016
Details Files Images & Video
All stock codes associated to this product
SA162F, LT3288, 9319236066669

SA162F Spitter Amplifier with Dual Output


Overview

The Kingray range of splitter amplifiers have been designed to have superior performance in digital terrestrial enviroments. The characteristics of the components elected provide a very low noise figure, high output level and high return loss.

The SA162F is a VHF/UHF amplifier with a single input and two outputs, designed to be used when you have enough signal for one outlet but insufficient signal for two outlets. It is fitted with F connections, is supplied with F to PAL adaptors and is 240V AC mains powered.

Features:
  • Two outputs
  • High output
  • Low noise
  • F type connectors F to Belling Lee adapters included
  • 3 year warranty



Specifications:

 Frequency Range VHF 44-230 MHz,  UHF 520-860 MHz
 Maximum Gain VHF:12 - 14 dB, UHF: 16
 Maximum Output Level 100 dBµV @ - 60 dB IMR (DIN45004B)
 Noise Figure 3.5 dB
 Input Connector  F type
 Output Connector F type


In the Box:

  • SA162F
  • 3 x F to PAL adapters
  • Installation Manual


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers (Kingray) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
