All stock codes associated to this product

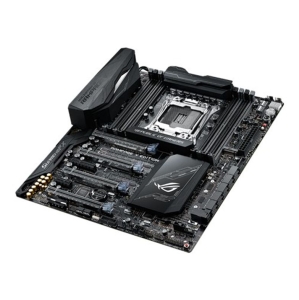

RAMPAGEVEDITION10, RAMPAGE-V-EDITION-10
Overview
Record-breaking X99 motherboard with best overclocking and
gaming innovations |
- Intel® Core™ i7 processors on LGA 2011-v3 socket
| Quad-channel
DDR4 3333 (OC) support |
| Best gaming
lighting: Aura RGB illumination and Aura 4-pin RGB-strip header |
| Best gaming
extra SupremeFX Hi-Fi |
| Best gaming
performance 5-Way Optimization with Auto-Tuning, second-generation T-Topology
and Extreme Engine Digi+ |
| Best gaming
audio Reinvented SupremeFX with intuitive Sonic Studio II |
- Best gaming networking – Best-in-class Intel® Gigabit Ethernet ,LANGuard
and GameFirst technology
| Best gaming
connectivity 3x3 802.11ac Wi-Fi , NVMe U.2, M.2, SATA Express and USB 3.1
Type-A and Type-C for extreme-speed transfers and total compatibility |
| Best gaming
protection SafeSlot, pre-mounted I/O shield, and carefully-selected premium
components for maximum durability. |
| ROG gives you
more More gaming-focused utilities, all free! |
The revered Republic of Gamers (ROG) has delivered exemplary design and
performance to thrill the worlds best gamers and PC enthusiasts for a whole
decade. But our work has only just begun. Gamings glory-seekers have won
countless battles with Rampage V Extreme, and were ramping up the armory with
Rampage V Edition 10 a unique version of our extreme-gaming motherboard,
specialy made to celebrate ROGs 10th anniversary. To be ROG is to be the rebel.
To be ROG is to break every rule. Its time to be the rebel and break every rule,
with Rampage V Edition 10!
BEST GAMING LIGHTING
Build with Rampage V Edition 10 and you'll build BRIGHT! With a built-in Aura
RGB-strip header and easy lighting controls, it's never been easier to light up
your rig and your LAN parties! Rampage V Edition 10 includes the amazing Aura
lighting-control utility to cast stunning multi-color glows across your gaming
rig, via the motherboard's powerful built-in RGB LEDs or attached RGB strips, or
both and in perfect synchronization!
AURA LIGHTING CONTROL
Fire up Aura and then enjoy the creative freedom of nine different lighting
schemes. Youre even able to sync your lighting style with the ever-growing
portfolio of Aura-capable gear.
AURA 4-PIN AURA RGB-STRIP HEADER
Forget the faff of external RGB controllers! With ROG's Aura RGB-strip
header, it's quick and easy to cast brilliant colors across your rig and room:
just slide standard 12V RGB strips onto the 4-pin Aura RGB-strip header, then
weave your lighting any way you like. And, ROG has teamed up with well-known
strip-makers and case manufacturers for great synchronized effects and best
compatibility so you'll light up as easy as RGB wherever you see the Aura Ready
logo!
GAMING UPSCALED AUDIO
ROG knows sound matters to gamers and streamers, and that's why we include a
front-panel headphone amp that delivers sound exactly how the studio intended
pure, unadulterated audio straight to your ears.
SupremeFX Hi-Fi's ESS® ES9018K2M digital-to-analog converter (DAC), dual
Texas Instruments LM4562 op-amps and TPA6120A2 headphone amp work in harmony to
faithfully reproduce every detail without distortion or jitter, so you enjoy
audiophile-grade 32-bit/386kHz, and output of over 6VRMS to your favorite
600-ohm headphones. SupremeFX Hi-Fi has a Cirrus Logic analog-to-digital
convertor (ADC) for exceptional recording quality and, when you crave excitement
over accuracy, fire up ROG's Sonic Studio suite to apply endless audio
enhancements!
|
1. ESS 9018M2M SABRE
DAC |
|
The digital-to-analog
converter with a high signal-to-noise ratio (SNR) and a digital volume
control for the purest analog output. |
|
|
2. PREMIUM NICHICON
& WIMA CAPACITORS |
|
The best components
were chosen for every component in the analog stage to mini-mize
distortion. |
|
|
3. LM4562 OUTPUT
STAGE |
|
2 x LM4562 op-amps (one
per channel) provide a clean stable volume boost and better channel
separation. |
|
|
4. TPA6120 OUTPUT
STAGE |
|
The TPA6120 headphone
amp provides the final boost in volume allowing the amp to unlock the true
potential of any headphones. |
|
|
5. SONIC
SENSEAMP |
|
Automatically detects
and optimizes outputs for different headphone impedance (32-600
ohms). |
|
|
6. HIGH-PRECISION CLOCK
SOURCE |
|
High-accuracy timing
technology ensures ultra-low jitter by preventing fluctuating
tem-peratures. |
|
|
7. DE-POP
RELAY |
|
Dedicated relay
eliminates the popping sound when the system is powered on or off,or
devices are attached or removed. |
BEST OVERCLOCKING ARMORY
Greater performance means smoother gameplay and that means more chances to
win. With the best overclocking (OC) design, UEFI BIOS and intuitive OC gadget
and utility, youll enjoy unmatched performance coupled with an exclusive cooling
design ensures your system never breaks a sweat.
UNLEASH THE TRUE PERFORMANCE OF INTEL CORE I7 PROCESSORS FOR LGA
2011-V3 — TODAY AND INTO THE FUTURE!
Let loose up to 10 cores with new Intel Core i7 processors for socket LGA
2011-v3, in both 28 and 40-lane options and awaken the true multi-threaded
performance! Rampage V Edition 10 is engineered from the group up to squeeze
every last drop of power from Intel's latest architecture, so you'll always be
one step ahead!
DDR4 OVERCLOCKING STRENGTH IN NUMBERS
Second-generation ASUS T-Topology pushes DDR4 memory overclocking to over
3333MHz with all memory slots populated and that means the best-ever gaming
performance from your Rampage V Edition 10 rig! Featuring a customized trace
layout for reduced crosstalk and coupling noise, second-generation T-Topology
ensures time-aligned signal transfer for improved memory stability and
compatibility.
OC ZONE
SAVE MORE TIME, BREAK MORE RECORDS
ROG understands overclockers better than any other manufacturer so Rampage V
Edition 10 includes loads of hardware-level controls to aid your overclocking
adventures, including DIMM and PCIe switches, Safe Boot and ReTry buttons.
They're quick, easy and real time-savers!
DIMM switch
Manually activate or deactivate the DIMM sockets without removing memory
modules, for incredible convenience and greater stability.
PCIe x16 lane switch
Manually activate or deactivate the PCIe x16 pass-through lanes without
removing graphics cards, enabling faster configuration and enhanced
stability.
Safe Boot Button
One quick tap of the Safe Boot button powers off your system and launches
into Safe Mode, where you can tweak your retained previous settings.
ReTry Button
If your system hangs during the power-on self-test (POST) boot process, just
hit the Rampage V Edition 10's hardware-level ReTry button to force a reboot
right away.
MeMok!
Forget memory-compatibility worries, as this one-click system-recovery tool
offers effortless memory upgrades.
ONE CLICK OVERCLOCK AND COOLING, DONE!
| GET PERFORMANCE, EFFICIENCY, DIGITAL POWER, FAN CONTROL AND
EVEN NETWORKING AND AUDIO TUNING TAILORED FOR YOU AND THE WAY YOU
PLAY! |
You don't need to be an expert to max out gaming performance on your Rampage
V Edition 10 build because 5-Way Optimization sorts all the complex settings
with a click, for instant, highly-controllable performance boosts! Our exclusive
technology dynamically optimizes essential aspects of your system based on
real-time use, so you get superb CPU performance, everyday energy savings,
ultra-stable digital power, cool and quiet fans and even networking and audio
settings that are tailored for the apps that you are using. In short, 5-Way
Optimization ensures that your PC is perfect for gaming, entertainment,
productivity or just about anything else!
| Games run
swiftly and smoothly with high performance, prioritized bandwidth and vivid
sound. |
| Fans stay
whisper-quiet for everyday computing, and ensure extreme cooling efficiency
when gaming. |
| Stutter is
eliminated for smooth-running apps, even under heavy loading. |
| Energy waste
is reduced so you'll save money. |
CPU performance boost
Crank up your PC's gaming grunt instantly with the ASUS AI Suite 3 utility!
The TurboV Processing Unit (TPU) offers precise voltage control and advanced
monitoring for the CPU and the graphics card, enabling great freedom to adjust
CPU frequencies and ratios for optimized performance and to exploit the
potential out of your graphics card*.
*Please see the graphics card QVL
All-round energy efficiency
With the Energy Processing Unit (EPU) you'll enjoy real-time, system-wide
power savings for gaming kicks that won't cost the earth! EPU automatically
detects and adjusts power consumption according to your rig's needs, so you save
money without compromising the thrills. EPU will also reduce CPU wattage to a
set level and deliver even more savings with Away Mode, creating an extreme
energy-saving scenario that shuts down unused extra I/O controllers and reduces
the graphics cards' power level. So, full power for your gameplay and then total
energy efficiency when you step away!
Cooler by design
Play quieter and cooler with advanced fan and water-pump controls for the
ultimate in undisturbed gaming. With onboard thermal sensors and hardware-level
4-pin/3-pin PWM/DC mode detection, Fan Xpert 4 makes sure every fan achieves the
best balance of high cooling performance and low noise, so you enjoy all the
performance you demand with none of the racket!
Precise Digital Power Control
To go faster than fast you need ultra-accurate power control so Rampage V
Edition 10 motherboards are kitted out with ASUS Digi+ Power Control for
maxed-out overclocking potential, enhanced system stability and superb power
efficiency. Digi+ Power Control is the industry's leading digital power
controller and it's fully compliant with Intel's IMVP8 specifications, for
smoother, safer power.
Accelerate your favorite apps and games with automated
ease
ASUS-exclusive Turbo Core App intuitive tuning panel boosts multiple hardware
components to maximize gaming exhilaration, overclocking your CPU, tuning your
fans, prioritizing network data and optimizing audio settings all with automated
ease. And now Turbo App is even more powerful than before, giving you the
ability to connect to profiles previously set in Sonic Studio II and KeyBot II,
so setup couldn't be simpler!
MEDIA-ACCLAIMED UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to
make it even more gorgeous. Whether you're a PC novice or a seasoned
overclocker, the EZ and Advanced Modes help you find your way, quickly and
easily.
EZ Flash 3
Flash the latest BIOS via the internet, and from within the BIOS.
SMART
Check up your storages devices Self-Monitoring, Analysis, and Reporting
Technology (SMART) logs to gauge reliability, and even determine if theyre about
to fail.
EZ Tuning Wizard OC and RAID
Select your hardware and apply different scenarios to tune system
performance, or streamline your RAID configuration for faster data retrieval and
backups!
My Favorite
Quickly find tuning options and add preferred tools to the list.
EZ Mode
Intuitive
graphical fan control
Fine-tune
individual fans simply by dragging a curve with the mouse.
Improve
your DRAM performance with a click.
View
SATA port details for easy device recognition.
Use
mouse controls to change the time and date
Advanced Mode
Automatically
detect selected ASUS graphics cards to view detailed information.
Restore
your SSDs to factory-fresh condition.
Track
last change and save preferred profiles onto a USB drive.
Rename
SATA ports for easy identification.
USB UEFI BIOS FLASHBACK
Refresh your BIOS in a flash, even when the system is off
THE FINEST POWER, DIGITALLY CONTROLLED
Extreme Engine Digi+ ROG's revered digital-power controller now delivers
even-finer power, with a custom-designed PWM controller, PowIRstage IR3555
MOSFETs from Infineon, MicroFine alloy chokes, and 10K black-metallic capacitors
ensuring Extreme Engine Digi+ always delivers the precise and smoothest core
voltages!
SPEED YOUR GAME LOADS |
ROGs uniquely-intelligent technology effectively caches an entire storage
device so that favorite games and apps launch at breakneck speeds, getting to
work the moment its activated. RAMCache turns milliseconds into microseconds to
boost game-load times to stratospheric levels, and minimizes risk of data loss
and of course its compatible with the latest NVM Express storage options!
BEST GAMING AUDIO
You'd never win with your eyes closed, so open your ears up to the best audio
for the battlefield! ROGs awesome audio expertise is the result of extensive
R&D, and SupremeFX is the crystal-clear result onboard sound as superior as
your gaming rep!
CHAMPION-LEVEL AUDIO FROM SUPREMEFX
Rampage V Edition 10s onboard audio isnt just good its as good as you can
get! You benefit from the best gaming-audio inputs and outputs, with special
shielded designs, and a collection of carefully selected professional-grade
audio components, including Nichicon capacitors, dedicated dual RC4580 op-amps,
and Sonic SenseAmp that automatically detects and optimizes any headset (32-300
ohms) for purest sound quality.
SupremeFX also features intuitive Sonic Studio II, so youll apply and enjoy
different audio effects for perfect entertainment plus Perfect Voice
noise-cancellation technology for team conversations with total clarity!
SupremeFX shielding
Blocks electromagnetic interference from the motherboard or add-ons to
provide cleaner audio.
SupremeFX audio processor
Ten DAC channels, simultaneous 7.1-channel playback, independent 2.0-channel,
multiple-stream stereo to front-panel outputs, and an EMI cover for purer audio
quality.
Dedicated dual RC4580 op-amps
Drive some of the very best headphones available, from 32 to 300 ohms, for
exceptional gaming-audio and music-listening experiences.
Nichicon capacitors
Deliver the highest-quality sound resolution and expansion for especially
warm and natural audio.
INTUITIVE AUDIO-TUNING SUITE SONIC STUDIO II
Casting Enhancer
Casting Enhancer improves both streaming and recording audio quality,
reducing noise artifacts and stabilizing overall voice volume. It also improves
all the rich details and boost bass effect of in-game sounds and music
playback.
Perfect Voice
Perfect Voice reduces noise during in-game chat so every teammate is heard,
and no command is missed.
Sonic Studio
One-click virtual-surround function emulates 7.1 channels, even through a
stereo (2.0-channel) headset. It offers five more superb audio controls,
including Reverb, Bass Boost, Equalizer, Voice Clarity and Smart Volume ensuring
that everything you hear sounds just amazing.
BEST GAMING NETWORKING
Lag means lost frags, so Rampage V Edition 10 delivers the sucker punch of
superior hardware and software letting you focus on the game, while your ROG rig
lands lag a knock-out blow!
MORE THROUGHPUT AND LESS PROCESSING EQUALS FASTER ONLINE
PLAY | - INTEL GIGABIT ETHERNET
Rampage V Edition 10 features the very latest dual Intel® Ethernet (I218-V
and I211-AT) for faster, smoother gaming — always. Intel's LAN has the serious
double advantage of reducing CPU overhead and offering exceptionally high TCP
and UDP throughput, so there’s more power for your game and your gameplay.
PUMPED-UP THROUGHPUT. BEST SURGE PROTECTION
LANGuard means safer, more reliable connections for your battles! Advanced
signal-coupling technology and premium surface-mounting processes join forces to
protect your Rampage V Edition 10 motherboards connection and deliver pumped-up
throughput, plus electrostatically-guarded and surge-protected components (ESD
Guards) for 1.9X-greater tolerance to static electricity and 2.5X-greater
protection (up to 15KV) against surges!
FASTEST ONBOARD WI-FI UP TO 1300MBPS
Rampage V Edition 10 has next-level 802.11ac* Wi-Fi with 3x3 dual-band
2.4/5GHz antennas for up to 1300Mbps** transfer speeds.
*Wi-Fi Hotspot use up to 802.11 a/b/g/n. Windows 10 does not currently
support Wi-Fi hotspot functionality.
**Actual speed may vary due to networking conditions.
TEAM UP TO BANISH LAG
GameFirst IV optimizes network traffic for faster, lag-free online gaming and
now we've added Multi-Gate Teaming to team all your networks for maximum
bandwidth and the smoothest-ever gameplay. You'll also enjoy all-new Intelligent
mode, which automatically compiles a database by parsing new app data to ensure
that every game is optimized for the best performance.
MULTI-GATE TEAMING
Team all your network gateways for maximum bandwidth and assign connections
to every application for the smoothest-ever gameplay.
BEST GAMING CONNECTIVITY
Rampage V edition 10 accelerates every connection, with the latest reversible
USB 3.1 Type-C and the newest U.2 socket for lighting-speed NVM Express devices
kicking every game into top gear.
Join the NVMe revolution withbuilt-in U.2 connector
Unlock the full potential of your storage with NVM Express (NVMe), the
revolutionary specification that lets your SSDs scream at top speed. Just attach
your drive to the built-in U.2 connector with plug-and-play ease to experience
data-transfer speeds of up to 32Gbit/s and free up a PCIe slot for another
expansion card!
SPEED UP WITH ONBOARD M.2 UP TO 32Gbit/s
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s
data-transfer speeds. It is the perfect choice for an operating system or
application drive, making your whole PC or professional apps work as fast as
possible.
ULTIMATE-SPEED 10Gbit/s WITH 4 USB 3.1 ONBOARD
With two USB 3.1 Type-A ports, and two reversible USB 3.1 Type-C, you'll
experience data-transfer speeds of up to 10Gbit/s or twice as fast USB 3.0. USB
3.1 is completely backward-compatible with your existing USB devices, and you'll
be all set for USB 3.1's breakneck speeds. And ASUS-exclusive USB 3.1 Boost
technology automatically accelerates USB 3.1 performance even further!
Stacked storage with 10 SATA sockets
Rampage V Edition 10 has more SATA sockets than youve ever imagined with a
total of 10 onboard. With so much storage potential, youll never run out of
space!
BEST GAMING GRAPHICS
You'll game as hard, fast and smooth as you demand with Rampage V Edition
10's support for both 4-Way SLI and CrossFire for multi-GPU graphics grunt, plus
Aura-guided illuminated installation!
BEST GAMING PROTECTION
As a gamer you demand stability and durability, so ROG integrates
long-lasting, premium components, plus exclusive smart DIY designs across the
board ensuring the best gaming experiences.
PRE-MOUNTED I/O SHIELD |
Rampage V Edition 10 has something so smart that we're patenting it a I/O
shield that slots in simply and adds strong protection. But it's more than
function: our patent-pending invention ramps up Rampage V Edition 10 aesthetic
credentials, and makes PC DIY easier than ever!
PATENT PENDING SAFESLOT - PROTECT YOUR GRAPHICS CARD
INVESTMENT
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide
superior retention and shearing resistance. Manufactured in a single step using
a new Insert-molding process integrates the slot with the fortifying metal for
an inherently stronger slot, which is then firmly anchored to the PCB through
additional solder points.
Backplate
1 steel electro galvanized backplate that adds extra style, cooling and
strength.
CPU Installation Tool
1 layer protection from socket-pin damage
TrueVolt USB
2 dedicated USB power supplies delivery rock-steady 5V to all USB ports,
minimizing power fluctuations for minimal data loss.
ESD Guards
2X greater 2X-greater electrostatic protection than standard. ESD Guards
cover the PS2, USB, audio and LAN ports.
Q-connector
1 piece sorts all front-panel cables
Q-Slot
1 clip to swap or secure your graphics card
Q-DIMM
1 sided clips for super-simple, super-secure handling of memory modules
DRAM over-current protection
1 additional resettable fuse protects connection ports and DRAM against
overcurrent and short-circuit damage
ROG GIVES YOU MORE
STAY IN THE GAME
OVERWOLF
The clever unobtrusive overlay that keeps you in the game, so you can browse,
email, IM, stream or record while you play, and all dressed up in color-matched
ROG skins to show youre part of an elite pack quickly to be available downloaded
fromon Overwolfs app store!
THE FREE KEYBOARD UPGRADE — UPGRADED!
KEYBOT II
Free keyboard upgrade from an exclusive microprocessor and intuitive user
interface. Record macros directly from the keyboard, switch profiles in moments,
enable special functions with hotkey from F1-F10, start and even boost your PC
from shutdown (S5 mode)!
WHAT'S IN THE BOX
USB stick
1 thumb drive packed with utilities and drivers
ROG coasters
2 stylish salvers for your favorite sups
ROG fan stickers
2 badges of honor for your fans
SLI bridges
3 bridges for 4-Way, 3-Way and 2-Way SLI configurations
SATA Cables
10 cables for greater storage
ROG cable stickers
15 labels for your cables
AND MORE.................
AI Suite 3 - One-stop control panel
Shows your important system information with pride
MEM TweakIt
Dynamic timing monitoring, DRAM efficiency gauge
RAMDisk
Boost your favorite applications up to 20X faster than SSD with the junction
function.
Sonic Radar II
A stealthy overlay that maps battlefield sounds so you can locate opponents
and teammates at a glance.
THE POWER OF INTEL
Ready
for Intel® Core™ i7 Processors for LGA2011-v3
This motherboard supports Intel® Core™ i7 processors in the LGA2011-v3
package, with memory and PCI Express controllers integrated to support 4-channel
(8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes.
Intel®
X99 Chipset
This motherboard supports Intel® Core™ i7 processors in the LGA2011-v3
package, with memory and PCI Express controllers integrated to support 4-channel
(8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes.
Specifications
|
CPU
|
Intel Socket 2011-v3
Core i7 X-Series Processors |
|
Supports Intel 14 nm
CPU |
|
Supports Intel Turbo
Boost Technology 3.0 |
|
|
|
Chipset
|
Intel
X99 |
|
|
|
Memory
|
8 x DIMM, Max. 128GB,
DDR4
3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.)
MHz Non-ECC, Un-buffered Memory |
|
Quad Channel Memory
Architecture |
|
Supports Intel Extreme
Memory Profile (XMP) |
|
** Refer to www.asus.com for the
Memory QVL (Qualified Vendors
Lists). |
|
* Hyper DIMM support is
subject to the physical characteristics of individual
CPUs. |
|
|
|
Multi-GPU Support
|
Supports NVIDIA 4-Way
SLI Technology *1 |
|
Supports NVIDIA 3-Way
SLI Technology |
|
Supports NVIDIA 2-Way
SLI Technology |
|
Supports AMD 4-Way
CrossFireX Technology *1 |
|
Supports AMD 3-Way
CrossFireX Technology |
|
Supports AMD 2-Way
CrossFireX Technology |
|
|
|
Expansion Slots
|
4 x PCIe 3.0/2.0 x16
(x16, x16/x16, x16/x8/x8, x16/x8/x8/x8 or x8/x8/x8/x8 mode with 40-LANE
CPU; x16, x16/x8 or x8/x8/x8 mode with 28-LANE CPU)
*2 |
|
1 x PCIe 2.0 x4
*3 |
|
1 x PCIe 2.0
x1 |
|
|
|
Storage
|
New Intel Core i7
X-Series Processors : |
|
1 x M.2 Socket 3, with
M Key, type 2260/2280/22110 storage devices support ( Supports PCIE SSDs
only)*4 |
|
1 x U.2 port, support
PCIe 3.0 x4 NVM Express storage*4 |
|
Intel X99 chipset
: |
|
10 x SATA 6Gb/s
port(s), |
|
Support Raid 0, 1, 5,
10 |
|
Supports Intel Smart
Response Technology*5 |
|
|
|
LAN
|
Intel I218V, 1 x
Gigabit LAN Controller(s) |
|
Intel I211-AT, 1 x
Gigabit LAN Controller(s) |
|
Dual Gigabit LAN
controllers- 802.3az Energy Efficient Ethernet (EEE)
appliance |
|
Anti-surge
LANGuard |
|
ROG GameFirst
Technology |
|
|
|
Wireless Data
Network |
Wi-Fi 802.11
a/b/g/n/ac |
|
Supports dual band
frequency 2.4/5 GHz |
|
Support ASUS Wi-Fi Go!
Utility |
|
Up to 1300Mbps transfer
speed |
|
|
|
Bluetooth
|
Bluetooth
V4.0 |
|
|
|
Audio
|
ROG SupremeFX 8-Channel
High Definition Audio CODEC |
|
- Supports :
Jack-detection, Multi-streaming, Front Panel
Jack-retasking |
|
|
|
Audio Feature
: |
- SupremeFX Shielding
Technology |
|
- DTS
Connect |
|
- Optical S/PDIF out
port(s) at back panel |
|
- Audio amplifier:
Provides the highest-quality sound for headphone and
speakers |
|
- Premium Japanese-made
audio capacitors: Provide warm, natural and immersive sound with
exceptional clarity and fidelity |
|
- Sonic Studio
II |
|
- Sonic Radar
II |
|
|
|
USB Ports
|
Intel X99 chipset
: *3 |
|
4 x USB 3.0 port(s) (4
at mid-board) |
|
Intel X99 chipset
: *6 |
|
6 x USB 2.0 port(s) (2
at back panel, black, 4 at mid-board) |
|
ASMedia USB 3.1
controller : |
|
2 x USB 3.1 port(s) (2
at back panel, black, Type-C) |
|
ASMedia USB 3.1
controller : *3 |
|
2 x USB 3.1 port(s) (2
at back panel, red, Type-A) |
|
ASMedia USB 3.0
controller : |
|
4 x USB 3.0 port(s) (4
at back panel, blue) |
|
|
|
ROG Exclusive
Features |
1 x DRAM channel
switch |
|
ROG
RAMCache |
|
ROG
Aura |
|
- Aura Lighting
Control |
|
- Aura RGB Strip
Headers |
|
Extreme Engine Digi+
: |
|
- IR3555
PoweIRstage |
|
- MicroFine Alloy
Chokes |
|
- 10K Black Metallic
Capacitors |
|
ROG Extreme OC kit
: |
|
- ReTry
button |
|
- Safe Boot
button |
|
- Start
button |
|
- Reset
button |
|
- Slow
Mode |
|
- LN2
Mode |
|
- PCIe x16 Lane
Switch |
|
ProbeIt |
|
KeyBot
II |
|
- One-click
Overclocking |
|
-
X.M.P. |
|
-
DirectKey |
|
-
ClrCMOS |
|
- Power
On |
|
UEFI BIOS features
: |
|
- O.C.
Profile |
|
- GPU.DIMM
Post |
|
- Tweakers'
Paradise |
|
- ROG SSD Secure
Erase |
|
- Graphic Card
Information Preview |
|
|
|
ROG
RAMDisk |
|
Extreme
Tweaker |
|
|
|
Special Features
|
5-Way Optimization by
Dual Intelligent Processors 5 |
|
- 5-Way Optimization
tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and
Turbo Core App |
|
ASUS Wi-Fi
GO! |
|
- Wi-Fi GO! Function:
Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File
Transfer |
|
ASUS Exclusive
Features : |
|
-
MemOK! |
|
- AI Suite
3 |
|
- Ai
Charger+ |
|
-
Anti-Surge |
|
- USB 3.1
Boost |
|
Remote
Entertainment |
|
- Media
Streamer |
|
-
HyStream |
|
ASUS Quiet Thermal
Solution : |
|
- ASUS Fan Xpert
4 |
|
ASUS EZ DIY
: |
|
- ASUS CrashFree
BIOS |
|
- ASUS EZ Flash
3 |
|
- ASUS USB BIOS
Flashback |
|
- ASUS UEFI BIOS EZ
Mode |
|
- Multi-language
BIOS |
|
- Push
Notice |
|
ASUS Q-Design
: |
|
- ASUS
Q-Code |
|
- ASUS Q-LED (CPU,
DRAM, VGA, Boot Device LED) |
|
- ASUS
Q-DIMM |
|
- ASUS
Q-Connector |
|
Overclocking Protection
: |
|
- ASUS C.P.R.(CPU
Parameter Recall) |
|
Turbo
App |
|
|
|
Operating System
Support |
Windows 10 ,
64bit |
|
Windows 8.1 ,
32bit/64bit |
|
Windows 7 ,
32bit/64bit |
|
|
|
Back I/O Ports
|
1 x PS/2 keyboard/mouse
combo port(s) |
|
2 x LAN (RJ45)
port(s) |
|
2 x USB 3.1
(black)Type-C |
|
2 x USB 3.1
(red)Type-A |
|
4 x USB 3.0
(blue) |
|
2 x USB 2.0 (one port
can be switched to USB BIOS Flashback) |
|
1 x Optical S/PDIF
out |
|
5 x Audio
jack(s) |
|
1 x Clear CMOS
button(s) |
|
3 x Wi-Fi antenna
port(s) |
|
1 x USB BIOS Flashback
Button(s) |
|
|
|
Internal I/O Ports
|
1 x Aura RGB Strip
Header |
|
2 x USB 3.0
connector(s) support(s) additional 4 USB 3.0
port(s) |
|
2 x USB 2.0
connector(s) support(s) additional 4 USB 2.0 port(s) |
|
1 x M.2 Socket 3 for M
Key, type 2260/2280/22110 storage devices support ( Support PCIE SSD
only) |
|
1 x TPM
header |
|
10 x SATA 6Gb/s
connector(s) |
|
1 x CPU Fan
connector(s) |
|
1 x CPU OPT Fan
connector(s) |
|
3 x Chassis Fan
connector(s) |
|
1 x Power Fan
connector(s) |
|
1 x Thunderbolt
header(s) |
|
1 x 24-pin EATX Power
connector(s) |
|
1 x 8-pin ATX 12V Power
connector(s) |
|
1 x 4-pin ATX 12V Power
connector(s) |
|
1 x SLI/CFX switch
(2/3-WAY adjustments) |
|
1 x Front panel audio
connector(s) (AAFP) |
|
1 x MemOK!
button(s) |
|
1 x Slow Mode
switch(es) |
|
9 x ProbeIt Measurement
Points |
|
1 x Thermal sensor
connector(s) |
|
1 x EZ Plug
connector(s) (4-pin Molex power connector) |
|
1 x Power-on
button(s) |
|
1 x Reset
button(s) |
|
1 x BIOS Switch
button(s) |
|
1 x 5-pin
EXT_FAN(Extension Fan) connector |
|
1 x Water Pump header
(4-pin) |
|
1 x LN2 Mode
jumper(s) |
|
1 x ROG extension
(ROG_EXT) header(s) |
|
1 x Safe Boot
button |
|
1 x ReTry
button |
|
1 x U.2
connector |
|
1 x System panel
connector |
|
1 x DRAM channel
switch |
|
1 x PCIe x16 lane
switch |
|
|
|
Accessories
|
User's
manual |
|
SupremeFX Hi-Fi
Kit: |
|
- 1 x SupremeFX
Hi-Fi |
|
- 1 x SupremeFX Hi-Fi
cable |
|
1 x 2-Way SLI
bridge(s) |
|
10 x SATA power
cable |
|
1 x M.2 Screw
Package |
|
2 x CPU installation
tool |
|
1 x ASUS 3T3R dual band
Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac
compliant) |
|
1 x Fan Extension Card
(3 x 4-pin fan out) |
|
1 x Fan Extension card
screw pack |
|
1 x 3-Way SLI
bridge(s) |
|
1 x 4-Way SLI
bridge(s) |
|
1 x Q-connector(s) (1
in 1) |
|
1 x 12 in 1 ROG Cable
Label(s) |
|
ROG Fan
Label |
|
1 x 5-pin to 5-pin
cable |
|
1 x Extension Cable for
RGB strips (80 cm) |
|
3 x Thermistor
cable(s) |
|
1 x USB drive with
utilities and drivers |
|
1 x I/O
frame |
|
2 x ROG
coasters |
|
|
|
BIOS
|
128 Mb Flash ROM, UEFI
AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ
Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My
Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM
SPD (Serial Presence Detect) memory information. |
|
|
|
Manageability
|
WfM 2.0, WOL by PME,
PXE |
|
|
|
Form Factor
|
Extended ATX Form
Factor |
|
12 inch x 10.7 inch (
30.5 cm x 27.2 cm ) |
|
|
|
Note
|
*1 28-LANE CPUs can
only support up to 3-Way SLI/ 3-Way CrossFireX |
|
*2 The PCIEx8_4 slot
shares bandwidth with M.2 and U.2. |
|
*3 The PCIEx4_1 slot
shares bandwidth with front USB3_34 ports and back USB3.1_EC1_EA2 ports.
If a X2 device is connected to the PCIEx4_1 slot, the front USB3_34 ports
will be disabled. If a X4 or higher device is connected to the PCIEx4_1
slot, both front USB3_34 and back USB3.1_EC1_EA2 ports will be
disabled. |
|
*4 These ports share
bandwidth with PCIEx8_4 slot. |
|
*5 These functions will
work depending on the CPU installed. |
|
*6 2 x USB2.0 port at
mid-board shares with ROG extension (ROG_EXT)
port. |
