Z170X-DESIGNARE | Gigabyte Z170X Designare Motherboard

Overview

• Intel® Thunderboltâ„¢ 3 Certified Motherboard
• Supports 6th Generation Intel® Coreâ„¢ Processor
• Dual Channel, Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel® USB 3.1 with 2 USB Type-Câ„¢ & PD 2.0 100W Support
• 2-Way SLIâ„¢ & CrossFireâ„¢ Multi-Graphics Support
• NVMe PCIe Gen3 x4 22110 M.2 Interface & U.2 Interface for Intel® SSD 750
• Best Support for 3 Intel® SSD 750 Devices in RAID 0
• 2 SATA Express Connectors for Up to 16Gb/s Data Transfer
• Dual Intel® GbE LAN with cFosSpeed Internet Accelerator Software
• 115dB SNR HD Audio with Built-in Rear Audio Amplifier
• Ambient Surround LED with RGB Multi-Color Choices
• Ultra Durable Metal Shielding over PCIe and DDR Slots
• Ultra Durable Anti-Sulfur Resistors for Longer Lifespan
• Ultra Durable Anti-Rust Rear I/O Connectors
• Dual Hybrid Fan Headers with Precise PWM / Voltage Control for Water Pump & Fan
• GIGABYTE UEFI DualBIOSâ„¢ Technology
• APP Center Including EasyTuneâ„¢ and Cloud Stationâ„¢ Utilities
• Rear Panel Mini DisplayPort-In for Future Feature Upgrade

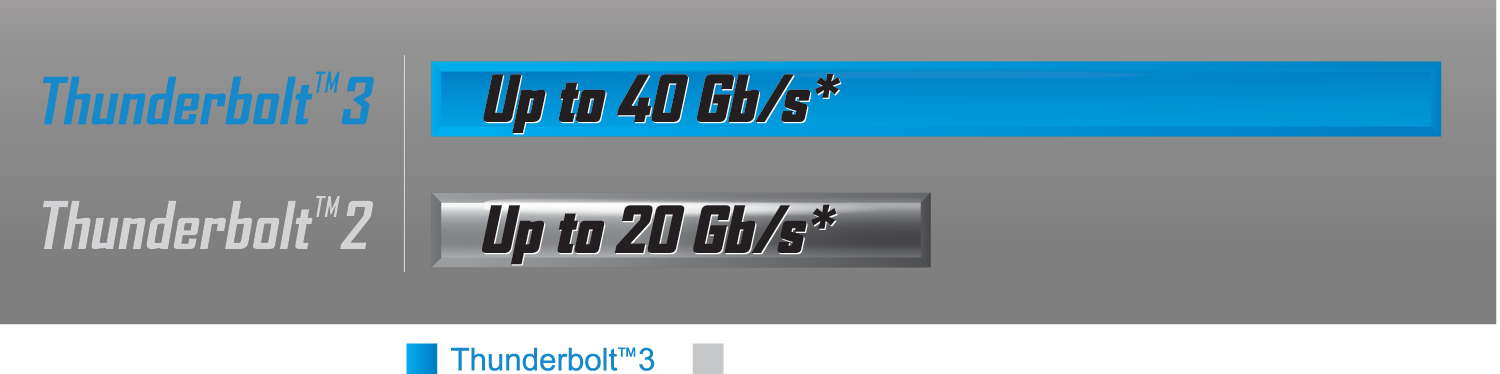

Next Generation 40 Gb/s Thunderbolt 3

Thunderbolt 3 The fastest 40Gb/s single-wire connection

IntelThunderbolt 3 Certified Motherboard

Powered by Intel's own Thunderbolt controller the new Thunderbolt 3 protocol, which is available over a USB Type-C connector on the back I/O of the GIGABYTE Z170X-Designare, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.

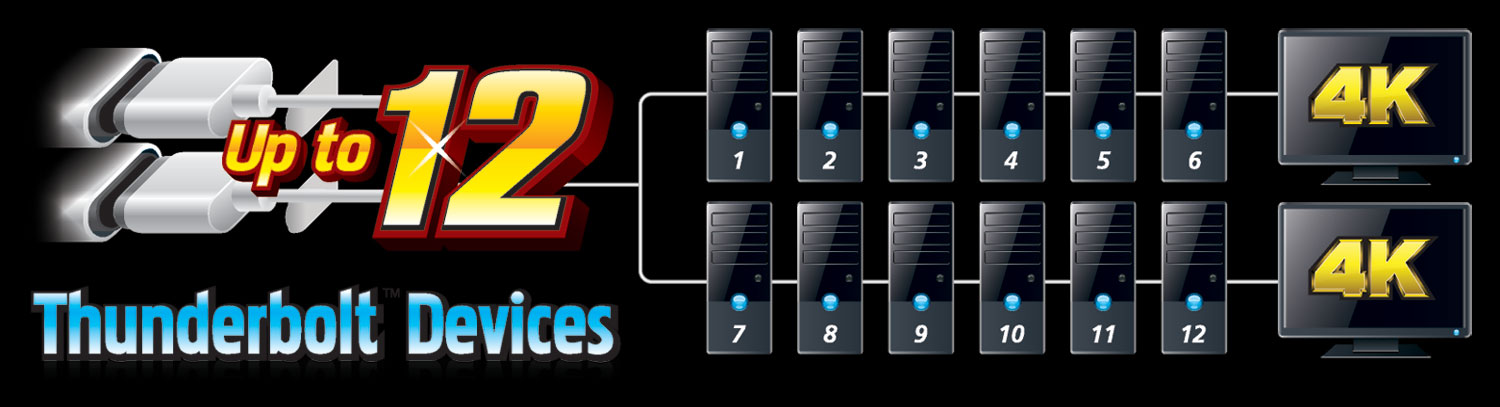

Daisy-chain Multiple Devices

Support for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The Z170X-Designare is able to support two displays in 4K resolution at 60 FPS or one display in 5K resolution. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 12 devices thanks to the Z170X-Designare’s dual USB Type-C™ ports.

Compatibility may vary according to system configuration and device specifications.

NVIDIA® / AMD® / Intel® Graphics Support for Thunderbolt™ 3*

GIGABYTE implementing Thunderbolt 3 allows users to utilize all facets of this technology. GIGABYTEs unique design of incorporating a video input port, via Mini DisplayPort, allows users to take full advantage of their discrete NVIDIA or AMD Graphics Cards. By merging the performance of these discrete cards with Thunderbolt 3 users can now leverage the fast data transfer speeds and latest gaming technologies into a single Thunderbolt (USB Type-C) cable.

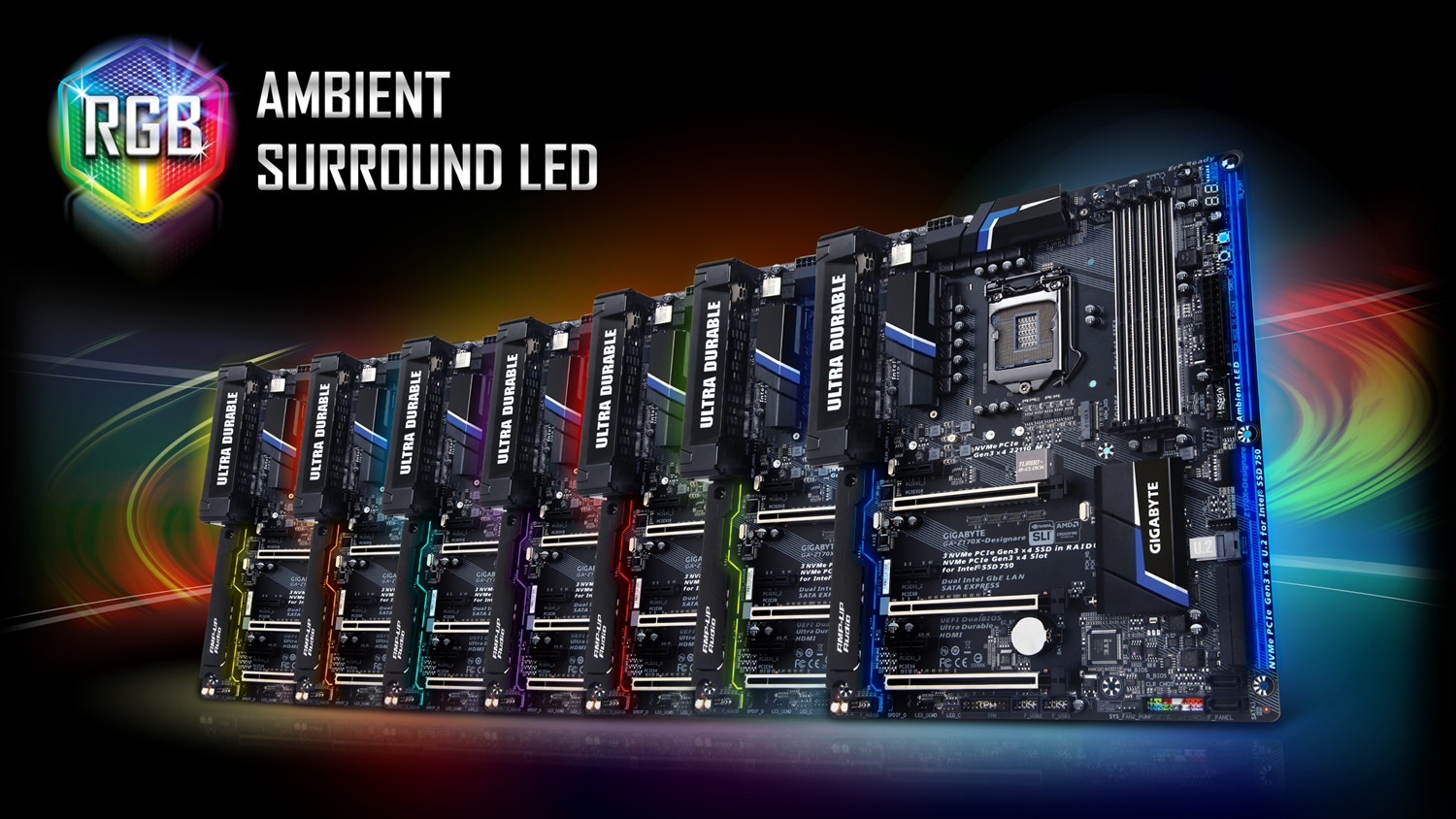

Ambient Surround LED

Set the Color that Matches Your Style

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned Ambient LED application, the user has complete control over the LEDs which surround the motherboard.

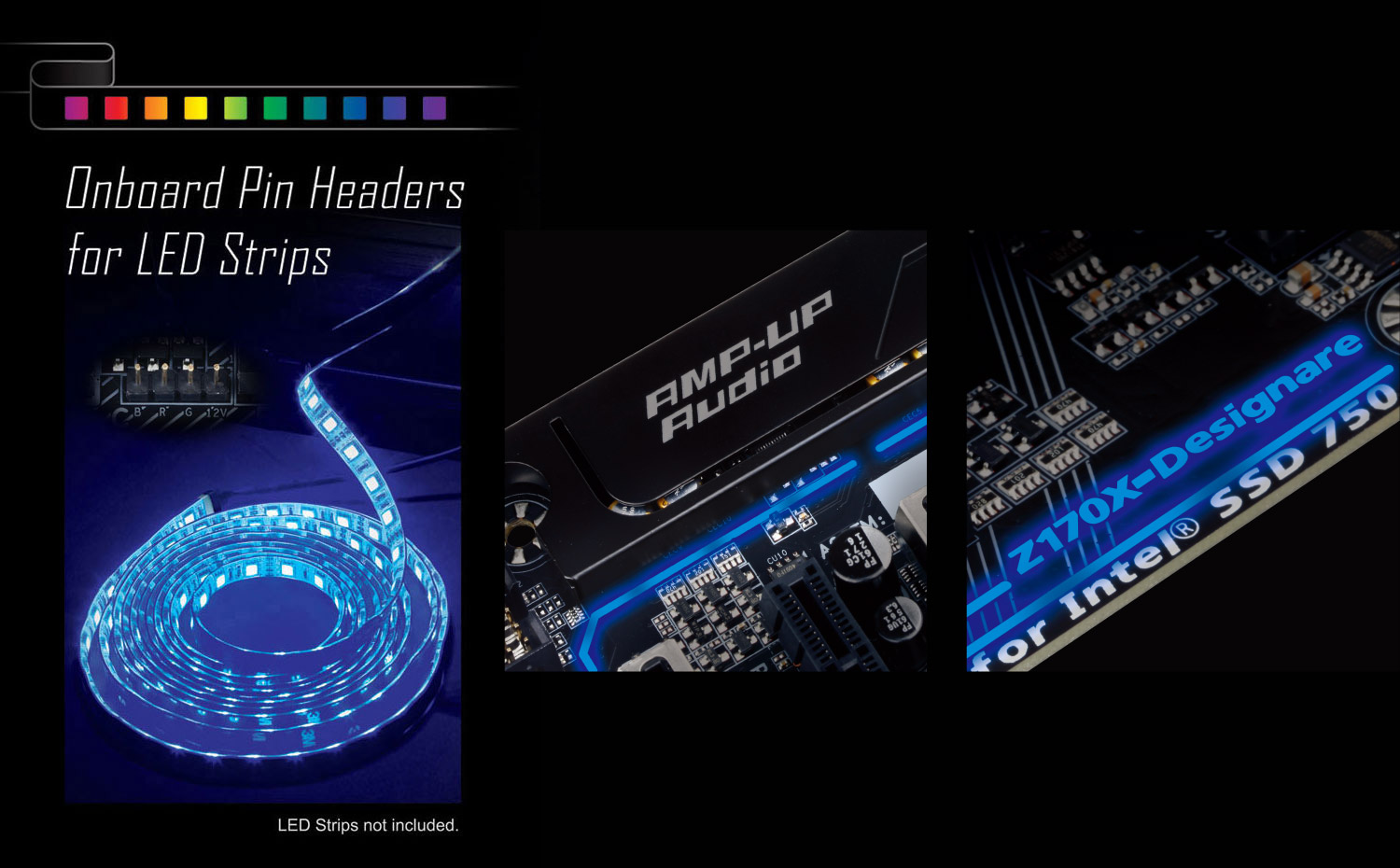

Light Up Your Case to Match your Motherboard

With an onboard Pin Header for aftermarket LED Strips, users now have the ability to sync the lighting in their computer case with the lighting on their motherboard. By using the Ambient LED Application, included in GIGABYTE APP Center, users are also able to specify the lighting modes available and ensure that everything is illuminating their system in harmony.

Immersive VR Gaming Experience

• VR requires 30% more performance than Full HD graphics for a steady 60FPS or greater.
• Only Gaming PCs can provide the best VR experience.

To create a seamless VR experience GIGABYTE Motherboards offer the best features to make your virtual reality feel like your actual reality.

With technologies such as Thunderbolt 3 to transfer data and video, NVMe support via M.2 or U.2, and a one piece metal shielding to brace for heavier discrete graphics cards its obvious that GIGABYTE has the tools you need to start your journey in VR. To set the mood GIGABYTE Motherboards include Ambient Surround LED to put you in the center of action

Recommended configuration for VR Gaming PC

• Graphics Card: NVIDIA GTX 970 / AMD R9 290 or greater, Compatible HDMI 1.3 video output
• CPU: Intel i5-6600K equivalent or greater
• Motherboard: GIGABYTE X99/Z170/H170/B150 motherboards
• Memory: 8GB RAM or greater
• USB Ports:3x USB 3.0 ports plus 1x USB 2.0 port or greater
• OS: Windows 7 SP1 64-bit or newer

Any copyrighted images or trademarks displayed are the property of their respective owners and are shown for reference purposes only. Reference herein does not constitute or imply affiliation or endorsement of Gigabyte products by the respective trademark owners. VR Gaming photo for reference only.

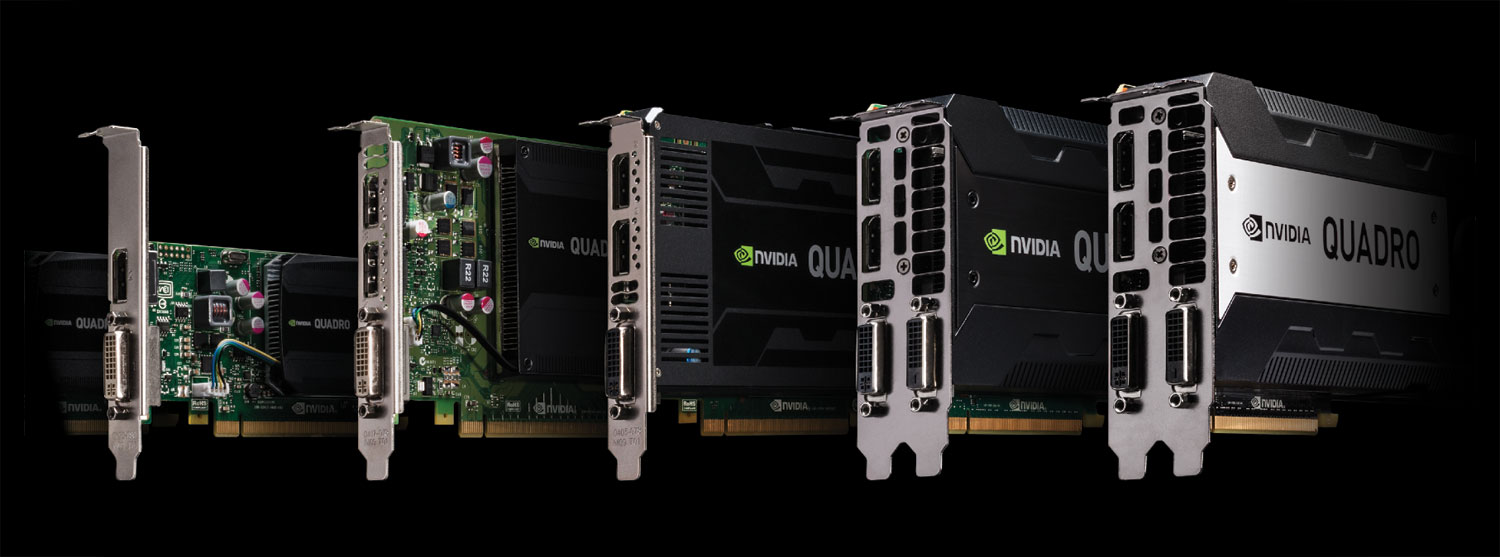

NVIDIA® QUADRO® Professional Graphics Supports

NVIDIAQUADRO3D Workstation Professional Graphics Solutions designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as AdobeCreative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.

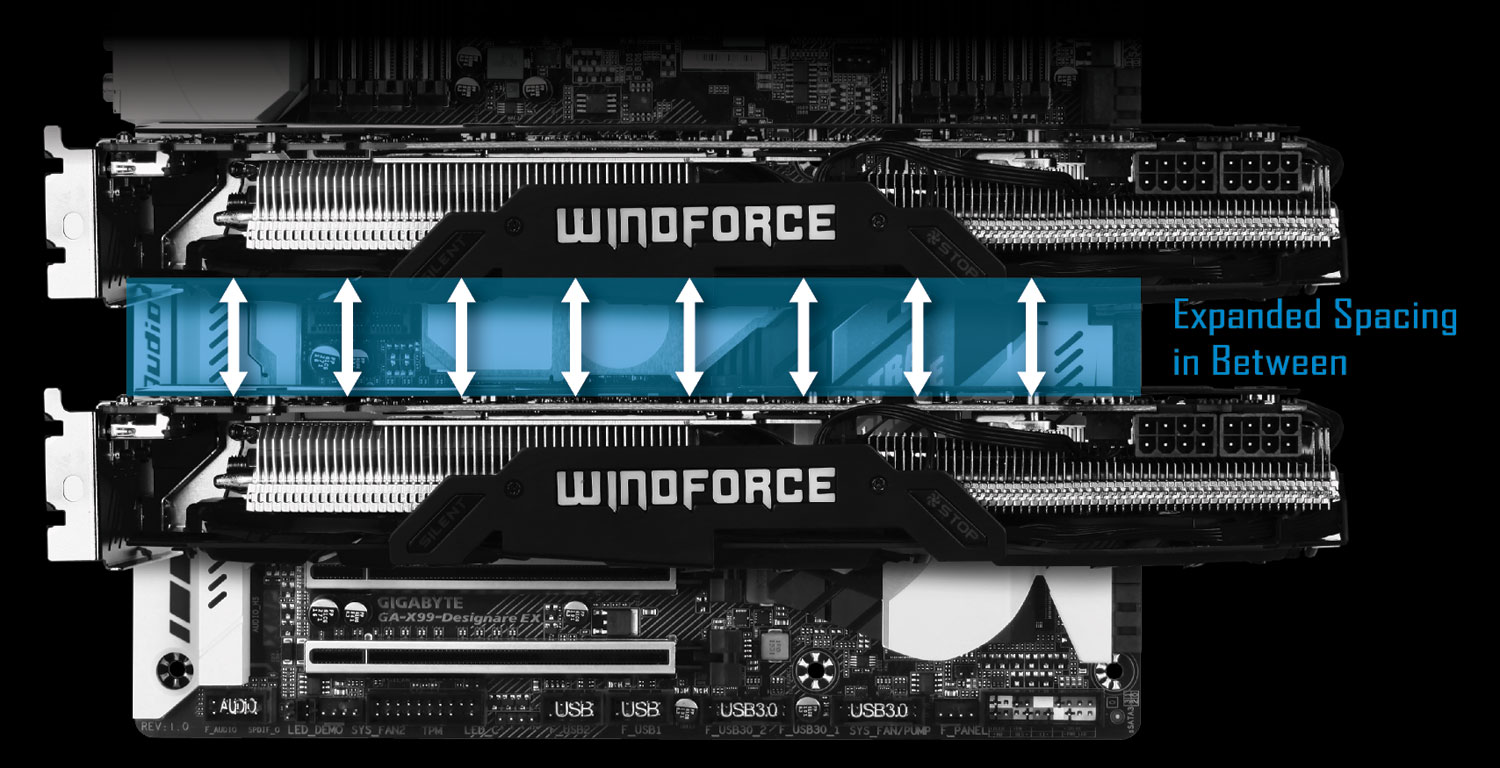

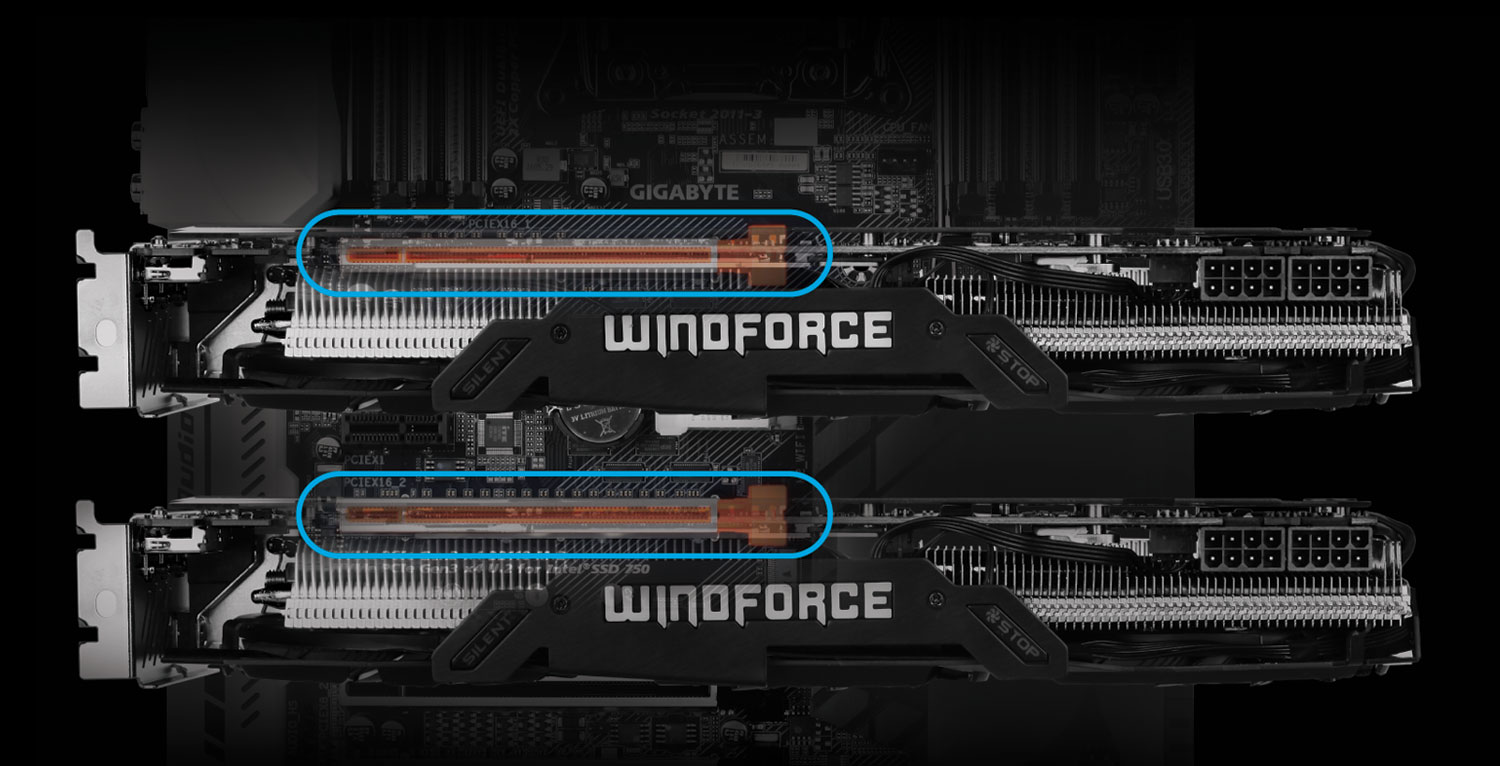

2-Way SLIâ„¢ / CrossFireâ„¢ Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

GIGABYTE DesignBy spacing the graphics cards in multi-graphics configurations, users are now able to obtain maximum airflow between cards.

PURE SPEED, MORE POWER

Exclusively on GIGABYTE Powered Motherboards

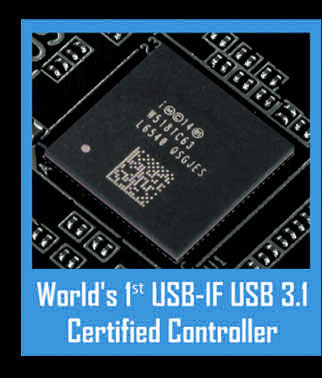

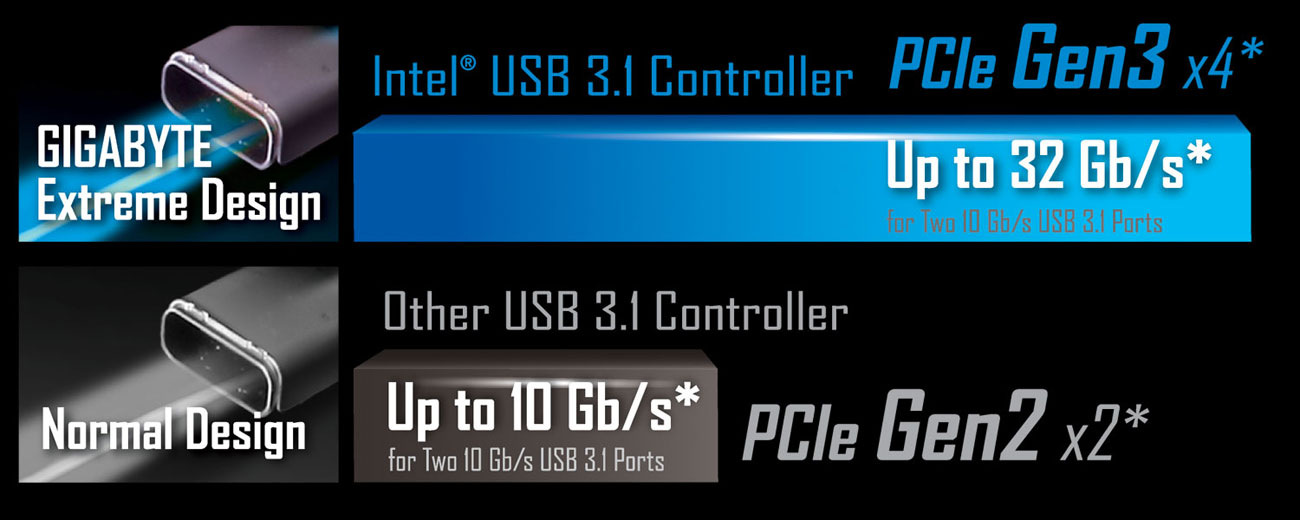

Intel® USB 3.1 + Power Delivery 2.0

The Intel® USB 3.1 controller utilizes four PCIe Gen3 Lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

Bandwidth design for the controller *Max. bandwidth allocated for the controller may vary by model.

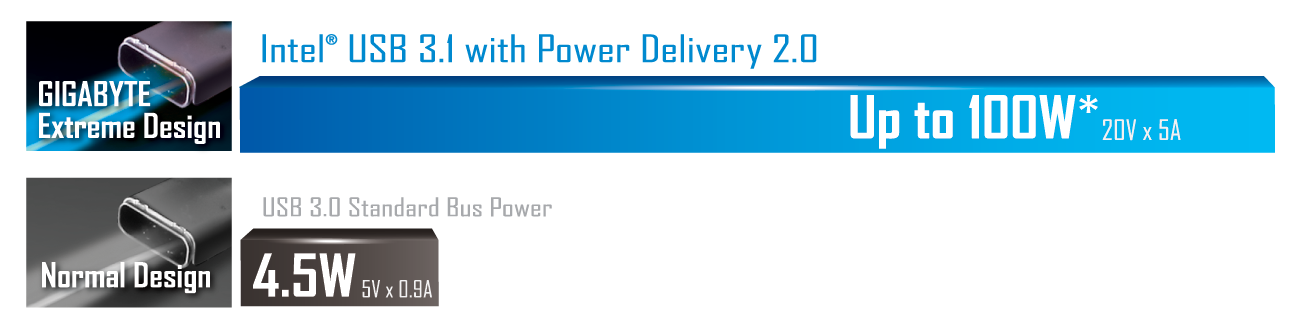

100W USB Type-Câ„¢

Power and Charge From USB Type-C With Power Delivery 2.0 Support

Redesigned to take full advantage of all the features that USB Type-C can support, GIGABYTEs new Z170 motherboards with Intels USB 3.1 controller not only supports USB 2.0, 3.0, and 3.1, but also completely supports Power Delivery 2.0. This means users are able to get up to 100 watts through their Intel powered USB Type-C port. This opens the door for users looking to clean up their cable cutter and power or recharge their devices through this universal connector, the Type-C Port.

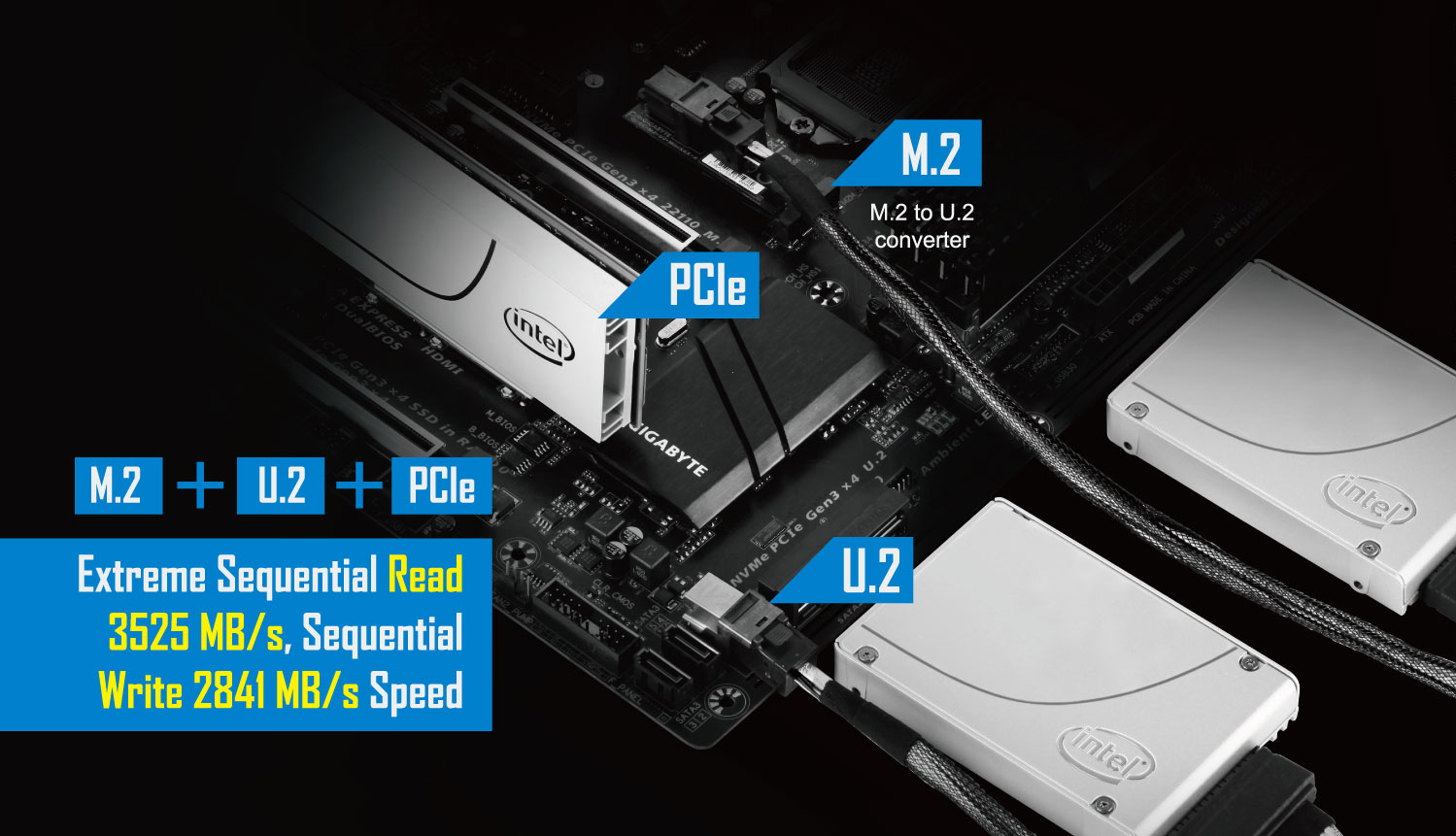

Triple NVMe PCIe SSDs in RAID 0 Support

Extreme Performance with Gen3 x4 NVMe PCIe SSDs

GIGABYTE’s Z170 motherboards offers the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. GIGABYTE’s unique design supports up to three Intel® 750 Series NVMe PCIe SSDs which can be configured in RAID for record speeds of up to 3525 MB/s (Sequential Read), making GIGABYTE the obvious choice for the ultimate PC.

U.2 Onboard (NVMe PCIe Gen3 x4)

NVMe Performance for PCIe SSDs

The new Intel 750 series SSDs offer an incredible increase in performance over SATA drives. Using the NVMe protocol which takes advantage of the fast bandwidth of PCIe Gen3 x4 lanes (32 Gb/s), the drives are a clear advantage for users looking to boot their OS faster, load their games in a flash and access large files without waiting. By implementing the U.2 port onboard to support the 2.5� Intel 750 Series drive, GIGABYTE ensures that the users can benefit from the best performance.

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)

GIGABYTEs M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

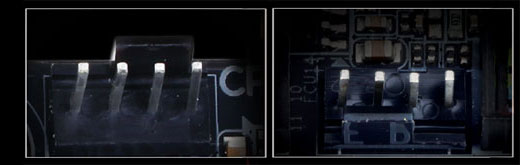

Dual Hybrid Fan Headers

Precise PWM and Voltage Control for Water pumps or Fans

Many of todays modern computers feature water cooling to ensure that the CPU or graphics cards stay cool and quiet while they are put under heavy load. In order to provide the best support for water cooling solutions, GIGABYTE has equipped its X99/Z170 motherboards with an additional water pump power header. This allows the user to have full control over two water pumps or fans. An additional benefit of these headers with GIGABYTEs motherboards is the option to choose between voltage calibration or PWM modes.

Customization Features and Water Cooling Support

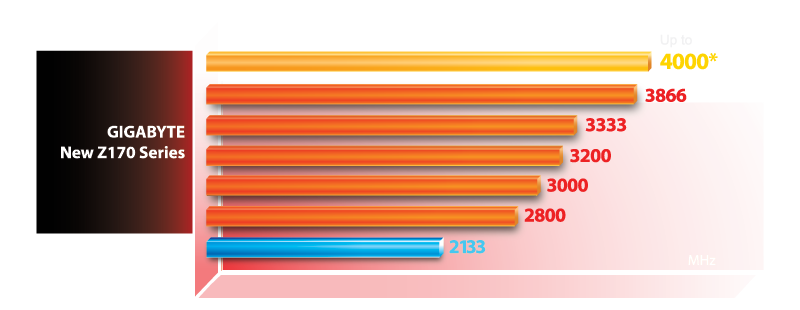

Support for DDR4 XMP Up to 4000MHz and Beyond*

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

What is XMP?

DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

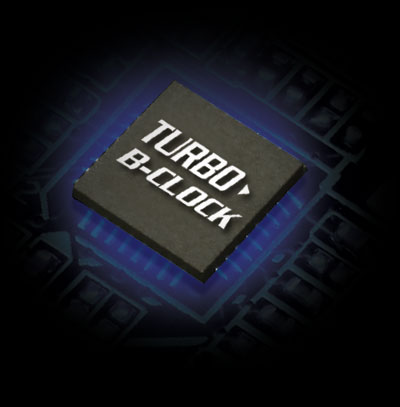

Turbo B-Clock

Built-in Advanced Performance Tuning IC

Thanks to the onboard Turbo B-Clock Tuning IC, GIGABYTE Z170X-Designare motherboards enable overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.

Turbo B-Clock overclocking range may vary according to CPU capabilities.

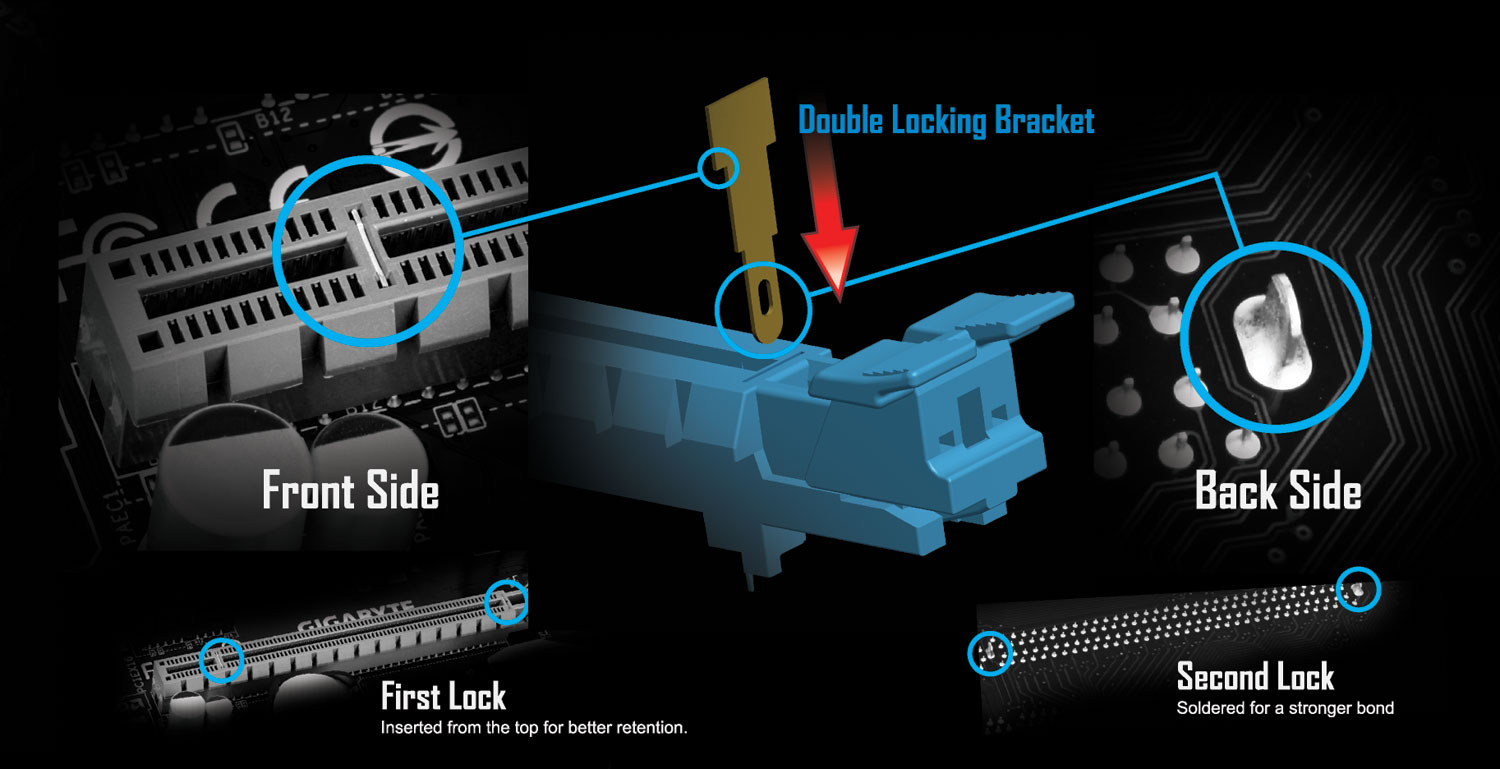

GIGABYTE Patented Double Locking Bracket

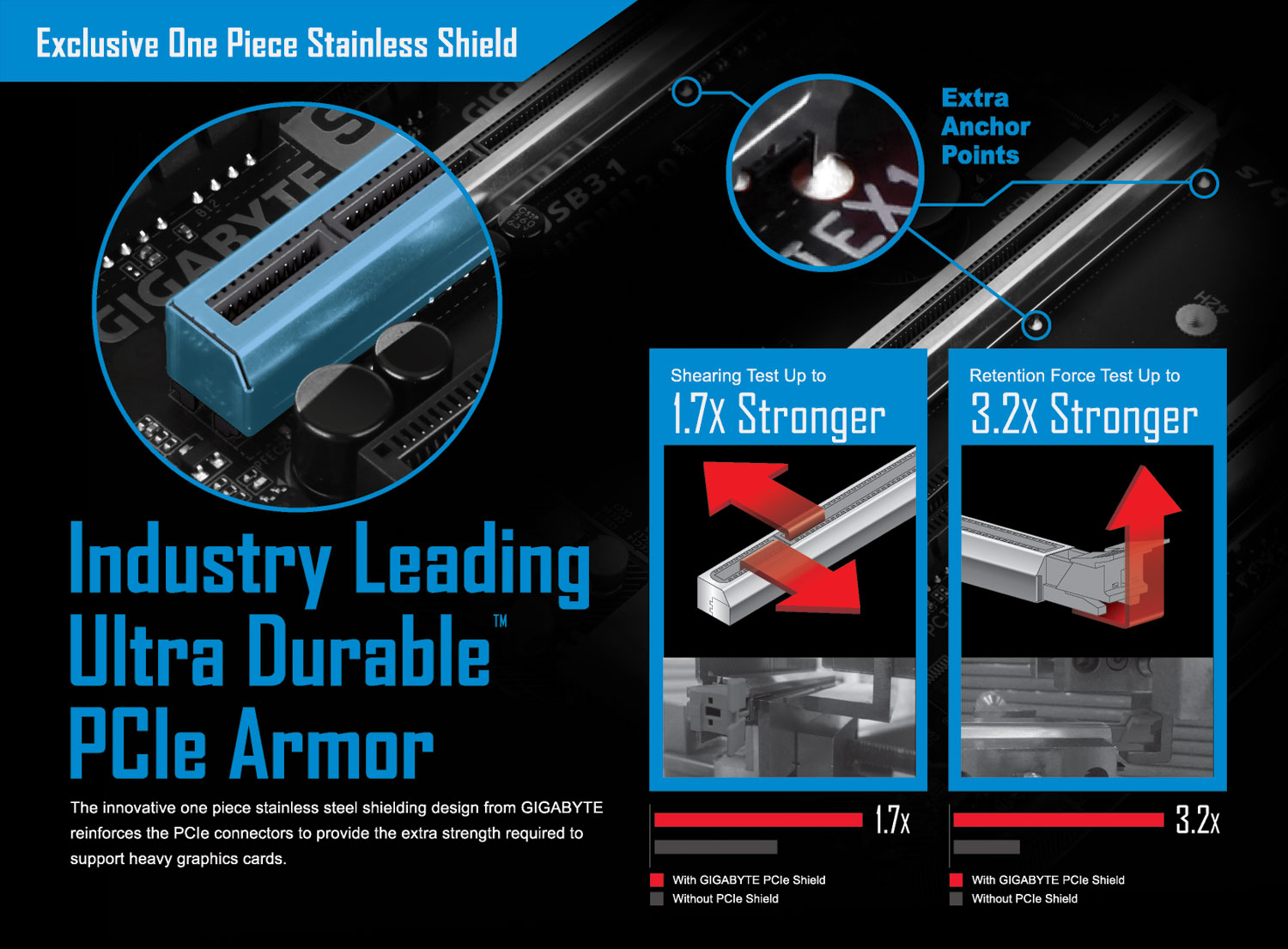

Ultra Durableâ„¢ PCIe Armor

Enhanced Strength PCIe Design, Support for Heavy Graphics Cards For Extreme / VR Gaming Station

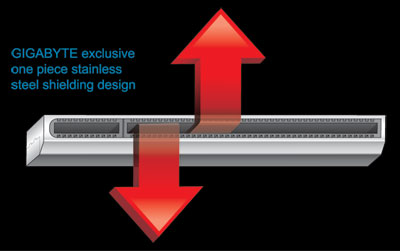

Dual Armor DIMM and PCIe Metal Shielding

Never worry about your heavy graphics card damaging your motherboard again. GIGABYTE’s proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a fool proof option which can save your PC’s life.

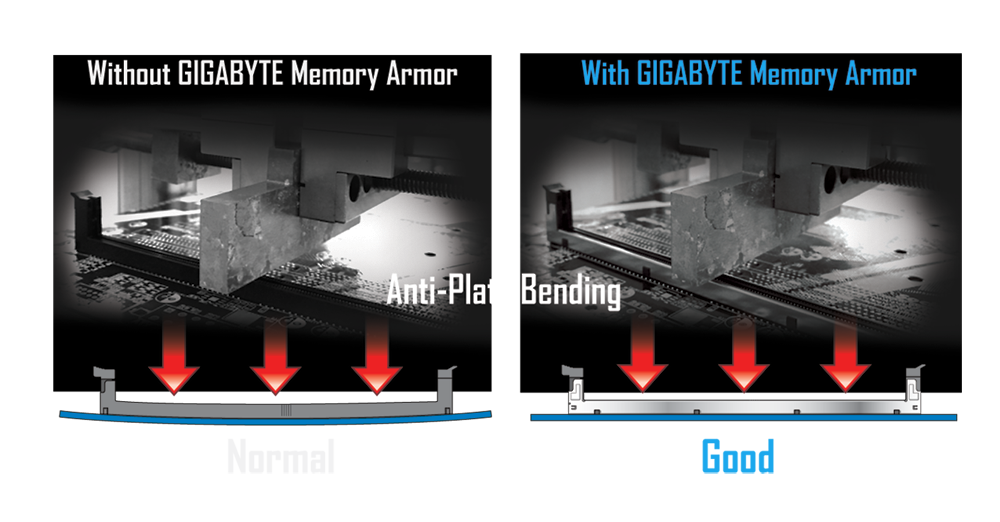

Ultra Durableâ„¢ Memory Armor

GIGABYTE’s exclusive one piece stainless steel shielding design prevents against PCB distortion and twist (Plate bending) in addition to preventing any possible ESD interference.

Product features may vary by model.Photo for reference only.

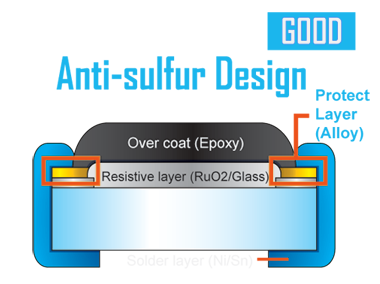

Anti-sulfur product: An alloy layer has been added to protect the silver layer and prevents the sulfurization reaction from taking place.

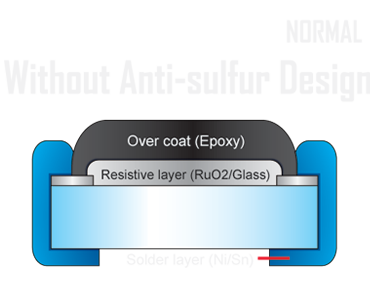

Without the anti-sulfur layer: The electrode terminals lack a protective layer, which means that oxygen or other environmental elements can penetrate the Ni (Nickel) layer causing a sulfurization reaction and degrade the ability for the electrode to conduct electricity properly.

Anti-Sulfur Resistor Design

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Dual Intel® GbE LAN with cFosSpeed

The Dual Intel® Gigabit LAN with cFosSpeed features advanced technologies to help deliver better network responsiveness in crowded LAN environments and allows optimization and improved network performance for specific applications, making it a popular choice amongst gamers.

High Definition Audio Design

The Realtek ALC1150 is a high-performance multi-channel high definition audio codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

High Quality audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

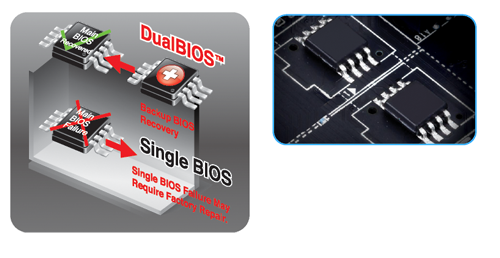

GIGABYTE Patented DualBIOSâ„¢ (UEFI) Design

GIGABYTE Ultra Durableâ„¢ motherboards feature GIGABYTE DualBIOSâ„¢, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOSâ„¢ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', Protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.

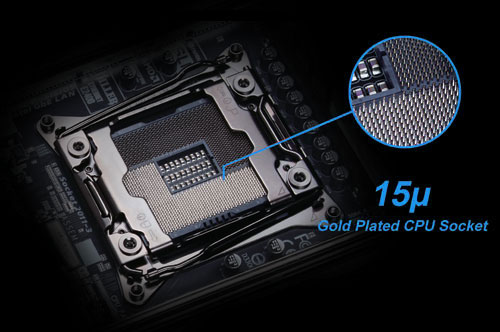

15µ Gold Plated CPU Socket Design

GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G-Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations.
