Overview


***Please Note: It is required that the Unit be connected to a Port Multiplier compatible eSATA Host Controller for the System to see all drives. It is assumed that the driver for the eSATA Host Cotroller is correctly installed.***






This latest Addonics 6G Rack Mount Port Multiplier (PM) connects up to 5 SATA hard drives or SSD to a computer using one eSATA connection at SATA III speed of 6Gbps. The PM is mounted on a rack-mount bracket that fits perfectly into the Addonics family of Storage Tower and many standard drive enclosure with SCSI-I (Centronic 50) punch out. The five drives connected to this PM appears as individual drives to the OS when connecting to a PM compatible eSATA port on a computer. The five drives can be set up as a single RAID volume using the RAID utility of the OS or the host controller. When multiple PMs are combined with Addonics 4-Port eSATA controller, you can attach to many Desktop or server computer a whopping 20 SATA hard drives to your computer via one host controller!

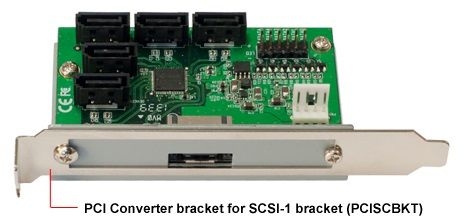

The 6G Rack Mount Port Multiplier can be installed onto a standard add-on card slot with an optional PCI Converter Bracket (PCISCBKT), allowing any desktop PC case to be used as a hard drive storage chassis.



Features

  • Connect up to 5 SATA HDD/SSD or optical drives to a computer via a single eSATA port
  • Up to 6 Gbits/sec when connecting to eSATA 3.0 port supporting this speed
  • Compliant with SATA 1.0, 2.0 and 3.0 specification
  • Require PM compatible eSATA port or host controller (SATA port with no PM support can detect only the drive connecting to port 0)
  • Designed to be mounted onto Addonics family of Storage Tower, Storage Rack or chassis with SCSI-I (Centronic 50) punch-out
  • Can be installed onto a standard add-on card slot - requires optional  PCI Converter Bracket (PCISCBKT)
  • Drives appear as five individual drives to the system (in simultaneous data transfer, the maximum data transfer is that of the slowest member of the five drives)
  • Drives can be set to RAID via the software utility of the OS or the host controller
  • Support hot swap
  • Compatible with any SATA hard drive, SSD or SATA optical drives
  • OS Support: depends on the attached SATA port

Specifications

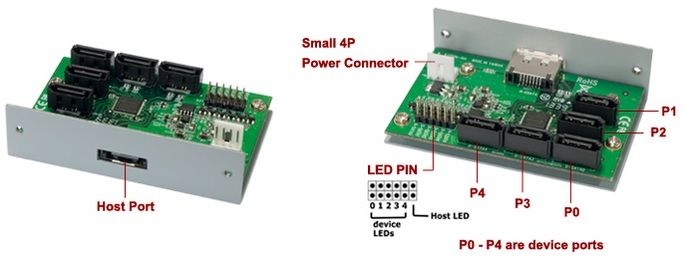

  • Five (5) SATA port for device connection and one (1) eSATA port for host connection
  • Full support for FIS switching and command-based switching SATA host controllers
  • Auto-negotiation support for 1.5Gbps, 3.0Gbps  and 6.0Gbps SATA speed
  • Compliant with SATA 1.0, 2.0 and 3.0 specification
  • LED Pin Headers for Host & devices
  • Small 4-pin Molex power connector
  • Power consumption ~ 200 mA at 5V
  • OS independent
  • Maximum PCB dimension (W x L x H): ~ 56 x 84 x 24 mm ( 2.2 x 3.3 x ..94 in.)
  • Weight: ~ 78 gm (2.75 oz)
  • Operating temperature and humidity: 0 - 60 °C, 5 - 90 % RH
  • Storage temperature and humidity: -20 - 70 °C, 0 - 95 % RH non-condensing





No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
