Overview

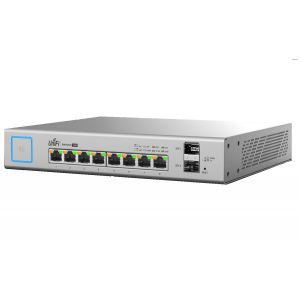

Build and expand your network with Ubiquiti Networks UniFi Switch, part of the UniFi line of products.
The fanless UniFi Switch delivers quiet yet powerful performance with its 10 independent switching ports.
Sharing a total of 150W PoE, eight Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE, and two SFP ports offer optical connectivity.
The US-8-150W switch offers:
- (8) Gigabit RJ45 Ports
- (2) SFP Ports
- Non-Blocking Throughput: 10 Gbps
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- Maximum Power Consumption: 150W
- Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
- Quiet, Fanless Operation
- Rack-Mountable or Wall-Mountable with Rack-Mount Brackets (Included)
- Desktop-Mountable (Do not physically stack the US-8-150W)
Features

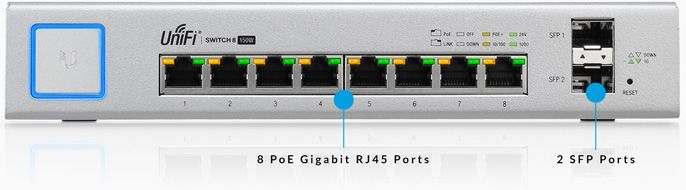

Versatile Port Configuration
Eight Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
PoE+ Flexibility
The UniFi Switch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE to simplify your infrastructure.
By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.

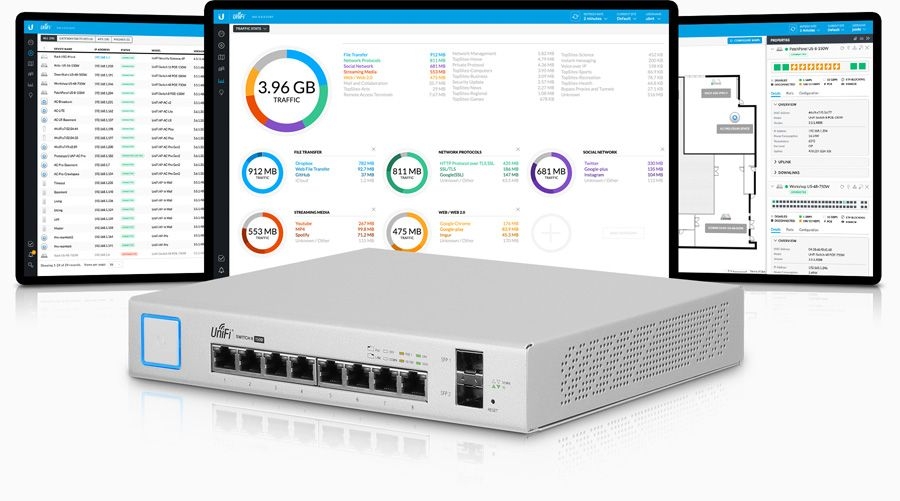

Sleek Design and Management
The compact UniFi Switch can be placed on a desktop and integrates with the UniFi Controller software for centralized management of your UniFi devices.
Advanced Port Management
Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate) - as well as 802.1X Authentication and Radius VLAN support.
System Example
PoE Switch Model Comparison Chart
Specifications
| UniFi US-8-150W |
| Dimensions |
204 x 43 x 235 mm (8.03 x 1.69 x 9.25") |
Weight
Rack-Mount Brackets Excluded
Rack-Mount Brackets Included |
1.65 kg (3.67 lb)
1.7 kg (3.75 lb) |
Networking Interfaces
|
(8) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports |
| Management Interface |
Ethernet In-Band |
| Total Non-Blocking Throughput |
10 Gbps |
| Switching Capacity |
20 Gbps |
| Forwarding Rate |
14.88 Mpps |
| Power Method |
110-240VAC/50-60 Hz Universal Input |
| Power Supply |
AC/DC, Internal, 150W DC |
Maximum Power Consumption
Including PoE Output
Excluding PoE Output |
150W
20W |
LEDs Per Port
RJ45 Data Ports
SFP Data Ports |
PoE, Speed/Link/Activity
Speed/Link/Activity |
| Sound Level |
34 dBa |
| ESD/EMP Protection |
Air: ± 24 kV, Contact: ± 24 kV |
| Shock and Vibration |
ETSI300-019-1.4 Standard |
| Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Operating Humitidy |
5 to 95% Non-Condensing |
| Certifications |
CE, FCC, IC |
| PoE Per Port |
PoE Interfaces
|
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| Max. PoE+ Wattage per Port by PSE |
34.2W |
| Voltage Range 802.3at Mode |
50-57V |
| Max. Passive PoE Wattage per Port |
17W |
| 24B Passive PoE Voltage Range |
20-27V |
