Overview
| Easy
Installation Upgrade your desktop system easily by plugging the Archer T6E
Wi-Fi adapter into an available PCI-E slot |
| Hi-Speed
Wi-Fi Up to 1300Mbps Wi-Fi speeds (867Mbps on 5GHz band or 400Mpbs on 2.4GHz
band) |
| 802.11ac
Dual Band 3 times faster than the 802.11n standard, perfect for hi-intensity
network usage |
| Backward
Compatibility With support for 802.11 a/b/g/n standards |
| Broad
Wireless Range 2 external antennas ensure a greater range of Wi-Fi connection
and stab |

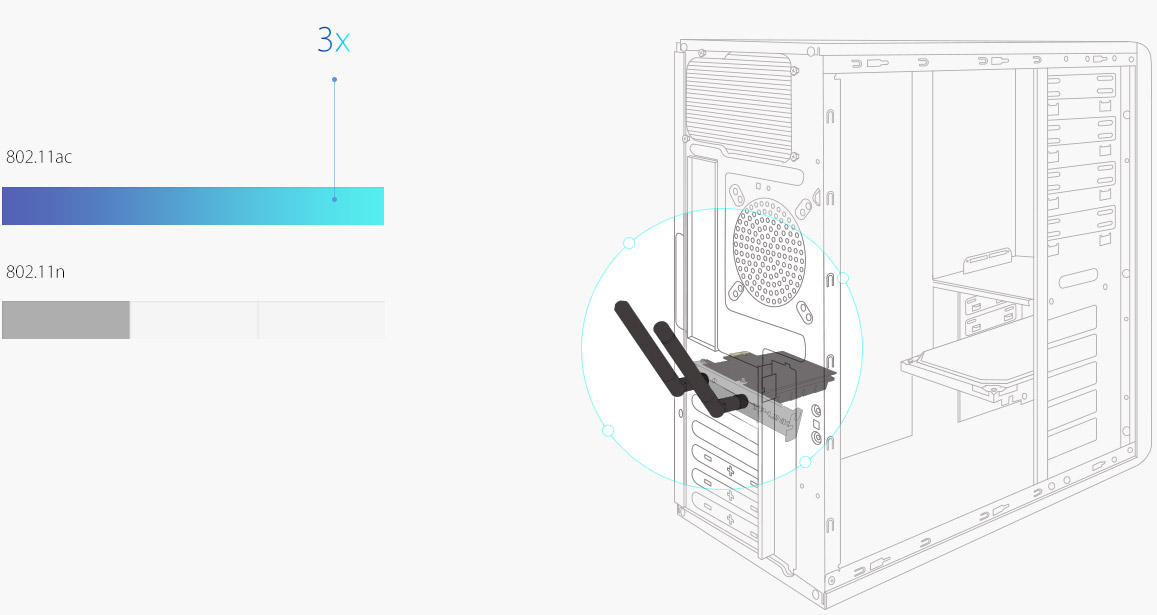

802.11ac - The Next Generation of Wi-Fi
TP-LINK's Archer T6E supports the next generation Wi-Fi standard - IEEE
802.11ac, offering transfer rates that are 3 times faster than wireless N
speeds. Easily upgrade your desktop system by simply slotting the Wi-Fi adapter
into an available PCI-E slot.
AC1300 – Selectable Dual Band Speeds 867/400Mbps
The Archer T6E provides high-speed Wi-Fi of up to 867Mbps over 5GHz, perfect
for HD video streaming and lag-free online gaming. Additionally, the 2.4GHz
400Mbps Wi-Fi band is ideal for standard network/internet usage such as web
surfing.
Heat Sink for Better Stability
The Heat Sink helps to dissipate heat generated by the adapter, which in turn
increases performance and improves stability. Whats more, lower temperatures
ensure an increased adapter lifespan.
Specifications
HARDWARE FEATURES |
| Interface | : PCI Express |
| Dimensions
: ( W x D x H ) | 4.8 x 4.5 x 0.85 in. (120.8 x 115.2 x 21.5 mm) |
| Antenna
Type | : 2 Dual
Band Detachable Antennas |
WIRELESS FEATURES
| Wireless Standards | : IEEE 802.11ac/n/a
5GHz, |
| IEEE 802.11b/g/n 2.4GHz |
| Frequency | : 2.4GHz or 5GHz |
| Signal Rate | : 867Mbps at 5GHz, |
| 400Mbps at
2.4GHz |
| Reception Sensitivity | :
| 5GHz : |
| 11a: -68dBm |
| 11n HT20:
-64dBm |
| 11n
HT40: -61dBm |
| 11ac HT20: -59dBm |
| 11ac HT40:
-54dBm |
| 11ac HT80: -51dBm |
| 2.4GHz : |
| 11b: -76dBm |
| 11g: -68dBm |
| 11n HT20:
-64dBm |
| 11n
HT40: -61dBm |
|
|
|
|
|
|
|
|
|
|
|
| Transmit Power | : 5GHz : <23dBm
(EIRP), |
| 2.4GHz : <20dBm (EIRP) |
| Wireless
Modes | : Ad-Hoc / Infrastructure mode |
| Wireless
Security | : Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,802.1x |
| Modulation
Technology | : DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
OTHERS
| System
Requirements | : Windows 10 (32/64bits), Windows 8.1 (32/64bits), Windows 8
(32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) |
