All stock codes associated to this product
PD2700Q, 3356849, 4718755066078, 13BQ-PD2700Q
Make inspirations come alive
Get pumped up with richer graphics brought by 10-bits of color depth, Rec.709 and standard RGB color space (sRGB), and 2560x1440 resolution. You’ll have more than 1 billion of colors to work with astonishing precision. Creatives and designers can now enjoy a smoother work flow by using one of the three display modes (Darkroom, CAD/CAM and Animation) that accentuate the details of images, making it easier for editing, creating, and visualizing.
key features
- 27 inch 2560x1440 QHD
Resolution
- 100% Rec. 709 and sRGB with
IPS Technology
- DualView Function and
Darkroom Mode
- CAD/CAM, Animation Modes
Enable the Detailed and Precise Design
- Display Pilot Software for Customized Monitor Settings

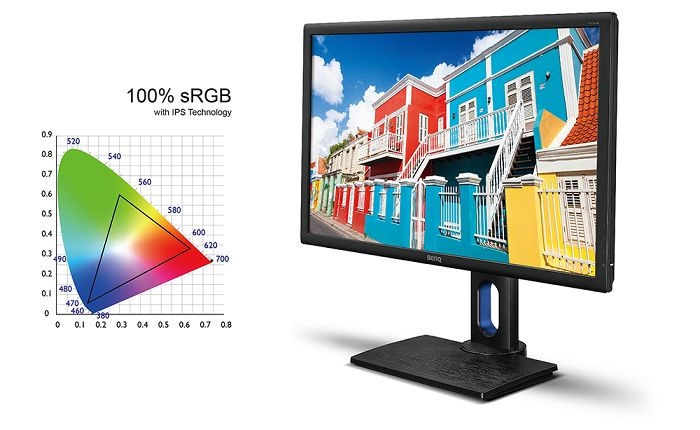

10-bit, 100% sRGB and Rec.709 Optimal Color Precision
With 10-bits of color depth, Rec.709 and standard RGB color space (sRGB), you’ll have more than 1 billion of colors to work with astonishing precision.
Wide Viewing Angle with IPS Technology
PD2700Q is equipped with IPS technology
offering a wider viewing angle (178° in both horizontal and vertical
planes) to users with exceptional clarity and vivid image quality in all
angles.
Darkroom Mode
The Darkroom mode adjusts the brightness and contrast of images giving clarity and sharpness to details, creating the optimal setting for work in darker post-processing environments.

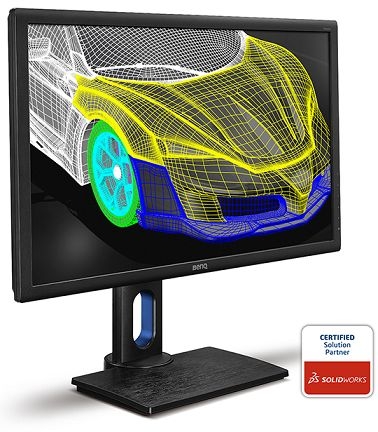

CAD/CAM mode
Never miss a detail again! Revolutionary CAD/CAM mode offers superior image contrast, allowing for lines and shapes of technical illustrations to stand out. Incredible display performance is best paired with Pro/E, SOLIDWORKS, AutoCAD, CATIA and other CAD/CAM software solutions.
Animation mode
Animation mode enhances details in dark shadows so you can fine-tune creations effortlessly, while areas that do not require this function remain unaltered.

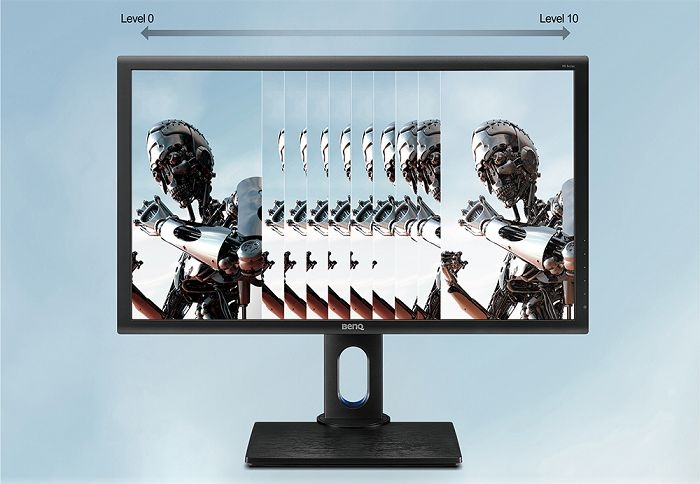

10-Level Animation Mode Adjustment
Adjustable animation mode offers 10 levels of display brightness for a clear working plane in any ambient light environment.
Desktop Partition
With BenQ Display Pilot, software can be displayed to desired proportions to enable better multitasking. (*Display Pilot Software and Windows OS required)

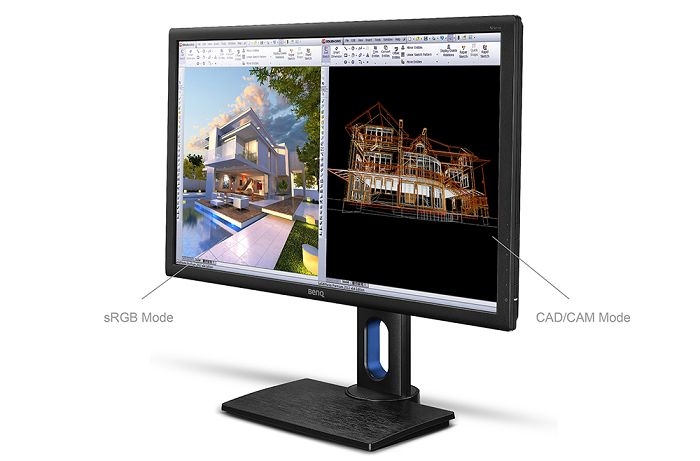

DualView
Enhance your workflow by switching on DualView to showcase designs in various display modes side-by-side.

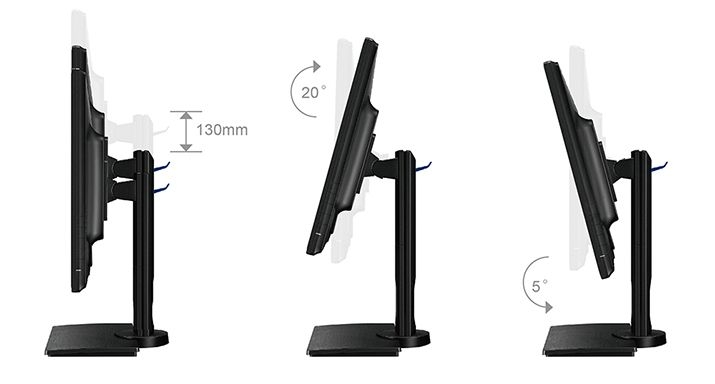

Height Adjustment
Ergonomics can play a huge role in productivity. Set your monitor at the right height to stay comfortable and keep working.
Flicker-Free
Stable feedback technology prevents the harmful effects of flickering from tiring or damaging the eyes. Hours of working in front of your monitor can now be achieved without feeling fatigued or sore in the eyes.
Low Blue Light
BenQ's Low Blue Light Technology is designed to filter out harmful blue light, effectively diminishing eye fatigue and irritation.
Specifications
|
Product Color
|
|
Product Color
|
Black
|
|
Panel
|
|
LCD Size (inch)
|
27"W
|
|
Aspect Ratio
|
16:9
|
|
Resolution (max.)
|
2560x1440
|
|
Display Area(mm)
|
596.74(H) x 335.66(V)
|
|
Pixel Pitch (mm)
|
0.2331
|
|
Brightness (Typical)
|
350
|
|
Native Contrast ( typ. )
|
1000:1
|
|
Panel Type
|
IPS
|
|
Viewing Angle (L/R;U/D) (CR>=10) |
178/178
|
|
Response time
|
12ms
|
|
Display Colors |
1.07B
|
|
Color Gamut
|
100% sRGB
|
|
Backlight
|
LED
|
|
Software
|
|
Display Pilot
|
Yes
|
|
Regulations
|
|
TCO
|
6.0
|
|
Audio/Video Inputs/Outputs
|
|
Hor. Frequency (KHz)
|
30-89
|
|
Ver. Frequency (Hz)
|
50-76
|
|
Video Bandwidth (MHZ)
|
270
|
|
Dimensions &Weight
|
|
Dimensions with Wall Mount (HxWxD mm) (w/o Base)
|
379.5x641.0x56.5
|
|
Dimensions(HxWxD mm)
|
Highest:
547.32x641.0x239.65
Lowest: 417.32 x641.0x239.65
|
|
Net Weight (kg)
|
6.9
|
|
Gross Weight (kg)
|
9.1
|
|
Height Adjustment (mm)
|
130mm
|
|
Special Features
|
|
AMA
|
V
|
|
HDCP
|
V
|
|
Flicker-free Technology
|
V
|
|
Color Temperature
|
Normal (6500°K) / Reddish (5700°K) / Bluish (9300°K) / User Mode
|
|
Picture Mode
|
V
|
|
Animation mode
|
V
|
|
CAD/CAM mode
|
V
|
|
Low Blue Light
|
V
|
|
VESA Wall Mounting
|
V
|
|
Tilt (down/up)
|
-5~20
|
|

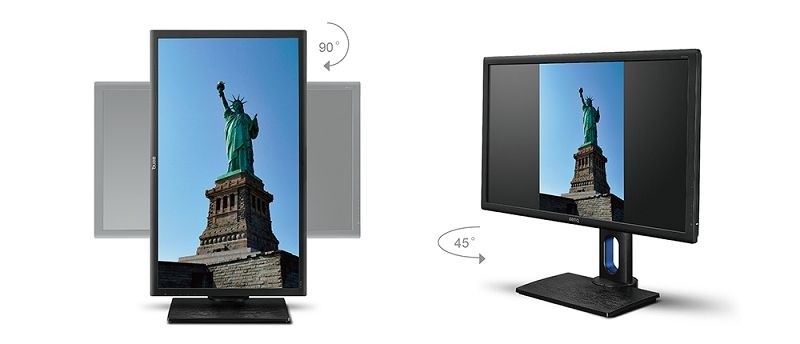

Swivel (left/right)
|
45/45
|
|
Pivot
|
90°
|
|
K Locker
|
V
|
|
OSD Language
|
18 languages
|
|
Included Accessories
|
|
Signal Cable
|
HDMI cable(1.5m), mini DP to DP cable (1.5m), USB 2.0 cable (1.5m)
|
|
I/O
|
|
Speakers
|
1Wx2
|
|
HDMI
|
V
|
|
DP Input
|
V
|
|
Mini DP Input
|
V
|
|
Headphone Jack
|
V
|
|
Power
|
|
Power Supply (90~264 AC)
|
90~264 AC built in
|
|
Power Consumption (On mode)
|
58W
|
|
Power Consumption (Power saving mode)
|
0.5W
|
|
Power Consumption (Base on Energy star )
|
28W
|
|
Reliability
|
|
MTBF(hr, exclude lamp)
|
60000
|
