All stock codes associated to this product
AD2U31PX4C, AD2U31PX4-C
Overview
This Addonics USB 3.1 type-C PCIe controller is a simple and economical
solution for adding the latest high speed 10 Gbps USB 3.1 type C port to any
Desktop computers or servers. Designed to install into any PCI-Express 4X slot,
the USB 3.1 port on this controller can handle data rate up to 10 Gbps on the
PCIe 2.0, doubling the speed of USB 3.0.
Features

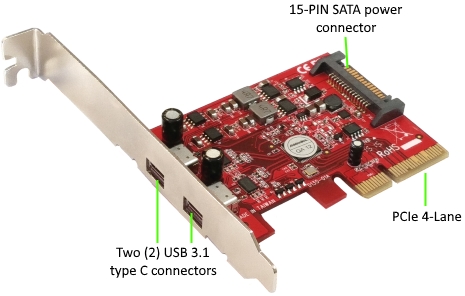

- Add two USB 3.1 type C
portsvia PCI-Express (PCIe) 4-lane slot
- Maximum 10 Gbits/sec*,
twice the speed of USB 3.0 and 20 times the speed of USB 2.0
- Supports both PCIe 1.0,
2.0 or 3.0
- Includes both standard
height and low-profile brackets
- Power directly from
PCI-Expressd slot or via 15-pin SATA power connector
(SATA power connection
is required for providing more than 500 mA BUS power)
- Hot swappable - drive
can be removed and added without system shut down or restart
- Capable ofSuperSpeed
(10Gbps, 5Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5
Mbps) transaction
- Compatible with Windows
7, 8.1 10 and Windows server
*To achieve the maximum throughput, the PCI-Express slot must be version 2.0
or higher. Older Notebook with PCI-Express 1.0 will limit the speed to 5 Gbps.
Performance per port may decrease if both ports are transferring data
simultaneously due to the limited throughput of the PCI-Express slot. Please
visit following web page for more information of PCI-Express v1.0 and
v2.0https://en.wikipedia.org/wiki/PCI-Express
Specifications
- Two USB 3.1 Type C
downstream receptacle ports
- Provides 5V3A USB bus
power on one USB 3.1 Type C port. The 3A maximum depends on the power
connecting to the onboard 15-pin SATA power connector. Maximum power is shared
over the the two ports
- Supports PCIe 1.0, 2.0
or 3.0 motherboard
- Compliant with PCI
Express Specification 2.0
- Compliant with Universal
Serial Bus 3.1 Specification Revision 1.0
- Compliant with Intel
eXtensible Host Controller Interface (xHCI) Specification 1.0
- Compliant with USB
Attached SCSI Protocol Specification 1.0
- All USB ports can handle
SuperSpeed (10 Gbps, 5Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and
LowSpeed (1.5 Mbps) transaction
- Support any USB3.1, 3.0,
2.0 and USB1.1 devices
- Built-in 15-Pin SATA
power connector support the 5V Max 1.5A bus power each USB port from system
power supply
- Low profile PCIe form
factor
- Chipset : ASMedia
- Temperature: Operating 0
to 60 degree C.
- Storage: -25 to 70
degree C.
- Humidity: Operating 10%
to 90%
- Non Operating 0% to 95%
non-condensing
- Completely with drivers
for Windows 7, 8.1, 10 and Windows Server
- Dimensions: (W x D x H)
- 40mm x 106mm x 15mm (1.57in x 4.17in x 0.59in)
- Weight: 30g
(1.06oz)
- Storage humidity range:
5% - 95% (non condensing)
- 1 year warranty
- RoHS
Compliant
Contents
2-port USB 3.1 type C PCI-e 4X host controller, low profile bracket, user
guide
