Overview

Features

  • Supports 7th/ 6th Generation Intel Core Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 2-Way CrossFire Multi-Graphics Support
  • Turbo B-CLOCK, Built-in Advanced Performance Tuning IC
  • Dual NVMe PCIe SSDs in RAID 0 Support
  • Ultra-Fast M.2 with PCIe Gen3 x4 &ATA interface
  • Intel Optane Memory Ready
  • Triple display interfaces including High Definition Multimedia InterfaceHigh Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Intel GbE LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
  • GIGABYTE UEFI DualBIOS
  • APP Center Including Cloud Station Utility

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

All Hybrid Fan Pin Headers

  • Hybrid Fan Headers detect whether the cooling device uses PWM or Voltage mode and automatically switches settings accordingly.
  • Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.

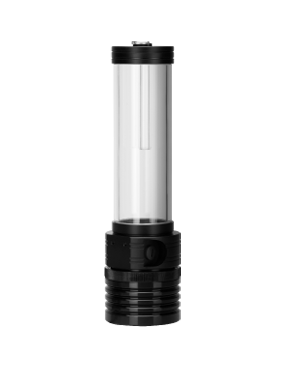

Closed Loop Watercooling

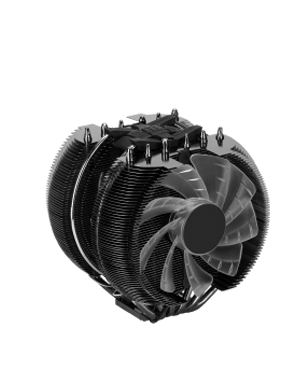

CPU Fan

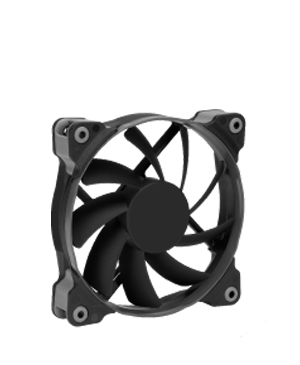

System Fan

Watercooling Fan

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Interoperable Sensors and Fans

  • Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve

  • Customize fan curves based on specific temperatures with the intuitive graphical UI.

Enhanced BIOS Interface

The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature changeall without having to load Windows.

Turbo B-Clock

Built-in Advanced Performance Tuning IC Intel Processors

Thanks to the onboard Turbo B-Clock Tuning IC, GIGABYTE enables users to overclock and push the limits of their processor. With the new linear range adjustment option of the Tuning IC, ranges from 95MHz to 150MHz are now possible.

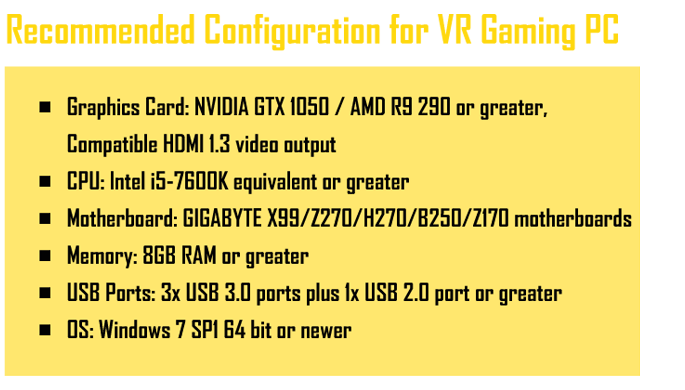

Immersive VR Gaming Experience

  • VR requires more performance than Full HD graphics for a steady 90FPS or greater.
  • Only Gaming PCs can provide the best VR experience.

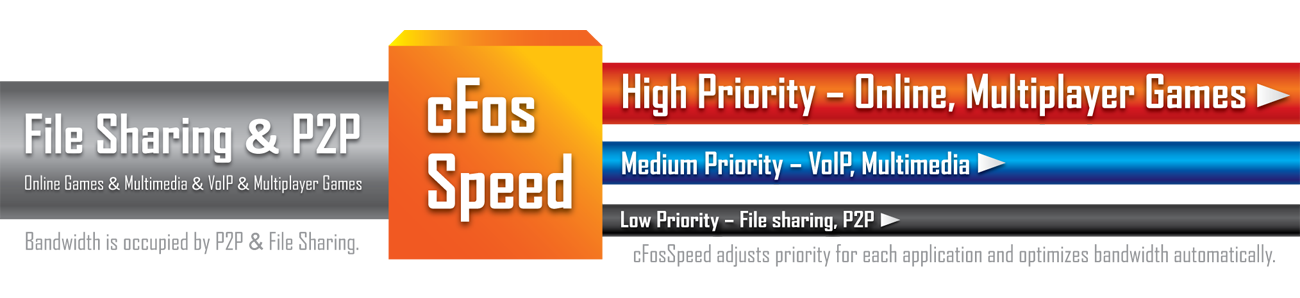

Intel GbE LAN with cFosSpeed Internet Accelerator Software

Intel Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

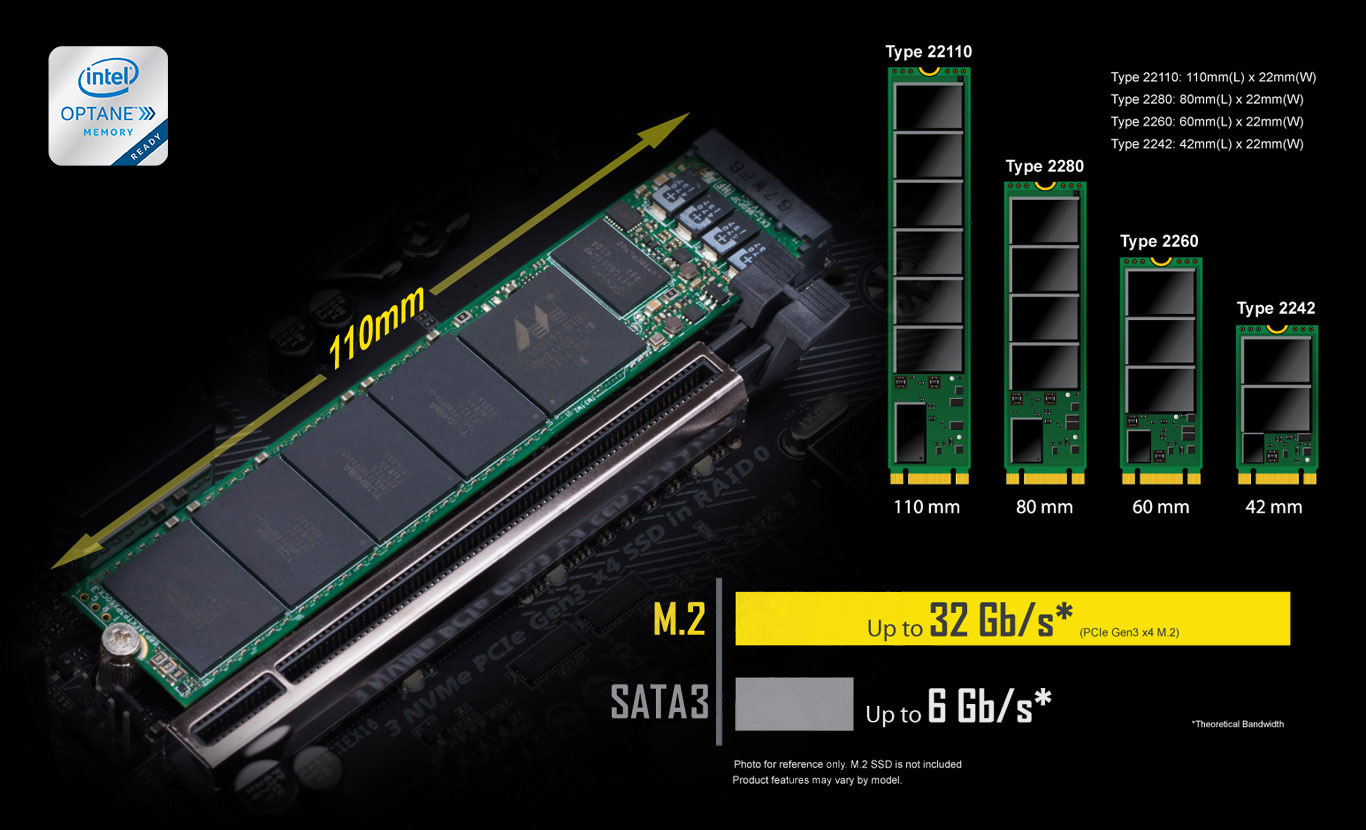

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)

GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

2-Way CrossFire Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

Anti-Sulfur Resistor Design

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

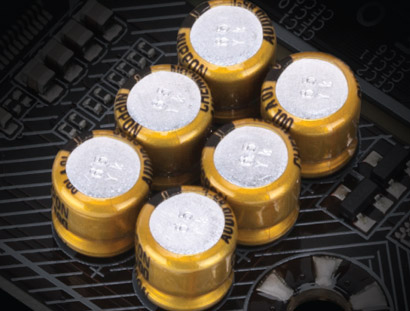

High Quality Onboard Audio Design

Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.



High Definition Digital Outputs

Enjoy true HD display capability using the most commonly integrated digital output technologies on todays HD displays and TVs.

Diagnostic LEDs | Hardware Troubleshooting at a Glance

Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.

Refreshed BIOSEasy, Smart, and Friendly

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

GIGABYTE APP Center

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your systems behavior; these are the possibilities of the System Information Viewer.

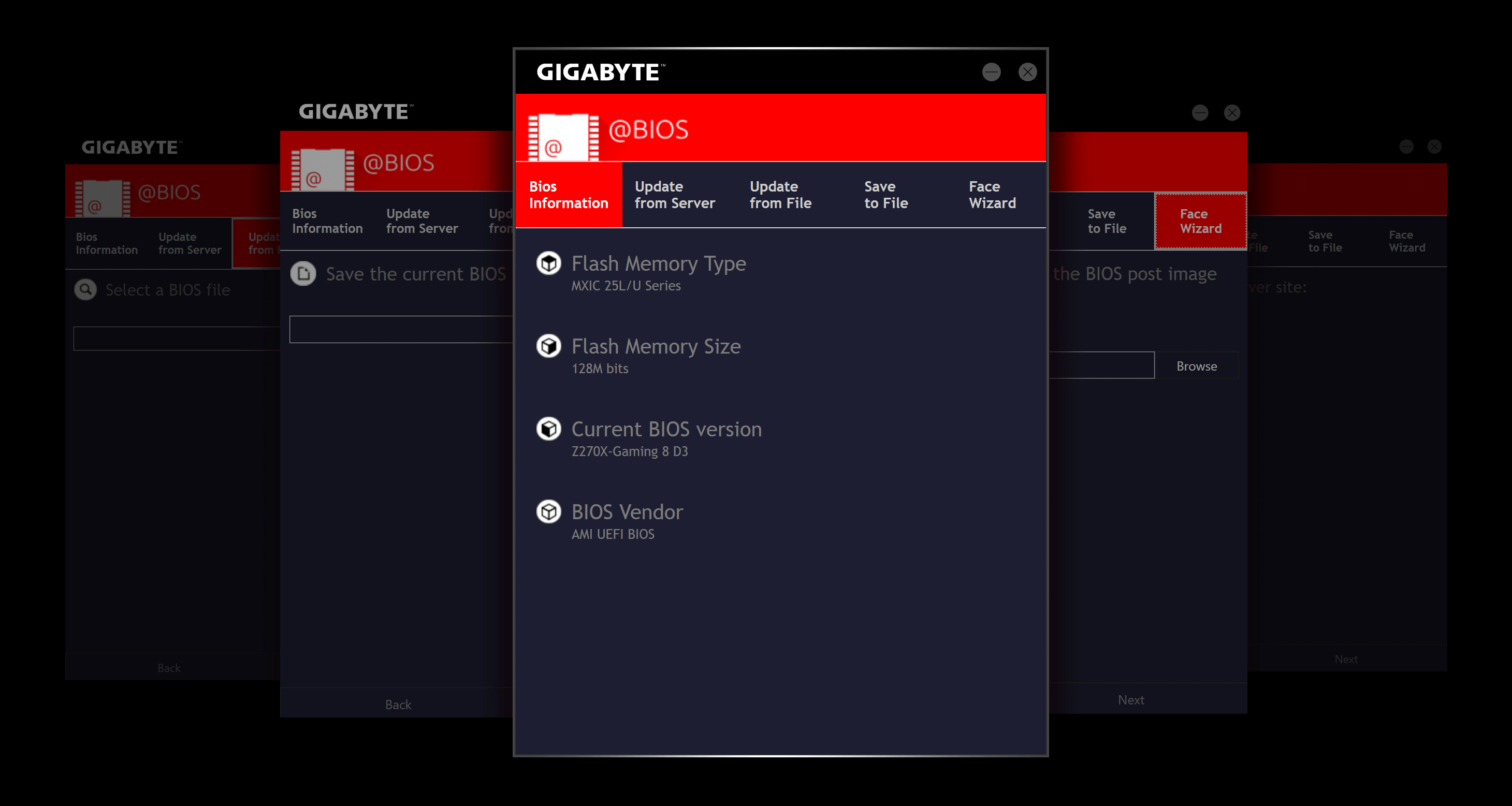

@BIOS

The GIGABYTE @BIOS app allows you to update your systems BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE serversor you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

3D OSD

3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

GIGABYTE Patented DualBIOS (UEFI) Design

GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

Easy to Install "G-Connector" Design

The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G-Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel HD Graphics via HDMI.

HDMI - The Next Generation Multimedia Interface

HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chatskeeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

TriDef SmartCam | Custom Stream Modding

To facilitate being the full streaming solution each GIGABYTE motherboard includes TriDef SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.

Specifications

CPU

1. Support for 7th and 6th generation Intel Core i7 processors/
Intel Core i5 processors/Intel Core i3 processors/IntelPentium processors/
Intel Celeron processors in the LGA1151 package

2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

1. Intel H270 Express Chipset

Memory

1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than
4 GB of physical memory is installed, the actual memory size displayed will be
less than the size of the physical memory installed.

2. Dual channel memory architecture

3. Support for DDR4 2400(O.C.)* / 2133 MHz memory modules

4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
(operate in non-ECC mode)

5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6. Support for Extreme Memory Profile (XMP) memory modules

* To support 2400 MHz or XMP memory, you must install a 7th generation processor.

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of [email protected] Hz

2. 1 x DVI-D port, supporting a maximum resolution of [email protected] Hz

* The DVI-D port does not support D-Sub connection by adapter.

3. 1 x HDMI port, supporting a maximum resolution of [email protected] Hz

* Support for HDMI 1.4 version.

Support for up to 3 displays at the same time

Maximum shared memory of 1 GB

Audio

1. Realtek ALC887 codec

2. High Definition Audio

3. 2/4/5.1/7.1-channel

4. Support for S/PDIF Out

LAN

1. Intel GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,
be sure to install it in the PCIEX16 slot.

2. 2 x PCI Express x16 slot, running at x4 (PCIEX4_1, PCIEX4_2)

3. 2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

4. 1 x PCI slot

Multi-Graphics Technology

1. Support for AMD Quad-GPU CrossFireX and 2-Way AMD CrossFire technologies
(PCIEX16 and PCIEX4_1)

Storage Interface

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and
PCIe x4/x2 SSD support)

2. 1 x SATA Express connector

3. 6 x SATA 6Gb/s connectors

4. Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and
SATA connectors.

USB

Chipset:

1. 8 x USB 3.1 Gen 1 ports (4 ports on the back panel, 4 ports available through
the internal USB headers)

2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the
internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector

2. 1 x 8-pin ATX 12V power connector

3. 1 x M.2 Socket 3 connector

4. 1 x SATA Express connector

5. 6 x SATA 6Gb/s connectors

6. 1 x CPU fan header

7. 3 x system fan headers

8. 1 x front panel header

9. 1 x front panel audio header

10. 1 x S/PDIF Out header

11. 2 x USB 3.1 Gen 1 headers

12. 2 x USB 2.0/1.1 headers

13. 1 x Trusted Platform Module (TPM) header

14. 1 x serial port header

15. 1 x parallel port header

16. 1 x Clear CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port

2. 1 x D-Sub port

3. 1 x DVI-D port

4. 1 x HDMI port

5. 4 x USB 3.1 Gen 1 ports

6. 2 x USB 2.0/1.1 ports

7. 1 x RJ-45 port

8. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out,
Line In, Line Out, Mic In)

I/O Controller

1. iTE I/O Controller Chip

H/W Monitoring

1. Voltage detection

2. Temperature detection

3. Fan speed detection

4. Overheating warning

5. Fan fail warning

6. Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1. 2 x 64 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. Support for DualBIOS

4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions
of each application may also vary depending on motherboard specifications.

3D OSD

@BIOS

Ambient LED

AutoGreen

BIOS Setup

Color Temperature

Cloud Station

EasyTune

Easy RAID

Fast Boot

Game Boost

ON/OFF Charge

Platform Power Management

Smart Backup

Smart Keyboard

Smart TimeLock

System Information Viewer

USB Blocker

V-Tuner

2. Support for 3TB+ Unlock

3. Support for Q-Flash

4. Support for Xpress Install

Bundle Software

1. Norton Internet Security (OEM version)

2. Intel Optane Memory Ready

3. cFosSpeed

Operating System

1. Windows 10 64-bit (for 7th Generation Intel Processors)

2. Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits
(for 6th Generation Intel Processors)

* Please download the "Windows USB Installation Tool" from GIGABYTE's
website and install it before installing Windows 7.

Form Factor

1. ATX Form Factor; 30.5cm x 22.5cm
