Overview

Features

  • Supports 7th/ 6thGeneration IntelCore Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs, DDR4 4133+(OC)
  • IntelUSB 3.1 Gen 2 with USB Type-C and Type-A
  • 3-Way Graphics Support with Dual Armor and Ultra Durable Design
  • Bitspower G-Chill Hybrid Water Block
  • Triple NVMe PCIe SSDs in RAID 0 Support
  • Dual NVMe PCIe Gen3 x4 U.2 Connectors
  • Dual Ultra-Fast M.2 with PCIe Gen3 x4 &TA interface
  • IntelOptane Memory Ready
  • Creative Sound Blaster certified ZxRi 120dB+ Audio
  • Killer DoubleShot Pro Gaming Network + IntelGigabit LAN
  • USB DAC-UP 2 with Adjustable Voltage
  • RGB FUSION with Multi-Zone LED Light Show design
  • Swappable Overlay for Accent LED
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
  • 2 External Thermistors Headers with 2 Included Thermistors
  • Extreme 40 Gb/s Thunderbolt 3
  • Integrated HDMI 2.0 Support
  • GIGABYTE UEFI DualBIOS with Q-Flash Plus USB Port
  • APP Center Including EasyTune and Cloud Station Utilities

Bitspower G-Chill Hybrid Water Block

AORUS and Bitspower have teamed up to create a superior performance hybrid water block featuring a high-flow pure copper water channel thats placed directly over VRMs for superior cooling. G1/4 threaded fittings ensure compatibility with any setup you plan to create.

A Breath of Fresh Air.

Air cooling has never been so easy. You may find that even without an active cooling solution, this state-of-the-art heatsink performs better than anything youve encountered. Thats because its integral design was to improve upon traditional heatsinks.

Keep your PC Hydrated

Unleash the performance of your PC. By actively cooling your gaming rig, gamers can push the limits of the CPU even further with more stable overclocks. Even when you don’t need the performance your PC will thank you for it.

The Life of the Party

Most gamers dont stop, so your PC shouldnt either. Components that are consistently placed under thermal stress will often fail or die completely. With liquid cooling you can expect a longer lifespan from your PC.



RGB FUSION

Set the Color that Matches Your Style

AORUS' 200 series motherboards boast the most advanced LED system in the market today. With more customizability than ever and a convenient and intuitive UI thanks to the RGB Fusion App, youll have a blast making your AORUS your own. LED enthusiasts now have even more options with the ability to customize multiple zones independently. For a more functional use, the bright and vibrant LEDs can be configured to display the PCs temperature or load. For even more LED goodness RGBW strips are now supported for more true and vibrant whites.

Multi-Zone Light Show Design

  • 16.8M RGB Colors
  • 6 Light Zones
  • 8 Programmable Sections
  • 8 Different Lighting Effects
  • 2 RGBW Light Strip Pin Headers
  • Accent LED with Interchangeable Overlay
  • Advanced Mode for Extreme Customizability

Basic



Advanced



Surround Lighting

Six different light zones are equipped with high brightness RGB LEDs, namely the CPU, Memory, Armor, Audio, PCI-Express and Chipset &cent LED Zones. When its all set and done, your system will shine like never before.

Swappable Overlay for Accent LED

AORUS brings even more color and life to your system with an Accent LED Overlay. This overlay complements the RGB Fusion technology in AORUS Motherboards adding more flare and style to your gaming machine. With the swappable overlay users can utilize different patterns and designs to make their system their own.

Supports RGBW Light Strips | Independently Programmable Onboard Pin Header for RGBW LED Strips

Not bright enough? You can install standard 12V external RGB or RGBW light strips on the RGBW pin header and control its color from the RGB Fusion software. With RGBW light strips that have a dedicated white color LED, you can have brighter and more vibrant colors.

No need to worry when choosing light strips as the AORUS motherboards support a wide variety of RGBW light strips on the market thanks to the RGB Fusion software that allows users to redefine the pin location for the R/G/B Signal.

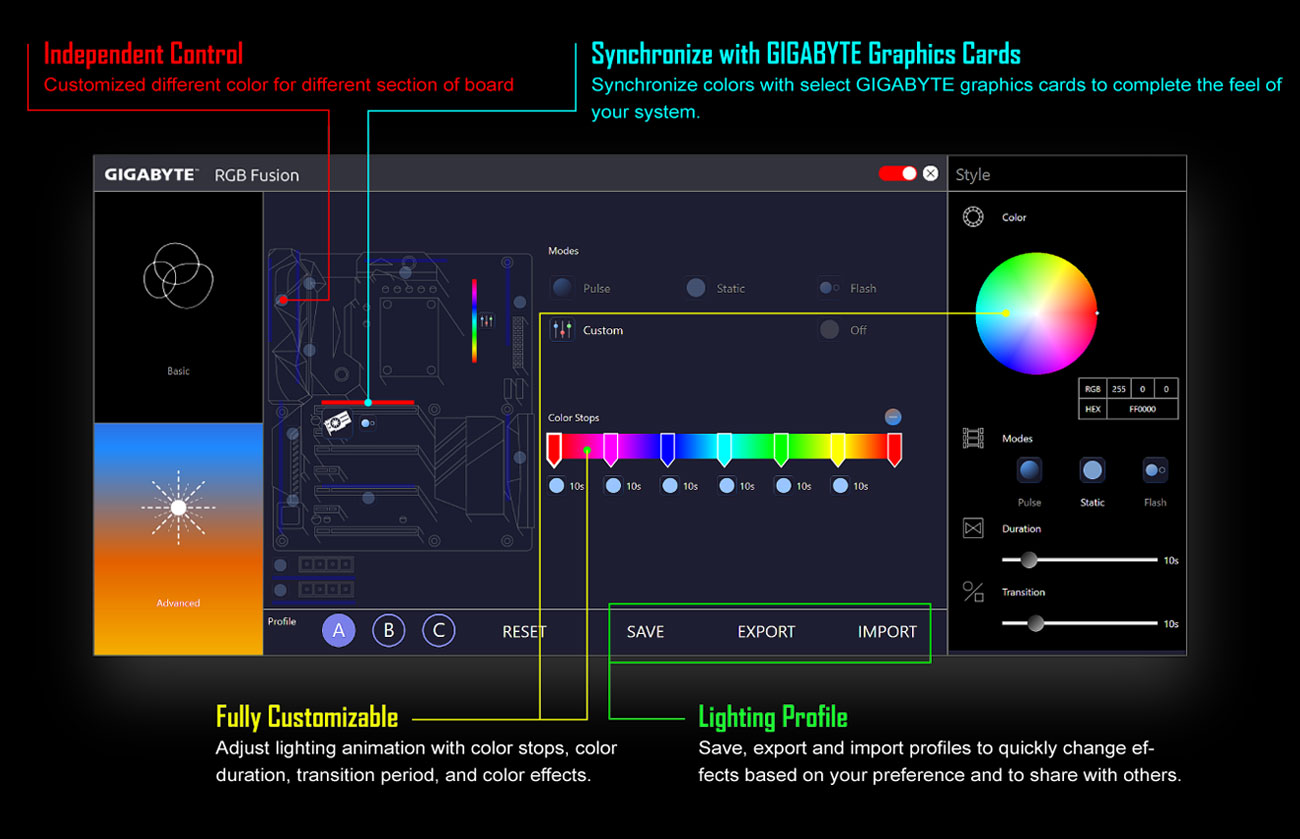

RGB Fusion (Advanced mode)

  • With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colors. You can even set the LEDs to synchronize with your favorite music or have them change colors to indicate the CPU temperature.
  • For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and color transitions, along with specific duration and transition times.
  • Once done, it’s simple to save and share your lighting profile with others.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

All Hybrid Fan Pin Headers

  • Hybrid Fan Headers detect whether the cooling device uses PWM or Voltage mode and automatically switches settings accordingly.
  • Supports up to 2 amps with built-in overcurrent protectiona must for high-end high current fans.

  • Closed Loop Watercooling
  • CPU Fan
  • System Fan
  • Watercooling Fan

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Interoperable Sensors and Fans

  • Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve

  • Customize fan curves based on specific temperatures with the intuitive graphical UI.

Enhanced BIOS Interface

The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature changeall without having to load Windows.

Onboard Discrete Card Level Audio Design Creative Sound Blaster Certified | ZxRi 120dB+ Audio

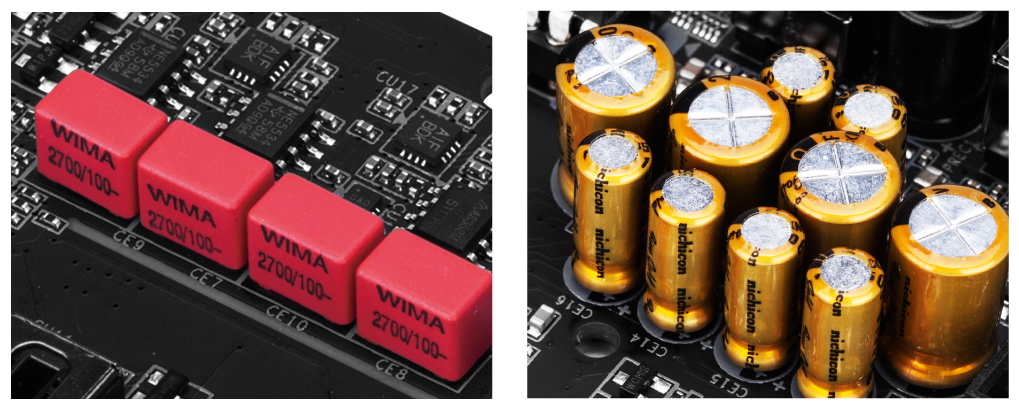

High-End Nichicon Fine Gold and WIMA Audio Caps

The Z270X-Gaming 8 boasts a combination of Hi-Fi grade WIMA capacitors and Nichicon audio grade Fine Gold capacitors. While the Nichicon Fine Gold capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

AMP-UP Audio Technology with Triple Upgradable OP-AMPs

AORUS offers true sound customization with its triple upgradable OP-AMP solution. To ensure users receive the best sound profile matching their needs and experience the most enjoyable audio, AORUS has included an OP-AMP for both left and right channels on the rear I/O as well as a dedicated OP-AMP for the front audio jack.

USB DAC-UP 2 | Adjustable Voltage USB Port with Dedicated Power Design

  • AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2.
  • USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop.
  • Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.

Immersive VR Gaming Experience

  • VR requires more performance than Full HD graphics for a steady 90FPS or greater.
  • Only Gaming PCs can provide the best VR experience.

To create a seamless VR experience AORUS Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for heavier discrete graphics cards it's obvious that AORUS has the tools you need to start your journey in VR. To set the mood AORUS Motherboards include RGB Fusion to put you in the center of action.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chatskeeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

Dual Killer + Intel Networking

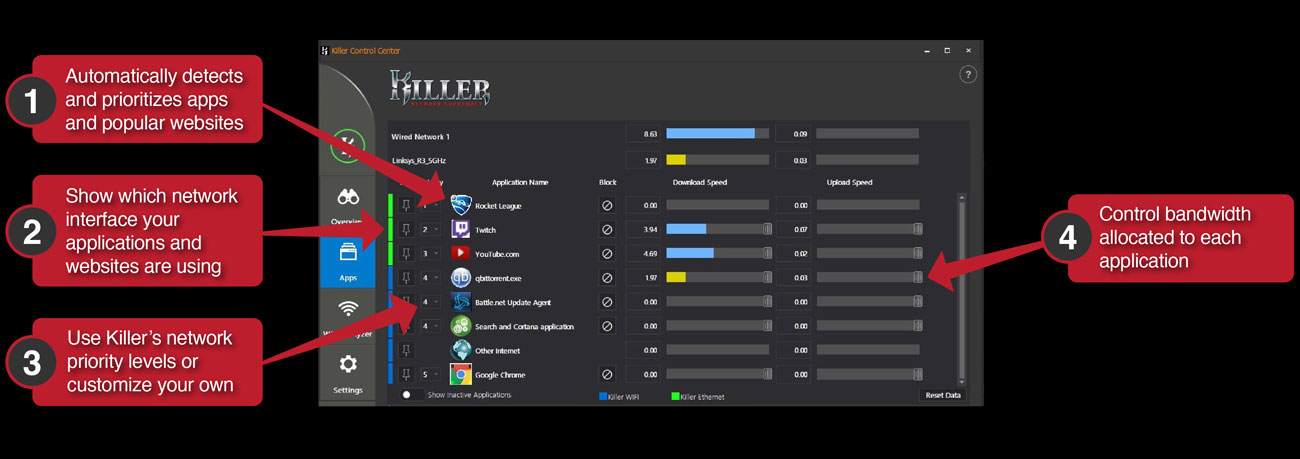

Automatically prioritize your game network needs over the fastest available connection for high quality, lag-less and uninterrupted gaming connectivity.

Give yourself the competitive edge: Optimize your network performance with the all-new killer Control Center

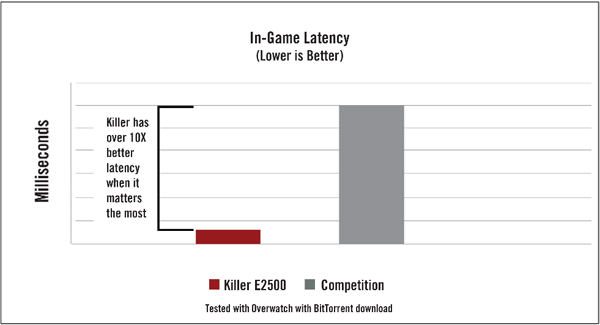

Gaming Performance while Multitasking

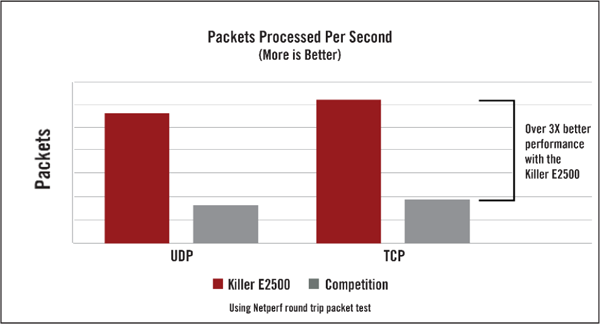

Networking Performance

Triple NVMe PCIe SSDs in RAID 0 Support | Extreme Performance with Gen3 x4 NVMe PCIe SSDs

AORUS' Z270 motherboards offers the industrys best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design supports up to three Intel 750 Series NVMe PCIe SSDs which can be configured in RAID for record speeds of up to 3525 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

U.2 Onboard (NVMe PCIe Gen3 x4) | NVMe Performance for PCIe SSDs

The new Intel 750 series SSDs offer an incredible increase in performance over SATA drives. Using the NVMe protocol which takes advantage of the fast bandwidth of PCIe Gen3 x4 lanes (32 Gb/s), the drives are a clear advantage for users looking to boot their OS faster, load their games in a flash and access large files without waiting. By implementing the U.2 port onboard to support the 2.5 Intel 750 Series drive, AORUS ensures that the users can benefit from the best performance.

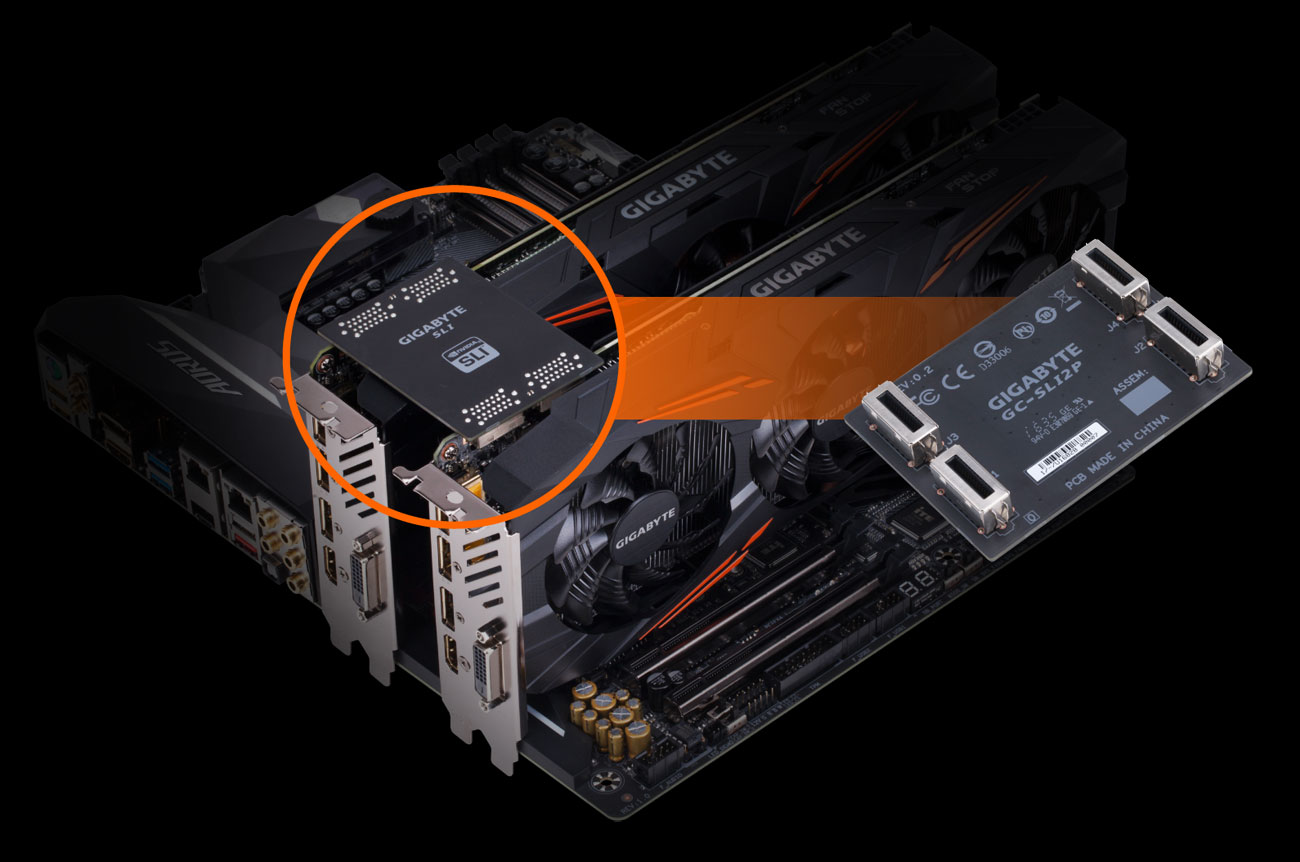

High-Bandwidth(HB) SLI Bridge

Take your gaming performances to a whole new level by multiple GeForce GTX cards with High-Bandwidth(HB) SLI Bridge.

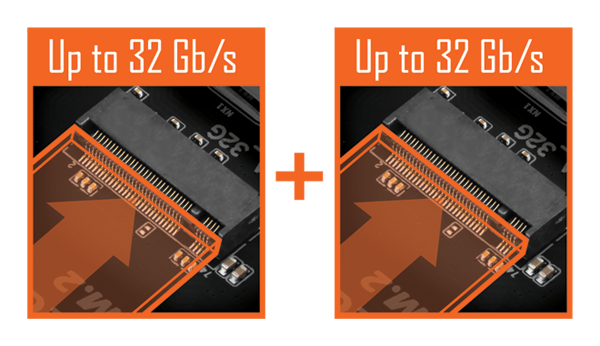

Dual Ultra-Fast NVMe PCIe Gen3 x4 M.2

With two NVMe PCIe Gen3 x4 M.2 connectors onboard, AORUS brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

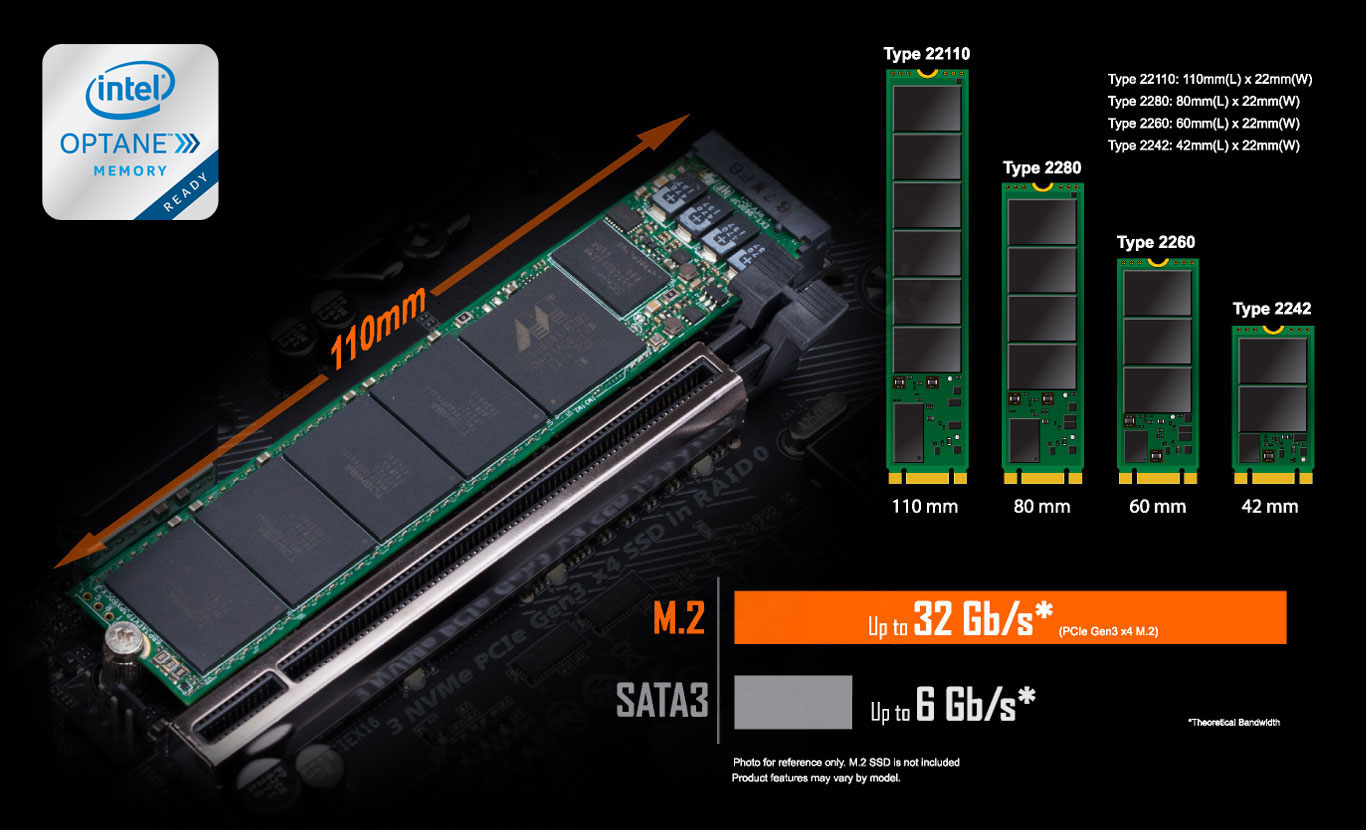

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)

AORUS' M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

Next Generation 40 Gb/s Thunderbolt 3

Thunderbolt 3 – The Fastest 40 Gb/s Single-wire Connection

Powered by Intel's own Thunderbolt controller the new Thunderbolt 3 protocol, which is available over a USB Type-C connector on the back I/O of the AORUS' motherboards, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.

Daisy-chain Multiple Devices

Support for DisplayPort 1.2 makes Thunderbolt 3 a must have for any enthusiast. The Z270X-Gaming 8 is able to support a display in 4K resolution at 60 FPS. In addition, Thunderbolt 3 over USB Type-C has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 6 devices thanks to the Z270X-Gaming 8s USB Type-C port.

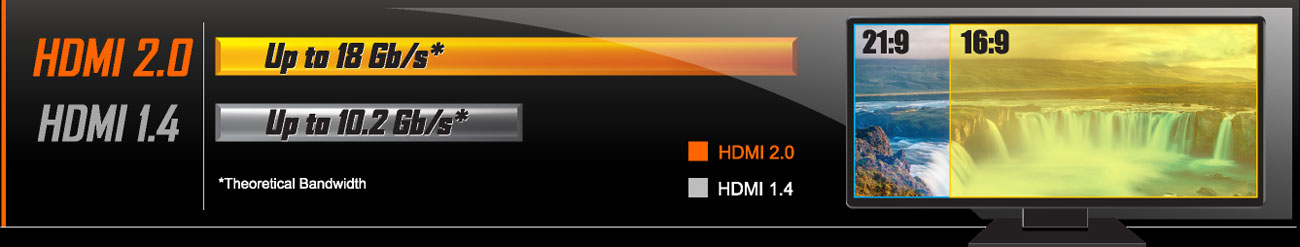

HDMI 2.0 for 4K / 60P / 21:9 / HDCP 2.2 Support

HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.

PURE SPEED, MORE POWER | Exclusively on AORUS Powered Motherboards

IntelUSB 3.1+Power Delivery 2.0

The Intel USB 3.1 controller utilizes four PCIe Gen3 Lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C and the traditional USB Type-A connector for better compatibility over a wider range of devices.

Turbo B-Clock | Built-in Advanced Performance Tuning IC

Turbo B-Clock Tuning IC in the AORUS 200 series motherboards enable overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.

*Turbo B-Clock overclocking range may vary according to CPU capabilities.

Diagnostic LEDs | Hardware Troubleshooting at a Glance

Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.

Support for DDR4 XMP Up to 4133MHz and Beyond*

AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4133MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

What is XMP?

DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

GIGABYTE PatentedDouble Locking Bracket

Dual Armor DIMM and PCIe Metal Shielding

Never worry about your heavy graphics card damaging your motherboard again. AORUS proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a foolproof option which can save your PCs life.

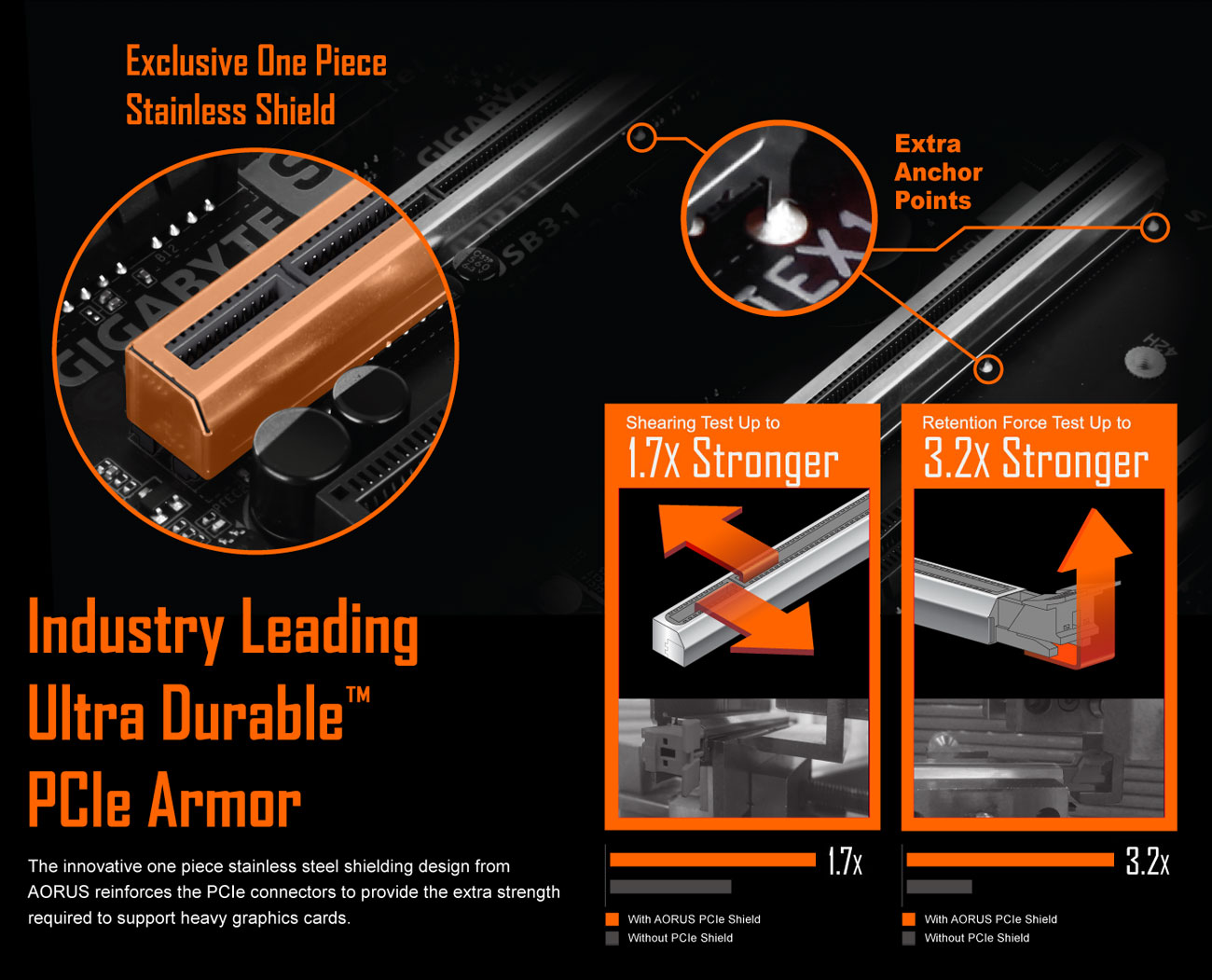

Ultra Durable PCIe Armor

  • Enhanced Strength PCIe Design, Support for Heavy Graphics Cards For Extreme / VR Gaming Station

Ultra Durable Memory Armor

  • AORUS exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference.

Anti-Sulfur Resistor Design

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design AORUS gives Ultra Durable Motherboards a whole new meaning.

Refreshed BIOS Easy, Smart, and Friendly

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

GIGABYTE APP Center

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

EasyTune

GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

Overclocking to Boost Your Frame Rates

Get the highest levels of performance from your PC with easy-to-use GIGABYTE overclocking features.

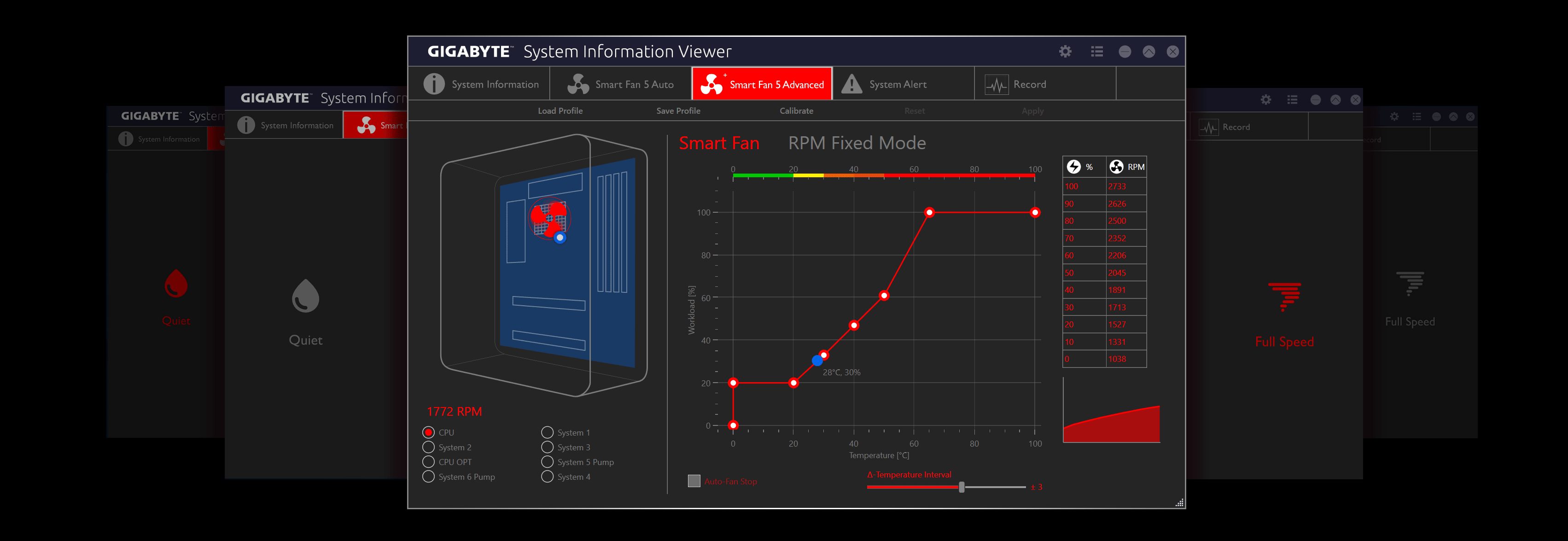

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your systems behavior; these are the possibilities of the System Information Viewer.

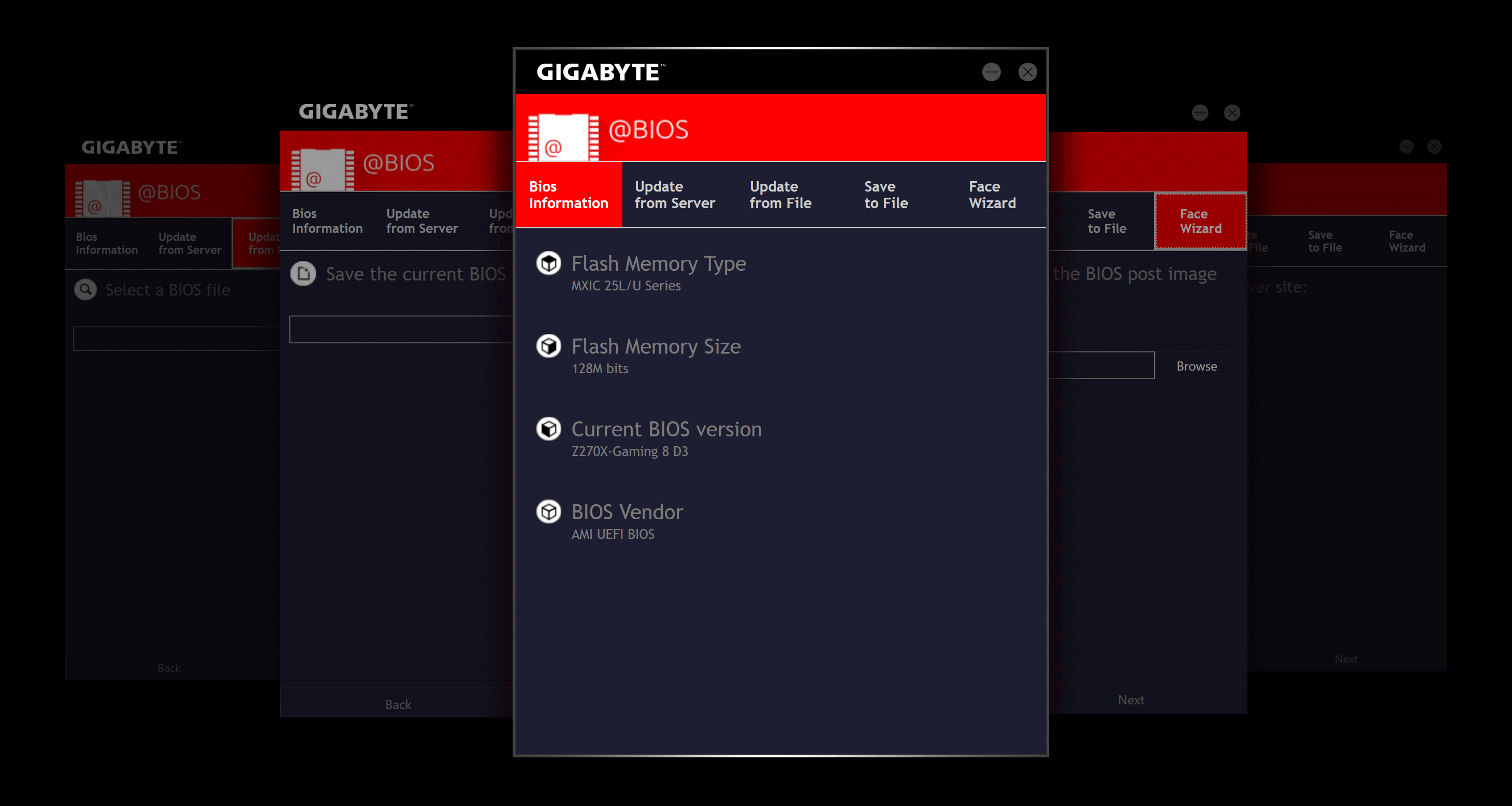

@BIOS

The GIGABYTE @BIOS app allows you to update your systems BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE serversor you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

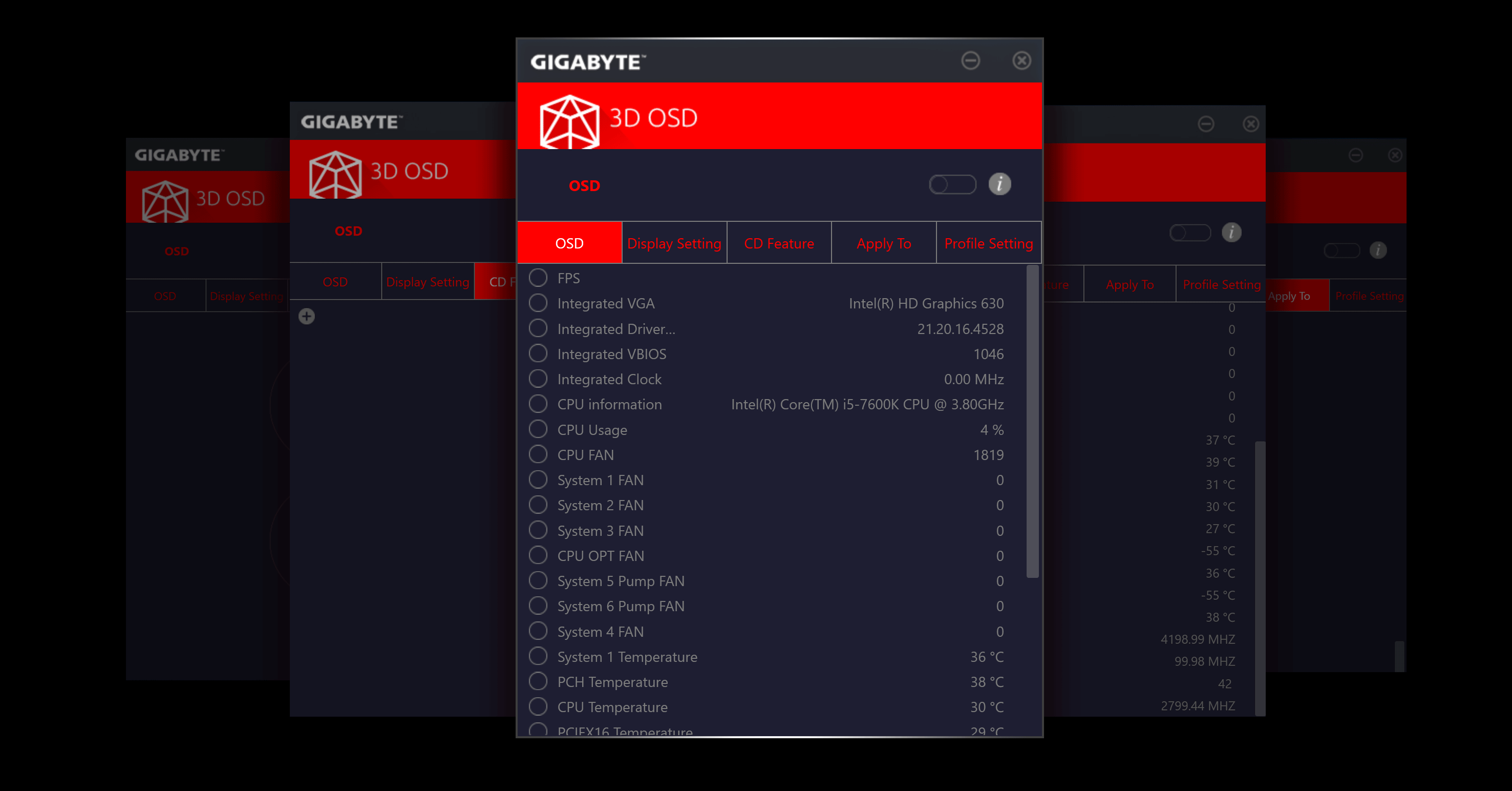

3D OSD

3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

GIGABYTE Patented DualBIOS (UEFI) Design

GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

Long Lifespan Durable Black Solid Caps

AORUS motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on AORUS motherboards.

2x Copper PCB Design (2oz Copper PCB)

AORUS' exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

15µ Gold Plated CPU Socket Design

AORUS motherboards come equipped with a 15 microinch thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

Q-Flash Plus

AORUS Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the CPU or Memory needing to be installed.

Updating your BIOS on your AORUS motherboard can be done in a flash even without memory or CPU onboard. Utilizing the EC Controller, the BIOS on your AORUS Motherboard can now be updated through Q-Flash Plus even if your system is unable to boot. A LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally.

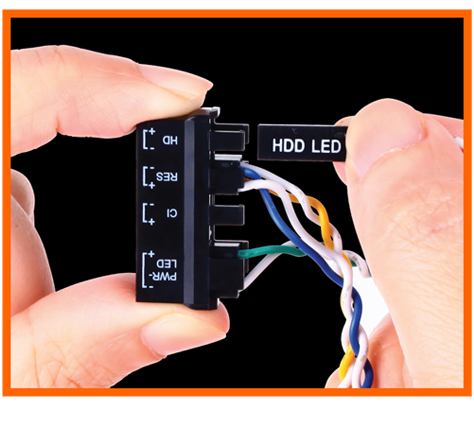

Easy to Install "G-Connector" Design

The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G-Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations.

TriDef SmartCam | Custom Stream Modding

To facilitate being the full streaming solution each AORUS motherboard includes TriDef SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.

Specifications

CPU

1. Support for 7th and 6th generation Intel Core i7 processors/
Intel Core i5 processors/Intel Core i3 processors/IntelPentium processors/
Intel Celeron processors in the LGA1151 package

2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

1. Intel Z270 Express Chipset

Memory

1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than
4 GB of physical memory is installed, the actual memory size displayed will
be less than the size of the physical memory installed.

2. Dual channel memory architecture

3. Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) /
3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) /
3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) /
2133 MHz memory modules

4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
(operate in non-ECC mode)

5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor+Intel Thunderbolt 3 Controller:

1. 1 x Intel Thunderbolt 3 connector, supporting DisplayPort and Thunderbolt
video outputs and a maximum resolution of [email protected] Hz

* Because of the limited I/O resources of the PC architecture, the number of
Thunderbolt devices that can be used is dependent on the number of the PCI Express
devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)

* Support for DisplayPort 1.2 version.

Integrated Graphics Processor-Intel HD Graphics support:

1. 1 x DisplayPort, supporting a maximum resolution of [email protected] Hz

* Support for DisplayPort 1.2 version.

Integrated Graphics Processor+MegaChips MCDP2800 chip:

1. 1 x HDMI port, supporting a maximum resolution of [email protected] Hz

* Support for HDMI 2.0 version. (Requires the latest Intel graphics driver from the
GIGABYTE website.)

Support for up to 3 displays at the same time

Maximum shared memory of 1 GB

Audio

1. Creative Sound Core 3D chip

2. 2 x JRC NJM2114 and 1 x TI Burr Brown OPA2134 operational amplifiers

3. Support for Sound Blaster ZxRi

4. High Definition Audio

5. 2/5.1-channel

6. Support for S/PDIF Out

LAN

1. 1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN1)

2. 1 x Killer E2500 LAN chip (10/100/1000 Mbit) (LAN2)

Wireless Communication module

1. Killer Wireless-AC 1535

2. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

3. Bluetooth 4.1

4. Support for 11ac wireless standard and up to 867 Mbps data rate

* Actual data rate may vary depending on environment and equipment.

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,
be sure to install it in the PCIEX16 slot.

2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)

* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated,
the PCIEX16 slot operates at up to x8 mode.

3. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

* The PCIEX4_1 slot shares bandwidth with the PCIEX8 slot.
When the PCIEX4_1 slot is populated, the PCIEX8 slot will operate at up to x4 mode.

4. 2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Multi-Graphics Technology

1. Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies

2. Support for AMD Quad-GPU CrossFireX and 3-Way/2-Way AMD CrossFire technologies

Storage Interface

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and
PCIe x4/x2 SSD support) (M2M_32G)

2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and
PCIe x4/x2 SSD support) (M2P_32G)

3. 2 x U.2 connectors

4. 2 x SATA Express connectors

5. 6 x SATA 6Gb/s connectors (SATA3 0~5)

6. Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "1-11 Internal Connectors," for the installation notices for the PCI Express,
U.2, M.2, and SATA connectors.

ASMedia ASM1061 chip:

1. 2 x SATA 6Gb/s connectors (SATA3 6, 7), supporting AHCI mode only

USB

Chipset+Intel Thunderbolt 3 Controller:

1. 1 x USB Type-C port on the back panel, with USB 3.1 G

en 2 support

2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

Chipset+Realtek USB 3.1 Gen 1 Hub:

1. 4 x USB 3.1 Gen 1 ports available through the internal USB headers

Chipset:

1. 5 x USB 3.1 Gen 1 ports on the back panel

2. 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector

2. 1 x 8-pin ATX 12V power connector

3. 1 x CPU fan header

4. 1 x water cooling CPU fan header

5. 4 x system fan headers

6. 2 x system fan/water cooling pump headers

7. 1 x I/O shield audio LED power connector

8. 2 x RGB (RGBW) LED strip extension cable headers

9. 2 x SATA Express connectors

10. 8 x SATA 6Gb/s connectors

11. 2 x M.2 Socket 3 connectors

12. 2 x U.2 connectors

13. 1 x front panel header

14. 1 x front panel audio header

15. 2 x USB 3.1 Gen 1 headers

16. 2 x USB 2.0/1.1 headers

17. 1 x Trusted Platform Module (TPM) header

18. 1 x Thunderbolt add-in card connector

19. 1 x Clear CMOS jumper

20. 2 x temperature sensor headers

21. 1 x power button

22. 1 x reset button

23. 1 x Clear CMOS button

24. 1 x ECO button

25. 1 x OC button

26. 2 x audio gain control switches

27. 2 x BIOS switches

28. Voltage Measurement Points

Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port

2. 2 x MMCX antenna connectors (2T2R)

3. 1 x HDMI port

4. 1 x DisplayPort

5. 1 x Thunderbolt 3 connector (USB Type-C port, with USB 3.1 Gen 2 support)

6. 1 x USB 3.1 Gen 2 Type-A port (red)

7. 5 x USB 3.1 Gen 1 ports

8. 2 x RJ-45 ports

9. 1 x optical S/PDIF Out connector

10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In,
 Line Out, Headphone)

I/O Controller

1. iTE I/O Controller Chip

H/W Monitoring

1. Voltage detection

2. Temperature detection

3. Fan speed detection

4. Overheating warning

5. Fan fail warning

6. Fan speed control

* Whether the fan (pump) speed control function is supported will depend on
the fan (pump) you install.

BIOS

1. 2 x 128 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. Support for DualBIOS

4. Support for Q-Flash Plus

* The USB flash drive used must be a USB 2.0 flash drive.

5. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center

* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard specifications.

3D OSD

@BIOS

AutoGreen

BIOS Setup

Color Temperature

Cloud Station

EasyTune

Easy RAID

Fast Boot

Game Boost

GIGABYTE HW OC APP

ON/OFF Charge

Platform Power Management

RGB Fusion

Smart Backup

Smart Keyboard

Smart TimeLock

System Information Viewer

USB Blocker

USB DAC-UP 2

V-Tuner

2. Support for 3TB+ Unlock

3. Support for Q-Flash

4. Support for Xpress Install

Bundle Software

1. Norton Internet Security (OEM version)

2. Intel Optane Memory Ready

Operating System

1. Windows 10 64-bit (for 7th Generation Intel Processors)

2. Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits
(for 6th Generation Intel Processors)

* Please download the "Windows USB Installation Tool" from GIGABYTE's
website and install it before installing Windows 7.

Form Factor

1. ATX Form Factor; 30.5cm x 24.4cm

Box Contents

1. GA-Z270X-Gaming 8 motherboard

2. Motherboard driver disk

3. User's Manual

4. Quick Installation Guide

5. Four SATA cables

6. I/O Shield

7. One Wi-Fi antenna

8. One Wi-Fi antenna retention cover

9. One GC-SLI2P SLI bridge connector

10. Two RGB (RGBW) LED strip extension cables

11. Two thermistor cables

12. One G Connector

13. Two Velcro Cable Ties

14. One pack of back I/O dust covers

Remark

1. Due to different Linux support condition provided by chipset vendors,
please download Linux driver from chipset vendors' website or 3rd party website.

2. Most hardware/software vendors may no longer offer drivers to support
Win9X/ME/2000/XP. If drivers are available from the vendors,
we will update them on the GIGABYTE website.

No additional files, specification sheets, guides or documentation found for product.

Flexirent

You can finance this product via Flexirent! For more information regarding flexirent, and to use the flexirent finance calculator, please click here.

The calculator provides an indicative rental cost only. Flexirent prices quoted include GST and stamp duty. Subject to credit approval. To obtain full quote and pre-approval please contact Flexirent Customer Service on 1800 240 102. Rental is payable monthly.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Gigabyte) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 7 | TM: 9 | LM: 8 | TY: 165 | T: 165

Secure Online Shopping

We accept the following with No surcharge on VISA, Mastercard and Paypal!
Techbuy Pty Ltd 2000 - 2017 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
