Overview

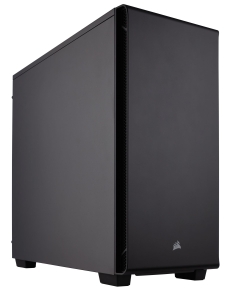

Rugged, Sleek and Simple
Carbide Series 270R is compact and engineered for building high-performance
yet minimalist systems.
Builder-friendly internal layout
- Simple and intuitive internal layout enables easy and quick
building
Versatile cooling options |
- Room for up to a 360mm radiator in front, 240mm radiator at top, and 120mm
radiator in the rear
Expansive storage space
- Rugged construction steel drive trays provide ample of room for additional
drives
Clean and minimalist exterior design
- Unobstructive panels deliver an understated look
Built-in cable routing
- Cable routing compartment enables effortlessly clean builds
Direct Airflow Path
- Provides airflow to the hottest components without any interference from
drive cages
Look Hot. Run Cold. |
Take advantage of Direct Airflow Cooling as well as ample room for radiators
in the front, top and rear. Keep your rig running cool and quiet with 270Rs
enormous cooling potential.
Keep it Clean
Unobstructive exterior panels provide an understated look for an overall
clean and minimalist design. The subtle cable routing compartment makes it even
easier to achieve an effortlessly clean build.
Specifications
Warranty |
Two years |
Weight |
7.12kg |
Case Form Factor |
Mid-Tower |
Dimensions |
509mm x 210mm x 460mm |
Case Motherboard Support |
Mini-ITX, MicroATX, ATX |
Maximum GPU Length |
370mm |
Maximum CPU Cooler Height |
170mm |
Maximum PSU Length |
225mm |
Case Expansion Slots |
7 |
Case Drive Bays |
(x2) 3.5in |
|
(x2) 2.5in |
Case Material |
Steel |
Case Power Supply |
ATX (not included) |
External Connections |
(x2) USB 3.0 |
|
(x1) Headphone Port |
|
(x1) Microphone Port |
Fan Mount Locations |
Front: (x3) 120mm or (x2) 140mm |
|
Top: (x2) 120/140mm |
|
Rear: (x1) 120mm |
Fans Included |
Rear: (x1) 120mm |
Radiator Mount Locations |
Front: 120/240/280/360mm |
|
Top: 120/240mm |
|
Rear: 120mm |
Compatible Corsair Liquid Coolers |
H55, H60, H75, H80i, H90, H100i, H105,
H110 |
