Overview
Engine 27 1U Low-Profile CPU Cooler
Thermaltake Engine 27 1U Low-Profile CPU Cooler supports Intel Socket LGA
1150/1151/1155/1156, and is specially designed with 27mm height, metallic
structure and copper base that offer an excellent balance between performance,
size and acoustics. The compact size 60mm fan is the ideal choice for small form
factor applications. Moreover, with the built-in PWM fan and metallic blades and
fins design, the Engine 27 guarantees extremely low noise level without
compromising on the cooling performance.

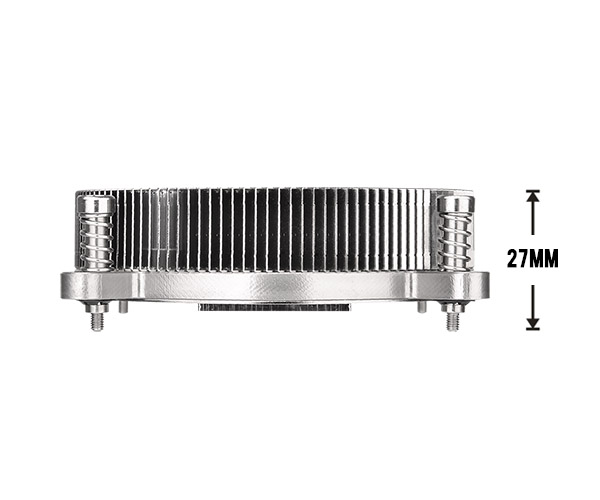

Low-Profile 27mm Height

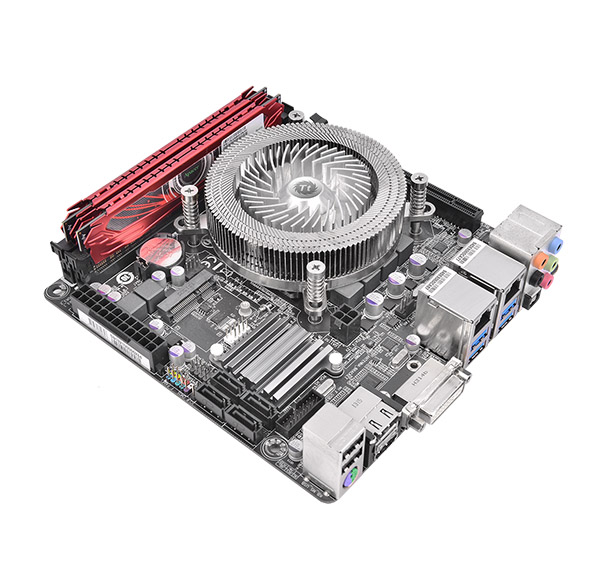

Designed with 27mm height, the Engine 27 is the ideal CPU cooling solution
for slim and small form factor applications, such as 1U server, HTPC, AIO/PIO
PC, POS terminal and Booksize/Mini PC.
Unique Metallic (Alumium Alloy) Structure with Superb Heat
Dissipation

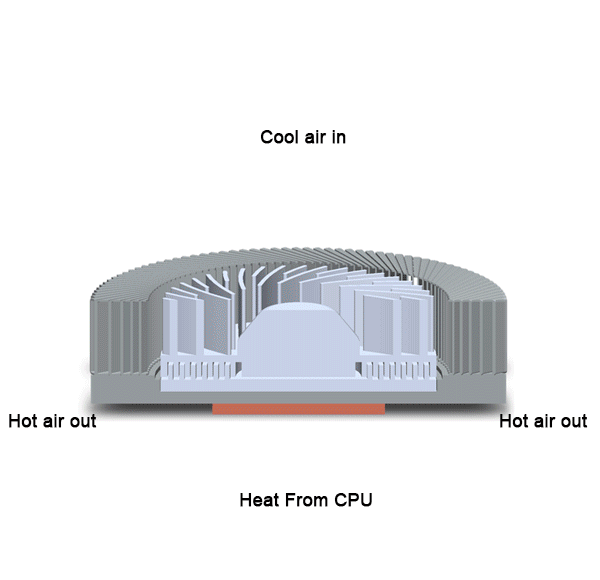

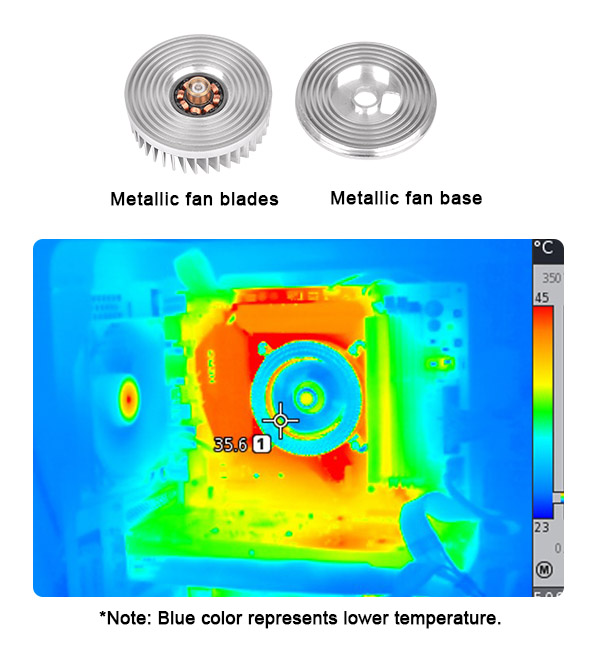

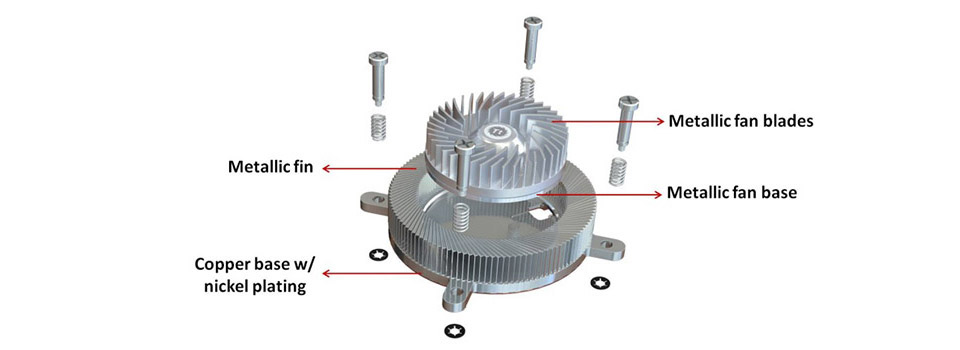

Unlike traditional CPU coolers, the Engine 27 features a metallic structure
and copper base that provides more fortified and efficient thermal paths for
CPU. The metallic fan is designed to directly pull heat from CPU. Especially,
the metallic fan base is engineered with small radial gaps that allow heat to be
transferred rapidly to the rotating metallic fan. Hence, when the metallic fan
blades generate cooling airflow, heat will also be transferred to the flowing
air by both rotating fan and stationary fan base at the same time.

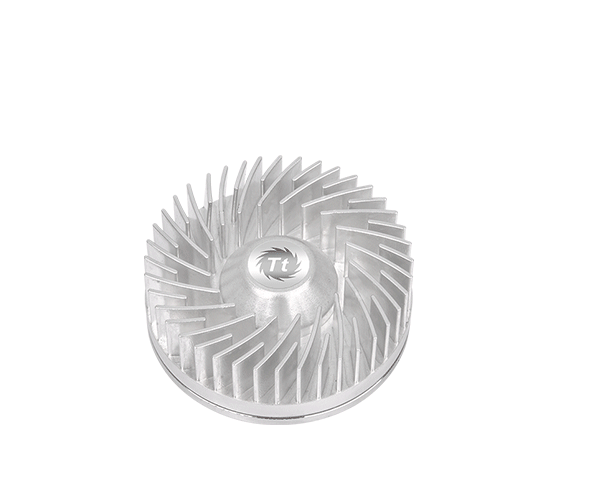

Forty Fan Blade Design for Better Cooling Performance
To make a perfect balance between cooling performance and noise level, forty
fan blades are engineered to generate large volume of air passing through the
heatsink at any angle. Additionally, the metallic blade rotation will create a
centrifugal force on ambient air. In the meanwhile, the centrifugal forces will
expel hot air so that heat can easily be taken away from the fan blades. Most
importantly, this cooling technique can reduce the blade’s noise and vibration
because hot air expelled will create a vacuum, and then fresh cooling air will
be drawn in the heatsink.
Radial Fin Arrangement
The Engine 27 is specially designed with metallic radial fins to accelerate
the thermal transfer process. Especially, the radial arrangement with 119 fin
design can minimize the gap between the fan and the fins, thus, hot air can be
exhausted more rapidly and efficiently.
Low Noise PWM Fan
The PWM function enables the motherboard to run the fan precisely at its
necessary speed. The noise level can reduce to 13dBA. This guarantees
ultra-quiet noise level without compromising on the cooling performance.
*Due to Engine 27 is using 8-pole motor, the RPM read by Bios is twice of the
real RPM.

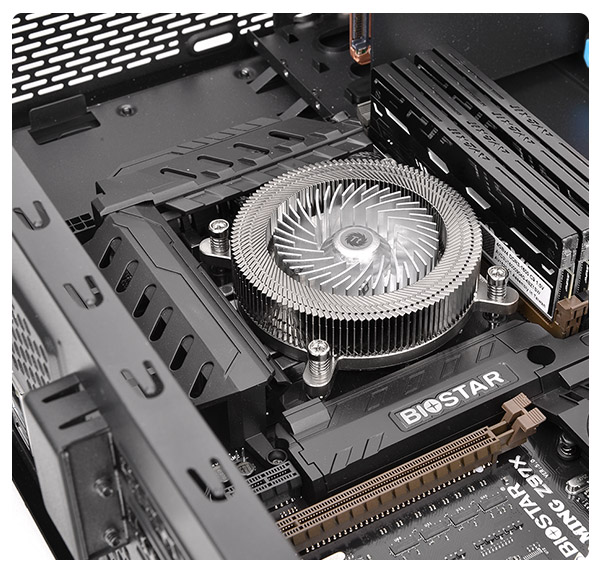

Non-Interference Cooling Design
The Engine 27 perfectly solves the co-existing problem of high performance
RAM and CPU coolers, achieving the best RAM clearance.
Specifications
|
P/N |
CL-P032-CA06SL-A |
|
Compatibility |
Intel LGA 1156 / 1155 / 1150 / 1151 |
|
Dimension |
27(H)*91.5(L)*91.5(W) mm |
|
Heatsink Material |
Aluminum/Copper |
|
Fan Dimension |
21(H) x 60(L) x 60(W) mm |
|
Fan quantity |
1pcs |
|
Fan Speed |
1500~2500 RPM |
|
Rated Voltage |
12V |
|
Start Voltage |
9.0 V |
|
Rated Current |
0.09 A |
|
Power Input |
1.1 W |
|
Air Flow |
9.2 CFM |
|
Air Pressure |
3.1 mm-H2O |
|
Acoustical Noise |
13-25 dBA |
|
Life time/Fan Life time |
50,000 hours |
|
pin connect |
4 pin PWM |
|
Cooling Power |
70 W |
|
Weight |
310 g |
