Overview
PT60-S Reservoir/Pump Combo
Thermaltake introduces the new Pacific PT60-S MCP50 pump with tube reservoir
set for the ultimate in custom PC watercooling configurations. Featuring
exceptional performance and unrivalled reliability, the PT60-S is manufactured
from high quality POM and PMMA material to provide a crystal clear, high
performance, and durable solution. By giving users ideal mounting, fitting and
flow, the Pacific PT Series is the right choice for PC enthusiasts. Make your
system a showcase for all to see with the Thermaltake Pacific PT Series.
Tt LCS Certified is a Thermaltake exclusive certification applied only to
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should hold to. The Tt LCS certification was created so that we at
Thermaltake can indicate to all power users which chassis have been tested to be
best compatible with extreme liquid cooling configurations, ensuring you get the
best performance from the best features and fitment.
*PT60-S water flow diagram
Driven Performance
MCP50 pump maximum discharge up to 858L/hr for efficient cooling of your
components. Top cap supports rubber washers for a proper seal, including two
predrilled G1/4 ports for fittings.

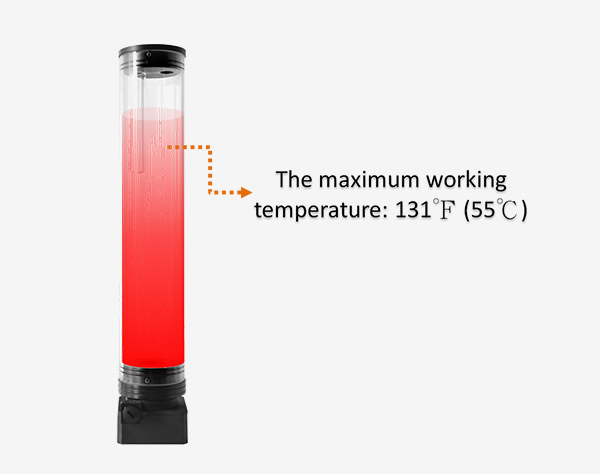

Heat-resistant Acrylic Tank
The Pacific PT Series tube reservoirs feature reliable, light weighted POM
and PMMA construction, which is crystal clear and highly durable. High quality
acrylic (PMMA) tube maximum working temperature: 131F(55C).
Remarkable Expansion
A bracket at each endholds the Pacific PT60-S firmly inside the chassis and
allows enthusiasts to not only build up an aesthetically superior liquid cooling
system but also incorporate externally-modular upgrades for their chassis. The
series provides multiple sizes for users to build the ultimate in custom
configurations, and for a truly extraordinary chassis, the reservoir can be
installed horizontally.
Cautions:
Thermaltake recommends the following steps to be taken after completing your
water loop setup:
- It is strongly recommended to use market proven pre-mix coolant, such as
Thermaltake Coolant 1000. It offers great performance while preventing the
entire cooling system copper, brass, nickel, aluminum, and steel from
corrosion.
- Fill the reservoir with coolant and cycle the power on and off several
times while the pump pushing the coolant into the loop.
- DO NOT let the pump run dry, when there is no liquid entering the pump
turn off your power immediately
- Fill the reservoir to the top as it will prevent air from going into the
pump
- If necessary tilt the system slightly from side to side to bleed the air
out of the loop.
- Place some paper towels under fittings and joining points to test for
leaks.
- Run the loop with the fill port open for about 24 hours to completely
bleed the air out of the loop
Specifications
P/N |
CL-W028-PL00BL-A |
Dimension |
74.5 (L) x 62 (W) x
352.8 (H) |
Material |
POM+
PMMA |
Capacity |
600
ml |
Maximum
head |
15.8 feet
(4.8m) |
Maximum Flow
Rate |
858
L/h |
Maximum
pressure |
22
PSI |
Input
Voltage |
12
V |
Connector |
4 Pin ( PWM
) |
Pump
Speed |
1200 ~ 4500
RPM |
Electrical
Power |
SATA
Connector |
Screw
Thread |
G
1/4 |

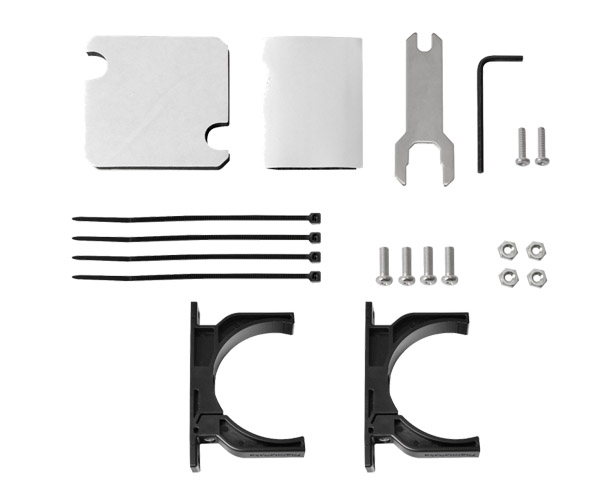

Parts |
1. Stopper *1 (G 1/4
) |
2. Bracket
*2 |
