All stock codes associated to this product
CLW066PL00BLA, CL-W066-PL00BL-A
Overview

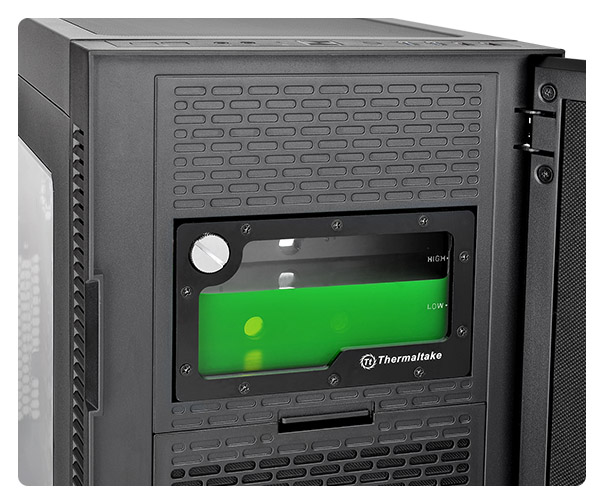

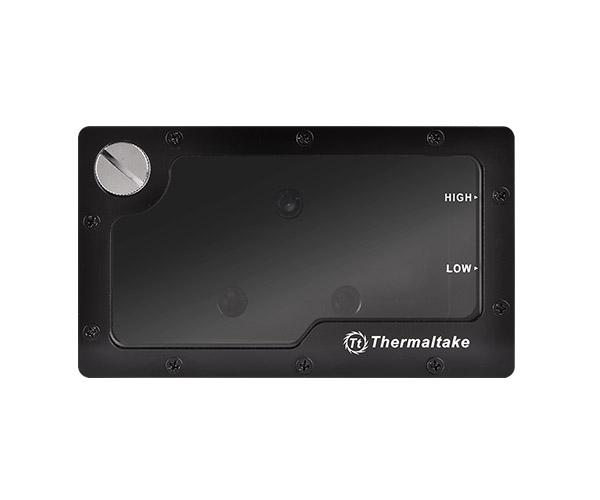

Pacific R2U Reservoir
The new Pacific R2U reservoir is designed for the ultimate in custom PC
water-cooling. Featuring exceptional performance and unrivalled reliability, the
R2U fits into an empty dual 5.25" drive bay slot and is manufactured from high
quality POM and PMMA material to provide a crystal clear, high performance,
durable solution.
Tt LCS Certified is a Thermaltake exclusive certification applied only to
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should hold to. The Tt LCS certification was created so that we at
Thermaltake can indicate to all power users which chassis have been tested to be
best compatible with extreme liquid cooling configurations, ensuring you get the
best performance from the best features and fitment.
Sturdy & Durable Design
Manufactured in Taiwan, the Pacific R2U reservoir is made of reliable,
light-weight POM and PMMA, making it crystal clear and highly durable.
Maximum Compatibility
Five pre-drilled G1/4 holes and one pressure equalizer maximize
compatibility. Easily refill coolant by removing the plugs in the front and
rear.
Easy & Flexible Application
Pacific R2U allows enthusiasts to build a superior water cooling system from
an aesthetic standpoint and incorporate externally-modular upgrades into their
chassis.
Caution:
Thermaltake recommends the following steps to be taken after completing your
water loop setup:
- It is strongly recommended to use market proven pre-mix coolant, such as
Thermaltake Coolant 1000. It offers great performance while preventing the
entire cooling system copper, brass, nickel, aluminum, and steel from
corrosion.
- Fill the reservoir with coolant and cycle the power on and off several
times while the pump pushing the coolant into the loop.
- DO NOT let the pump run dry, when there is no liquid entering the pump
turn off your power immediately
- Fill the reservoir to the top as it will prevent air from going into the
pump
- If necessary tilt the system slightly from side to side to bleed the air
out of the loop.
- Place some paper towels under fittings and joining points to test for
leaks.
- Run the loop with the fill port open for about 24 hours to completely
bleed the air out of the loop
- Before starting, flush out your system correctly to prevent any coolant or
unwanted particles sticking to your tubes, radiators and other cooling
components.
- Coolant might fade over time
Specifications
P/N |
CL-W066-PL00BL-A |
Dimension |
147.9 (W) x 84.8 (H)x 66 (mm) |
Capacity |
250 ml |
Weight |
920 g |
Material |
POM + PMMA |
Screw Thread |
G 1/4 |
Parts |
1. Stopper *3 (G 1/4 ) |
2. Pressure Equalizer Plug *1 |
