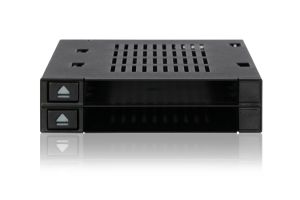

The ICY DOCK FlexiDOCK MB522SP-B is the first professional 2.5 inch SSD / HDD docking designed for external 3.5 inch floppy drive bays. With the FlexiDOCK MB522SP-B, you can easily turn any legacy and often unused floppy drive bay into a dual bay hot-swappable drive slot that support any 2.5 inch solid state drive or 2.5 inch hard disk ranging from 5mm to 9.5mm height. All drive slots support full SATA 6Gb/s speed and compatibility with SATAs hot-swap function. Unlike a traditional external HDD docking station that makes the drives stick out from the device, the FlexiDOCK uses a smart drive ejection mechanism which allows the drives to be entirely inserted into the dock for a better system appearance and better drive protection. The easy to operate drive ejection button offers a smooth drive ejection action and is built in with the LED indicator for drive activity. The metal body and air ventilation design allows for efficient heat dissipation for the hard drives within the dock.

The FlexiDOCK MB522SP-B is the perfect solution for anyone who needs to quick access their data from multiple laptop size drives, such as media professionals who put their shoots onto solid state disks or IT professionals who backup critical data onto multiple 2.5 inch hard disk drives on daily basis.

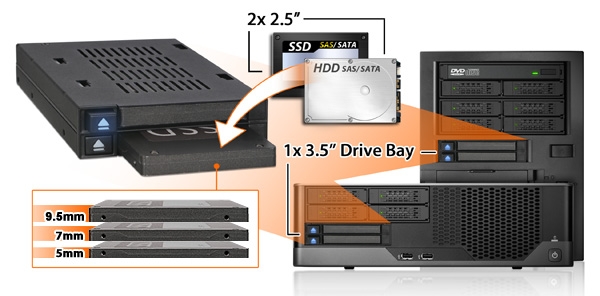

The Worlds First Professional Docking Made for 3.5 Bay

Bringing an external HDD docking station's quick hot- swap capability into a desktop computer system, ICY DOCK's FlexiDOCK MB522SP-B turns your external 3.5 drive bay into a hot-swappable drive docking. The installation is easy, simply mount FlexiDOCK on the external 3.5 drive bay, and then connect the SATA connectors to the device and you are ready to go. The FlexiDOCK MB522SP-B supports up to 2x 2.5 SAS / SATA SSD / HDD ranging from 5mm to 9.5mm drive height.

Dock for Hot Swap!

FlexiDOCK is specifically designed for applications where hot-swap drive is often required. For examples: performing daily data backup to 2.5 hard drives, editing 4K film directly on 2.5 solid state drives, cloning data from HDD to SSD or hot-swapping OS drives are all hot-swap applications. Thanks the unique drive docking design, users can simply insert the drives into the FlexiDOCK and start their tasks. This effortless drive hot-swap capability makes MB522SP-B a perfect tool for professionals who swap their drives on a daily basis.

Design for the Difference

We understand the hassle that screwing a SSD / HDD to a tray can bring and how much times it can cost you when you are doing a lot of drive hot swapping. To make the process run more effectively and efficiently we have removed the door panel from FlexiDOCK in order to get the SSD / HDD in or out quicker. To fully protect the drives we have developed smart derive ejection mechanism design, which allows the drives to be entirely inserted into the device, meaning the drives dos not protrude out and stays protected inside the chassis, reducing risks of physical damage on the drives and offers superior system appearance.

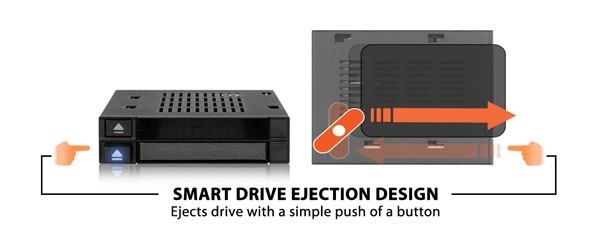

When a drive is inserted into ICY DOCK FlexiDOCK, the ejection button will pop out while the blue drive activity light will light up on the button. To eject the drives from the FlexiDOCK, simply push the drive ejection button and smart drive ejection mechanism will smoothly eject the drive making it an easy drive retrieval process.

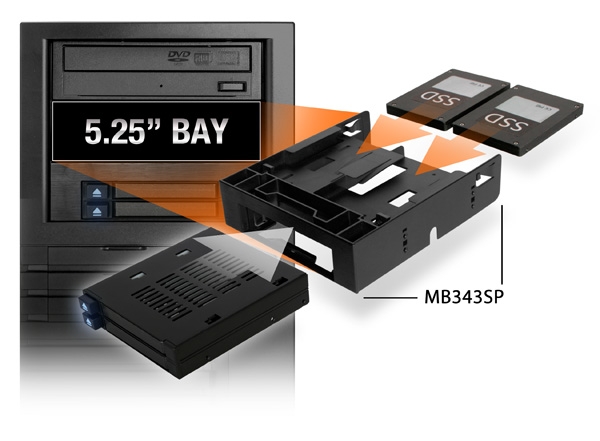

Optional Flex-Fit MB343SP for External 5.25 Bay

When using FlexiDOCK in an external 5.25" drive bay, Flex-Fit MB343SP can be used as an adapter for converting an external 5.25" drive bay into an external 3.5" drive bay. To learn more about Flex-Fit MB343SP please clickHERE.

Suggested Applications
Data backup, data cloning, audio &video editing, digital forensic, drive recovery or any applications where drive hot-swap is required.
Key Features

* Supports docking up to 2 x 2.5 inch SAS / SATA HDD / SSD
with hot-swap function (5mm 9.5mm)
* Fits any external 3.5 drive bay or floppy bay
* Full metal chassis with partial ABS-plastic for full protection
* Completely tray-less design and accepts bare drives without trays or holders
* Drive door-less design for quick hot-swapping
* Individual large drive eject buttons with SSD/ HDD activity indicator light built in
* Flush in design for full drive protection from possible environmental damage
* Artistically designed ventilation slots for maximum passive cooling
* Active Power Technology (APT) powers up individual LED if only there is drive installed
in the drive bay
* Backed with 3-year manufacturer warranty
* Ideal 2.5 SSD / HDD docking for system that requires easy hot-swap as mobile
computers, datacenter rackmount computers and rackmount server systems,
industrial automation control system, military computers and OEM / ODM systems



Model Number :
MB522SP-B
Color :
Black
Drive Fit :
2 x 2.5" SAS (Single channel) / SATA HDD / SSD
Support Drive Height :
Up to 9.5mm drive height
Device Fit :
1 x external 3.5" drive bay
Host Interface :
2 x SATA 7-pin
Power Input :
1 x SATA 15-pin power connection
Transfer Rate :
Up to 6Gb/sec (Depending on hard drive speed)
Insert &Extract Connection via :
Direct SATA hard drive connection
LED Indiciator:
Power (Solid blue) : HDD access (Flashing Blue)
Hot-Swap Function :
Yes
Material :
Metal body with partial plastic
Dimension (W x H x D) :
101.6 x 25.4 x 128.5mm
Weight :
240.5g
Package contents :
Device, user manual, screws



No additional files, specification sheets, guides or documentation found for product.

Warranty: 3 year return to base

Full manufacturers warranty details are available at the manufacturers (Icydock) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
