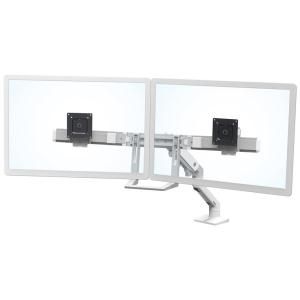

45-476-216 | Ergotron HX Desk Dual Monitor Arm - White

The HX Dual Monitor Arm is the perfect accessory to add flexibility and superior ergonomics to your monitor or TV. The sleek new post design combined with the dual hinge bow works with two 32" monitors and includes a handle for easy positioning.

Extension/retraction motion and integrated height adjustment capability promote user comfort.

Product Benefits

• Increases viewing comfort: Helps reduce eye, back and neck strain

• Sleek new post design

• The hinged bow allows monitors to pan from left to right independently with ease, ideal for sharing screens and optimal monitor alignment

• Additionally, the hinged bow optimizes the viewing parabola for enhanced ergonomic comfort

• Independent, quick release monitor pivots with effortless P/L, pan, and tilt for custom positioning of each monitor

• Rotation-stop on base limits range to 180° and prevents monitor from making contact with wall

• Patented CF motion technology provides premium ease-of-use display adjustment

• Cable management feature routes cables tightly under the arm and through the extension, out of the way

• Eliminates scrolling: Rotate screens for portrait viewing of photos and documents

• Folding arm frees up space in constrained areas

• Upgrade this arm with the HX Triple Bow Kit to create a triple monitor arm.

• Passes Ergotron's 10,000-cycle motion test, which ensures years of trouble-free height adjustment

Specifications

• Part Number: 45-476-216 (white), 45-476-026 (polished aluminum), 45-476-231 (silver)

• Description: HX Desk Dual Monitor Arm

• Includes: Arm, extension, hinge bow, (2) monitor pivots, handle and desk clamp, grommet mount, and monitor mounting hardware

• Clamp base ensures greater stability of display and arm

• Desk clamp attaches to surface edge .4" to 2.4" (1 to 6 cm) thick

• Grommet Mount (included) attaches through surface holes


• Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas

• Portrait/landscape rotation with lockout

• Streamline cable management that routes cables under arm and within extension

• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 mm). The optional VESA Bracket Adaptor Kit (97-759) allows the attachment of displays with VESA hole patterns of 200 x 100, 200 x 200, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm

• * Weight Capacity: Maximum individual LCD weight = 5-17.5 lbs (2.3-7.9 kg) per monitor. Total LCD capacity = 10-35 lbs (4.6-15.8 kg)

• ** Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base

• Hinge bow pivots 40° inward and 90° outward

• Tilt Range: 70° backward, 5° forward;


• Pivots feature quick install and release and feature effortless portrait to landscape 6° pan and tilt

• Up to 24.5" (60 cm) extended reach and 11.5" (29.2 cm) vertical height adjustment

• Shipping Dimensions: 16.0" x 18.8" x 7.5" (48 x 41 x 19 cm)

• Shipping Weight 26.9 lbs (12.2 kg)

• Warranty: Ten (10) years
