Deepcool DP-BZ-DA500 80PLUS Bronze certified 500W power supply with intelligent fan



Description

DA500 is certified with 80 plus bronze with up to 87% electrical efficiency enabling lower heat generation and lower operation cost. Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage. Double layer EMI filters protect from magnetic interference and restrains noise while operating.

80PLUS Bronze

80PLUS Bronze certified provide high energy efficiency up to 87%. Click here to view the certification.

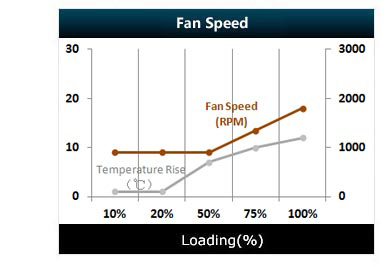

Silent and High Performance Fan

120mm silent fan with PWM function to provide incredible performance-noise ratio.

Voltage Regulation





Idle/Standby Efficiency



Certification and Support

Features

  • Compliant Intel ATX12V v 2.31
  • The integrated Active PFC+ PWM Combo Controller will increase the efficiency of exchange and make PFC
    higher than 99%
  • 80 PLUS Bronze certified up to 85% efficiency
  • Assembled copper + AL heatsink make cooling more efficient
  • 120mm silent fan with PWM function
  • The longer cable design supports cable management perfectly
  • Double-Layer EMI Filter protects from electromagnetic interference & restrains noise
  • Intelligentized eco-friendly chipset, consume < 1W in its off-mode, compliant Erp standard
  • CircuitShield OVP, UVP, SCP, OPP
  • Supports Multi-Way SLI / CrossFire + Multi-Core CPUs

Output

AC INPUT VOLTAGE CURRENT FREQUENCY
100-240V 8.0A 47-63Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
CURRENT(Max) 18A 16A 38A 0.3A 2.5A
OUTPUT(Max) 110W 456W 3.6W 12.5W
TOTAL OUTPUT 500W

Cables

Specifications

Model

DA500

Type

ATX 12V V2.31

Certifications

80PLUS Bronze

Dimension

150×140×86mm (W x L x H)

Output Capacity

500W

Input Voltage

100~240V

Input Current

8A

Input Frequency Range

47~63Hz

Fan Size

120mm Black Fan

PFC

Active PFC (>0.99)

Power Good Signal

100-500ms

Hold Up Time

>16ms

Efficiency

85% Under Typical Load

Protection

OCP / OVP / UVP / SCP / OPP / OTP

Operation Temperature

0~40°C

Regulatory

CE / FCC / CCC / CB / EAC / TUV

MTBF

100,000 Hours

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
