Overview

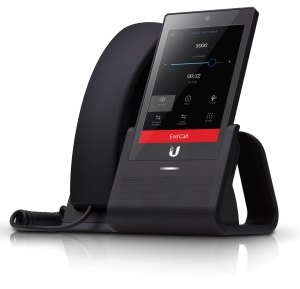

Enterprise VoIP Phone
The UniFiVoIP Phone is part of the UniFi Enterprise System. The base model
includes a 5" touchscreen* powered by Android. The PRO model also includes
Bluetooth support, Wi-Fi capability, and a video camera.
Models: UVP
Disruptive Pricing, No Fees
The UniFi VoIP Phone provides breakthrough value starting at $149 USD MSRP.
The UniFi Controller software is bundled with the UniFi VoIP Phone at no extra
charge no separate software, licensing, or support fee.
Scalable System Management
Ubiquitis proprietary SDN software, the UniFiController, provides scalable
system management of Android-based UniFi VoIP Phones, including extension
management, mass firmware upgrades, and mass configuration provisioning.
Smartphone Technology for Corporate Environments
With its full range of Android apps, the UniFi VoIP Phone provides a seamless
user experience to enhance work productivity.
HD Touchscreen
The 5-inch*, high-definition, multi-touch color display is designed for ease
of use and quick navigation.
Ergonomic Handset
The handset design features a comfortable, soft-touch grip and a conveniently
located Mute button.
Convenient Bluetooth Support
The PRO model features built-in Bluetooth support for hands-free use with
ergonomic wireless headsets.
High-End Audio
The UniFi VoIP Phone provides excellent sound quality for an exceptional
audio calling experience.
Plug and Play Deployment
The UniFi VoIP Phone includes SIP support and automatic provisioning to
create an enterprise-class telephony infrastructure.
Specifications
|
Dimensions |
166 x 140 x 182.5 mm (6.50 x 5.50 x 7.19") |
|
Weight |
1.10 kg (2.43 lbs) |
|
Display |
5" (Diagonal), 640 x 960, 231 ppi, Multi-Touch, Full
Color |
|
Camera |
1.0 MP (HD720p) |
|
LED |
Power: White, Glowing |
|
Handset |
Dynamic Receiver 32 ohm/101 dB/30mW Microphone Omnidirectional/-36
dB/2.2K ohm |
|
Echo Cancellation |
DSP Removing Ambient Noise and Acoustic Echo |
|
Power Input |
PoE 802.3.at (26W) |
|
Hands-Free Speaker |
Mono 2.6W |
|
Hands-Free Microphone |
Omnidirectional/SNR 61 5 dB/Sensitivity -38 3 dB Analog Silicon
Microphone |
|
Connectivity |
(2) 10/100/1000 Ethernet Ports
(1) USB 2.0 microUSB
Port
Bluetooth 4.0
Wi-Fi 802.11 a/b/g/n |
|
Headset Support |
3.5 mm Audio Jack 270mW CTIA (LRGM) |
|
Accessory Detection |
Volume Up/Down and Media Detection |
|
Processor |
Dual-Core Cortex A9, 1.2 GHz |
|
Storage |
4 GB (Shared with Other Applications) |
|
RAM |
1 GB |
|
|
|
Software |
|
|
OS |
Android Kit Kat (Version 4.4.2) |
|
Voice Codec |
G.722/Speex/iLBC/PCMU/PCMA/GSM |
|
Communication Software |
UniFi Phone App |
|
Management Features |
Auto-Provisioning |
|
Protocol |
SIP/SDP/RTP/RTCP/VLAN/DHCP |
|
Interoperability Certifications |
Broadsoft/FlowRoute/PBXRealtime |
