All stock codes associated to this product
ARCHERVR2800, ARCHER VR2800, NWTLARCHERVR2800, NWTL-ARCHERVR2800, ARCHER-VR2800, ARCHER-VR2800 , 3588961, 6935364096090
Overview
The Archer VR2800 is an AC2800 Wireless MU-MIMO VDSL/ADSL Modem Router that is equipped with 802.11ac, 3-Port 10/100/1000Mbps LAN, and 1-Port 10/100/1000Mbps WAN. This modem router also has RJ11 and USB3.0 ports for easy connectivity.
- The Archer VR2800 runs at 2167Mbps on 5GHz and 600Mbps on 2.4GHz
- The latest standard of Wi-Fi includes MU-MIMO and 160MHz Bandwidth
- Broadcom 1GHz dual-core CPU with two co-processors keeps VR2800 running at peak performance
- TP-Link Tether app helps you set up and manage your Archer VR2800 from any Android or iOS device.
The TP-Link Archer VR2800 AC2800 Wireless MU-MIMO VDSL/ADSL Modem Router is a high-performance router that supports the latest 802.11ac Wave 2 standard of Wi-Fi, which includes MU-MIMO and 160MHz Bandwidth. It also has a 1GHz dual-core CPU with two co-processors to keep it running at peak performance. Additionally, the TP-Link Tether app helps you set up and manage your Archer VR2800 from any Android or iOS device.
The integrated DSL port supports all standard DSL connections* for compatibility with most ISPs, VDSL2 technology delivering VDSL broadband speeds of up to 100Mbps. A Superfast VDSL Modem Router.
A powerful combination of advanced Broadcom NitroQAM and 4-Stream technology opens data transfers wide open to boost 5GHz band wireless speeds for every device. 2167Mbps on 5GHz and 600Mbps on 2.4GHz.

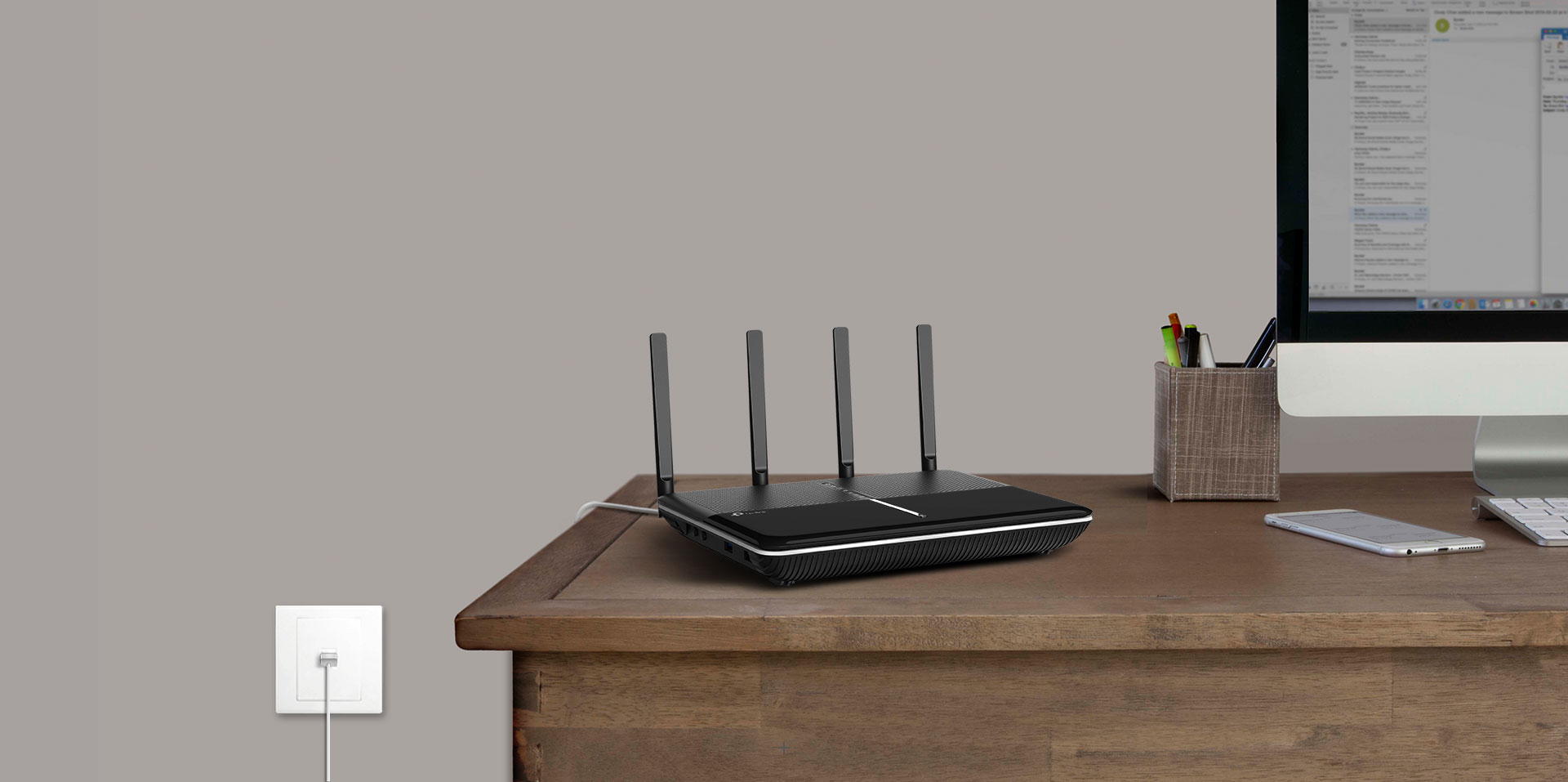

The TP-Link Archer VR2800 AC2800 Wireless MU-MIMO VDSL/ADSL Modem Router is the perfect solution for those who need whole-home Wi-Fi. With four external antennas, this router creates a strong, far-reaching network in every direction. Power amplifiers and low-noise amplifiers boost the sending and receiving signals to increase Wi-Fi coverage. And with beamforming to locate and form targeted connections, this router ensures that you'll always be connected no matter where you are.
The TP-Link Archer VR2800 AC2800 Wireless MU-MIMO VDSL/ADSL Modem Router is a powerful and fast modem router that is perfect for any home or office. It has four Gigabit Ethernet ports that operate up to 10x faster than Fast Ethernet and two USB 3.0 ports that allow you to connect hard drives and transfer up to 10x faster than USB 2.0. The VR2800 is powered by an industry-leading Broadcom 1GHz dual-core CPU with two co-processors to keep it running at peak performance. Broadcom makes the world's most widely used chipsets for DSL products, providing integrated solutions for more than 100 Internet Service Providers around the globe. Not only does this guarantee excellence, but compatibility with your ISP.
TP-Link's Archer VR2800 AC2800 Wireless MU-MIMO VDSL/ADSL Modem Router is one of the best routers on the market. It's easy to set up and manage with the free Tether app, and it has advanced features like parental controls, guest networking, and a block list. It's a great choice for anyone who wants a top-of-the-line router.
Specifications
| Interface |
3 10/100/1000Mbps RJ45 LAN Ports,
1 10/100/1000Mbps RJ45 WAN/LAN
Port,
1 RJ11 Port,
2 USB 3.0 |
| Button |
WPS Button,
Wi-Fi Button,
Reset Button,
LED On/Off Button,
Power On/Off Button |
| External Power Supply |
12V/3.3A |
| IEEE Standards |
IEEE 802.3, IEEE 802.3u, 802.3ab |
| VDSL2 Standards |
TU G.993.2, Up to 17a profile (POTS)
ITU-T G.993.5
(G.vector)
ITU-T G.998.4 (G.INP |
| ADSL Standards |
Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T
G.992.2(G.Lite),
ITU-T G.994.1 (G.hs) |
| ADSL2 Standards |
ITU-T G.992.3 (G.DMT.bis) |
| ADSL2+ Standards |
ITU-T G.992.5 |
| Dimensions ( W x D x H ) |
10.4 7.8 1.5 in
(263.8 197.8 37.3 mm) |
| Antenna Type |
4 external detachable dual band antennas (RP-SMA) |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency |
2.4GHz and 5GHz (Supports DFS) |
| Transmit Power |
<20dBm (2.4GHz),
<23dBm (5GHz Band1 &Band2),
<30dBm (5GHz Band3) |
| Wireless Security |
64/128-bit WEP,
WPA/WPA2,
WPA-PSK/WPA-PSK2 encryptions
|
| SOFTWARE FEATURES |
| Quality of Service |
ATM QoS,
Traffic Control (IP QoS) |
| Security |
NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial
of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
|
| Management |
Web Based Configuration (HTTP / HTTPS ), Remote management,
Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade,
Diagnostic Tools, Free Online Firmware Update |
| Port Forwarding |
Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| VPN Pass-Through |
OpenVPN, PPTP VPN, IPSec VPN |
| Protocols |
Support IPv4 and IPv6 |
| ATM/PPP Protocols |
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over
Ethernet
(RFC2516),
IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge
(RFC1483 Bridge), PVC Up to 8 PVCs |
| Advanced Features |
Parental Controls, Network Address Translation(NAT), Port Mapping
(Grouping),
Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS,
IGMP V1/V2/V3 |
| USB Sharing |
Support Samba (Storage) / FTP Server / Media Server / Printer Server,
3G/4G Modem / SFTP Server / Web Storage |
| OTHERS |
| Certification |
CE, RCM, RoHS |
| Package Contents |
AC2800 Wireless MU-MIMO VDSL/ADSL Modem Router Archer
VR2800
External Splitter
RJ11 DSL Cable
RJ45 Ethernet
Cable
Power Adapter
Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10,
Mac OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0,
Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Subscription
with an internet service provider (for internet access) |
| Environment |
Operating Temperature: 0~40(32~104)
Storage Temperature:
-40~70(-40~158)
Operating Humidity: 10%~90% non-condensing
Storage
Humidity: 5%~90% non-condensing |
