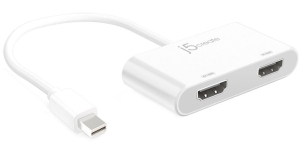

J5create JDA156 Mini-DisplayPort to Dual HDMI Adapter - White
  • Supports up to 4k @ 30Hz, HDMI(19-Pin, Female)(2), Mini-DisplayPort(20-Pin, Male), Passive, USB-Powered

IMG 1 of 1
No Longer Available
Part Number:
420168
(?) Brand:
J5create
Manuf No:
JDA156
Shipping Weight:
0.3 KG (Includes product packaging)
Estimate Shipping
Date Added:
9/5/2017
Details Files Images & Video
All stock codes associated to this product
JDA156, 13LAJDA156, 13LA-JDA156, 4712795081244

Overview

JUA350

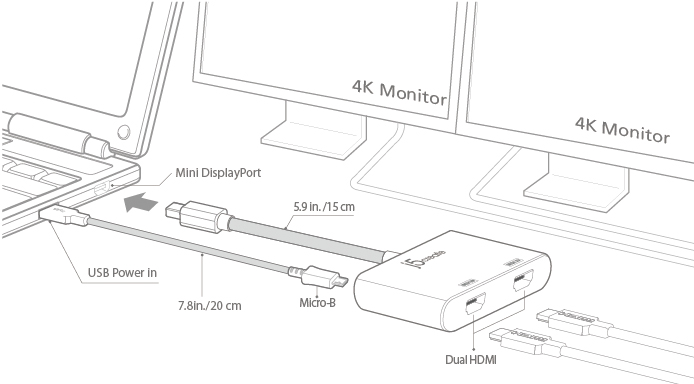

The j5create JDA156 mini DisplayPort to Dual HDMI Adapter allows you to connect up to two HDMI monitors from a single Mini DisplayPort output. The JDA146/156 utilizes multi-stream transport (MST) protocol, supporting up to 2 displays independently at up to 4k @ 30Hz each with DP 1.2.

Features

  • Supports resolutions up to 4k @ 30Hz.
  • Extends single mDP to dual display.
  • Enables 2 monitors to work simultaneously with extended mode, expansion mode or mirror mode.
  • No drivers needed, simply plug & play.
  • Perfect for Microsoft Surface Pro and Lenovo ThinkPad.

Specifications

Hardware

Connector Type

Passive

Interface

Host Interface

Mini-DisplayPort (20 pin) Male

Video Interface

HDMI (19 pin) Female

Power

Power Source

USB-Powered

Physical Specification

Housing Material

Plastic

Dimensions

Main body: 7.6 (W) x 3.3 (H) x 1.6 (D) cm

Cable length: 5.9 in./15 cm

Weight

Approximately 0.0425 kg

System Requirements

The graphics card of DisplayPort 1.2 with MST+HBR2

Extended dual HDMI supported by Windows only Microsoft Surface Pro2, Pro3, Pro4, Book (Check here...)

Mac OS X does not support extended mode

Requires an external USB power source (USB cable included)

Package Contents

Mini DisplayPort to Dual HDMI Adapter (JDA156)

7.8 in. / 20 cm USB cable

Quick Installation Guide

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
