All stock codes associated to this product
ARCHERT4UHP, ARCHER T4UHP, NWTLARCHERT4UHP, NWTL-ARCHERT4UHP, 6935364094850
Overview
- Maximized Range - High power and receive sensitivity to bring
ultra-long transmission distance.
- Stronger Penetrability - Sustain reliable wireless connection even
across multiple walls or floors.
- Ultimate Wi-Fi Speed - AC1300 (400Mpbs on 2.4GHz band or 867Mbps on
5GHz band) wireless speed with the next generation Wi-Fi - 802.11ac.
- Dual Band Wireless - 2.4GHz and 5GHz band for flexible connectivity.
- Super Speed USB 3.0 Port - Up to 10x faster than USB 2.0.
- Flexible Deployment - Equipped with a USB cradle for flexible
deployment.
- WPS Button - Easy wireless security encryption at a push of the WPS
button.
- Compatibility - Support Windows 10/8.1/8/7/Vista/XP 32/64bits, Mac OS
X 10.6-10.11

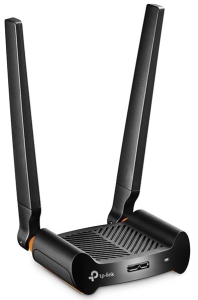

High-Gain Detachable Antennas for Maximized Range
The Archer T4UHP has two high-gain external antennas to insure stronger
signal transmission and reception to create a stable Wi-Fi connection across
your home. Moreover, the two detachable antennas can be rotated and adjusted as
needed to fit various operation environments.
Dual Band AC1300 Speed for Ultimate Connections
The Archer T4UHP provides two bands of Wi-Fi for all your network needs.
400Mbps on the 2.4GHz Wi-Fi band for everyday uses such as web surfing with
legacy devices, while 867Mbps on the 5GHz band is ideal for HD streaming and
lag-free gaming.
High Power for Strong Penetrability
With its high transmission power, the Archer T4UHP connects with the network
past walls, floors and other physical obstacles to effectively sustain reliable
wireless connection.
Connect Faster with USB 3.0
The Archer T4UHP 's USB 3.0 port runs 10x faster than USB 2.0 for
lightning-fast data transfers, giving more than enough bandwidth to fully
support 802.11ac Wi-Fi speeds.
Easy Setup with Desktop-Friendly Design
A desktop-style design and 1.0m USB cable helps to place the Archer T4UHP in
the best position to receive the network signal in troublesome Wi-Fi areas,
creating for flexible deployment in various rooms and computer setups.
Universal Fit with Cross-Platform Compatibility
The Archer T4UHP works with a number of operating systems, including Windows
10/8.1/8/7/XP 32/64bits, Mac OS X 10.6-10.11, and Linux, making it the perfect
choice for nearly all laptop and desktop computers.
Specifications
|
HARDWARE FEATURES |
|
|
Interface |
Micro USB 3.0 |
|
Button |
WPS |
|
Wireless Standards |
IEEE 802.11ac,IEEE 802.11a,IEEE 802.11n, IEEE 802.11g, IEEE
802.12b |
|
Dimensions ( W x D x H ) |
74.0*55.0*23 |
|
Antenna Type |
2*Detachable Omni Directional (RP-SMA) |
|
Antenna Gain |
2.4-2.5GHz&.15-5.85GHz3.0dBi&.0dBi |
|
|
|
WIRELESS FEATURES |
|
|
Frequency |
2.4-2.4835GHz&.150-5.850GHz |
|
Signal Rate |
5G Tx Up to 867Mbps&.4G Tx Up to 400Mbps |
|
Transmit Power |
2.4-2.5GHz:<20dBm&.15-5.85GHz:<23dBm(EIRP, For countries
using CE Standards) |
|
Wireless Modes |
Ad-Hoc / Infrastructure mode |
|
Wireless Security |
Support 64/128 bit
WEP,WPA/WPA2,WPA-PSK/WPA2-PSK,802.1x |
|
|
|
OTHERS |
|
|
Package Contents |
Archer T4UHP |
|
2*3dBi&dBi Detachable Omni Directional
Antennas |
|
Resource CD |
|
Quick Installation Guide |
|
1.0m USB Extension Cable |
|
System Requirements |
Windows 10 (32/64bits), |
|
Windows 8.1 (32/64bits), |
|
Windows 8 (32/64bits), |
|
Windows 7(32/64bits), |
|
Windows XP(32/64bits) |
|
Mac OS X10.7_10.11 |
|
Linux |
|
Environment |
Operating Temperature: 0~40 (32~104) |
|
Storage Temperature: -40~70 (-40~158) |
|
Operating Humidity: 10%~90% non-condensing |
|
Storage Humidity: 5%~90%
non-condensing |
