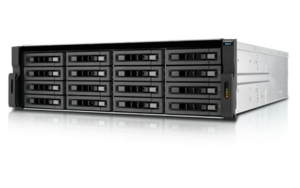

QNAP REXP-1620U-RP 12Gbps SAS RAID Expansion Enclosure
for QNAP NAS
Features
Simple & flexible storage expansion for QNAP NAS
The REXP-1620U-RP expansion enclosure is designed for expanding the storage
space on a QNAP NAS* by connecting multiple expansion enclosures via high-speed
mini SAS cables. Featuring a 12 Gbps SAS interface on the chassis, the
REXP-1620U-RP ensures fast data passthrough from 12 Gbps SAS-enabled QNAP NAS
even when using 6Gbps hard drives. This is especially useful for large data
applications that require high performance interconnection, such as video
surveillance, archiving large data, and TV broadcast storage.
- Plug and use, seamless capacity expansion.
- Missing mode protection.
- High density, high efficiency and high scalability.
- Flexible management with the QTS Storage Manager.
- Backup storage for the QNAP NAS.
- Supports SAS 12 Gbps, SAS/SATA 6 Gbps HDD and SSD.
- Backward compatible with a 6 Gbps SAS-enabled NAS / REXP expansion unit
and 6 Gbps SAS HBA by using the 12Gb/s SAS for 6Gb/s SAS cable
(CAB-SAS10M-8644-8088).
Plug and use, seamless capacity expansion
Simply connect a REXP-1620U-RP to a QNAP NAS* and power it on. The QNAP NAS
will detect the hard drives in the REXP-1620U-RP as newly-installed local
drives. You can seamlessly expand and manage the NAS capacity by using the
powerful QTS Storage Manager.
*The QNAP NAS must be using QTS 4.2 (or a newer version).
Missing mode protection
When the disconnection of a RAID expansion enclosure is detected, the NAS
blocks IO access to protect data. The system can recover from missing mode to
its normal state with the data staying intact.
High density, high efficiency and highly scalable
The REXP-1620U-RP supports 16 hard drives and 128TB raw capacity in 3U rack
space. The REXP-1620U-RP has three SAS wide ports for host connectivity and
daisy-chaining respectively. Each SAS wide port combines four SAS channels
(maximum 8 SAS channels supported per expansion enclosure), with each supporting
12Gbps full duplex speed. The solution delivers unprecedented performance of up
to 48Gbps per host connection.
Powerful QTS Storage Manager
The QTS Storage Manager neatly presents tools and options for managing system
storage with an intuitive graphical user interface, which simplifies the process
of NAS capacity expansion and REXP-1620U-RP management. IT administrators can
easily monitor the health of the REXP-1620U-RP and the disks within it. When
cascading multiple expansion enclosures in a rack, the Locate Disk and Locate
Enclosure functions assist IT administrators in quick maintenance.
An excellent backup solution for the QNAP NAS
In addition to expanding an existing volume, IT administrators can use the
REXP-1620U-RP as a budget-friendly external storage to perform speedy and secure
backup tasks for a QNAP NAS. The QNAP RTRR (Real-Time Remote Replication) or
rsync service lets IT administrators back up NAS data to the REXP-1620U-RP on a
real time or scheduled basis.
Flexible drive type and capacity
The REXP-1620U-RP offers high flexibility in hard drive selection. IT
administrators can choose enterprise-level SAS HDDs with high performance and
high reliability for mission-critical applications, low-cost but high-capacity
SATA HDDs for large data archiving, or high-speed and high-stability SSDs for
I/O-intensive operations.
Specifications
Host
Interface |
Three SAS 12Gbps 4x
wide port |
Hard
Drive |
16x 3.5" SAS/SATA
12/6Gb/s, SAS/SATA 3Gb/s hard drive or 2.5" SAS/SATA
SSD |
LED
Indicators |
Front panel: Status,
fault, system over heat, fan error |
|
Rear panel: SAS link,
SAS error, enclosure ID |
Form
Factor |
3U
rackmount |
Dimensions (DxWxH)
mm |
130 (H) x 442.4 (W) x
528.3(D) mm |
|
5.12 (H) x 17.42 (W) x
20.80 (D) inch |
Weight |
Net weight (NAS only):
18.14 kg/39.99 lb |
|
Gross weight (with
packing and accessories): 25.92 kg/57.14 lb |
Sound
Level* |
Sound pressure (LpAm):
36.7 dB(A) |
Temperature |
0-40C |
Humidity |
5~95% RH
non-condensing, wet bulb: 27C |
Power Consumption:
In Operation |
204.4W |
Power
Supply |
Redundant/ Hot Swap ATX
Power Supply, 650W, 90-240Vac~, 50-60Hz |
Fan |
3 x 6 cm smart cooling
fan (hot-swappable fan module) |
Front View
- Hard Drive Tray
- Hard Drive LEDs
- Tray Lock
- Release Button
- LED Indicators: System status, system fault, system over heat, fan
error
Rear View
- COM Port (Reserved)
- Mini SAS Port (8644)
- Mini SAS Port (8644)
- Mini SAS Port (8644)
- Power Switch
- Enclosure ID
- Power Connection
Remark
The REXP-1220U-RP/REXP-1620U-RP complies with ANSI/EIA-RS-310-D rack mounting
standards. Before purchasing the server racks for this model, please make sure
the server racks conform to the following criteria:
1. Rack size
A.Mounting post width: = 450mm
B.Panel width: = 500mm
C.Mounting post depth: 650mm-850mm
2. The optional rack kits for the REXP-1220U-RP/REXP-1620U-RP are only
compatible with square-hole server racks.
Software Specifications
Expansion Enclosure
Management |
QNAP Flexible
Volume |
The functions listed
below are managed via the QNAP QTS operating system. |
The disks, RAID Groups,
storage pools, and volumes in the RAID expansion are configured via the
QTS operating system. |
1. Support for hard
disks S.M.A.R.T. capacity |
1. Support for multiple
RAID groups in a storage pool to ensure data safety |
2. RAID expansion
enclosure LED identifier |
2. Online storage pool
expansion |
3. Location indication
of RAID expansion enclosure |
3. Online volume
expansion |
4. Location indication
of hard disks on RAID expansion enclosure |
4. Block-based iSCSI
LUN |
5. Smart fan
control |
5. Support for
thin-provisioned volume with space reclamation |
6. In-band firmware
update |
6. Support for
thin-provisioned iSCSI LUN with space
reclamation |
Intelligent Storage Manager
The QTS Storage Manager neatly presents tools and options for managing system
storage with an intuitive graphical interface. From reviewing the system storage
allocation in the Dashboard, to managing volumes, Storage Pools, disks and iSCSI
storage, the Storage Manager provides a centralized place to ease the work of
storage management.
Package
Contents |
REXP-1620U-RP |
|
0.5m SAS
cable |
|
Power cord x
2 |
|
Flat head screw x 64
(for 2.5" HDD) |
|
Flat head screw x 64
(for 3.5" HDD) |
|
Quick Installation
Guide |
Accessories |
SAS-12G2E |
|
RAIL-A03-57 |
|
CAB-SAS10M-8644 |
|
CAB-SAS05M-8644 |
|
CAB-SAS10M-8644-8088 |
