All stock codes associated to this product
LH49PMFPBGC/XY, PM49F, 8806088409313
Overview
Samsung PM-F Series commercial displays
feature a ultra-slim and narrow design. They're built for 24/7 run-time and have
an embedded System-on-Chip (SoC) media player for simple remote content
management. The non-glare panel offers improved visibility, plus IP5X certified
dust protection allows for smooth installation.
- Ultra-slim, ADA-Compliant profile of just 1.1" chassis depth and 6.9mm
bezel width
- Next gen Smart Signage Platform (SSP) 4.0 powered by Tizen OS for
powerful, streamlined 24/7 remote content management
- Non-glare panel offers improved visibility of your message
- IP5X certified dust protection provides proven durability for smooth
installation without the need for additional housing

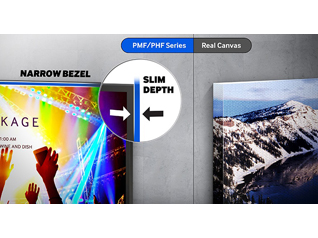

Ultra-Slim, ADA-Compliant Profile of Just 1.1”
The PM-F Series features an ultra-thin 6.9mm bezel and
1.1" chassis depth for an elegant, sophisticated look. And theyre ADA-compliant.
System-on-Chip Platform for Simple Remote
Content Management
Powered by an embedded System-on-Chip (SoC)
semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage
Platform is an open and integrated player side media platform that provides a
powerful, streamlined digital signage solution, with digital signage software
like MagicInfo T for PC-less content creation, scheduling and playing and
remotely managing content.
Non-Glare Panel for Improved
Visibility
The non-glare panel features 500nit brightness to
improve visibility of your message.

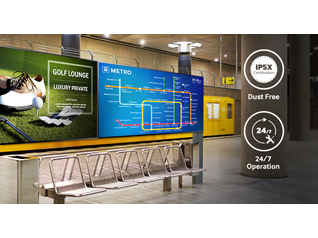

Built for 24/7 Use &P5X Certified for
Dust Protection
These displays are built for 24/7 continuous use and
are proven durable with IP5X certified dust protection. So you can install your
signage smoothly in dusty environments without the need for additional housing,
while meeting around the clock operating requirements in venues ranging from
retail stores and public spaces to Command &ontrol facilities.

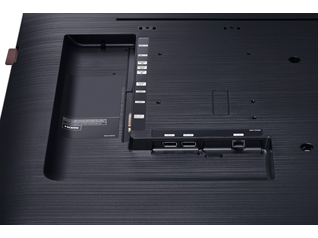

Full Connectivity
Discover versatile connectivity options to display a
full range of exceptional content that speaks to your audience. Connections
include DVI-I, Display Port 1.2, HDMI, USB 2.0, RS232C/RJ45 and more.
Built-In Wi-Fi
Enjoy the versatility of expanded connectivity to
mobile devices, from easy media sharing and screen control to simple content
mirroring from a tablet or mobile phone to your display.
Specifications
Series Name
Display
-
Screen Size
49"
-
Panel Technology
60Hz E-LED BLU
-
Resolution
1920x1080
-
Aspect Ratio
16:9
-
Brightness
500nit
-
Contrast Ratio (Typical)
5000:01
-
Viewing Angle (H/V)
178:178
-
Response Time
8ms
Connectivity
-
Input
RGB: DVI-I(D-Sub Common), Display Port 1.2 (2)
VIDEO: HDMI
(2)
AUDIO: Stereo mini Jack
USB: USB 2.0 x 2
-
Output
AUDIO: Stereo Mini Jack
-
External Control
RS232C(in/out) thru Stereo Jack, RJ45
Power
Environmental Conditions
-
Operating Temperature
0~ 40
-
Operating Humidity
10~80%
Features
-
Built-in Tuner
Yes
-
Media Player Type
Cortex-A12 1.3GHz Quad Core, 2.5GB DDR3, 8GB FDM,
USB 2.0, Tizen 2.4
(VDLinux)
-
Plug &lay
Yes
-
24/7 Operation
Yes
-
Wi-Fi
Yes
-
VideoWall/Thin Bezel
Yes
-
Built-in Speakers
10W x 2
Dimensions
Service
Included in Box
-
Included in Box
Quick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote
Controller, Batteries, RS232C(IN) adapter, Cover Jack
-
Optional Wall Mount Kit
WMN4270SD
-
Optional Stand
STN-L4655E
-
Optional Media Player
SBB-DA / SBB-DI
Green Management
Mechancial Specs
Operation
-
Operating Temperature
0~ 40
-
Operating Humidity
10~80%
