All stock codes associated to this product
N4810, BATHN4810, BATH-N4810, 4712505095202
Overview
High-Value 4-Bay NAS. Your Personal
Cloud.
- Embedded with Intel Celeron N3160 Quad Core CPU
- Running on the newly-designed, enhanced ThecusOS 7.0
- Seamless 4K Multimedia Playback
- Uninterrupted Accessibility with Thecus System Failover
- Secure Remote Access with Virtual Private Network (VPN)
- Faster Transfers: 2 LAN Ports for Link Aggregation
- 99% Virus Prevention: Bundled with Free Intel Security
- Complete Client Side Protection: Bundled with Free Acronis
Software

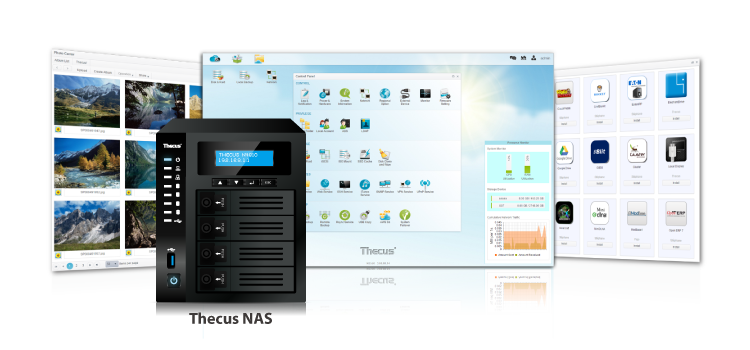

Running on the newly-designed, enhanced ThecusOS 7.0
Thecus NAS runs on the newly designed ThecusOS 7.0 offering an easy to use,
intuitive user interface. Introducing several new features including Photo
Station, Thecus App Center, and User Profile, ThecusOS 7.0 delivers significant
improvements in design, performance, and user experience.
Seamless 4K Multimedia Playback
Delivering superb sharpness and colour contrasts in 4K resolution playback,
accessed through the HDMI output or DisplayPort output, guaranteeing that the
picture quality from movies is just as the director envisioned. Connection to
your digital sound system via a SPDIF output is available, providing crystal
clear audio for music and movies.

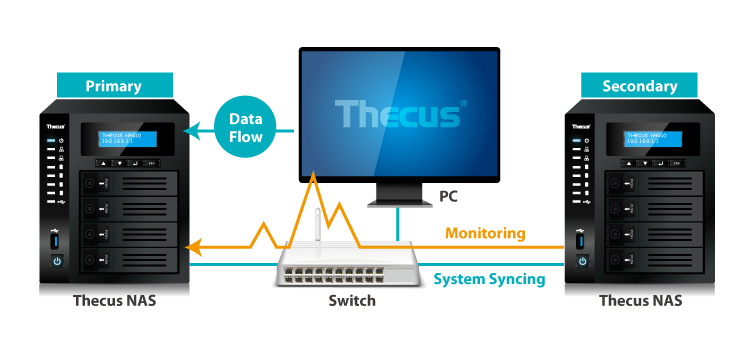

Uninterrupted Accessibility with Thecus System Failover
The Thecus System Failover feature is a fault tolerance process that creates
mirrored data volumes. With at least two Thecus NAS available, data is copied by
schedule and all changes are mirrored between the two NAS. While the second NAS
is not visible, it communicates with the primary NAS. In the event of a power or
network failure, a scheduled maintenance, or other unforeseen circumstances,
System Failover automatically redirects operations to the secondary Thecus NAS,
which then acts as the primary NAS.

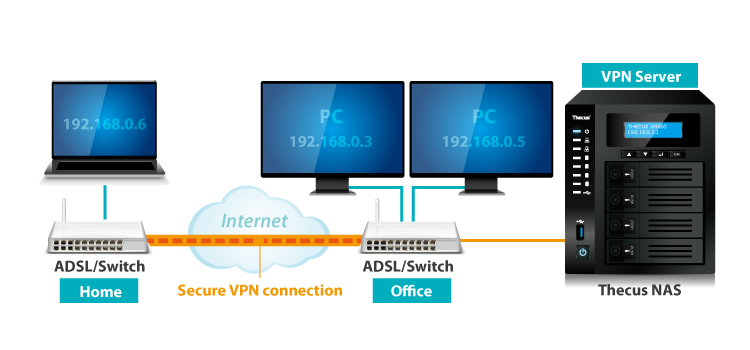

Secure Remote Access with Virtual Private Network (VPN)
A VPN Server allows users to remotely access a secure network. with VPNs,
businesses will be able to utilize a cost-effective, scalable and secured
network infrastructure for its client base.
Thecus RAID Protection
IT administrators can aggregate multiple RAID groups into a large storage
pool to flexibly utilize their entire storage capacity as a whole, all the while
improving data redundancy protected with data redundancy and allowing better
data protection against multiple disks failure concurrently for large capacity
environment. Thecus OS also allows for the creation of multiple volumes in the
Storage Pool, improving customizability for various applications in typical
business environments with diverse workgroups.
AES 256-bit RAID Volume Encryption
Thecus's AES 256-bit RAID volume encryption tool allows users to fully
encrypt their entire RAID volume, defending essential data even in instances of
theft.

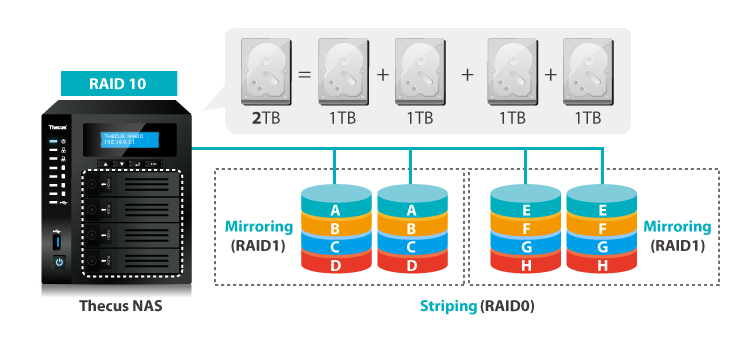

Fault Tolerance up to RAID 10
When it comes to data management, Thecus NAS truly let you have it your
way. Create multiple RAID volumes each supporting different RAID modes including
RAID 0, 1, 5, 6, 10 and JBOD for your own balance of performance and data
protection.
RAID Management
RAID level migration allows RAID volumes to be easily moved from
one NAS to another. And RAID expansion allows you to increase the size of your
RAID volume by the gradual replacement of older drives with larger ones.

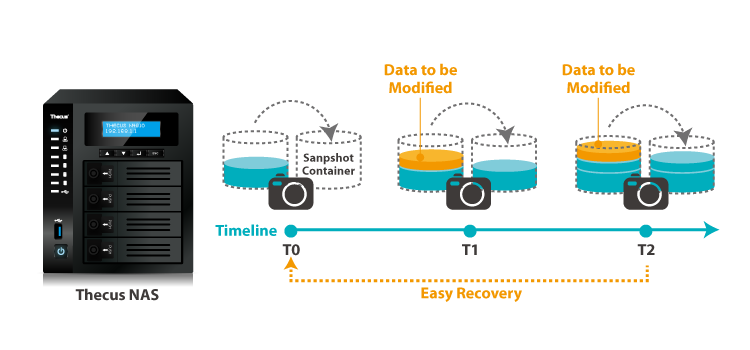

Snapshot Your Data
With BTRFS support, Thecus NAS users can enjoy the simplicity of
snapshot backups. Through BTRFS subvolumes, snapshots of data at various time
points can be manually or automatically made and just as easily later restored
to rollback files or folders to previous states.

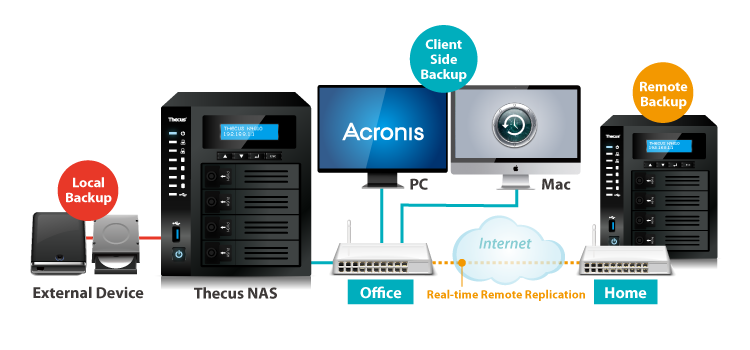

Complete Data Backup Solution
Bundled with Free Acronis Backup
Software
Thecus brings the best to the table with Acronis's advanced backup
software. Back up all your data with One-click Protection or pick and choose
only your most important files. Acronis sports a slick interface, user-friendly
design, and comprehensive features to keep your data safe.
Local Backup &ime Machine
PC users can utilize local backup devices while Mac users can automatically
back up their entire Mac. Whenever a need arises, users can simply go back and
recover files quickly and effortlessly
Real-Time Remote Replication (Rsync)
This innovative backup feature allows users to back up files instantly to
their NAS, external hard drive, or remote NAS. RTRR saves you time as it is able
to back up data immediately and automatically.

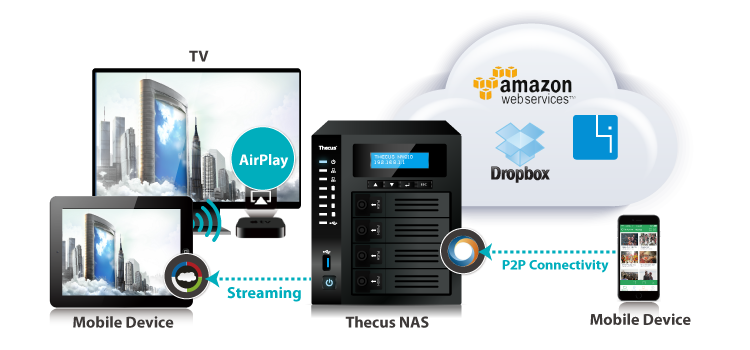

The Cloud Done Your Way
Personal Cloud
Were a mobile society, and our NAS solutions are keeping up! Incorporated
into Thecus NAS is support for Thecuss T-OnTheGo smartphone app. Supporting both
iOS and Android, this NAS management software enables users to access, copy,
stream, and edit any data between their NAS and mobile device. Your own personal
cloud, available from anywhere with internet access.
Cloud Backup
The private and public clouds meet with Thecus new DropBox, Amazon S3 and
ElephantDrive cloud backup functionality! Guard your data with RAID at home and
an additional level of protection in the Cloud. Just drag and drop files into
the folder on your NAS and access them on any computer or mobile device with
DropBox, Amazon S3 or ElephantDrive.
P2P Connectivity via Orbweb.me
Enjoy an always accessible cloud experience. Orbweb.me is a P2P module that
allows users to easily view, stream and manage files in their NAS anytime and
anywhere. No IP address is required. Besides that, Orbweb4.0 offers
severalfeatures including webcam monitoring,timeline view and snapshot.

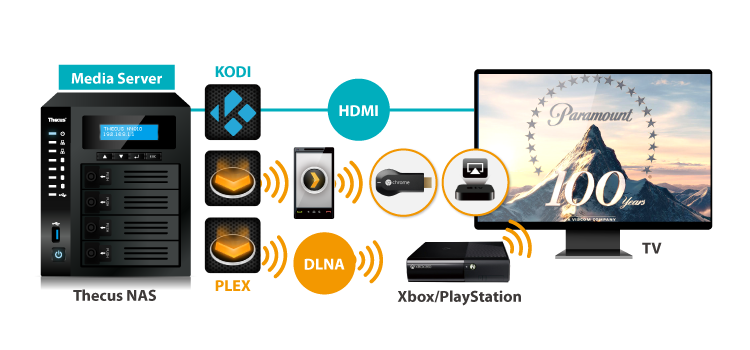

Multimedia Data Center
Direct Media File Playback via HDMI Output
Transform your NAS into the ultimate multimedia hub! Thecus NAS integrated
HDMI output allows you to connect your NAS directly to your TV for direct device
management and multimedia playback.
Media Streaming to XBOX360/PS4 via Plex Media Server
With the Plex Media Server installed on your Thecus NAS, various devices on
your network (such as your Xbox 360 and mobile devices) can connect to and
stream your local and online media. The server can also automatically assemble
iTunes, iPhoto, and Aperture content. From your favorite videos to your
mountains of music, Plex makes it easy to manage and enjoy all of your media on
your Thecus NAS.
TV Streaming via Apple TV/Chromecast
Thecus NAS allow you to have your very own entertainment hub wherever you
go. With TV streaming support and mobile apps, you can share all your favorite
photos, music, and videos.

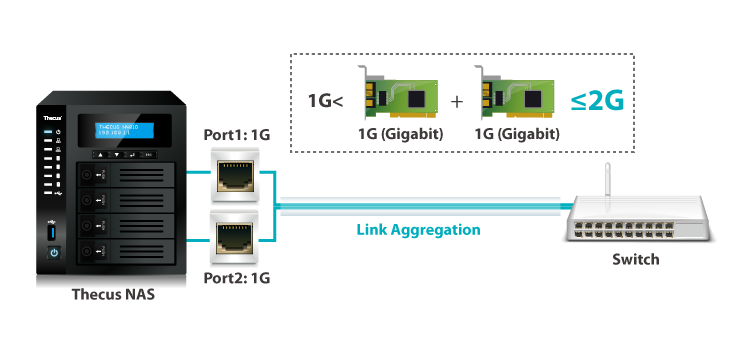

7 Modes of Link Aggregation for Faster Transfers
Link aggregation can sustain multiple network connections and provide
redundancy in case one of the links fails. Thecus NAS supports 7 modes which
provide Load Balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, and
Balance-ALB, Broadcast.
Bundled with Free Intel Security
Thecus' innovative hardware helps prevent failures. But sometimes you have
to protect the NAS against itself. Adding an antivirus to the already
comprehensive software bundle will provide the necessary software protection by
scanning the files on your NAS and defending it against possible threats. Intel
Security is the world's largest dedicated security technology company and shares
Thecus' spirit of dedication and quality. By establishing a strong partnership
with them, Thecus will allow users the benefit of Intel Security's powerful
software on their NAS entirely for free.

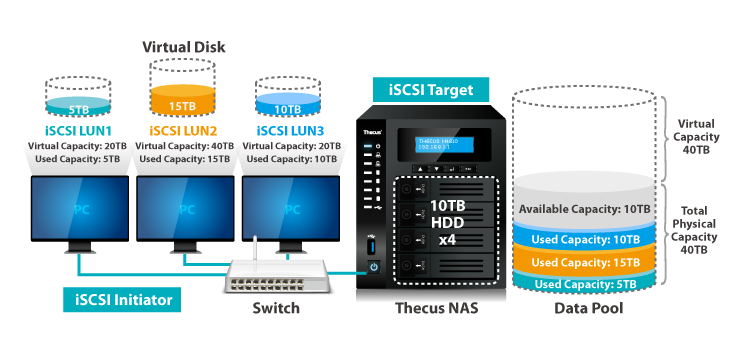

Flexible Storage Allocation with iSCSI LUN and
Thin-Provisioning
Get the most out of your storage space with the extreme speed of iSCSI and
the efficiency of iSCSI thin provisioning. Connect through iSCSI for the fastest
data transfer speeds available and make wasted disk space a thing of the past
with thin provisioning's flexible storage functionality.
Specifications
Processor |
Intel Celeron N3160 1.6GHz burst up to 2.24GHz Quad
Core |
System Memory |
4GB DDR3 |
Memory expandable up to |
8GB Memory Compatibility List |
LAN Interface |
RJ-45x2: 10/100/1000 BASE-TX Auto MDI/MDI-X WOL
supported |
USB Interface |
USB 3.0 host port (Front x1,Back x2) (A Type) USB 3.0
host port (Back x1) (C Type) |
LED Indicator |
Power LED: Blue WAN/LAN1 LED: Yellow LAN LED:
Yellow USB LED: Activity/Failure: Blue/Red |
LCM Module |
LCM display 4 buttons (ENTER, ESC, UP, DOWN) |
HDMI Output |
HDMI port (back x1) |
DP Output |
DP port (back x1) |
SPDIF |
SPDIF port (back x1) |
Disk Interface |
4 x SATA for internal,support SATA II / SATA III hard
disk |
Power Adapter |
90W external power adapter |
Thermal/Fan control |
Thermal sensor on processor temperature System FAN speed
controlled by temperature |
System Clock |
Battery-backed up system clock |
Power Management |
Auto power on after shutdown due to power loss |
Buttons |
Power button |
Buzzer |
Adjustable frequency alarm |
Environment |
Temperature: 0C to 40C (Operation) -40C to 70C
(Non-operation) Humidity: 0 ~ 80 % R.H. (Non-condensing) |
Chassis |
4bays Tower Metal Chassis |
Dimensions (HxWxD) |
192 x 172 x 250 (mm) / 7.56 x 6.77 x 9.84 (in) |
Certificates |
CE/FCC/C-Tick/VCCI/BSMI RoHS WEEE |
2.
Software Functions
RAID
|
RAID Modes |
RAID 0, 1,5,6,10 and JBOD |
Auto-rebuild |
Supported |
Hot-swap |
Supported |
Hot Spare |
Supported |
RAID Expansion |
Supported |
RAID Volume Encryption |
AES256bit |
Disk |
Power Management |
Available spin-down on idle setting |
Bad Block Scanning |
Supported |
SMART Info |
Supported |
SMART Test |
Supported |
Disk Roaming |
Supports volume-based roaming to other Thecus NAS (Require ThecusOS 7
64 bit) |
Disk Wipe and Clone |
Supported |
Disk Security |
Supported |
Network
|
Configuration |
Fixed IP address, dynamic IP address |
Transport Protocols |
TCP/IP/AppleTalk |
File Protocols |
SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP |
Link Aggregation |
Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB,
Balance-ALB, Broadcast |
TCP/IP |
IPV6 &PV4 |
DDNS |
Supported |
SSH |
Supported |
UPnP |
Supported |
UPnP Port forwarding |
Supported |
Bonjour |
Supported |
VPN Server |
Supported |
vLan |
Supported |
System
status |
System Monitor |
Monitoring CPU, memory, Temperature, fan, network utilization and
protocols access user count |
Syslog Management |
Send syslog to assigned location Act as syslog server to receive
log info from other systems |
Data
Access |
Client OS Support |
Windows XP and after Windows Server 2003 and
after UNIX/Linux Mac OS X |
FTP |
Built-in FTP server with bandwidth control |
Secure FTP |
Built-in secure FTP server with bandwidth control |
TFTP |
Users can download and upload files with TFTP programs |
Download Manager |
BT download (via Transmission module) NZB download (via NZB
module) |
WebDAV/WebDAV SSL |
Supported |
Printer Server (IPP) |
Supports USB printers Supports a wide range of IPP
printers Client can manage print tasks (list/delete) via web user
interface |
Data
Backup |
Client Incremental Data Backup |
Acronis True Image (OEM version) |
Client System Disaster Recovery |
Acronis True Image (OEM version) |
Mac OS X Time Machine |
Supported |
Local folder/iSCSI Backup |
Supported |
Remote folder/iSCSI Backup |
Supported |
Snapshot |
Supported (Btrfs) |
System Failover |
Supported |
Block Level
Access |
iSCSI Target/Initiator |
Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS
targets |
iSCSI Thin Provisioning |
Supported |
MPIO |
Supported |
MCS |
Supported |
Clustering |
Supported |
SCSI3 Persistent Group Reservation |
Supported |
Power
Management |
Scheduled Power On/Off |
Supported |
Volume
Management |
Multiple RAID |
Supported |
Multiple File System Selectable |
EXT4/XFS/Btrfs |
Multimedia Support
|
iTunes Server |
Supports AAC, MP3 w/ID3 tag and WAV |
Media Server |
Supports uPnP AV streaming protocol (via Module) |
User
Authentication |
Local User |
Supports built-in user accounts |
Local Group |
Supports built-in user groups |
Windows ADS |
Supported |
LDAP |
Supported |
User
Profile |
Photo Center |
Supported |
File Center |
Supported |
APP Center |
Supported |
Surveillance Center |
Supported |
Cloud
Backup |
DropBox |
Supported (via module) |
ElephantDrive |
Supported (via module) |
Amazon S3 |
Supported |
File
System |
Type |
Journaling File System |
Language Support |
Unicode Support |
Authorization (ACL) |
Read, write, or deny privileges to individual users or groups in
folders and sub-folders |
User Quota |
Supported (exclude Btrfs) |
Folder Quota |
Supported (Btrfs only) |
Administration |
User Interface |
Web-based user interface supports English, Traditional Chinese,
Simplied Chinese, Japanese, French, German, Italian, Spanish,
Russian. |
Utility Program |
MS Windows Setup Wizard Supports Windows XP and after Mac OS X
Setup Wizard |
Email Notifications |
Sends system messages via email to the system administrator |
SNMP Trap |
System information trap out |
P2P Connection |
Mail or FB account to register |
DDNS |
Supported |
Mobile Applications
(iOS/Android) |
Thecus Connect (Android) |
Provides live up-to-date information of your NAS |
Thecus Wizard |
Offers fast NAS Setup via your phone |
T-OnTheGo |
Upload, download and stream multimedia |
Orbweb.me |
Uploading, downloading, streaming multimedia and webcam via P2P
connection |
Data
Security |
Virus Scan |
Supports Intel Security (via module) |
Capacity
Expansion |
Stackable |
Can extend for 5 additional iSCSI volumes from other Thecus NAS |
Scale-Out |
Dynamic Volume Expansion |
Others |
Recycle Bin |
Supported |
ISO Mount |
Supported |
Local Display |
X-Window via HDMI
output |
