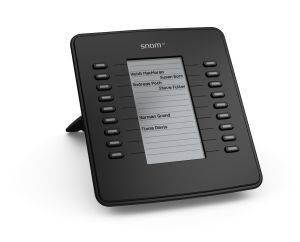

Snom D7 Expansion Module - 18 button snom Black keypad with USB connection for 715/720/725/760/765 series

The D7 expansion module features 18 multi-color LED keys which can be programmed with all functions available known from snom phones.

The high-resolution display provides a perfect visual interface which can be easily configured and labelled via the phones web interface or directly on the phone itself. Using the D7 could not be easier: simply connect the USB cable and its ready to use. Three D7 expansion modules can be daisy-chained to add up to 54 function keys to your phone. The D7 is the perfect addition to any snom 7-series desk phone.

Features:

18 highly configurable self-labeling LED keys
High-resolution black &white display with backlight
Daisy chain up to 3 modules
Plug and play
Power supplied by phone via USB port

Benefits
High-resolution graphical display with backlight
18 freely programmable multicolor LED function keys
Dual-angle footstand: 46° and 28°
Daisy chainable
Fully configurable via host phone
Powered by host phone
Dimensions
158mm x 140mm x 40mm (LxWxD) w/o foot stand
158mm x 140mm x 200/220mm (LxWxD) with foot stand
Weight
device 400g, footstand 120g
Environmental
Ambient temperature: 0°C to 35°C (32°F to 95°F)
Non-operation: -10°C to 45°C (14°F to 113°F)
Humidity: 5% to 95% (non-condensing)



No additional files, specification sheets, guides or documentation found for product.

Warranty: 1Y

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
