Overview
Features
- Complies with IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE)
Standards
- Gigabit LAN ports provide high-speed connectivity
- PoE short circuit protection to safeguard network devices
- Extends PoE connection for another 100 meters (328 ft.)
- Reduces installation and equipment costs
- Easy plug-and-play desktop or wall-mounted installation
Power over Ethernet (PoE) is typically limited to a range of 100 meters due
to cable capacity. For longer-distance PoE networking though, the GP-101ET PoE+
Extender is the perfect accessory increasing capacity up to another 100 meters
(328 ft). Its a 1-Port Gigabit PoE Extender with plug and play installation
requiring neither configuration nor extra electrical power, and makes for an
innovative and cost-effective PoE repeater that extends power and data for
another 100 meters. Extend your network for a PD (Powered Device) such as WLAN
access points, network cameras, IP phones and others, with Gigabit high-speed
for greater deployment flexibility.
IEEE 802.3at/af Power over Ethernet Standard
The GP-101ET Extender can be connected to any IEEE 802.3at/af end-nodes such
as WLAN access points, network cameras, Voice over IP (VoIP) telephones and
IP-based appliances where the IEEE 802.3at/af in-line Power over Ethernet port
is supported.
Extended Range with Higher Cost Efficiency
Enables the Ethernet cable to carry both data and power beyond the 100 meters
limitation for another 100 meters. This reduces the need for cable installation
and eliminates the need for extension cords or electrical outlets on the wall,
ceiling or any unreachable place. Overall lower installation costs and
simplified deployment efforts.
Plug & Play, Easy Installation
No additional power supply or setup required for easy plug & play
installation.
Reliable & Flexible Power Supply
Featuring PoE short circuit protection to safeguard network devices and
protect against damage.

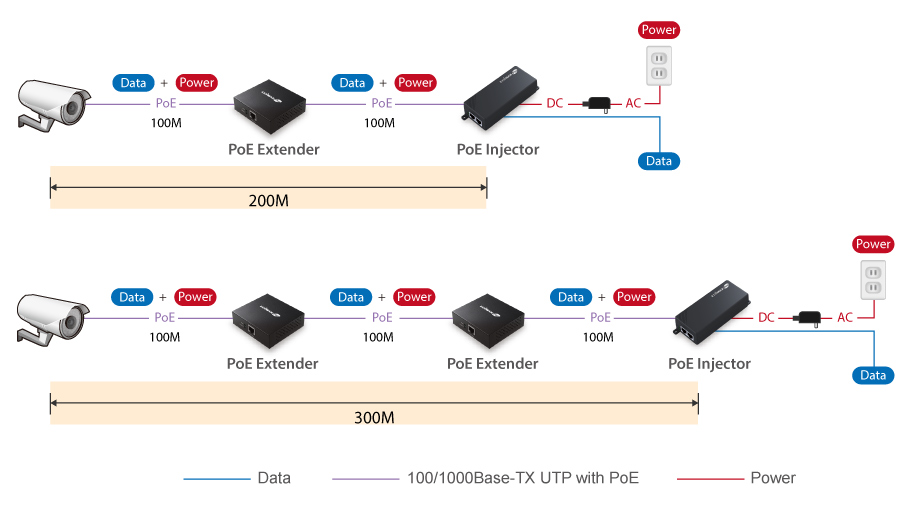

APPLICATION DIAGRAM
PACKAGE CONTENTS
- GP-101ET PoE Extender
- Quick Installation Guide

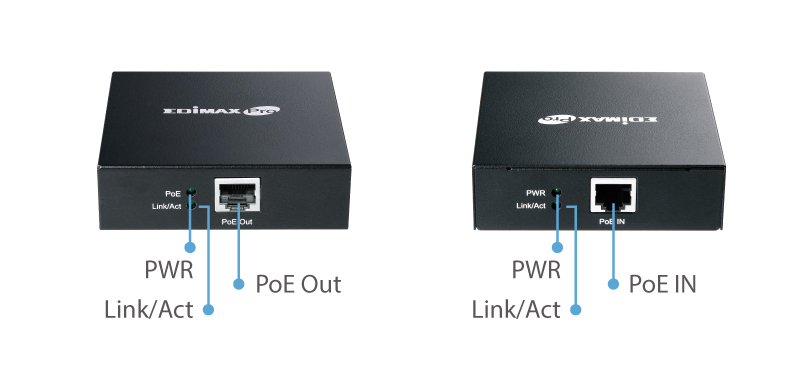

HARDWARE INTERFACE
Specifications
|
HARDWARE |
|
|
Ports |
1 Port RJ-45 10/100/1000Base-T Input Port |
|
1 Port RJ-45 10/100/1000Base-T PoE Output Port |
|
LED Indicators |
Link/ACT and PoE |
|
Power Input |
IEEE 802.3af, IEEE 802.3at |
|
Power Consumption |
1.2 Watts |
|
Dimensions (L x W x H) |
86.8 x 79.3 x 25.8 mm |
|
Weight |
200g |
|
|
|
POWER OVER ETHERNET |
|
|
Standard |
IEEE802.3af and IEEE802.3at |
|
Power Output |
IEEE 802.3af |
|
Pin Assignment |
PoE Input Port: 1/2(+), 3/6(-) End-Span; 4/5 (+), 7/8 (-)
Mid-Span |
|
PoE Output Port: 1/2(+), 3/6(-) End-Span |
|
PoE Power Output |
15.4W (IEEE 802.3af) |
|
|
|
ENVIRONMENT |
|
|
Temperature |
Operating: 0 ~ 40 |
|
Storage: -40 ~ 70 |
|
Humidity (Non-condensing) |
Operating: 10 ~ 90% |
|
Storage: 5 ~ 90% |
|
|
|
STANDARDS COMPLIANCE |
|
|
Standards |
IEEE 802.3 10BaseT Ethernet |
|
IEEE 802.3u 100BaseTX Fast Ethernet |
|
IEEE 802.3ab 1000BaseT Gigabit Ethernet |
|
IEEE 802.3af Power Over Ethernet (PoE) |
|
IEEE 802.3at Power Over Ethernet Plus (PoE+) |
|
Certifications |
FCC, CE |
