All stock codes associated to this product
EB1780W, EB-1780W, V11H795053, 3585678, 9314020623721
Overview
KEY FEATURES & BENEFITS
- 3 x Brighter Colours and Reliable Performance* 3LCD, 3-Chip Technology.
Look for both high colour brightness and high white brightness.
- Bright Images 3,000 lumens colour and 3,000 lumens white brightness
- Crisp, Clear Resolution Featuring WXGA resolution for sharp, widescreen
images.
- Travel Friendly Weighs just 1.77kg.
- Fast, easy image adjustments Auto vertical and manual horizontal keystone
correction.
- Versatile connectivity Compatible with the latest laptops and media
players and supports HDMI.
- Split Screen Simultaneously project two images, video or still, side by
side, from two different sources.
* Colour Brightness (Colour Light Output) measured in accordance with
IDMS 15.4. Colour Brightness will vary depending on usage conditions. Leading
3LCD projectors compared to leading 1-chip DLP projectors, based on NPD data for
June 2013 through May 2014 and PMA Research data for Q1 through Q3
2013.
3LCD technology
All Epson projectors are based on 3-chip LCD technology for amazing colour,
incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an
entire chip to process each primary colour - red, green and blue, continuously.
Unlike single-chip technology that delivers colour sequentially, you get
full-time colour. The result is vibrant, realistic images and video all
delivered with 3LCD's true-to-life colour.
3x Brighter Colours with Epson Projectors*
Brilliant image quality requires high colour brightness (colour light
output), and Epson 3LCD projectors have 3 x Brighter Colours than leading
competitive projectors*.
One brightness measurement (lumens) is not enough. A projector's
specification needs to show both high colour brightness and high white
brightness. If colour brightness is lower than white brightness, images may be
dark, dull and lose detail. If not provided, be sure to ask for a projector's
colour brightness specification.
* Colour Brightness (Colour Light Output) measured in
accordance with IDMS 15.4. Colour Brightness will vary depending on usage
conditions. Leading 3LCD projectors compared to leading 1-chip DLP projectors,
based on NPD data for June 2013 through May 2014 and PMA Research data for Q1
through Q3 2013.
Brilliant High Definition
The 1780W features WXGA resolution delivering high quality images and crisp,
sharp text without any distortion. This applies to video output devices such as
PCs and smart devices with their ever increasing image quality and higher
definition.
High Brightness
With brightness up to 3,000 lumens the screen is easily viewed from anywhere
in the room, even without dimming the lights. Even though its light weight and
compact size enable it to be carried from room to room, the projector is capable
of highly visible images thanks to its high brightness and superior 10,000:1
contrast ratio.
Enhanced connectivity with iProjection
Wirelessly connect directly to laptops, tablets, smartphones or to a network
for easy control over your presentations. This free application allows you to
travel light and present from your mobile device. Just turn on the projector,
use Epson iProjection to scan the on-screen QR code, and share content on the
big screen.
Ultra-Slim and lightweight design
The 1700 series is so compact it can fit into your briefcase along with your
documents making it convenient to carry around with you.
HDMI connectivity and MHL
Get both audio and brilliant HD video content with just one cable that can
connect with the latest laptops, Blu-ray Disc, media players and
MHL-enabled devices. The 1700 series enables you to display content from
MHL-enabled smartphones and tablets, as well as charge your MHL-enabled device
when its connected to the projector.
Easy image adjustments with Keystone Adjustor
Position your projector almost anywhere in the room and still get a correctly
proportioned image with auto vertical correction and manual horizontal image
correction. Using keystone adjustor enables you to adjust the image easily and
quickly, even in a limited space, making it perfect for narrow spaces, such as
on a desk.
Quick, convenient control
The Epson 1700 series is easier to control than ever through its Auto Power
On feature. There is no need to turn on the power using the remote control or
the power button on the projector itself because startup is activated with cable
insertion.
With Sleep Mode (A/V Mute) you can pause your presentation without turning
the projector off. The 1700 series also enables you to quickly power down the
projector, pack up and go with its Instant Off feature, allowing you
to control your projector with the flip of a switch.
Shorter throw distance
The short throw ratio means you can project onto a large screen even in small
spaces eliminating concern about where presentations can be made.
New Home screen
Get up and running in a snap with an intuitive, user-friendly home screen.
Select the content source and easily access frequently-used functions such as
keystone correction, volume control, Split Screen and more. Wireless connections
can be made easily because all the information you need is right there on the
screen.
Split Screen
Split Screen allows inputs from two separate sources to be displayed side by
side on the same screen. With three layout options you can display video and
presentation materials, and run video on both screens.
Front Exhaust
Thanks to front exhaust, the hot exhaust is directed away from your audience
and allows for efficient use of desk space
Longer lamp life
The long 7,000H* lamp life saves time and money by reducing the frequency of
costly lamp replacements.
* Power Consumption: ECO mode

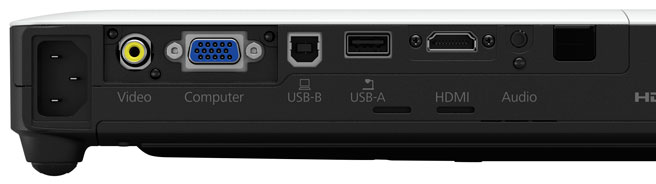

Connectivity Panel
Specifications
| PRODUCT NAME |
Epson EB-1780W |
| PRODUCT CODE |
V11H795053 |
| WHAT'S IN THE BOX |
|
|
Epson EB-1780W Projector,1.8m Computer Cable, 3m USB A/USB B
Cable, Remote Control, Soft Carry Case, Manual |
| TECHNOLOGY |
|
| Projection System |
Epson 3LCD, 3-chip technology |
| LCD Panel |
0.59-inch panel (D9) |
| OPTICAL |
|
| Zoom |
1-1.2 (Optical Zoom) |
| Screen Size |
30" to 300" [0.67 to 6.81 m] (Zoom:Wide)
30" to
300"[0.80 to 8.18 m] (Zoom:Tele) |
| Projection Distance |
60" screen 1.35 - 1.62 m |
| Throw Ratio |
1.04 (Zoom:Wide), 1.26 (Zoom:Tele) |
| Projection Lens F Number |
1.58mm-1.70mm |
| Projection Lens Focal Length |
13.52mm-16.22mm |
| Focus Method |
Manual Focus |
| Offset |
10:1 |
| IMAGE |
|
| Colour Light Output |
3,000 Lumens |
| White Light Output |
3,000 Lumens |
| Resolution |
|
| Native Aspect Ratio |
|
| Contrast Ratio |
|
| Lamp Hours |
Normal/Eco: 4,000/7,000 Hours |
| Lamp Type |
206W UHE |
| Keystone Correction |
Vertical : -45 degrees to +45 degrees
Horizontal: -30
degrees to +30 degrees |
| CONNECTIVITY |
|
| Input: Video |
1 x RCA (Yellow) |
| Input: Computer |
1 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |
| Input: USB Memory Device |
1 x USBType A |
| Input: Three-In-One USB Display |
1 x USB 2.0 Type B |
| Input: Digital |
1 x HDMI (1 x MHL) |
| Input: Audio |
1 x Stereo mini jack |
| Input: Control |
1 x USB 2.0 Type B |
| Input: Epson USB Document Camera |
1 x USB 2.0 type A |
| Wireless Connectivity |
included |
| NFC |
N/A |
| WiDI/Miracast |
N/A |
| Speaker Output |
1W |
| ADVANCED FEATURES |
|
| EasyMP Network & Control |
Yes |
| EasyMP Network Projection |
Yes |
| PC Free Presentations |
Yes |
| USB Plug 'n Play |
Yes |
| AV Mute |
Yes |
| Instant Off |
Yes |
| Direct Power On/Off |
Yes |
| Gesture Presenter |
N/A |
| Security |
Kensington -style lock provision
Password
protect function |
| Colour Modes |
Dynamic, Presentation, Cinema, sRGB, Blackboard, DICOM
SIM |
| GENERAL |
|
| Dimensions D x W x H (excluding feet) |
213 x 292 x 44 mm |
| Weight |
1.77kg (approximate) |
| Compatible lamp model |
ELPLP94 (New) |
| Lamp Warranty |
12 months or 750 hours* |
| Projector Warranty |
3 Years |
| Power Consumption: Lamp on |
Normal/Eco: 277/200W |
| Noise Level |
Normal/Eco: 39/30dB |
|
| * Which ever comes first. For more information visit
Epson Projector Warranty |
| PRODUCT OPTIONS |
Item Code |
Description |
|
V13H010L94 |
Replacement Lamp ELPLP94 |
|
V13H134A53 |
Replacement Air Filter ELPAF53 |
|
V12H003B23 |
Ceiling Mount (Standard) ELPMB23 |
|
V12H003D01 |
Setting Plate for Mount ELPPT01 |
|
V12H003P13 |
Extension Pole 668-918 mm |
|
V12H003P14 |
Extension Pole 918-1,168 mm |
|
V12H002S2Y |
80" Portable Tripod Screen ELPSC21B |
| Epson is the registered trademark of Seiko Epson
Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson
Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All
other product names and other company names used herein are for
identification purposes only and may be the trademarks or registered
trademarks of their respective owners. Epson disclaims any and all rights
in those marks. Specifications are subject to change without
notice. |
Equipment supplied by Epson Australia is designed to function in conjunction
with genuine Epson consumables and accessories specifically configured for
it.
Usage Conditions
Epson products are designed and made to
give highly reliable use and long life when used according to its
specifications. With any system, product or device used in situations where
human life may be involved or at risk, Epson advises that you should take all
necessary steps to ensure the suitability of your Epson product for inclusion in
your system, and recommends that you include fail-safe procedures and redundancy
support or backup equipment in your system, to maintain the maximum safety
margin and optimum system reliability. Examples include but are not limited to
do not interfere with any electrical components within the device, do not use
items supplied with the product for purposes other than as intended by Epson (ie
mains cords, inks, CDs, plastic wrapping) and do not make modifications to the
product.
