All stock codes associated to this product
X299GAMINGK6, X299-GAMING-K6, 3692639
Overview
- ASRock Super Alloy
- Gaming Armor: Power / Memory / VGA / Internet / Cooling / Audio
- Supports Intel Core X-Series Processor Family for the LGA 2066 Socket
- 11 Power Phase design, Digi Power
- Supports DDR4 4400+(OC)
- 4 PCIe 3.0 x16, 1 PCIe 3.0 x1
- NVIDIA 3-Way SLI, AMD 3-Way CrossFireX
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound
Blaster Cinema 3
- 8 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 &ATA3)
- 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C), 8 USB 3.1 Gen1 (4 Front, 4
Rear)
- Dual Intel Gigabit LAN
- ASRock RGB LED
- Hyper BCLK Engine III

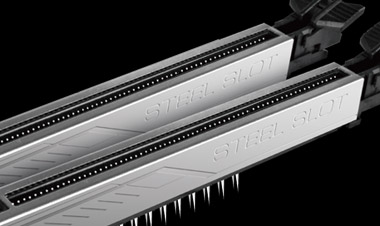

PCI-E STEEL SLOTS
The advanced PCI-E Steel Slots packed with solid cover that prevent any
signal interference with graphics cards. It also ensures the heavy graphics
cards to be well-installed in the PCI-E slots safely.
Triple Ultra M.2
Triple of the worlds fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to
32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.
RGB LED
Build your own colorful lighting system! RGB LED and header allows users to
connect LED strip and create their unique PC style easily. The ASRock RGB LED
utility can be downloadeddirectlyor from an all-in-one utility
ASRock Live Update &PP Shop!
11 Power Phase Design
Designed with an 11-Power-Phase Design, this motherboard features sturdy
components and completely smooth power delivery to the CPU. Plus, it offers
unmatched overclocking capabilities and enhanced performance with the lowest
temperature for advanced gamers as well.

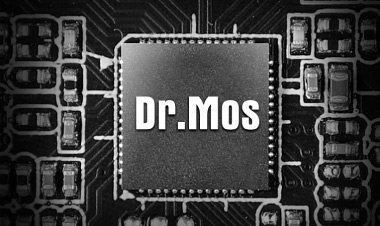

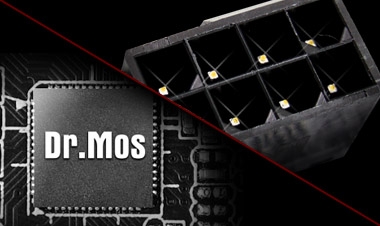

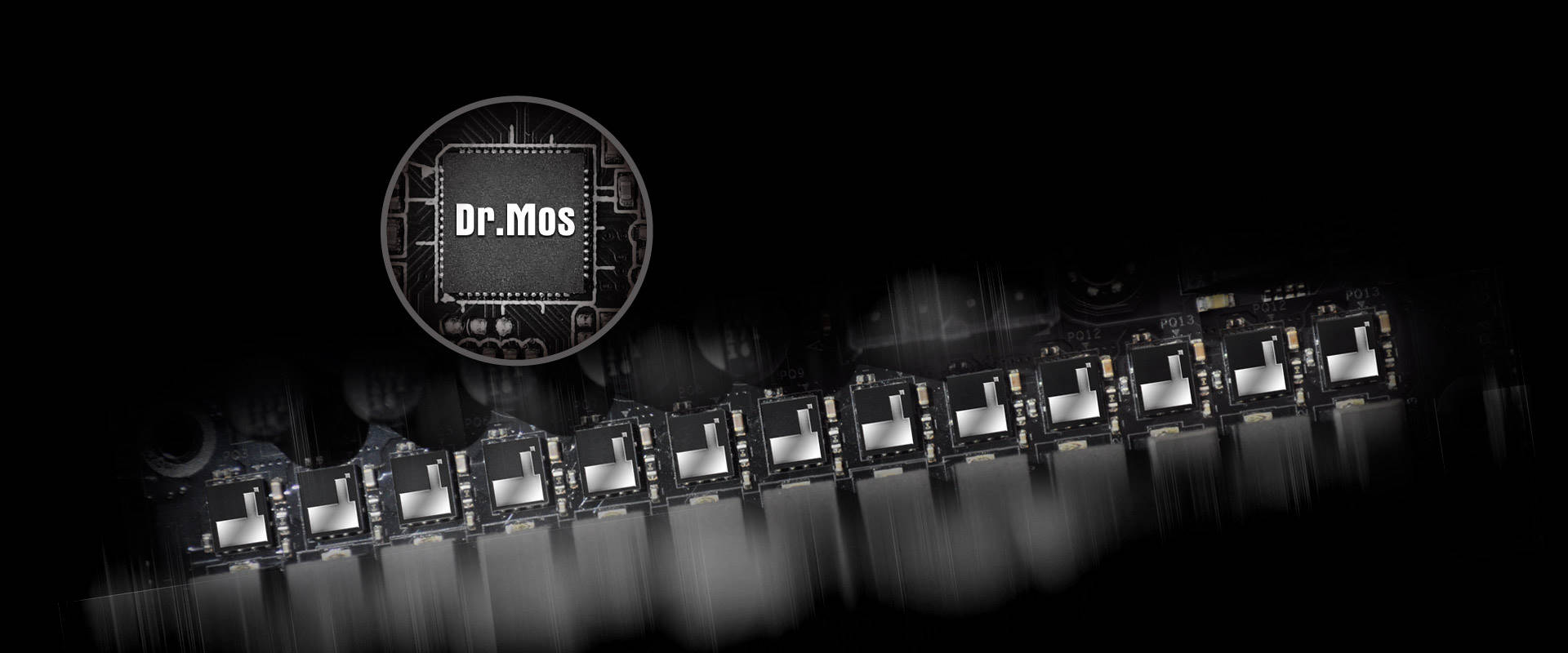

Dr. MOS
Dr. MOS design features the latest SPS (Smart Power Stage) technology. Its
optimized for monitoring current and temperature of each phase, thus delivering
smoother and neater power to the CPU with enhanced performance and OC
capability.

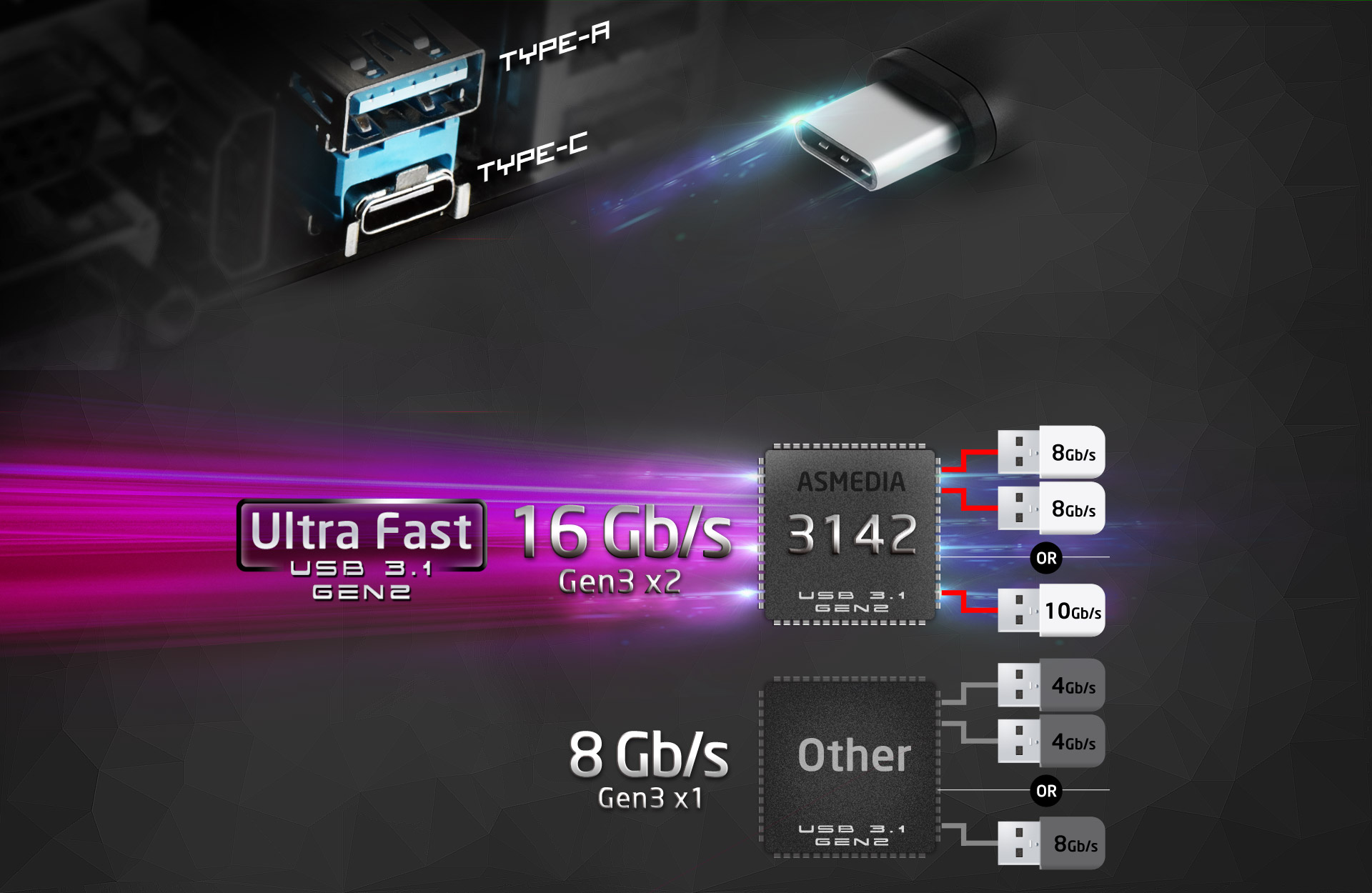

Dual USB 3.1 Gen2 (Type-A + Type-C)
The newer and more power efficient ASM3142 USB 3.1 Gen2 controller not only
delivers up to 10 Gbps data transfer rates but also supports "Multiple Ins"
architecture, it is able to maintain fast and stable speed while transferring
data from two USB storage devices at the same time without bogging down by their
speed difference.

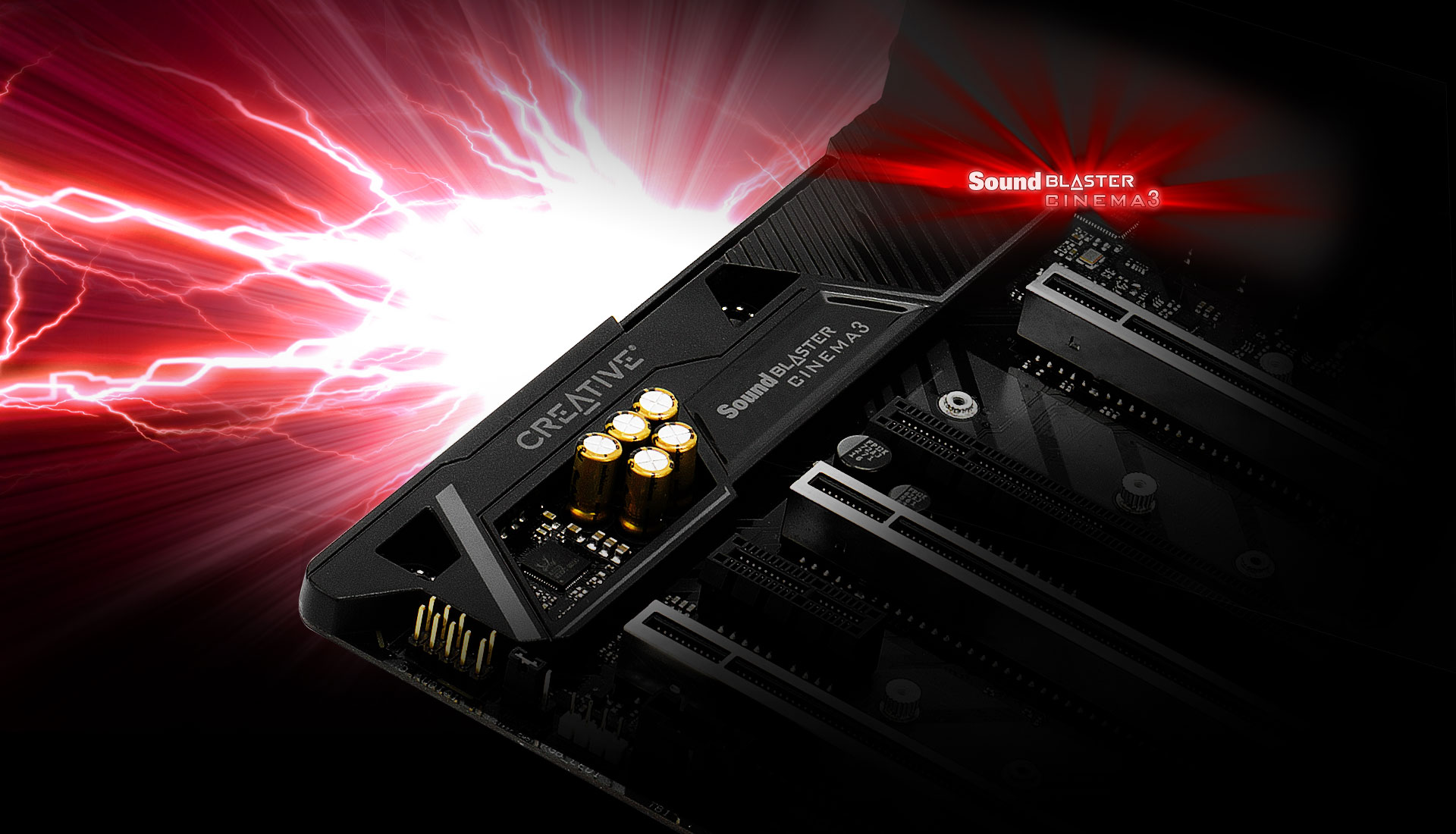

Creative Sound Blaster Cinema 3
Sound Blaster Cinema 3 is the latest software that is designed with SBX Pro
Studio to deliver a holistic audio experience. Whether you're gaming or watching
a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an
additional layer of transience to your listening experience even with just a
pair of headphones or stereo speakers.

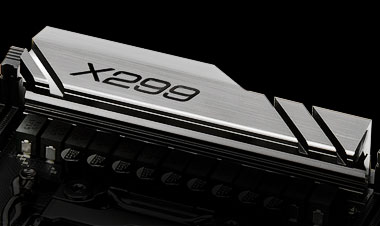

XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from
the MOSFET and chipset so that your whole system may perform more stable.

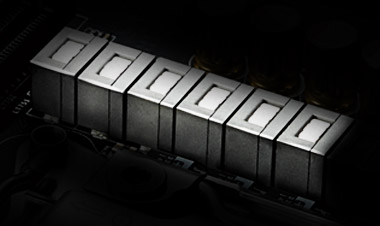

Premium 60A Power Choke
Compared to traditional chokes, ASRocks premium 60A power chokes effectively
make the saturation current up to three times better, thus providing enhanced
and improved Vcore voltage to the motherboard.
Dr. MOS
Dr. MOS design features the latest SPS (Smart Power Stage) technology. Its
optimized for monitoring current and temperature of each phase, thus delivering
smoother and neater power to the CPU with enhanced performance and OC
capability.

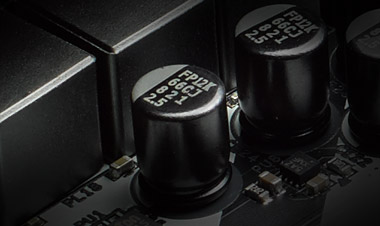

Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours.
Compared to other counterparts on high-end motherboards that merely have
lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that
offer 20% longer lifespans and provide more stability and reliability.

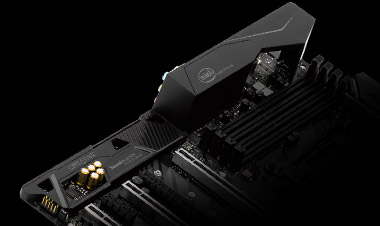

I/O Armor
A new designed protective cover for all of the crucial parts near the
motherboard's rear I/O, so that they won't easily be damaged by static
electricity.

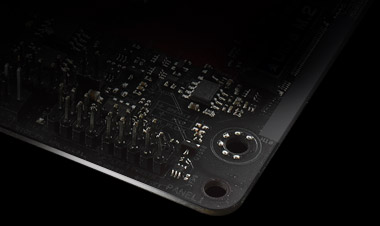

Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious
components on ASRock's high-end motherboards.

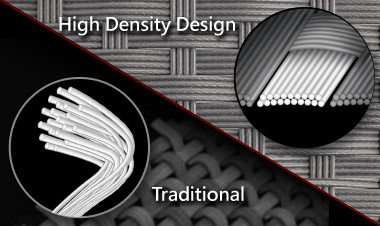

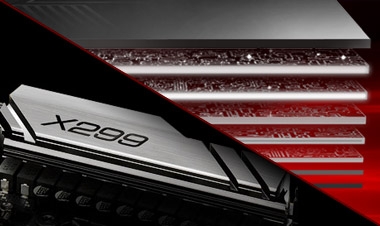

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB
layers to protect the motherboard against electrical shorts caused by
humidity.
Gaming Armor
Built to Kill
Allows ASRock to be your most trustworthy ally, providing both hardware and
software support.
Power
- Hi-Density Power Connector
- Dr. MOS
Memory
VGA Card
Internet
Cooling
- XXL Aluminum Alloy Heatsink
- 8 Layer PCB
Audio
- Creative Sound Blaster Cinema 3

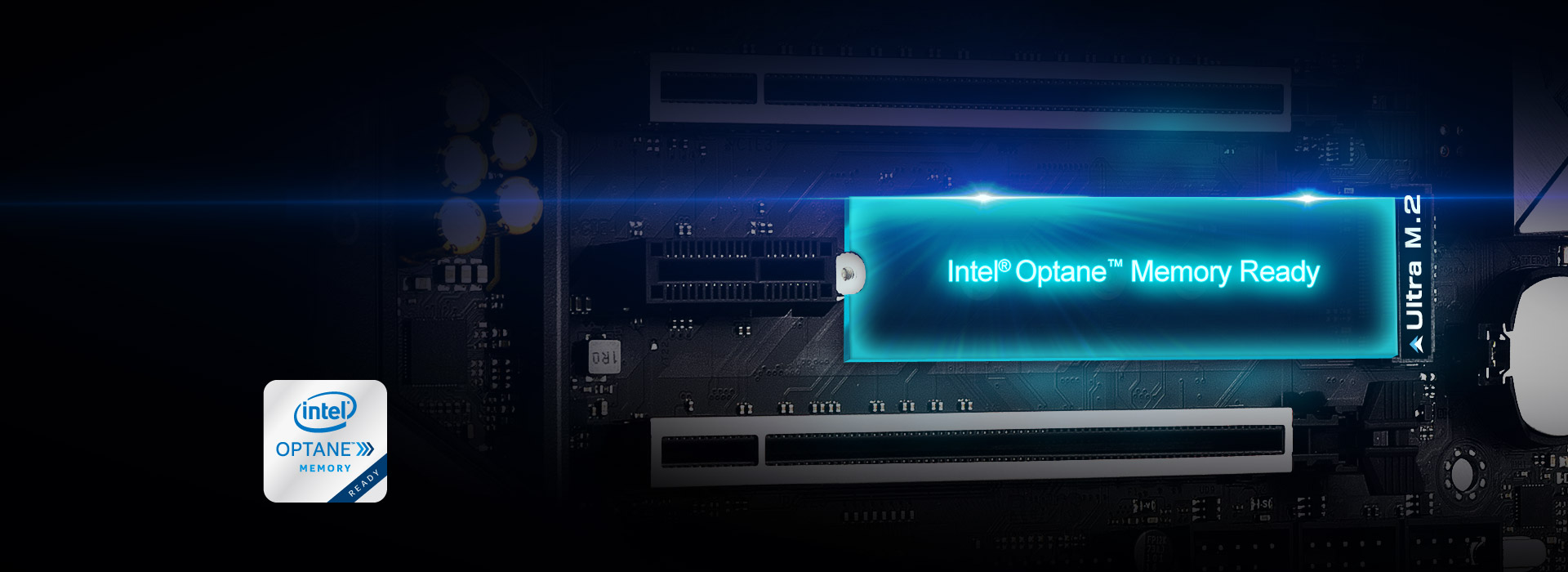

Intel Optane Memory Ready
Supports IntelOptane memory technology and IntelOptane
storage technology that redefines a new standard of high performance and
responsiveness.

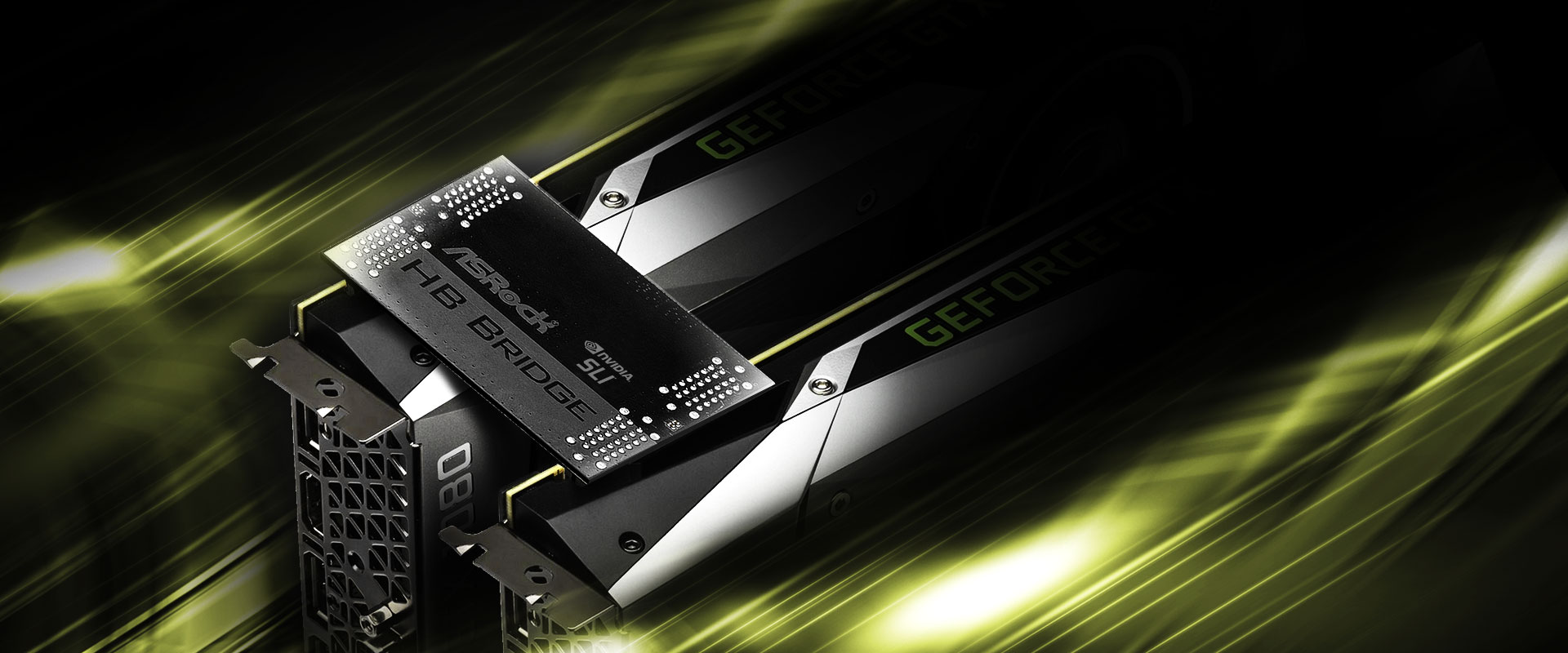

SLI HB Bridge Free Bundled
The free bundled ASRock's new SLI HB Bridge is compatible with the
NVIDIAGeForce GTX 1080 and 1070 graphics cards that doubles the
available transfer bandwidth, thus delivering rock stable gameplay and
experiencing surround gaming in the best way.

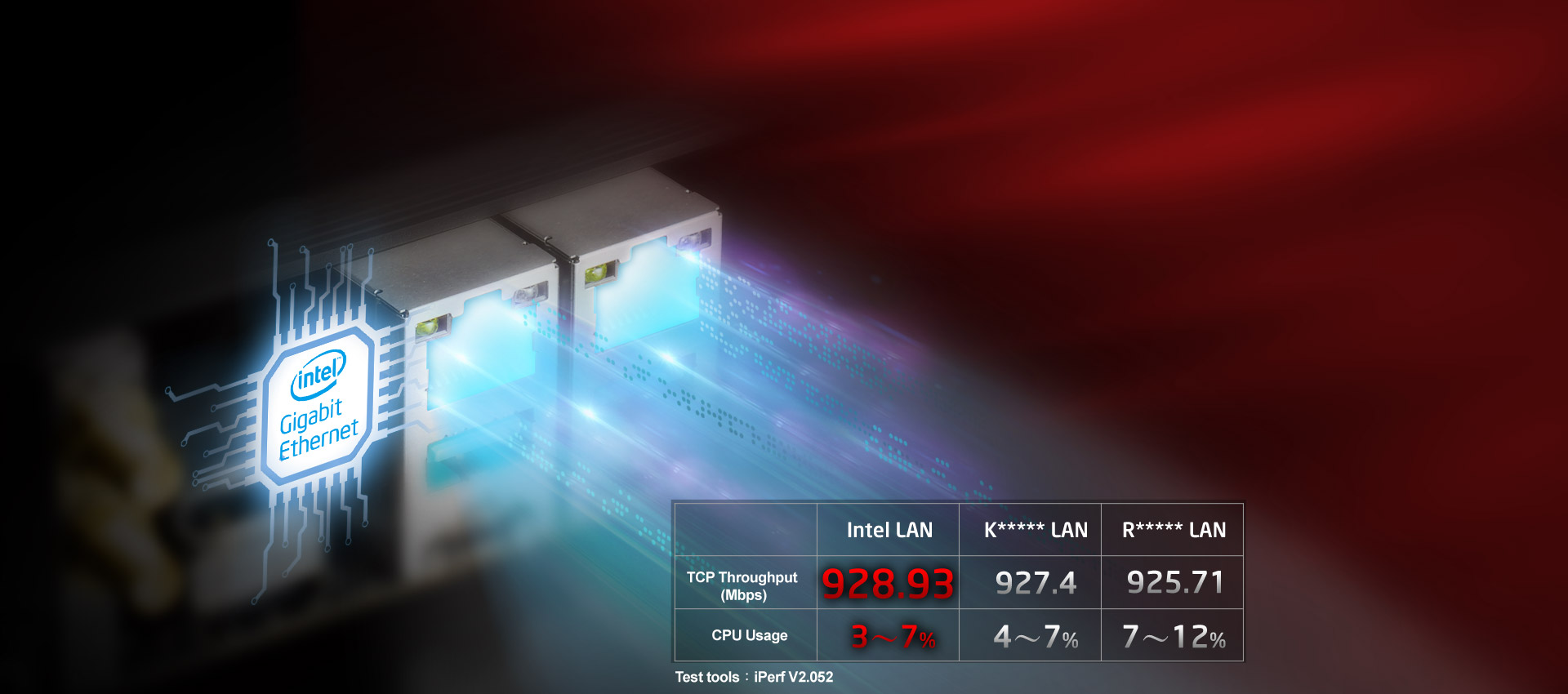

Dual Intel LAN
Users are able to connect two LAN cables to this motherboard's rear I/O. Dual
LAN with Teaming function enabled on this motherboard allows two single
connections to act as one single connection for twice the transmission
bandwidth, making data transmission more effective.

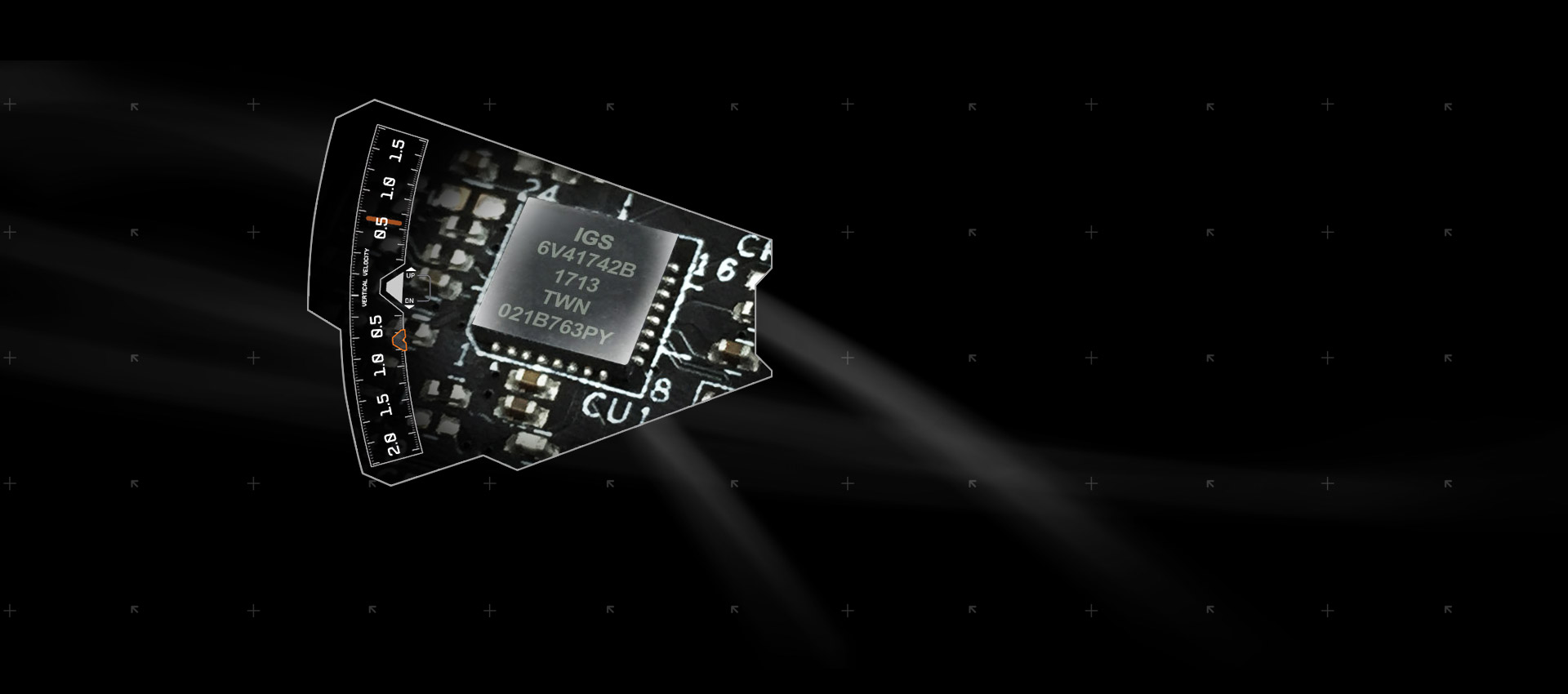

Hyper BCLK Engine III
An additional external base clock generator that supports PCIe frequency
overclocking. It provides a wider range of frequencies and more precise clock
waveforms, allowing any user to get most from their CPU investment with precise,
stable overclocking.
VROC
Virtual RAID On CPU (VROC) is the latest technology that allows you to build
RAID with PCIe Lanes coming from the CPU. With VROC, users can setup RAID 0 to
speed up the system with ease, not only that, an optional Upgrade Module is also
available to open up more RAID options such as 1, 5 and 10.
F-Stream
Modify Your Weapon
Key Master
Consists of two major features, Sniper Key and Macro Key. It enhances your
mouse and keyboard with customizable macros, sniper modes, key repeat rates and
repeat delay.

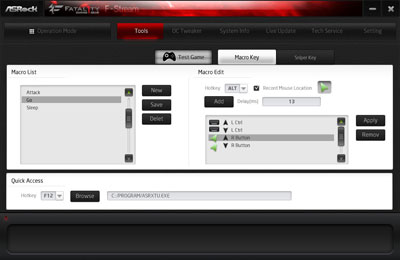

F-Stream
F-Stream is Fatal1ty's multi purpose software suite with a new interface,
more new features and improved utilities.

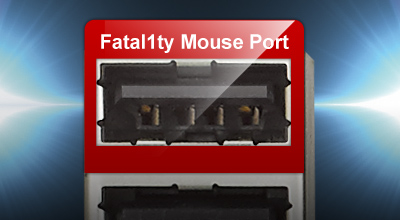

Fatal1ty Mouse Port
After plugging a USB mouse into the Fatal1ty Mouse Port and running F-Stream,
gamers can choose their own preferred mouse polling rate from 125 Hz to 1000
Hz.

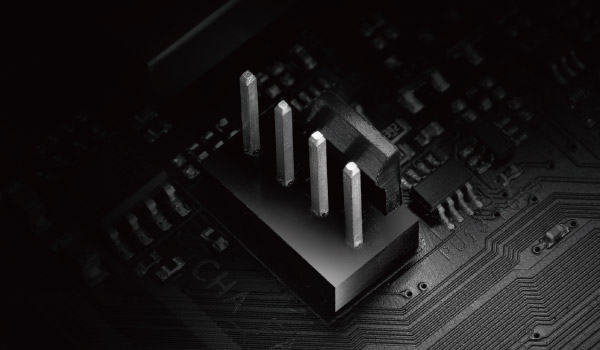

Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps!
This header provides a maximum of 1.5A power for supporting the most popular
water pumps. User also can adjust the voltage of water pump to get higher
cooling performance with lower noise.
Live Update &PP Shop
ASRock Live Update &PP Shop is designed for your convenience. We
provide various apps and support software for users to download. You can also
easily optimize your system and keep your motherboard up to date with ASRock
Live Update &PP Shop.
Specifications
Gaming Armor |
|
Power |
Hi-Density Power Connectors (24 pin and 8 pin) |
|
Dr. MOS |
Memory |
15 Gold Contact in DIMM Slots |
VGA Card |
15 Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3) |
Internet |
Intel LAN |
Cooling |
XXL Aluminum Alloy Heatsink |
|
8 Layer PCB |
Audio |
Creative Sound Blaster Cinema 3 |
|
|
Unique Feature |
|
ASRock USB 3.1 Gen2 |
ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) |
|
ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) |
ASRock Super Alloy |
XXL Aluminum Alloy Heatsink |
|
Premium 60A Power Choke |
|
Dr. MOS |
|
Nichicon 12K Black Caps (100% Japan made high quality conductive
polymer capacitors) |
|
I/O Armor |
|
Matte Black PCB |
|
High Density Glass Fabric PCB |
ASRock Steel Slots |
|
ASRock Ultra M.2 (PCIe Gen3 x4 &ATA3) |
|
ASRock Full Spike Protection (for all USB, Audio, LAN Ports) |
|
ASRock Live Update &PP Shop |
|
|
|
CPU |
Supports Intel Core X-Series Processor Family for the LGA 2066
Socket |
|
Digi Power design |
|
11 Power Phase design |
|
Supports Intel Turbo Boost Max Technology
3.0* |
|
Supports ASRock Hyper BCLK Engine III |
|
|
Chipset |
Intel X299 |
|
|
Memory |
Quad Channel DDR4 Memory Technology |
|
8 x DDR4 DIMM Slots |
|
Supports DDR4 4400+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory |
|
Supports non-ECC RDIMM (Registered DIMM) |
|
Max. capacity of system memory: 128GB* |
|
Supports Intel Extreme Memory Profile (XMP)
2.0 |
|
15 Gold Contact in DIMM Slots |
|
|
BIOS |
2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) |
|
Supports Secure Backup UEFI Technology |
|
ACPI 6.1 Compliant wake up events |
|
SMBIOS 3.0 Support |
|
CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD, PEGRCOMP Voltage Multi-adjustment |
|
|
Graphics |
n/a |
|
|
Audio |
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio
Codec) |
|
Premium Blu-ray Audio support |
|
Supports Surge Protection |
|
Nichicon Fine Gold Series Audio Caps |
|
120dB SNR DAC with Differential Amplifier |
|
TI NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) |
|
Pure Power-In |
|
Direct Drive Technology |
|
PCB Isolate Shielding |
|
Impedance Sensing on Front Out port |
|
Individual PCB Layers for R/L Audio Channel |
|
15 Gold Audio Connector |
|
Supports Creative Sound Blaster Cinema 3 |
|
|
LAN |
Gigabit LAN 10/100/1000 Mb/s |
|
1 x Giga PHY Intel I219V, 1 x GigaLAN
Intel I211AT |
|
Supports Wake-On-LAN |
|
Supports Lightning/ESD Protection |
|
Supports Energy Efficient Ethernet 802.3az |
|
Supports PXE |
|
|
Slots |
4 x PCI Express 3.0 x16 Slots* |
|
1 x PCI Express 3.0 x1 Slot** |
|
Supports AMD Quad CrossFireX, 3-Way CrossFireX and
CrossFireX*** |
|
Supports NVIDIA Quad SLI, 3-Way SLI and
SLI*** |
|
15 Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3) |
|
|
Storage |
8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5,
RAID 10, Intel Rapid Storage Technology 15 and Intel Smart
Response Technology), NCQ, AHCI and Hot Plug* |
|
1 x Ultra M.2 Socket (M2_2), supports M Key type
2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express
module up to Gen3 x4 (32 Gb/s)** |
|
2 x Ultra M.2 Sockets (M2_1 and M2_3), support M Key type
2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module
up to Gen3 x4 (32 Gb/s)** |
|
|
Connector |
1 x Virtual RAID On CPU Header |
|
1 x TPM Header |
|
1 x Power LED and Speaker Header |
|
2 x RGB LED Headers* |
|
1 x CPU Fan Connector (4-pin)** |
|
1 x CPU Optional/Water Pump Fan Connector
(4-pin)*** |
|
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed
Control) |
|
1 x Chassis Optional/Water Pump Fan Connector
(4-pin)**** |
|
1 x 24 pin ATX Power Connector (Hi-Density Power
Connector) |
|
1 x 8 pin 12V Power Connector (Hi-Density Power
Connector) |
|
1 x Front Panel Audio Connector (15 Gold Audio
Connector) |
|
1 x Thunderbolt AIC Connector (5-pin) |
|
3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Supports ESD
Protection) |
|
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 Hub) (Supports ESD Protection) |
|
1 x Dr. Debug with LED |
|
|
Rear Panel I/O |
1 x PS/2 Mouse/Keyboard Port |
|
1 x Optical SPDIF Out Port |
|
4 x USB 2.0 Ports (Supports ESD Protection)* |
|
1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD
Protection) |
|
1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD
Protection) |
|
4 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
|
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED
LED) |
|
1 x Clear CMOS Switch |
|
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker
/ Microphone |
|
|
Software and UEFI |
|
Software |
ASRock F-Stream |
|
ASRock RGB LED |
|
ASRock Key Master |
|
ASRock APP Charger |
|
ASRock XFast LAN* |
UEFI |
ASRock EZ Mode |
|
ASRock Full HD UEFI |
|
ASRock My Favorites in UEFI |
|
ASRock Instant Flash |
|
ASRock Internet Flash |
|
ASRock Crashless BIOS |
|
ASRock UEFI System Browser |
|
ASRock UEFI Tech Service |
|
ASRock Easy RAID Installer |
|
|
Support CD |
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome
Browser and Toolbar |
|
|
Accessories |
Quick Installation Guide, Support CD, I/O Shield |
|
4 x SATA Data Cables |
|
1 x ASRock SLI_HB_Bridge_2S Card |
|
1 x ASRock 3-Way SLI-2S1S Bridge Card |
|
3 x Screws for Ultra M.2 Sockets |
|
|
Hardware Monitor |
Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/ Water Pump Fans |
|
Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/ Water Pump Fans |
|
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/ Water Pump, Chassis, Chassis Optional/Water Pump Fans |
|
Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/ Water Pump Fans |
|
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCSFR |
|
|
Form Factor |
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4
cm |
|
8 Layer PCB |
|
|
OS |
Microsoft Windows 10 64-bit |
|
|
Certifications |
FCC, CE |
|
ErP/EuP ready (ErP/EuP ready power supply is
required) |
