Aten VE607 DVI/Audio Cat5 Extender w. MK Wall Plate
The VE607 DVI/Audio Cat 5 Extender with MK Wall Plate is designed to be
conveniently mounted in a one- gang junction box for UK, Singapore, Hong Kong
and other markets that apply MK type junction boxes. It extends DVI and audio
signals up to 60 m over Cat 5e/6 cable and supports wide screen formats while
ensuring excellent video quality.
The VE607 can be easily powered at either the transmitter or receiver side
using a second Cat 5e/6 cable. The VE607s compact wall plate design does away
with bulky cables allowing a neat and convenient installation. Therefore, it is
a perfect solution for function rooms, museums and any setting that requires
equipment or cabling to be kept from the publics view.
Features
- Uses two Cat 5e/6 cables to connect the local and remote units- one to
transmit video, and another for power*
- Remotely powered from either the transmitter or receiver side**
- Extends the distance between DVI source and DVI display
- Supports superior video quality up to 1080p @ 60 Hz at a distance of 40 m;
1080i @ 60 Hz at a distance of 60 m
- Designed to mount in one- gang junction box for UK, Singapore, Hong Kong
and other markets that apply MK type junction boxes.
- Supports 8 segment equalization adjustment via switch
- Supports wide screen formats
- Supports hot- plugging
- Supports stereo audio
- Built- in 8KV/ 15 KV ESD protection
- Plug- and- play with no software installation required
- LED indication of power sources / connection status
Package Content
- 1x VE607 DVI/Audio Cat 5 Transmitter with MK Wall Plate
- 1x VE607 DVI/Audio Cat 5 Receiver with MK Wall Plate
- 1x Terminal Block Connector
- 1x Power Adapter
- 2x MK type Wall Plate Covers
- 8x Screw Covers
- 1x Screw kit
- 1x User Instructions

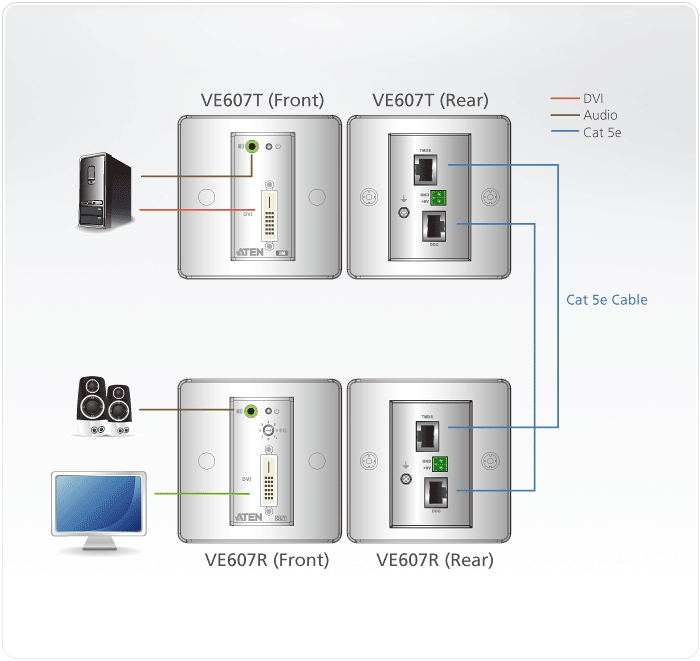

Diagram
Specifications
Video Input |
|
Interfaces |
1 x DVI-D Female (White) |
Impedance |
100 ohms |
|
|
Video Output |
|
Interfaces |
N/A |
Impedance |
N/A |
|
|
Video |
|
Max. Data Rate |
6.75 Gbps (2.25 Gbps Per Lane) |
Max. Pixel Clock |
225 MHz |
Compliance |
HDCP Compatible |
Max. Resolutions / Distance |
Up to 1920 x 1200@40m; 1280 x 1024@60m |
|
|
Audio |
|
Input |
1 x Mini Stereo Jack Female (Green) |
Output |
N/A |
|
|
Power |
|
Connectors |
1 x Terminal Block (Green) |
Consumption |
9 VDC, 2.9W |
|
|
Environmental |
|
Operating Temperature |
0 - 50°C |
Storage Temperature |
-20 - 60°C |
Humidity |
0 - 80% RH, Non-Condensing |
|
|
Physical Properties |
|
Housing |
Metal |
Weight |
0.18 kg ( 0.4 lb ) |
Dimensions (L x W x H) |
8.60 x 8.60 x 4.34 cm |
|
(3.39 x 3.39 x 1.71 in.) |
|
|
Carton Lot |
5 pcs |
|
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
