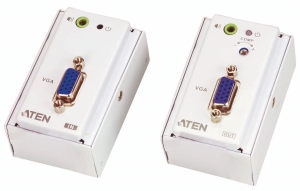

Aten VE157 VGA/Audio Cat5 Extender w. MK Wall Plate
The VE157 VGA/Audio Cat 5 Extender with MK Wall Plate is designed to be
conveniently mounted in a one- gang junction box for UK, Singapore, Hong Kong
and other markets that apply MK type junction boxes. It extends VGA and audio
signals up to 150 meters over a Cat 5e/6 cable and supports wide screen formats
while ensuring excellent video quality.
The VE157 can be easily powered at either the Transmitter or Receiver side
using another Cat 5e/6 cable. The VE157s compact wall plate design does away
with bulky cables allowing a neat and convenient installation. Therefore, it is
a perfect solution for function rooms, museums and any setting that requires
equipment or cabling to be kept from the publics view.
Features
- Uses two Cat 5e/6 cables to connect the local and remote units- one to
transmit video, and another for power*
- Remotely powered from either the Transmitter or Receiver side**
- Extends the distance between VGA source and VGA display
- Supports superior video quality up to 1920 x 1200 @60 Hz at a distance of
30 m; 1280 x 1024 @ 60 Hz at a distance of 150 m
- Designed to mount in one- gang junction box for UK, Singapore, Hong Kong
and other markets that apply MK type junction boxes.
- Adjustable Gain Control - manually adjusts signal strength to compensate
for distance
- Supports wide screen formats
- Supports hot- plugging
- Supports stereo audio
- Built- in 8KV/ 15 KV ESD protection
- Plug- and- play with no software installation required
- LED indication of power sources / connection status
Package Contents
- 1x VE157 VGA/Audio Cat 5 Transmitter with MK Wall Plate
- 1x VE157 VGA/Audio Cat 5 Receiver with MK Wall Plate
- 1x Terminal Block Connector
- 1x Power Adapter
- 2x MK type Wall Plate Covers
- 8x Screw Covers
- 1x Screw kit
- 1x User Instructions
Diagram
Specifications
Video Input |
|
Interfaces |
1 x HDB-15 Female (Blue) |
Impedance |
100 ohms |
|
|
Video Output |
|
Interfaces |
N/A |
Impedance |
N/A |
|
|
Audio |
|
Input |
1 x Mini Stereo Jack Female (Green) |
Output |
N/A |
|
|
Power |
|
Connectors |
1 x Terminal Block (Green) |
Consumption |
9 VDC, 3.2W |
|
|
Environmental |
|
Operating Temperature |
0 - 50°C |
Storage Temperature |
-20 - 60°C |
Humidity |
0 - 80% RH, Non-Condensing |
|
|
Physical Properties |
|
Housing |
Metal |
Weight |
0.18 kg ( 0.4 lb ) |
Dimensions (L x W x H) |
8.60 x 8.60 x 3.98 cm |
|
(3.39 x 3.39 x 1.57 in.) |
|
|
Video |
|
Max. Bandwidth |
300 MHz |
Max. Resolutions / Distance |
Up to 1920 x 1200@30m; 1280 x 1024@150m |
|
|
Carton Lot |
5 pcs |
|
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
