All stock codes associated to this product
MB610SP
IcyDock MB610SP EZ-Fit Trio Triple 2.5" SSD/HDD Bracket -
Black

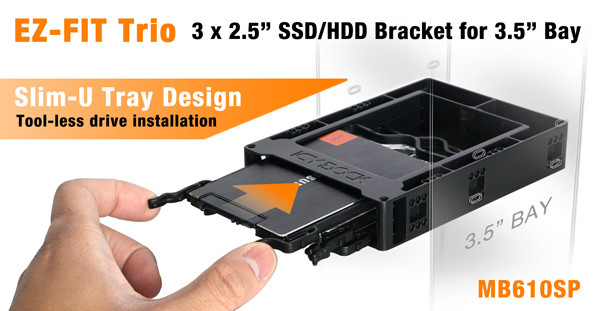

The EZ-FIT Trio MB610SP is the first 2.5 SSD bracket that
converts a single internal 3.5 hard drive bay into 3 x 2.5 SSD or HDD slots.
With the EZ-FIT Trio SSD brackets tool-less Slim-U drive tray, you can easily
add and remove drives without using tools or screws. The Slim-U drive tray is
compatible with 5mm, 7mm, 9.5mm, 12.5mm and 15mm height 2.5 SSD or HDD which
allow you mix and match the SSD or HDD with different drive height to create
your 2.5 storage array. The EZ-FIT Trio MB610SP is a perfect SSD / HDD bracket
for any system where multiple 2.5 drive slots are not desirable.
Effortless Installation with Slim-U Tray

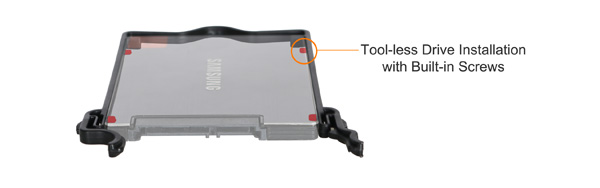

The EZ-FIT Trio uses our latest drive tray system called
Slim-U, a light weight yet sturdy drive tray that supports tool-less drive
installation. With Slim-U tray system, the drive installation cant be easier,
simply align the four screw holes of your 2.5 drive with the built-in screws on
the Slim-U tray, and then insert the Slim-U tray into the bracket, connect the
power and data cables to the drive and you are all set! To remove the drive,
just open the side panel of the case, unplug the cables from your drive and then
pull the Slim-U tray out from the bracket.

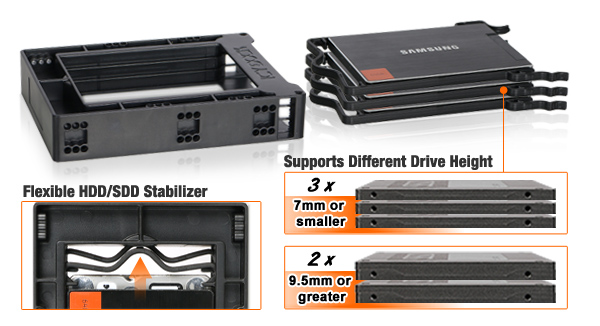

The Slim-U tray acts as a drive stabilizer that secures the
drive in place and provides shock absorption and anti-vibration properties great
for protecting your drives against impact. The Slim-U tray is compatible with
2.5 hard drive or SSD ranging from 5 to 15mm height. The EZ-FIT Trio fits up to
three 2.5 SSD / HDD when the drive height is 7mm or smaller, and it supports up
to two drives when the drive height is 9.5mm or greater.
Brilliant Design
Simple design does not mean simple to design. At ICY DOCK, we
have spent countless hours perfecting our SSD bracket, allowing users to
maximize their storage space while providing great user experience to its
users.

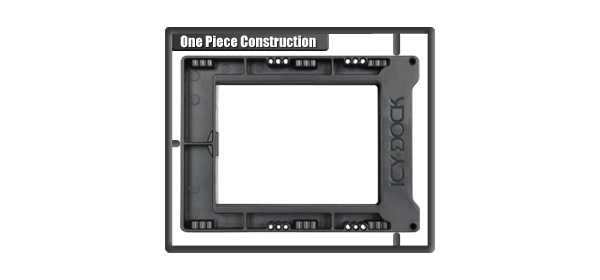

The EZ-FIT Trio MB610SP is constructed with highly robust ABS
plastic and fuses desirable traits such as durability and lightweight. One piece
construction means there are less moving parts to be concerned with, which in
turn means its less likely break. Additionally, creating a one-piece design
makes manufacturing this unit very cost efficient and allows us to pass the
savings onto our customers.

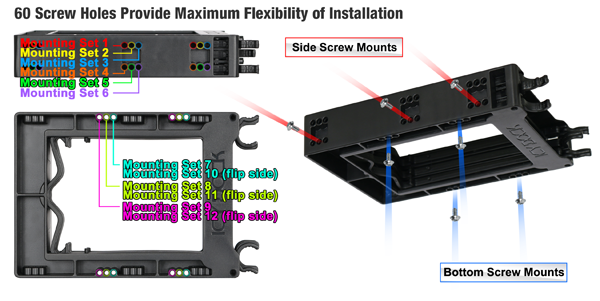

To offer most flexible device installation, the EZ-FIT Trio
MB610SP provides a whopping 60 screw holes to accommodate 3.5 bay installation
in practically every computer chassis. Compare this with a standard 3.5 hard
drive that only offers a measly 10 screw holes, and youre offered a lot more
options. In addition to 60 screw holes, there are 12 different ways you can
mount the EZ-FIT Trio MB610SP in your system in comparison to the 2 positions
you get with a standard 3.5 drive; this gives you option to finely tune and
adjust your drive installation. There are screw holes located both on top of the
unit and on bottom to give you extra compatibility. Furthermore, the plethora of
screw holes provides a backup measure in case of installation failure.

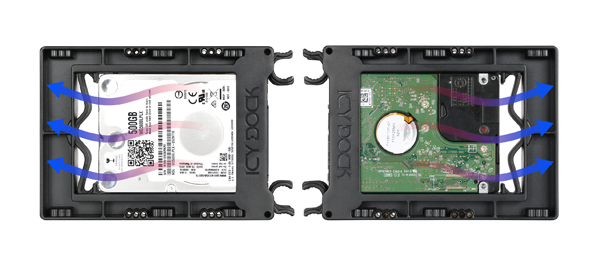

With both top and bottom area opened, the EZ-FIT Trio allows
the drives to be cooled by the fans in your chassis, which improves heat
dispersion.
Suggested Applications
Workstation PC, Desktop PC, Gaming PC, Home Theater PC,
Mini-ITX Systems, Home Server Systems
Key Features
-
Durable one-piece design
-
Anti-Vibration design for improved reliability
-
Compatible with 2.5 SSD &HDD with 5mm to 15mm drive
height
-
Fits 3 x 2.5 SATA SSD / HDD into a single internal 3.5
drive bay (for 5-7mm height drive)
-
Fits 2 x 2.5 SATA SSD / HDD into a single internal 3.5
drive bay (for 9.5-15mm height drive)
-
Quick release eject mechanism for hassle free tool-less
drive installation
-
Universally designed 3.5 HDD screw placement for maximum
compatibility
-
60 screw holes provide maximum flexibility of
installation
Specifications
|
|
Drive Fit : |
3 x 2.5 Drive (5-7mm height) |
1 x 2.5" Drive (9.5mm height)+ 1 x 2.5" Drive
(5-9.5mm height) |
1 x 2.5" drive (12.5-15mm height) + 1 x 2.5" Drive
(5-7mm height) | |
Support Drive Height : |
5mm 15mm | |
Device Fit : |
1 x 3.5 Internal Drive
Bay | |
|
Dimension (W x H x D) : |
101.6 x 26.0 x
154.5mm | |
|
Package Contents : |
Device x 1, User Manual x 1,
Screws | |
