All stock codes associated to this product
MB975SPBR1, MB975SP-B R1
IcyDock MB975SP-B R1 FlexCage Tray-Less 5-Bay 3.5" SATA HDD Hot-Swap
Backplane Cage - Black

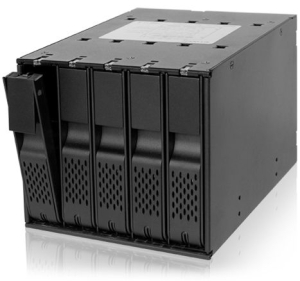

Introducing the FlexCage MB975SP-B R1, a 5-in-3 Tray-less
SATA 6Gbps HDD Cage for 3.5" SATA hard drives with reinforced door latch
design and drive insertion mechanism, turning hot swapping drive into
an easy task. The FlexCage focuses on maximizing storage density, while using
the least amount of external 5.25" bays possible. To complement the device, the
FlexCage uses features such as: Elegant plug & play Tray-less design,
replaceable 80mm cooling fan, 3 speed fan control with Smart Cooling Technology,
and full control of your drive with individual power buttons. With a large
density of drive storage, it can be used in consumer, enthusiast, and system
integrator systems that hot swap drives frequently. The FlexCage is compatible
with most gaming / media / server computer cases, and it is perfect for file
server application such as unRAID, Windows home server and others.
Space Saving & Tray-less Design

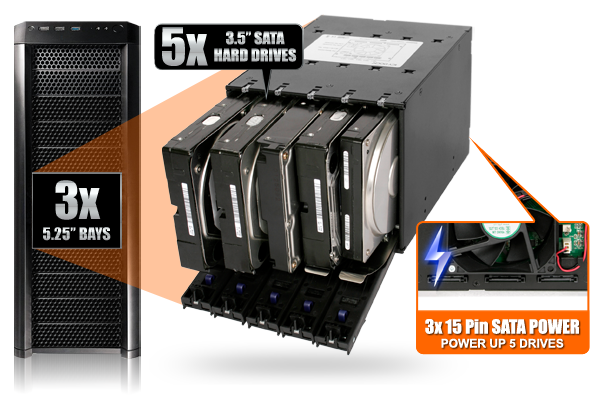

The MB975SP-B R1 is designed to maximize space use by
allowing up to 5 x 3.5" SATA III hard drives, while only consuming 3 x external
5.25"bays. The FlexCage also only requires three 15-pin power ports to power up
to five 3.5" hard drives. Last but not least, the FlexCage is equipped with our
proven tray-less technology - no screws or tools are necessary to insert or
eject the drives, making hot swapping a completely hassle free experience.
Intelligent Cooling

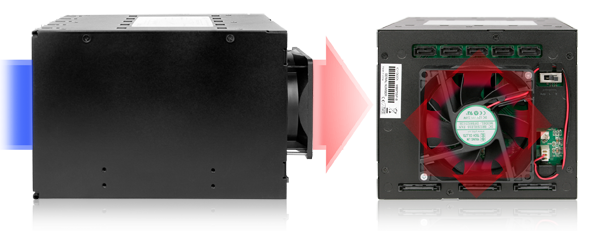

The FlexCage MB975SP-B R1 uses a large 80mm rear cooling fan
to pull cool air from the front ventilation slots, over the drives, and exhaust
the warm air out through the rear ventilation slots.

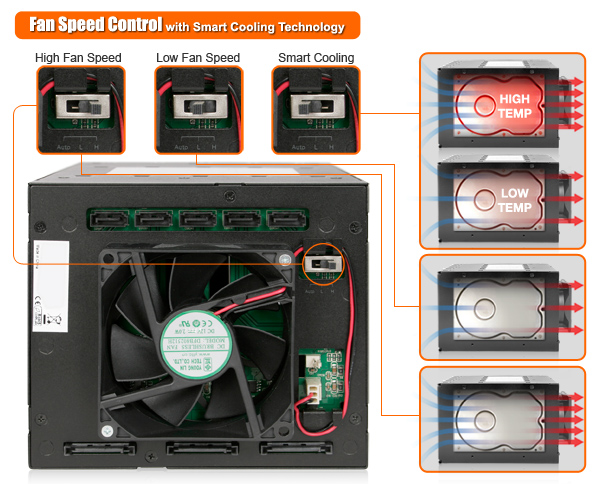

The MB975SP-B R1 gives the user freedom to choose the speed
of the fan, or to select "auto" so that the fan adjusts its speed using our
Smart Cooling Technology. The auto function determines the temperature of your
drives, and changes its RPM accordingly. This results in decreased power
consumption, an increased lifespan for your fan, and unnecessary excess noise.
Along with the auto function, the user can also choose a high setting, best used
for intense applications such as home server use, or a low setting, best used
with lighter work loads or silent operation, such as hourly back ups or audio
recording / editing.

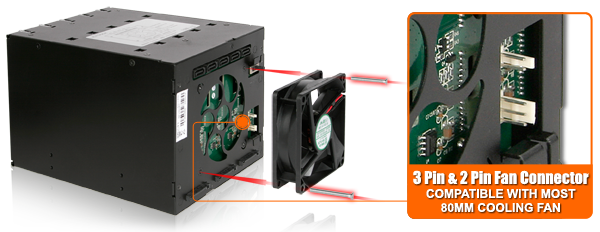

The included 80mm cooling fan is easily replaceable and
maintainable, as it is compatible with most aftermarket cooling fans of the same
size. To expand the range of compatible fans, both 2 and 3 pin standard fan
power ports are available and can be easily accessed. To support the cooling
system in place, the FlexCage body is built using full aluminum to help
dissipate heat even further.
Elegantly Built for Enthusiasts
The FlexCage MB975SP-B R1 features full aluminum housing and
an all matte black exterior finish. With its minimally intrusive front design
the FlexCage fits in seamlessly with premium enthusiast PC cases.

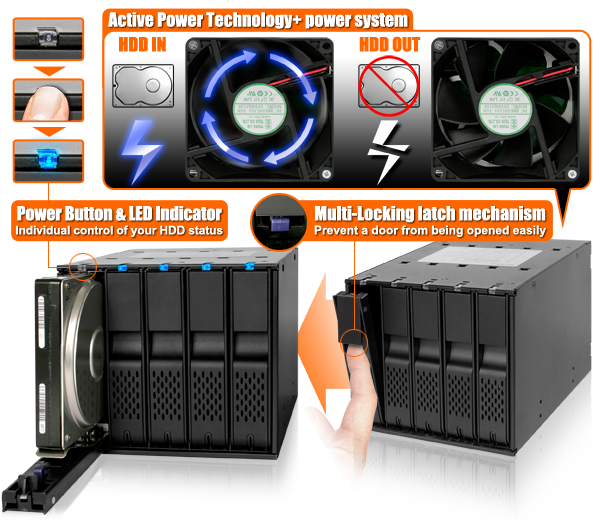

The MB975SP-B R1 uses the popular Active Power Technology+
power system, giving you full control of your hard drive environment. To power
up your hard drive, the front of the device includes individual power button for
each drive and double as an LED indicator showing drive power and activity
status. When one drive is turned on, the 80mm cooling fan will also turn on to
start cooling your hard drive.
Similarly, each drive door has a multi-locking latch
mechanism in order to prevent a door from being opened easily. Each door uses a
metal latch assembly and strike plate in order to keep your drive secured and
reliable while in operation. Anti-vibration technology is included on each of
the doors and internally to help prevent reduction in drive performance. Lastly,
to ensure a peace of mind, the FlexCage is backed with our 3 year warranty,
equivalent to a hard drive's warranty.
Key Features
-
Improved drive insertion mechanism ensures a sturdy
connection and secures hard drives in place
-
Reinforced door latches for a secured locking
mechanism
-
Fits 5 x 3.5" SATA III HDD into 3 x external 5.25"
bays.
-
Compact and space saving design to fit multiple
drives.
-
Designed for consumers & enthusiasts gaming / media /
server computer cases and servers.
-
Tray-less design for genuine plug & play and hot swap
use.
-
Front and rear ventilation slots.
-
80mm cooling fan for maximum air flow.
-
3 speed fan control, including auto setting featuring Smart
Cooling Technology.
-
Elegant full aluminum housing for durability and heat
dissipation.
-
Fan is replaceable with aftermarket fans that use standard
2-pin or 3-pin connectors.
-
Individual power switches and LEDs for each drive.
-
Active Power Technology+ cooling fan and drive only powers
up when the child proof power buttons
are pressed.
-
Multi-locking aluminum door latches to prevent accidental
drive ejection.
-
ICY DOCK 3 year warranty equivalent to hard drive
manufacturer warranty to ensure maximum reliability and long
life.
Specifications
Model Number : |
MB975SP-B R1 | |
|
Drive Fit : |
3.5 SATA 1.5 / 3 / 6 Gbit/s hard drive x
5 | |
Drive Bay : |
external half height 5.25"bay x
3 | |
Host Interface : |
7 pin SATA port x 5 | |
Power Input : |
15 pin power port x
3 | |
Transfer Rate : |
Up to 6Gb/sec. (depending on hard drive
speed) | |
Insert& Extract connection via : |
Direct SATA hard drive
connection | |
Front Panel Contents : |
LED power button (Indicator) x
5 | |
Structure : |
Aluminum body w/ partial
plastic | |
Drive Cooling : |
Removable rear outtake fan w/ aluminum heat
dispersion |
Adjustable fan speed control
(High/Low/Auto) | |
Cooling Fan Type : |
80mm ball bearing fan with 2 or 3 pin
connector | |
Power Indicator : |
Blue LED | |
HDD Access Indicator : |
Flashing blue LED | |
Dimension (L x W x H) : |
8.27 x 5.75 x 4.96 | |
|
