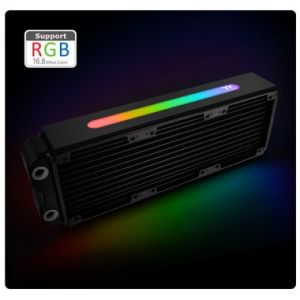

Thermaltake Pacific RL360 Plus RGB Radiator

The Pacific RL360 Plus RGB Radiator is a high-performance 360mm radiator which utilizes the advanced thermal technique with a software-controlled 16.8 million colors LED strip. Built for 120mm high-static pressure fans, the radiator is manufactured from premium-quality German zinc alloy aluminum and aerospace-grade materials that provide exceptional performance, unrivalled reliability. Integrated G1/4" threads make it easy to install, while rigid connections ensure leak-resistant measures are in place. With an ideal mounting, fitting and flow set-up, the Pacific RL360 Plus RGB Radiator meets your cooling needs in every way.

Tt LCS Certified

Tt LCS Certified is the hallmark that ensures first-class performance from the best features and fitment. A certification exclusive to Thermaltake, it sets the benchmark for all true LCS chassis and is applied only to products that meet our stringent design standards for delivering what hardcore enthusiasts demand. The Tt LCS certification is a way for Thermaltake to designate to all power users the chassis which have been tested for best compatibility with extreme liquid cooling configurations.

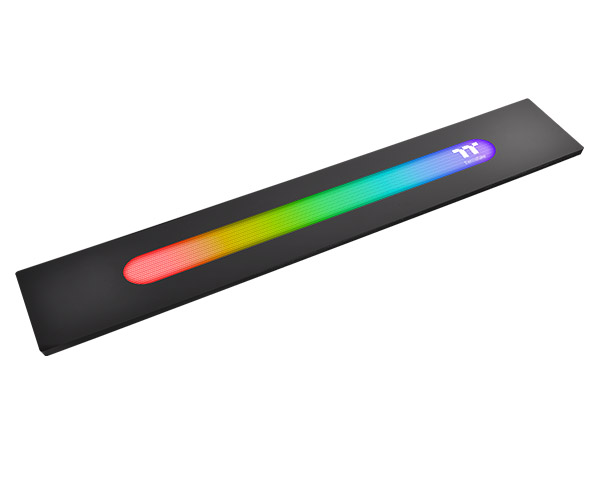

Exclusive LED Strip Design

Controlled by the patented Riing Plus RGB Software and the app, the built-in LED strip features great light coverage, uniform color and brightness, and 12 addressable LEDs sets (two single LEDs per set) that can paint your build with 16.8 million colors.

*The LED strip is recommended for use on Pacific RL360 Radiator.

Patented Riing Plus RGB Software & App

Monitor the fan performance, adjust the fan speeds, and customize the lighting effects for Thermaltake Plus RGB liquid cooling products with the patented Riing Plus RGB Software and an exclusively designed mobile app. Choose a function from below and scroll down to read the details.

*Compatibility: Requires Riing Plus RGB Software 1.0.5 or later

Light Modes

Apply one of the present light modes that allow you to switch between different lighting schemes along with three Color modes (RGB, Single and Off) and four Light Speeds (Slow, Normal, Fast and Extreme).

Copy Color Seamlessly transfer lighting effects of the first fan across to other fans.

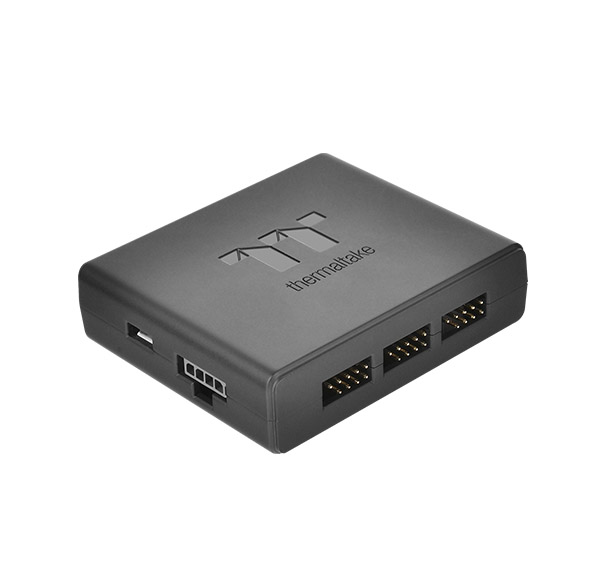

Digital Lighting Controller

The controller is designed with a DIP switch on the back. Hence, you can set a number for each controller easily. You can add up to 5 devices to one lighting controller and up to 16 controllers to the software. The controller and the coding guide are included in all packs.

*It is recommended to connect up to 3 controllers on one peripheral cable( Molex) only.

Optimized Heat Dispatching

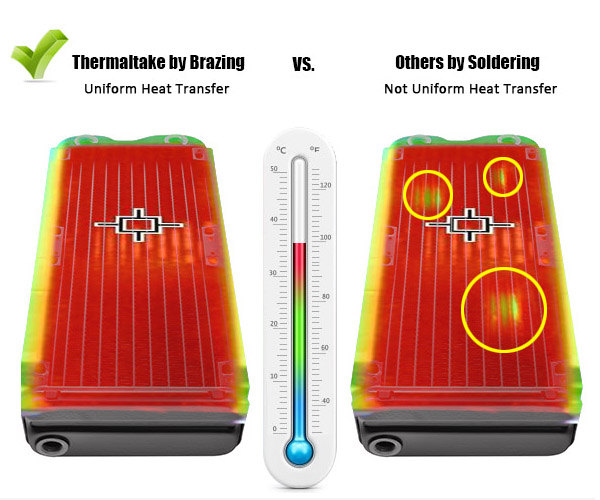

The radiator is optimized for efficiently pulling heat away from the power-dissipating components thus achieving maximum heat dissipation at both low and high airflow operation. After brazing, the fin and tube connect to form a joint, thereby creating uniform heat transfer. The radiator is capable of delivering an average heating load of 32-35, bring new levels of cooling performance and reliability to any watercooled PC.

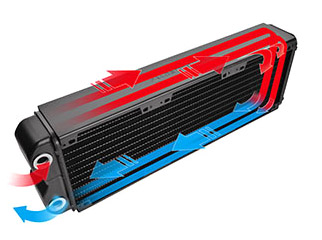

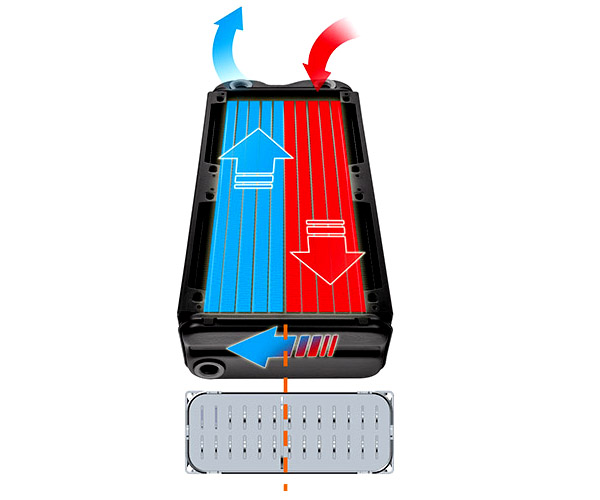

Dual-Row Tubes





To assure the best thermal capacity and increase heat transfer, the radiator is engineered with an extremely thick 64mm radiator along with a double-row 13-set flat tube design. This technique allows that water flows down on the one side, and then passes across the bottom chamber before circulating back to the other side of the radiator.

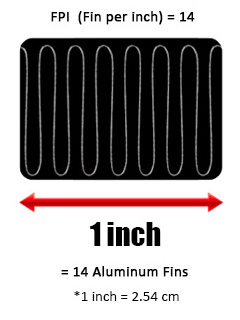

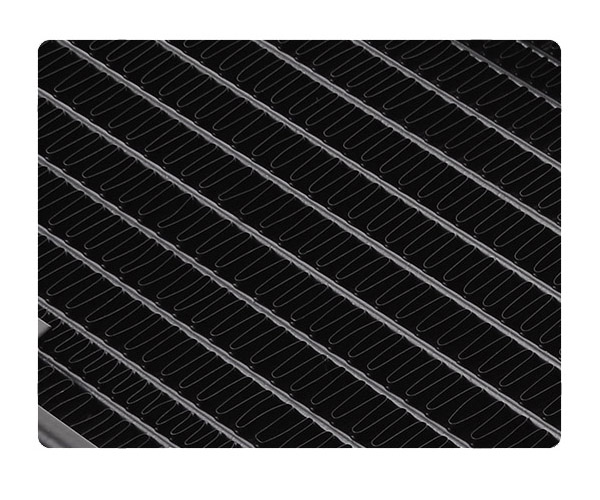

High-Density Fin Design



Fin density is optimally designed to accommodate high air pressure. The performance improves significantly with increased fan speed, offering superior cooling efficiency during operation.

German-Made Anti-Corrosion Materials

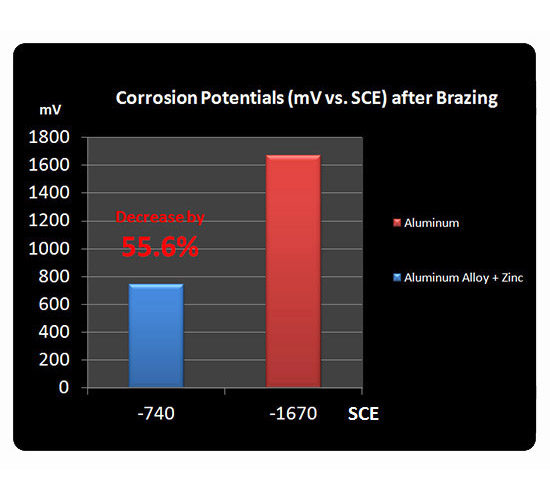

Without compromise, the radiator is designed with high-quality German aerospace-grade materials and constructed with zinc, the most common anti-corrosion agent. Although this protection will gradually degrade as the zinc corrodes away over time, it provides the best means to reduce electronic conductivity and can withstand scratches to the zinc layer. Corrosion potentials of zinc alloy aluminum can be reduced by 55.6% after brazing.

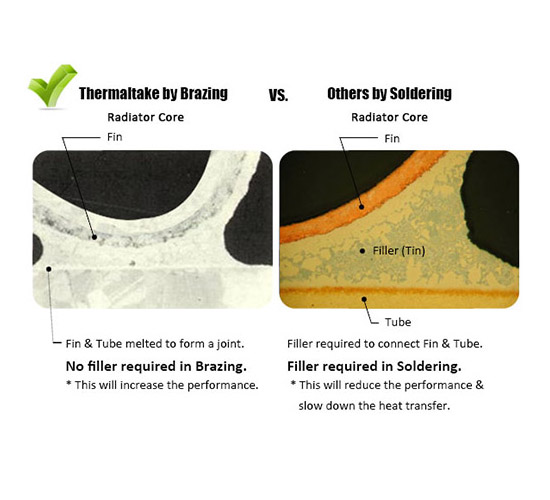

High-Quality Manufacturing Process: Brazing

An exceptional manufacturing process using high temperature brazing at 1022/550 sets the radiator in a class of its own. This technique allows for impurities to be kept out of the brazing process, ensuring that full strength on all the connected areas is achieved. The radiator is baked through a controlled atmosphere brazing line. The materials melt into each other to accomplish optimal thermal transfer from the tubes to the actual fins in order to attain better heat evacuation.

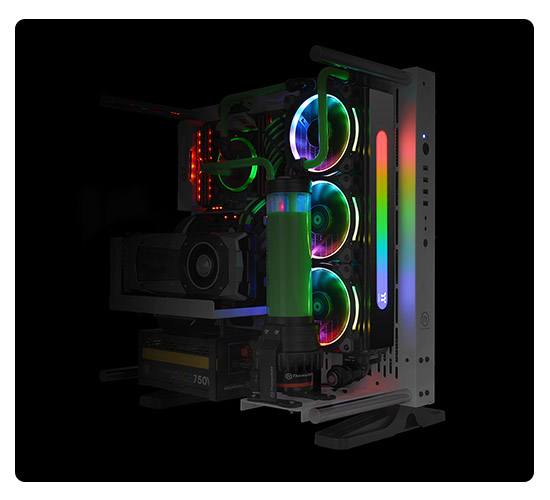

Remarkable Expansion

Made for hardcore PC enthusiasts to enjoy the ultimate in custom configurations, the Pacific RL360 Plus RGB Radiator supports 120mm fans, and allows users to build up aesthetically-superior watercooled systems by allocating the radiator to each particular component as well as incorporating externally-modular upgrades for their chassis.

Specifications

P/N

CL-W182-AL00SW-A

Dimension

402.5 (L) x 129 (W) x 64 (H) mm

Material

Anti-Corrosion Aluminum Alloy

FPI (Fin per inch)

14

Flat Tube

13 set

Screw Thread

G 1/4 * 5

Parts

Stopper *3 (G 1/4 )

Interface

USB 2.0 connectors (9 Pin)

System compatibility

Windows 7 / 8 / 8.1 / 10

Rated Voltage

5V

Rated Current

1.04A

Power Input

5.2W

Weight

1180g

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
