All stock codes associated to this product
EA9500AU, EA9500-AU, II27826

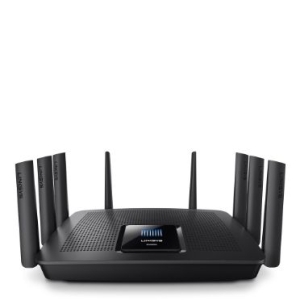

Linksys EA9500-AU Max-Stream AC5400 MU-Mimo Gigabit
Wi-Fi Router
Features
At a glance
- Wi-Fi speeds up to 5.3 Gbps*
- Next-Gen AC Wi-Fi, MU-MIMO technology
- 8 Gigabit ports
- 8 external antennas for expanded range
EASY SETUP
Installation is fast and easy. No CD required.
TRI-BAND WI-FI TECHNOLOGY
Three bands that deliver the fastest combined Wi-Fi speeds to more
devices.
MU-MIMO
Latest Wireless-AC technology for simultaneously streaming and gaming on
multiple devices.
SEAMLESS ROAMING
Enables your device to automatically switch to the strongest Wi-Fi signal as
you move around your house when Max-Stream Routers are paired with Max-Stream
Range Extenders.**
VERY LARGE HOUSEHOLD
Experience powerful Wi-Fi coverage throughout a large house.
1.4 GHZ DUAL-CORE CENTRAL PROCESSING UNIT (CPU)
Promotes simultaneous high-speed data processing.
8 GIGABIT ETHERNET PORTS
Transfer data 10x faster than Fast Ethernet, ensuring high-speed connectivity
for wired devices.
4X4 AC
Four streams of data for stronger, faster performance when gaming and
streaming.
SUPERCHARGED WORK AND PLAY WITH NEXT-GEN AC WI-FI ROUTER
Designed as a dual-purpose home office and entertainment Wi-Fi router, the
MAX-STREAM AC5400 MU-MIMO Gigabit Wi-Fi Router (EA9500) delivers Wi-Fi to
multiple users on multiple devices at the same time and same speed.
Featuring MU-MIMO (Multi-User, Multiple-Input, Multiple-Output) technology,
this Next-Gen AC Router treats your devices--PCs, Smart TVs, streaming devices,
smartphones--as if each has its own dedicated router. Working in your home
office, you'll enjoy lag-free videoconferencing and fast file transfer, even
while the rest of the family is streaming 4K or HD media in the living room.
ROOM-TO-ROOM WI-FI WITH SEAMLESS ROAMING
The MAX-STREAM AC5400 MU-MIMO Gigabit Wi-Fi Router (EA9500) offers Seamless
Roaming as you move around your home when linked with a MAX-STREAM Range
Extender. With Seamless Roaming, your enabled wireless devices will
automatically switch to the strongest Wi-Fi signal, so you won't have to
manually connect to the router or range extender when you move from one room to
another--or even to your garden.** This means that you can move freely
throughout your home while video chatting or streaming videos without
experiencing dropped calls or buffering.
Pair a MAX-STREAM range extender such as the RE7000 with the AC5400 for more
efficient home Wi-Fi that delivers stronger, more powerful Wi-Fi signal to all
your devices.
BACKED BY 3-YEAR WARRANTY AND TECH SUPPORT
With its ability to perform double duty as a home office and entertainment
router, the AC5400 merits a premium level of support. For this reason, it's
backed not only by a three-year warranty, but also by a three-year tech support
guarantee.
POWERFUL PROCESSOR FOR SUPERCHARGED WI-FI
If you're working in your home office, you can quickly download large files
thanks to the MAX-STREAM's 1.4 GHz dual-core processor, which delivers the
performance necessary for seamless videoconferencing and fast file transfer. The
AC5400 is capable of handling multiple high-speed data streams at
once--delivering faster Wi-Fi speeds to more devices.
ADVANCED SECURITY FEATURES FOR A SECURE CONNECTION
With the MAX-STREAM AC5400 MU-MIMO Gigabit Wi-Fi Router (EA9500), your work
files, data, and home network information are safely connected with WPA/WPA2
encryption and an SPI firewall.
SMOOTH 4K VIDEO STREAMING WITH BLAZING-FAST WI-FI SPEEDS
The MAX-STREAM AC5400 offers three independent Wi-Fi bands that deliver
extremely fast combined speeds of up to 5.3 Gbps.* Tri-Band technology delivers
up to double the Wireless-AC performance of a dual-band router. High-bandwidth
applications like videoconferencing and movie streaming are ideal for the two
high-speed 5 GHz bands, while lower-bandwidth devices like older wireless-N and
-G computers can utilize the 2.4 GHz band.
HIGH-PERFORMANCE ANTENNAS FOR MAXIMUM COVERAGE
The router features eight adjustable external antennas, which can be
positioned for optimal performance. They provide powerful streams of data to
your devices, ensuring complete Wi-Fi coverage throughout your home. Unlike the
two or three data streams found on other routers, the AC5400 delivers four
simultaneous streams per band for stronger, faster performance.
IMPROVED MOBILE SPEED AND RANGE WITH BEAMFORMING
Play video games, listen to music, check email, shop, stream movies, and
more--without having to worry about signal drop-off. Beamforming technology
directs Wi-Fi signals to each of your mobile devices. This focused direction
provides increased signal strength and coverage.
CONNECT WIRED DEVICES WITH USB AND GIGABIT ETHERNET
PORTS
Eight Gigabit Ethernet ports let you connect an array of wired devices for
enhanced file transfer speeds and stability--up to 10x faster than Fast
Ethernet. Two USB connections--including one fast USB 3.0 port--are ideal for
connecting shared storage devices or printers.
CUSTOMIZE AND MANAGE YOUR HOME WI-FI ANYTIME, ANYWHERE
With the Linksys Smart Wi-Fi App, you can closely monitor and manage your
home Wi-Fi remotely using a smartphone or tablet.
With the Linksys Smart Wi-Fi App, you can closely monitor and manage your
home Wi-Fi remotely using a smartphone or tablet.
- Guest Access: Create a separate, password-protected Wi-Fi network for up
to 50 guests and easily share the password.
- Parental Controls: Ensure a safe Internet experience for your kids -- even
when you're away from home. Restrict access to inappropriate or distracting
content, control usage, and block specific devices from accessing the
Internet.
- Device Prioritization: You can prioritize devices that need the most
speed.
QUICK AND EASY SETUP
Managing your home Wi-Fi with Linksys Smart Wi-Fi is fast and easy:
1. Set up your home Wi-Fi using a Linksys Smart Wi-Fi Router.
2. Download the free Linksys Smart Wi-Fi App.
3. Use Your Mobile Device to Manage Your Home Wi-Fi.
Specifications
Wi-Fi
Technology |
AC5400 MU-MIMO Tri-band
Gigabit, 1000+2166+2166 Mbps |
|
|
Key
Features |
Tri-Band (5 GHz + 5GHz
+ 2.4 GHz) |
|
4x4 AC,
MU-MIMO |
|
USB 3.0
Port |
|
Dual-Core
CPU |
|
Beamforming
Technology |
|
8 Adjustable
Antennas |
|
Smart
Wi-Fi |
|
|
Network
Standards |
802.11b |
|
802.11a/g |
|
802.11n |
|
802.11ac |
|
|
Wi-Fi
Speed |
AC5400 (N1000 + AC2166
+ AC2166) |
|
|
Wi-Fi
Bands |
2.4 and 5 GHz(2x)
(simultaneous tri-band) |
|
|
Wi-Fi
Range |
Very Large
Household |
|
|
Number of Ethernet
Ports |
1x Gigabit WAN
port |
|
8x Gigabit LAN
ports |
|
|
Other
Ports |
One(1) USB 3.0
port |
|
One(1) USB 2.0
port |
|
Power |
|
|
Antennas |
8x external adjustable
antennas |
|
|
Processor |
1.4 GHz
dual-core |
|
|
LEDs |
Status Indicator,
MU-MIMO Indicators, illuminated Linksys logo, Wi-Fi, Wi-Fi Protected
Setup, Power, Internet, LAN 18, USB 3.0, USB
2.0 |
|
|
Wireless
Encryption |
64/128-bit WEP, WPA2
Personal, WPA2 Enterprise |
|
|
Operation
Modes |
Wireless
Router |
|
Access Point
(Bridge) |
|
|
Storage File System
Support |
FAT |
|
NTFS |
|
HSF+ |
|
|
Easy
Setup |
Browser-based
Setup |
|
Linksys Smart Wi-Fi
Setup |
|
|
Certified Operating
Systems |
Windows 7, Windows
8.1 |
|
|
Minimum System
Requirements |
Internet Explorer
8 |
|
Safari 5 (for
Mac) |
|
Firefox
8 |
|
Google
Chrome |
|
|
Dimensions
(LxWxH) |
264.52 x 318.15 x 66.66
mm (10.41 x 12.53 x 2.62 in.) without antennas |
|
|
Weight |
1727.7 g (60.94
oz) |
|
|
Security
Features |
WPA/WPA2 |
|
128 bit AES link
encryption |
|
WEP |
|
|
Regulatory
Compliance |
FCC class
B |
|
|
Power
Supply |
|
Input |
100-240V ~ 50-60Hz;
Output: 12V, 5A |
Package Contents
- Linksys AC5400 Tri-Band Wi-Fi Router, EA9500
- Quick Start Guide
- 8 Antennas
- Ethernet Cable
- Power Adapter
- CD-ROM with Documentation
