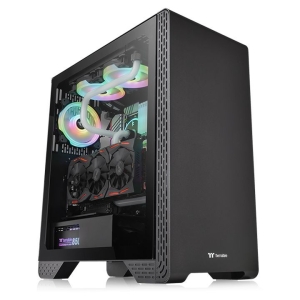

Thermaltake S300 Tempered Glass Mid-Tower Chassis
Overview
S300 TG Mid-tower case comes with one tempered glass panel on the left, one
preinstalled 120mm standard fan at the rear, supporting motherboards up to
ATX.
TT Premium
To continue achieving the corporate mission of delivering the perfect user
experience, Thermaltake developed TT Premium with the essence of combining
supreme quality products with a new logo design. TT Premium is far more than
just a guarantee of quality. Behind the name, it represents the passion in DIY,
Modding and Thermaltakes desire to be the most innovative brand in the PC
hardware market. To satisfy the demand of the high-end PC users, TT Premium
follows its core values of Excellent Quality, Unique Design, Diverse
Combinations and Boundless Creativity to provide a high performance PC product
for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should be held to. The Tt LCS certification was created so that we at
Thermaltake can designate to all power users which chassis have been tested to
be best compatible with extreme liquid cooling configurations to ensure you get
the best performance from the best features and fitment.
Compact and Elegant Design
Full metal construction with sleek front panel design, the S300 TG Mid Tower
Chassis showcases its simply and elegant design.
Built-in PSU Cover and Riser GPU Bracket
The built-in PSU cover with a ventilated design can improve airflow and hide
those unsightly cables. The integrated riser GPU support bracket not only
prevents the graphic card from sagging, but helps reduce the weight on the
motherboard PCI-E slots.
Patented Rotational PCI-E 7 Slot Design
With Patented Rotational PCI-E slots, you can choose to display your graphics
cards vertically which helps you gain flexible space for your
system.
Tempered Glass Window
The 4mm tempered glass window on the side of the S300 TG is built to be more
durable, scratch resistant, and transparent for an advanced view of your
hardware.
Dust Reduction
Two magnetic super fine fan filters with excellent protection and reduction
against dirt on the top and the right side and another removable filter at the
bottom.
Superior Hardware and Liquid Cooling Support
S300 TG has excellent expandability. It can support a CPU cooler with a
maximum height of 170mm, dual VGA expansion slot of up to 360mm in length
without a reservoir, and a power supply with a length of up to 200mm. Optimized
for excellent cooling capability with one 120mm exhaust rear fan preinstalled,
S300 TG is able to house up to three 140mm or two 200mm front fans, up to three
120mm fans on top, and a radiator of up to 360mm at the front to allow users to
build their desired high-end system.
Handy I/O Ports
One 3.0 USB and two 2.0 USB ports on the top-front panel to grant direct
access when needed.
Radiator Support List
Fan Support List
Specifications
|
P/N |
CA-1P5-00M1WN-00 |
|
SERIES |
S
Series |
|
MODEL |
S300
TG |
|
CASE
TYPE |
Middle
Tower |
|
DIMENSION (H X W X
D) |
493 x 230 x 508
mm |
|
(19.4 x 9.05 x 20
inch) |
|
NET
WEIGHT |
11.05 kg / 24.36
lbs. |
|
SIDE
PANEL |
4mm Tempered Glass x
1 |
|
COLOR |
Exterior & Interior
: Black |
|
MATERIAL |
SPCC |
|
COOLING
SYSTEM |
Rear (exhaust)
: |
|
120 x 120 x 25 mm
fan |
|
(1000rpm, 16
dBA) |
|
DRIVE
BAYS |
|
|
-ACCESSIBLE |
2 x 3.5 or 2.5 (HDD
Rack); 2 x 3.5(Without HDD Rack); |
|
-HIDDEN |
2 x 2.5 (HDD
Bracket) |
|
EXPANSION
SLOTS |
7 |
|
MOTHERBOARDS |
6.7 x 6.7 (Mini ITX),
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
|
I/O
PORT |
1 x USB 3.0, 2 x USB
2.0, 1 x HD Audio, |
|
PSU |
Standard PS2 PSU
(optional) |
|
FAN
SUPPORT |
Front: |
|
3 x 120mm, 3 x 140mm, 2
x 200mm |
|
Top: |
|
3 x 120mm, 2 x 140mm, 1
x 200mm |
|
Rear: |
|
1 x 120mm, 1 x
140mm |
|
RADIATOR
SUPPORT |
Front: |
|
1x 280mm, 1 x
360mm |
|
Top: |
|
1 x 240mm, 1x
280mm |
|
Rear: |
|
1 x 120mm, 1 x
140mm |
|
Right: |
|
1 x 360mm, (Without HDD
Rack); |
|
CLEARANCE |
CPU cooler height
limitation: 170mm |
|
PSU length limitation:
200mm |
|
VGA length limitation:
280mm(With reservoir) |
|
360mm(Without
reservoir) |
