Avocent SwitchView DVI 4-Port USB Switch w. Audio & 2-Port USB Hub
No Cables Inc.

No Longer Available

Part Number:

98478

(?) Brand:

Avocent

Manuf No:

4SVDVI10-107
4SVDVI10107

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Date Added:

11/12/2008

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

4SVDVI10107, 4SVDVI10-107

The Avocent SwitchView DVI 4-port KVM switch easily manages four USB DVI computers from a single USB keyboard, mouse and DVI monitor.

With video resolutions up to 1920 x 1200, the SwitchView DVI KVM switch is ideal for demanding desktop graphical applications. It supports both DVI monitors and flat panels. It also supports USB PCs, Mac G3/G4, and iMac computers and lets you share speakers and a microphone between PCs. An integrated USB hub and sleek design makes it a compact and versatile solution for the small office and home office desktop.

/uploadedImages/Products/Solutions/SMB_Server_Room/Desktop_Solutions/SwitchView_DVI_4-port_KVM_Switch/DVP0380113.jpg

SwitchView switching series offers affordable KVM solutions for todays home offices and small offices
Features include multi-media and DVI monitor support, an integrated USB hub and simple installation
Compact, space-saving KVM switches eliminate desktop clutter and provide efficient PC access

Features and Benefits

Feature	Benefit
User
PC access	Easily access up to twoDVI computers from a single USB keyboard, mouse and DVI monitor.
Run intensive graphical applications	Support for high-end applications using DVI or flat panel monitors
Ease of use	Pushbutton or multiple keyboard hotkeys for customized channel selections. Auto scanning allows easy monitoring of attached computers.
Hardware
Multi-media capable	You can share speakers and a microphone between PCs.
Includes USB 2.0 hub	Includes two USB 2.0 hub ports for sharing USB peripherals/devices
Multi-platform PC support	Support for USB PCs, Mac G3/G4, iMac
Operation
Hot-plug capability	You can add or remove a desktop PC or laptop without powering down the switch or other attached servers.
Performance
High video resolution	The 1920 x 1200 video resolution is ideal for desktop graphical applications.

Specifications

Mechanical
Height	1.7 in. (4.3 cm)
Width	10 in. (25.4 cm)
Depth	4.6 in. (11.68 cm)
Weight	3 lbs. (1.36 kg)
Environmental
Operating Temp	32 - 104 F (0 - 40 C)
Storage Temp	-4 - 140 F (-20 - 60 C)
Heat Dissipation	Passive heat dissipation
Power
Operating Voltage	5V
Power Frequency	60 Hz
Input power	DC 9V
Power Consumption	5 Watts
Supported Hardware
Computers	USB (2.0)
Monitors	DVI - Maximum resolution of 1920 x 1200 @ 60Hz
Peripherals	USB (2.0) Keyboard and Mouse
Standards
Approved Agency	En55022 Class B, EN55024,61000-3-2,6100-3-3, FCC 15 Class B, CE

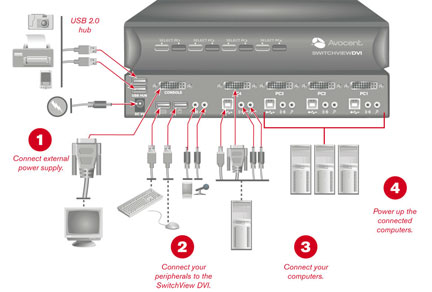

Diagram

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 Years

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
