Socket |
|
CPU |
|
CPU Compatibility |
|
| Intel |
775 |
Core 2 Duo |
Supports all speeds |
| Pentium 4 |
Prescott |
Up to 540 |
| Cedar Mill |
Up to 650 |
| Celeron D |
Supports all speeds |
| AMD |
AM2 |
Athlon 64 FX |
Up to 53 |
| Athlon 64 X2 |
Up to 5600+ |
| Athlon 64 |
Supports all speeds |
| Sempron |
| 754 |
Sempron |
Supports all speeds |
| Athlon 64 |
| 939 |
Athlon 64 FX |
Up to 53 |
| Athlon 64 X2 |
Up to 5600+ |
| Athlon 64 |
Supports all speeds |
| 940 |
Athlon 64 FX |
Up to 53 |
|
| |
 |
 |
No motherboard components with a height greater than 39mm, as well as the PSU, disk drives, VGA card, and RAM should be present within a 55mm radius from the center of the CPU. |
|
|
| |
 |
| |
 |
| |
| Dimensions |
109(L) x 107(W) x 63(H) mm |
| Weight |
434g |
| Base Material |
Pure Copper & Pure Aluminum |
| Dissipation Area |
2,890 |
|
| |
 |
| |
| Bearing Type |
2 Ball-Bearing |
| Speed(1) |
1,350rpm 10% ~ 2,400rpm 10% |
| Noise Level(2) |
17.0dBA 10% ~ 24.0dBA 10% |
|
| |
(1) The fan operates at 2,650rpm(27.5dBA10%) if directly connected to the motherboards power connector without the use of
 FAN MATE 2. |
| (2) Measured 1m distance away from source. |
| |
 |
 Dimensions : 70(L) x 26(W) x 26(H) mm |
Weight : 20g |
Output Voltage : 5V ~ 11V 2% |
| |
| Allowable Power : 6W or lower |
Connector : 3-Pin |
|
|
|
| |
 |
 |
Does not generate noise or vibration in Silent Mode. |
| |
 |

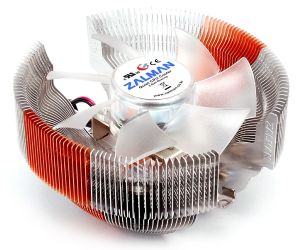

Pure copper and pure aluminum base materials ensure excellent heat dissipation. |
| |
 |
Compatible with single and dual core CPUs for Intel Socket 775 and AMD Sockets AM2/754/939/940. |
| |
 |
92mm fan inside the heatsink maximizes airflow. |
| |
 |
Adjustable fan speed controller(FAN MATE 2) enables control of noise and fan performance. |
|
|
|
| |
 |
| Zalman affixes a Computer Noise Prevention System (CNPS) mark to all components used for noiseless computers. |
| |
 |
 |
The computer system may automatically shut down when booting the computer after the system monitoring program outputs a warning stating that the CPU fan is rotating slowly. In such a case, fully turn the Speed Control Knob in the clockwise direction before rebooting to disable the 'CPU Fan Detected' option in BIOS, or set the CPU fan's rotational speed to 1,350rpm or lower in the system monitoring program. |
| |
| |
Note) Some motherboards fail to boot if the rotational speed of the CPU fan is below a certain rpm. However, booting can be possible even at low fan rpm if the BIOS settings are updated. For more information on updating the BIOS, please refer to the
website of the motherboard's manufacturer. There are motherboards which fail to detect the rpm while operating the cooler in Silent Mode, but this does not affect computing performance. |
| |
 |
Excessive force exerted on the fan may damage the fan, resulting in damage to the system. |
| |
 |
Zalman Tech Co., Ltd. is not responsible for any damages resulting from CPU Overclocking. |
|
