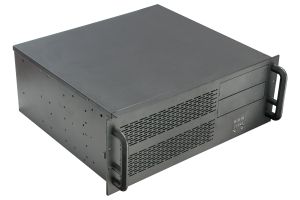

Norco RPC-430 Rackmount Server Chassis, No PSU - 4U
  • Short Depth Case, Only 15.25"
  • 6x Tool less HDD Bays
  • Supports mATX, ATX, CEB, EEB Motherboards

IMG 1 of 9
No Longer Available
Part Number:
125566
(?) Brand:
Norco Web Site
Manuf No:
RPC-430
RPC430
Shipping Weight:
25 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RPC430, RPC-430
Model No. RPC-430

Features

  • Super short depth, only 15.25 inch
  • 4U rackmount design,meets EIARS-310C standard.
  • 2 x 5.25" drive bays, 6 x 3.5 " drive bays
  • Easy drive mounting with screwless rails
  • Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7") motherboard
  • 2x80mm rear ball bearing fans for better ventilation
  • Two front USB ports
  • RoHS Compliant
  • Smooth border prevent lacerating your skin

    Rail Option:RL-20 or RL-26
Specification
Drive Bay Supports six 3.5" drives and two 5.25"drives
Cooling Fan 2 x 80mm ball bearing rear fans
Switch Power ON/OFF x 1, System reset x 1
Indicator Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connector Front USB port x2
Motherboard Compatibility Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7")
Power Supply Options Standard ATX, mini redundant power supply (H x W 5.91 x 3.31 inch)
Dimensions ( W x D x H ) 19" x 15.25" x 7" (483mm x 387mm x 176mm)
Packing Double boxes
Weight 6.8 kg/15 lb (NET) 10 kg/22 lb (GROSS)
Environment Temperature 0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity 5% to 95%,non-condensing
Vibration ( 5-500 Hz ) 1 Grms (Operating), 2 G (Non-Operating)
Shock 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
