All stock codes associated to this product
, AAFWC406R
For use with the following Addonics Storage Devices:
Pocket CD, Pocket DVD, Pocket DVD/CDRW, Pocket ExDrive, Pocket CDRW, Pocket DVD+/-R/RW, Mobile CDRW, Mobile DVD/CDRW, Mobile DVD+/-R/RW, Combo Hard Drive, Combo Hard Drive25, CDRW/Copier, DVD DigiCopier, CD DigiCopier, Jupiter Drive kit, Saturn drive kit.
Features

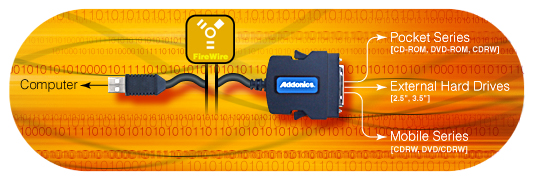

- Connect all Addonics storage devices with USIB connector to Firewire 400 ports.
- Support BUS power from Firewire port
- PLUG-AND-PLAY under Windows 98 SE/2000/XP/Vista, Mac OS 9.0 and above
- Supports all ATA based application software both in Windows and Mac OS platforms
- Includes 6-pin to 4-pin adapter cable to connect to iLink or DV port
Specifications
- Fully IEEE 1394A
- Universal drive support and allow different Addonics storage devices sharing the same bus.
- Power protection for Plug-And-Pay and Hot Insertion/Removal.
- ATA/ATAPI interface support all PIO, all DMA and Ultra DMA modes
- Bus powered - 5V - 25V input
- Output voltage: +5V and maximum 2 Amp current. Current is limited by host outputting current.
- Sustained Data Transfer Rate - up to 50 Mbytes/second max.
- Cable length: 3.19 ft. including connectors on both ends of the cable.
- MC-36 connector (to the storage device).
- Storage Connector dimension: 68 mm ( Firewire connector width ) x 48 mm( MC-36 connector width ) x 13 mm( height )
- Power Consumption: 300 mA typical
- Operating temperature and humidity: 0 C to + 75 C, 5% - 95% (non condensing)
- Storage temperature and humidity: -40 C to + 85 C, 5% - 90%
Software Specifications
- SBP2 protocol compatible
- Universal ATAPI CD-ROM driver handle ATAPI specification version 1.0, 1.1 and 1.6
- Universal ATA Hard Disk, Removable driver support HDD size larger than 8 GB
- Support ATAPI Floppies like LS120, ZIP and UHD's.
- Support CD-Recordable, CD-Rewritable, Magneto-Optical drives
- Using Default Drivers for Windows 98 SE, me, 2000, XP, Vista.
- Universal ATA Interface Module support for Mac OS's
