Addonics 5-Port Hardware Port Multiplier - Turn 1xSATA into 5xSATA-II
  • RAID 0, 1, 0+1, 5 or JBOD(Via Connected RAID Controller)

IMG 1 of 2
No Longer Available
Part Number:
127523
(?) Brand:
Addonics Web Site
Manuf No:
AD5SAPM
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Reviews Files Images & Video
All stock codes associated to this product
AD5SAPM
***Please Note: It is required that the Unit be connected to a Port Multiplier compatible SATA Host Controller for the System to see all drives. It is assumed that the driver for the SATA Host Cotroller is correctly installed.***

The Addonics 5X1 Internal SATA Port Multiplier (PM) enables SATA hard drives to be configured for a wide range of storage applications. Designed to be mounted onto the PCI bracket of any standard desktop, low profile system or rack mounted system, the Internal Port Multiplier can combine up to 5 SATA hard drives into a single SATA port onboard or on an add-in controller. The 5 drives can be set up as individual drive, as RAID set or with JBOD to become one large hard drive depending on the controller. When multiple PMs are combined with an Addonics 4-Port SATA controller*, you can attach internally a whopping 20 SATA hard drives to your computer via 1 controller!


Product Features
  • Connect up to 5 SATA hard drives via 1 SATA port
  • Compatible with CF memory card or Micro Drive using Addonics SATA CF adapters (ADSAHDCF or ADSACF)
  • Up to 3Gbits/sec
  • Compatible with Host Controllers using the SiI3124 and SiI3132 chipset. Click here for a list of Host Controllers using these chipsets.
  • Drives can be configured as RAID 0, 1, 0+1, 5 or JBOD when connect to one of the Addonics RAID5 controllers with PM support

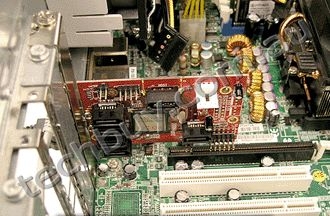

  • Designed to be mounted onto any available standard or low profile add-in card bracket on a standard desktop case.
  • Compliant with SATA II specification
  • Support hot swap
  • Supports SATA optical drives
  • OS Support: Windows 2000, XP, 2003, Vista, Mac OS X and above, Linux kernel 2.6 and above
  • Port Multiplier support under Linux
* Port Multiplier does not work with SATA controller that has no PM support. Check with your system supplier to confirm the PM support on your existing SATA port

Specifications

  • 5x1 native SATA II Port Multiplier
  • Full support for FIS-based switching and command-based switching SATA host controllers
  • Advanced data aggregation architecture for ultra-fast read and write operations with FIS-based switching controllers
  • LED Pin Headers for Host & 5 devices & Power On & System Ready
  • Auto-negotiation support for 1.5Gbps and 3.0Gbps SATA
  • Compliant with SATA II external specification
  • Support Hot-swapping and ATAPI device
  • OS independent
  • Dimension (W x D x H) - 85 mm x 22 mm x 49 mm.
  • 1 year warranty

Specification Sheets / Installation guides / Associated files

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

Average Visitor Review:
Number of Reviews Found: ( / 5 )

Reviewd By: Christopher
Visitors Age: 22
Visitors Rating:

Excellent

As advertised - 1 sata port into 5. Hard to find any faults with it: Upgrade in controller to SATAIII for extra bandwidth - Running 5x2TB Greens raidz on FreeNAS and peaking at 100mb/s over gbe network (So no real issue anyway). Reduction in price - Only one (that I trust) available in Aus. Very reluctant to go with brands such as Syba. Also dont need any expensive raid cards since raidz is software level.
